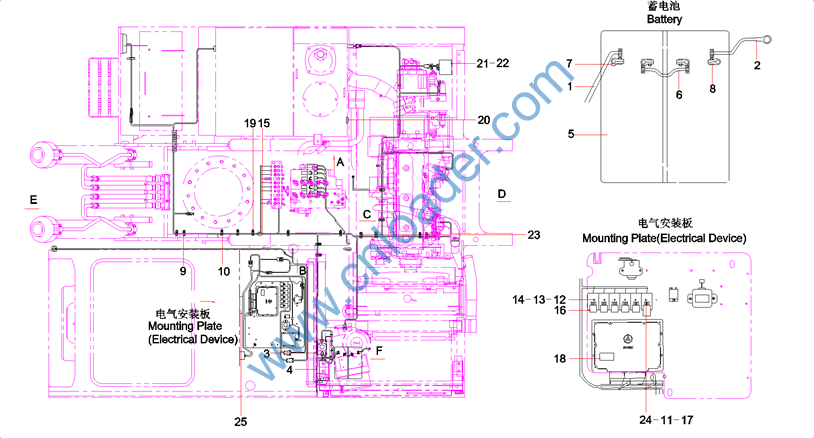

零件代码 PART NUMBER |
名称 PART NAME |
|
|
60203569 |
电源线 |
Power Supply Line |
|
60203568 |
电源线 |
Power Supply Line |
|
A210111000089 |
螺栓 |
Bolt M8×20GB5783 |
|
A239900000065 |
尼龙扎带 |
Strap, nylon |
|
60071633 |
蓄电池 |
Battery |
|
60012792 |
电源线 |
Wire, power supply |
|
60013322 |
A型蓄电池正极接头总成 |
A-Accumulator positive wire |
|
60013321 |
A型蓄电池负极接头总成 |
Negative connector GP, A-type |
|
60086356 |
线束固定夹 |
Clamp, harness |
|
60086357 |
线束固定夹 |
Clamp, harness |
|
60238782 |
垫圈5GB96.1 达克锈 |
Washer |
|
变更或见其他配置 |
螺钉 |
Screw M4×12GB67 |
|
变更或见其他配置 |
垫圈 |
Washer |
|
60060562 |
垫圈4GB97.1 达克锈 |
Washer |
|
11779657 |
胶套 |
Sleeve, rubber |
|
B240700000250 |
中间继电器 |
Relay, auxiliary |
|
24000509 |
垫圈5GB93 达克锈 |
Washer |
|
13178574 |
三一可组态液压控制器 |
Sany Encourage Hydraulic Control |
|
60119587 |
线束固定夹 |
Clamp, harness |
|
60060301 |
温度传感器 |
Sensor, temperature |
|
零件代码 PART NUMBER |
名称 PART NAME |
|
|
60041901 |
DK金属固定夹 |
Accessories, metal, fixed, plug-in |
|
A210111000195 |
螺栓 |
Bolt M10×16GB5783 10.9 |
|
60083322 |
线夹 |
Clip, wire |
|
A210210000003 |
螺钉 |
Screw |
|
60236122 |
步进电机驱动器 |
Step motor driver |
|

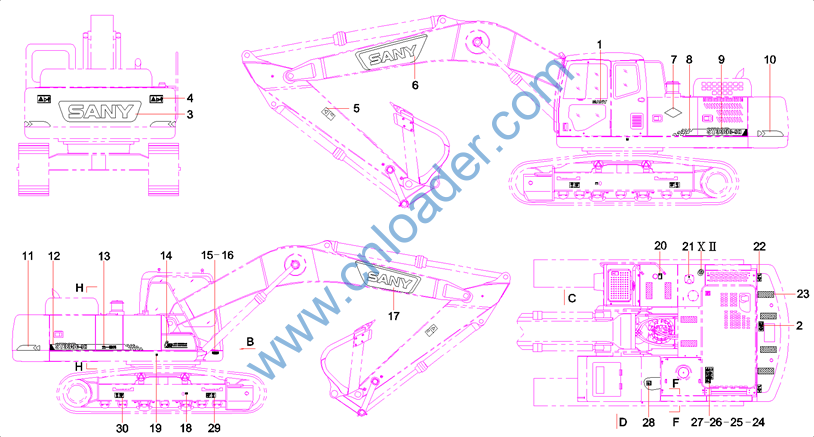

零件代码 PART NUMBER |
名称 PART NAME |
|
|
12842974 |
三一标贴 |
Label, power socket |
|
12728493 |
严禁脚踏排气提示 |
Decal,exhaust |
|
12722067 |
配重贴花 |
Decal, counterweight |
|
A820699001016 |
配重警示牌 |
Decal, warning, counterweight |
|
A820601990963 |
斗杆警示牌 |
Decal, warning, arm |
|
12722073 |
动臂左侧贴花 |
Decal, boom, left |
|
变更或见其他配置 |
左节能高效 |
Decal |
|
变更或见其他配置 |
身左贴花 |
Machine Model |
|
12780272 |
机器型号贴花 |
Machine Model |
|
12727594 |
配重反光膜 |
Film, reflective, counterweight |
|
12727593 |
配重反光膜 |
Film, reflective, counterweight |
|
变更或见其他配置 |
身右贴花 |
Machine Model |
|
变更或见其他配置 |
三一重机贴花 |
Decal |
|
变更或见其他配置 |
服务热线 |
Decal, service hotline |
|
10251978 |
铭牌 |
Nameplate |
|
A210510000007 |
铆钉 |
Rivet |
|
12722074 |
动臂右侧贴花 |
Decal, boom, right |
|
A820601990968 |
张紧装置警示牌 |
Decal, warning, tensioner |
|
12033801 |
重心标牌 |
Decal, center of gravity |
|
A820601991039 |
燃油箱标识牌 |
Decal, fuel tank |
|
零件代码 PART NUMBER |
名称 PART NAME |
|
|
A820601991037 |
液压油箱指示牌 |
Label, instruction, hydraulic tank |
|
A820601990926 |
防跌落警示牌 |
Decal, warning, falling |
|
A820699000369 |
长防滑贴 |
Anti-skid, long |
|
A820601990973 |
机顶罩警示牌 |
Decal, warning, engine hood |
|
A820699001017 |
皮带安全警示牌 |
Decal, warning, belt safety |
|
A820101050793 |
风扇打手警示牌 |
Decal, warning, fan |
|
A820699000948 |
防喷溅警示牌 |
Decal, warning, anti-spray |
|
11323371 |
严禁坐人警示牌 |
Decal, warning, no-sitting |
|
A820101990552 |
吊钩点标示图 |
Mark diagram, hook point |
|
A820601990934 |
装运固定点标志 |
Decal,tie-down,shipment |
|

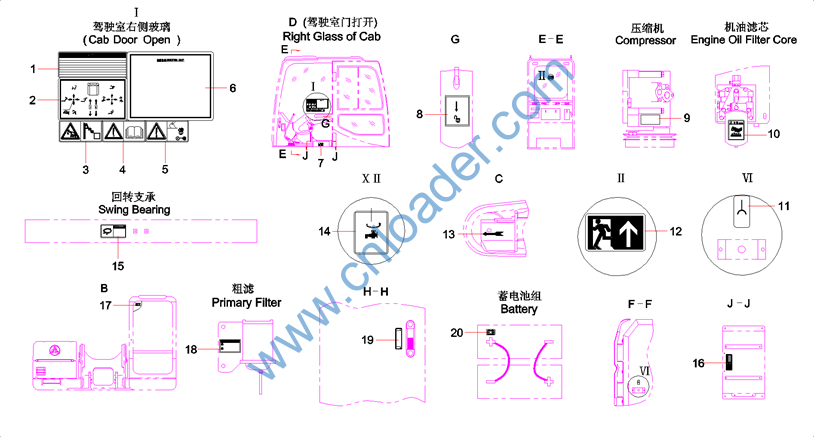

零件代码 PART NUMBER |
名称 PART NAME |
|
|
11648786 |
启动发动机前注意事项标识牌 |
Decal, warning, pre-start |
|
A820601990961 |
操纵标示图 |
Label, instruction, operation |
|
11464432 |
高压回避警示牌 |
Decal, warning, high-voltage |
|
11464425 |
查阅说明书警示牌 |
Label, warning, READ MANUAL |
|
11464441 |
钥匙断电警示牌 |
Decal, warning, power-off |
|
11464411 |
润滑图表 |
Graph, lubrication |
|
A820601990967 |
座椅调节指示牌 |
Decal, instruction, seat adjustment |
|
A820601990927 |
开锁标识牌 |
Label, UNLOCK |
|
A820699001284 |
冷媒更换说明 |
Decal, instruction, refrigerant |
|
A820101050798 |
烫手警示标牌 |
Decal, warning, hot surface |
|
A820699001109 |
电源插座标志 |
Label, power socket |
|
A820601990969 |
安全出口标志 |
Label, emergency exit |
|
12057746 |
前进方向标志 |
Decal, instruction, forward |
|
A820601990929 |
油箱放水标识 |
Label, drain, fuel tank |
|
12403551 |
回转支承警示牌 |
Rotary bearing caution |
|
11993325 |
铭牌 |
Nameplate |
|
A820699001019 |
前窗锁紧警示牌 |
Decal, warning, front window |
|
A820601990962 |
油水分离器放水标识 |
Decal, drain, water separator |
|
A820601990928 |
油位标签 |
Label, oil level |
|
A820601990972 |
电源标志 |
Label, power supply |
|

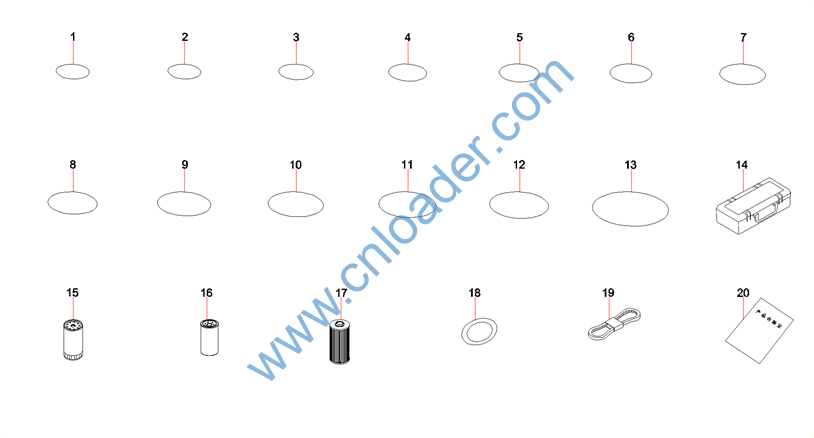

零件代码 PART NUMBER |
名称 PART NAME |
|
|
B230101000047 |
O形圈 |
O-ring |
|
A230101000247 |
O形圈 |
O-ring |
|
B230101000049 |
O形圈 |
O-ring |
|
A230101000243 |
O形圈 |
O-ring |
|
A229900001581 |
O形圈 |
O-ring |
|
B230101000356 |
O形圈 |
O-ring |
|
B230101000050 |
O形圈 |
O-ring |
|
A210609000136 |
O形圈 |
O-ring |
|
A210609000142 |
O形圈 |
O-ring |
|
B230101000215 |
O形圈 |
O-ring |
|
B230101000456 |
O形圈 |
O-ring |
|
B230101000445 |
O形圈 |
O-ring |
|
A210608000108 |
O形圈 |
O-ring |
|
10442742 |
随机工具 |
Tools, attached |
|
60201219 |
燃油精滤芯 |
Fuel Fine Filter Core |
|
60201220 |
燃油粗滤芯 |
Fuel Strainer Element |
|
B222100000494 |
机油滤清器 |
Filter,oil |
|
A229900005005 |
钥匙扣 |
Catch, lock |
|
A230106000403 |
V带 |
V-belt |
|
59000039 |
产品合格证 |
Certificate, product quality |
