SY335C9I2KH hydraulic excavator SANY DEB

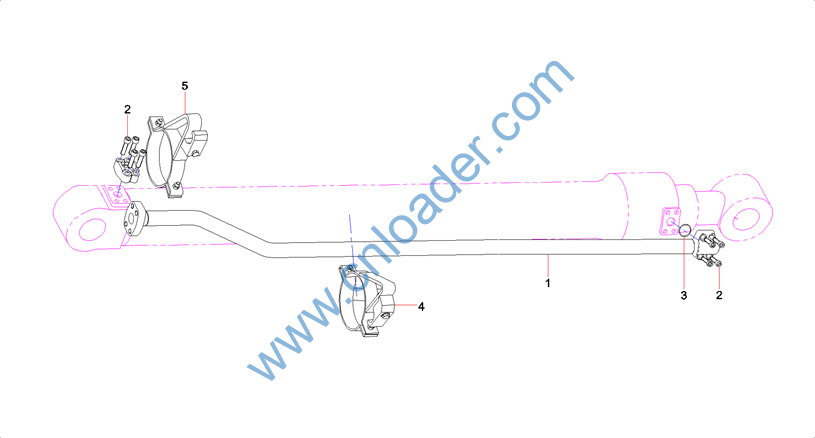

零件代码 PART NUMBER

名称 PART NAME

A210204000462

螺钉M12×45GB70.1 10.9级

Screw

B230101000456

O形圈

O-ring

A810201022142

钢管总成

Pipe GP, steel

11162112

管卡组合

Clip GP, pipe

A810201022143

钢管总成

Pipe GP, steel

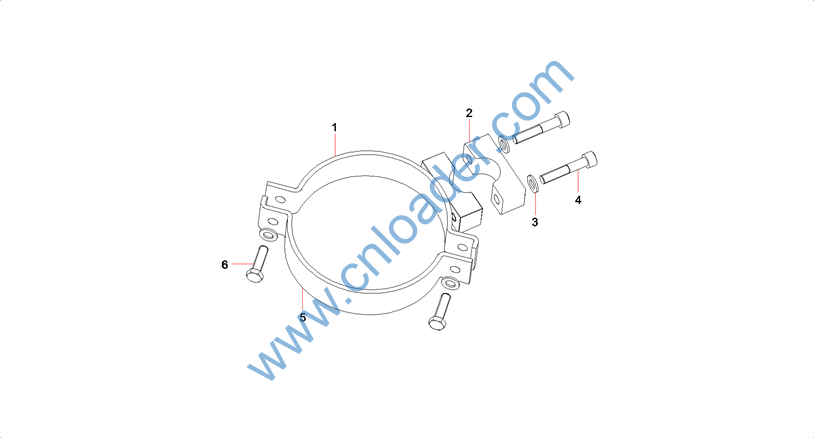

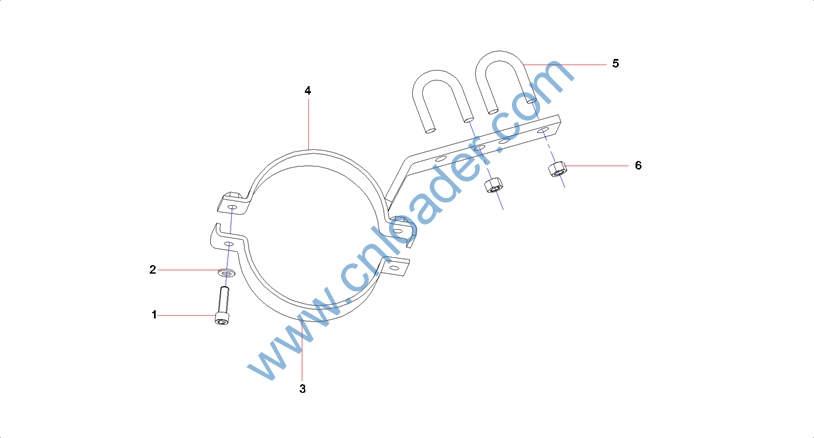

零件代码 PART NUMBER

名称 PART NAME

11162101

管卡焊接

Weldment, pipe clip

A820403000560

管夹

Clamp, pipe

A210405000011

垫圈

Washer 10GB97.1

A210204000011

螺钉

Screw

11160686

管卡

Clamp, pipe

A210111000025

螺栓

Bolt

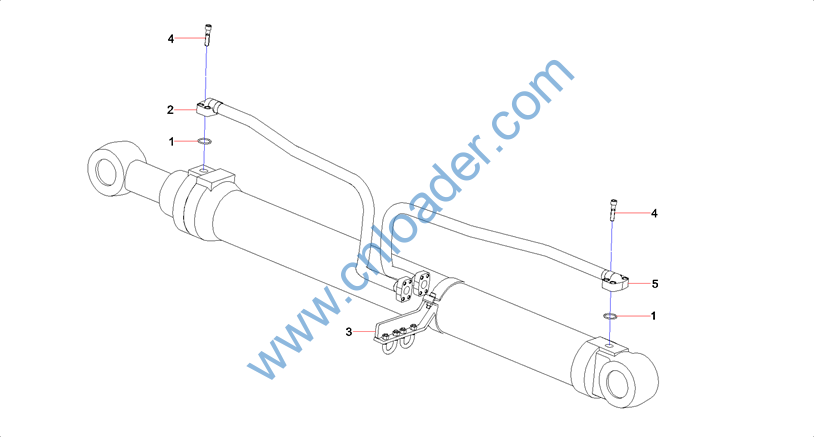

零件代码 PART NUMBER

名称 PART NAME

12709045

斗杆油缸有杆腔钢管总成

Steel Pipe

A210204000462

螺钉M12×45GB70.1 10.9级

Screw

B230101000456

O形圈

O-ring

12204196

管夹总成

tube clamp

12203289

管夹总成

tube clamp

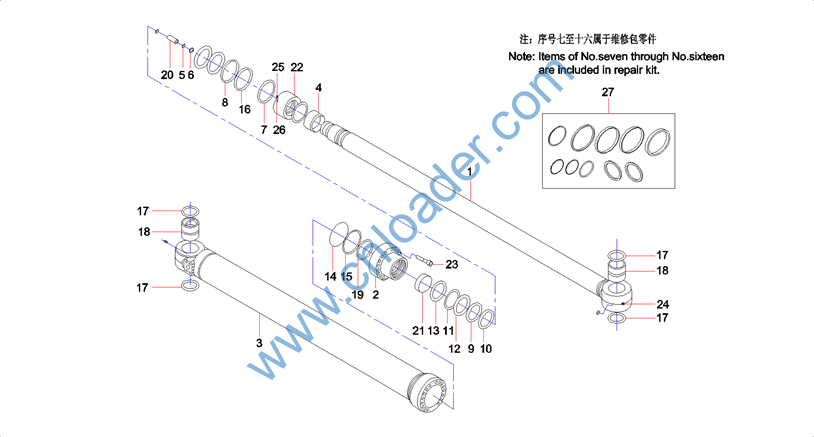

零件代码 PART NUMBER

名称 PART NAME

60193814

活塞杆

Rod, piston

60193815

端盖

Cover, end

60193816

缸体

Cylinder block

60193817

缓冲套

Sleeve, buffer

60065195

后缓冲套

Sleeve, buffer, rear

60153983

卡圈

Ring, retainer

60153986

纳污环

Ring, contaminant

60087462

SPGW密封圈

Ring, seal

60193818

DKBI防尘圈

Ring, dust

60193819

防尘圈用挡圈

Ring, dust

60097634

IUH密封圈

Ring, seal

60193820

开口挡圈

Ring, retainer, switch

60097633

HBY密封圈

Ring, seal, HBY

60193822

O形密封圈

Ring, seal

60153989

O形圈挡圈

Ring, retaining

60154039

成型导向环

Ring, guide

60046231

防尘圈

Ring, dust

60046228

B型轴套

Sleeve, shaft

60193821

挡圈

Ring, retaining

60174501

缓冲环

Ring, buffer








零件代码 PART NUMBER

名称 PART NAME

60193823

滑动轴套

Sleeve, sliding

60193824

活塞

Piston

A210204000267

螺钉M20×100GB70.1 12.9级

Screw

60169622

油杯

Cup, oil

21010039

钢球

Ball, steel

60154027

螺钉

Screw

60140867

30T斗杆油缸维修包

Repair kit, cylinder, arm

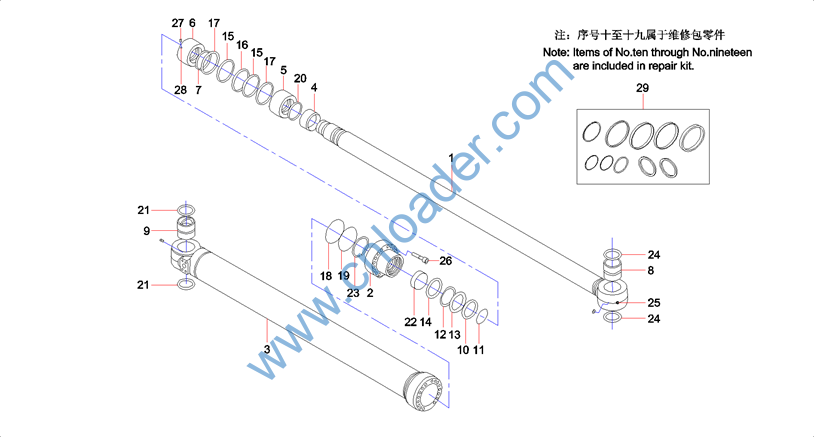

零件代码 PART NUMBER

名称 PART NAME

60193829

活塞杆

Rod, piston

60193830

端盖

Cover, end

60193831

缸体

Cylinder block

60193832

活塞

Piston

60065206

缓冲套

Sleeve, buffer

60154028

螺母

Nut

60174451

垫片

Gasket

60044357

B型轴套

Sleeve, shaft

60044359

轴套

Sleeve, shaft

60065342

防尘圈

Ring, dust

60065242

挡圈

Ring, retaining

60154049

轴用密封圈

Ring, seal

60154022

开口挡圈

Ring, retainer, switch

60065204

缓冲圈

Ring, buffer

60174498

成型导向环

Ring, guide

60174503

孔用密封圈

Ring, seal

60065218

纳污环

Ring, contaminant

60174489

O形密封圈

Ring, seal

60065236

O形圈挡圈

Ring, retaining

60065346

缓冲环

Ring, buffer








零件代码 PART NUMBER

名称 PART NAME

60044361

防尘圈

Ring, dust

60154009

滑动轴套

Sleeve, sliding

60153990

挡圈

Ring, retaining

60044360

防尘圈

Ring, dust

60169622

油杯

Cup, oil

60022043

螺钉

Screw

60174438

凹端螺钉

Screw, socket head

21010039

钢球

Ball, steel

60140866

30T动臂油缸维修包

Repair kit, cylinder, boom








零件代码 PART NUMBER

名称 PART NAME

B230101000456

O形圈

O-ring

12809824

右小腔钢管总成

Right locular steel tube

A810312990198

管卡组合

Clip GP, pipe

A210204000462

螺钉M12×45GB70.1 10.9级

Screw

12809826

右大腔钢管总成

Right large-lumen steel
