零件代码 PART NUMBER |
名称 PART NAME |
|
60153240 |
热敏电阻总成 Thermistor AS |
|
60049968 |
空调功率晶体管总成 Transistor AS, air conditioner |
|
60049952 |
感温包零件支架 Bracket, thermo-bulb parts |
|

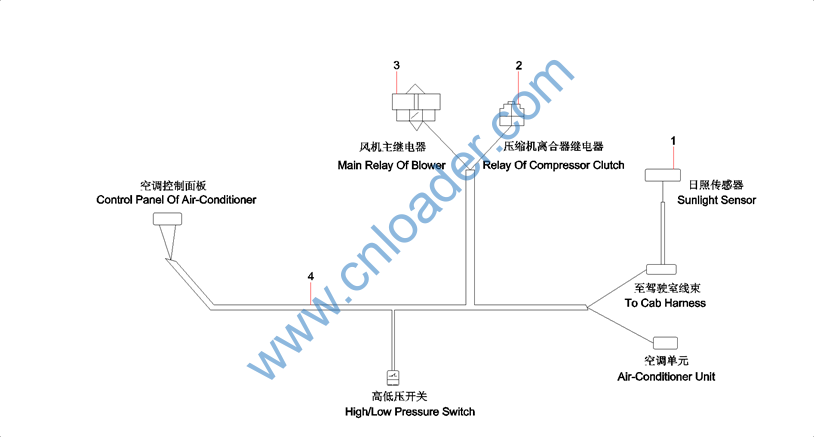

零件代码 PART NUMBER |
名称 PART NAME |
|
|
B240600000334 |
日照传感器 |
Sensor, sunlight |
|
B240700000473 |
继电器 |
Relay |
|
B240700000472 |
继电器 |
Relay |
|
10448933 |
空调连接线 |
Wire, connecting, air conditioner |
|

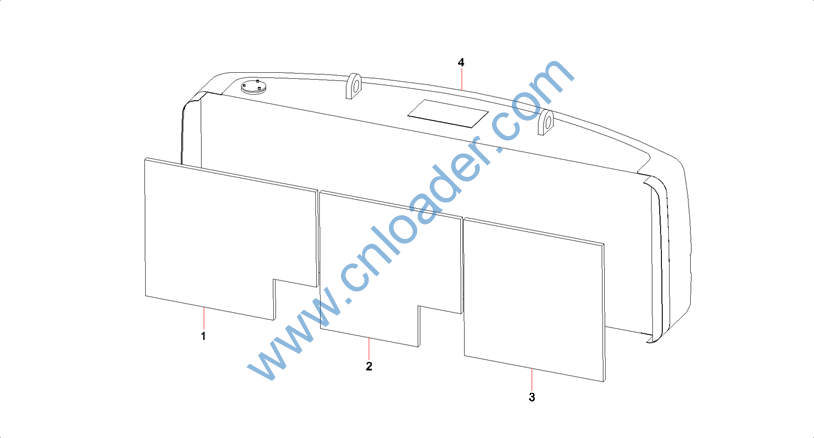

零件代码 PART NUMBER |
名称 PART NAME |
|
|
11287548 |
配重降噪海绵 |
Sponge, noise reduction, |
|
11287549 |
配重降噪海绵 |
Sponge, noise reduction, |
|
11287547 |
配重降噪海绵 |
Sponge, noise reduction, |
|
11598223 |
配重主体 |
Counterweight |
|

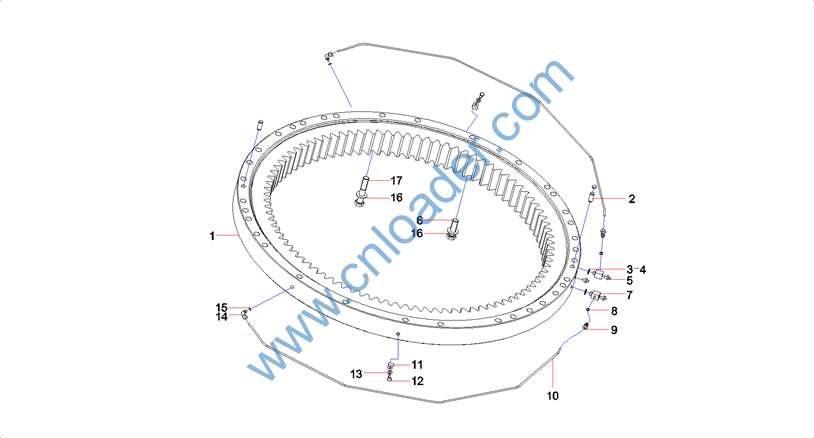

零件代码 PART NUMBER |
名称 PART NAME |
|
|
10954162 |
回转支承 |
Bearing,slewing |
|
A820301012418 |
销 |
Pin |
|
A820102010428 |
密封垫 |
Seal, ring |
|
10668938 |
密封垫 |
Gasket |
|
B229900000686 |
黄油嘴 |
Fitting, grease |
|
60199488 |
螺栓M24×85DIN931 10.9级 |
Bolt |
|
A820205000954 |
方接头 |
Joint, square |
|
A820102010474 |
垫圈 |
Washer |
|
A210711000010 |
管接头 |
Connector, pipe |
|
A820207010441 |
硬管 |
Pipe |
|
A820101118370 |
管夹 |
Clamp, pipe |
|
A210111000195 |
螺栓 |
Bolt M10×16GB5783 10.9 |
|
24000637 |
垫圈10GB97.1 达克锈 |
Washer |
|
A210770000195 |
管接头 |
Connector, pipe |
|
10668937 |
垫圈 |
Washer |
|
A210491000122 |
垫圈 |
Washer |
|
60039135 |
螺栓 |
Bolt |
|

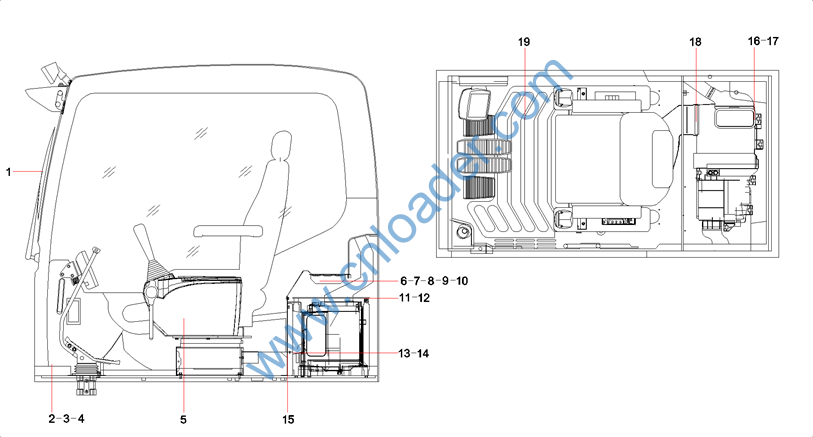

零件代码 PART NUMBER |
名称 PART NAME |
|
|
60211180 |
扬子驾驶室 |
Cab |
|
12076176 |
行走操纵机构 |
Control mechanism, travel |
|
A210111000204 |
螺栓 |
Bolt M12×40GB5783 10.9 |
|
A210111000104 |
螺栓M12×70GB5783 10.9级 |
Bolt |
|
12773451 |
座椅及操纵箱 |
Seat and control console |
|
60060548 |
垫圈12GB96.1 达克锈 |
Washer 12GB96.1 |
|
A210111000343 |
螺栓M8×20GB5783 10.9级 |
Bolt |
|
A210111000342 |
螺栓M8×16GB5783 10.9级 |
Bolt M8×16GB5783 10.9 grade |
|
60060565 |
垫圈8GB96.1 达克锈 |
Washer |
|
12828787 |
电气安装板 |
Installation plate for electrical |
|
12752753 |
支撑杆 |
Brace |
|
12845620 |
立板 |
frameSY215C9.1.5.7D |
|
10244287 |
内气盖板 |
Plate, cover, air, inner |
|
A229900010630 |
吹脚风道 |
Passage, air, foot-blowing |
|
A210210000030 |
螺钉 |
Screw |
|
60060562 |
垫圈4GB97.1 达克锈 |
Washer |
|
10567493 |
吹脚风道密封海绵 |
Sponge, sealing, floor air outlet |
|
12777161 |
底板架 |
Floor |
|

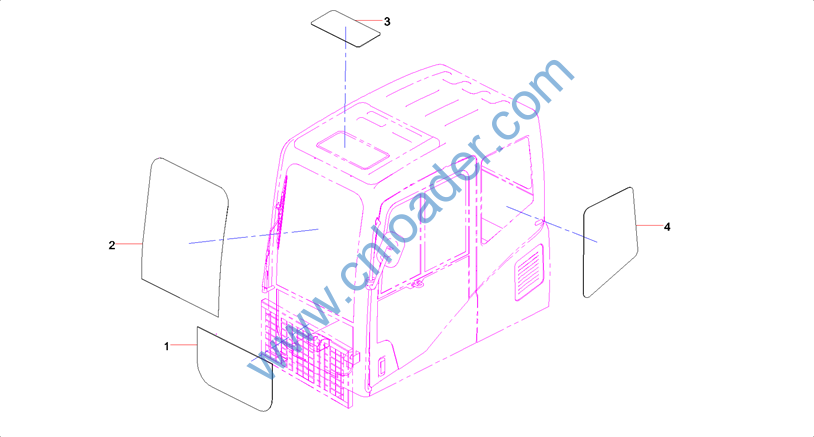

零件代码 PART NUMBER |
名称 PART NAME |
|
|
A230300000101 |
前围下固定窗玻璃 |
Glass, windshield, lower |
|
A230300000100 |
前围上移玻璃 |
Glass, windshield, upper |
|
A230300000108 |
顶天窗玻璃 |
Glass, roof window |
|
A230300000105 |
左侧后固定玻璃 |
Glass, fixed, rear left |
|

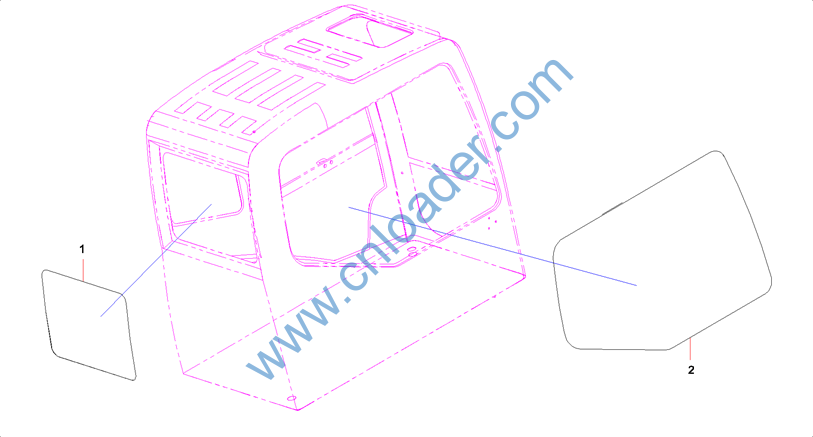

零件代码 PART NUMBER |
名称 PART NAME |
|
A230300000106 |
后风窗玻璃 Rear Windscreen Glass |
|
A230300000107 |
右侧固定玻璃 Glass, fixing, right |
|

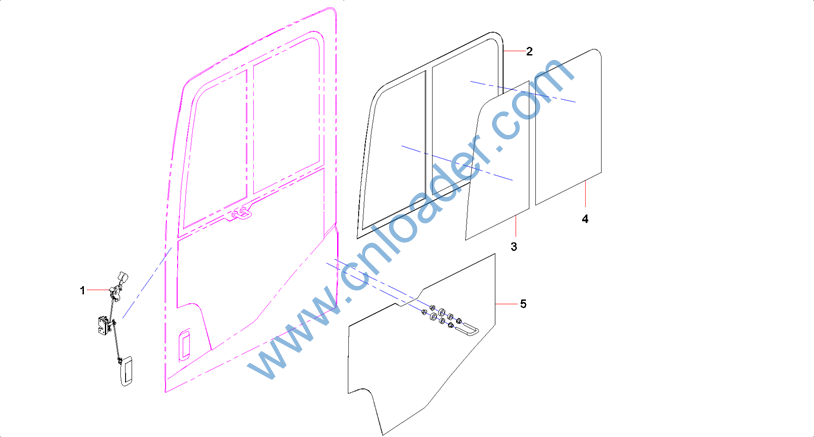

零件代码 PART NUMBER |
名称 PART NAME |
|
|
A229900003762 |
门锁总成 |
Lock |
|
60085462 |
驾驶室门窗 |
Window |
|
A230300000102 |
驾驶窗前玻璃 |
Glass,front,window,cab |
|
A230300000103 |
驾驶窗后玻璃 |
Glass, rear, cab window |
|
A230300000104 |
左侧下固定玻璃 |
Glass, fixed, left lower |
