零件代码 PART NUMBER |
名称 PART NAME |
|
|
60222778 |
O形圈 |
O-ring |
|
60222779 |
滤芯 |
Core, filter |
|
60222780 |
弹簧 |
Spring |
|
60222781 |
螺母 |
Nut |
|
零件代码 PART NUMBER |
名称 PART NAME |
|

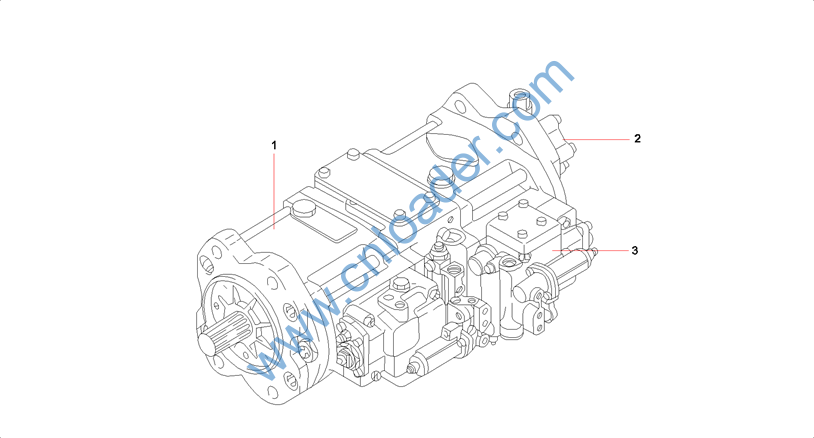

60155077 |
主泵 Main Pump |
|
60153895 |
先导泵 Leading Pump |
|
60153897 |
调节器 Regulator |
|
零件代码 PART NUMBER |
名称 PART NAME |
|
|
60075452 |
驱动轴 |
Shaft, drive |
|
60006939 |
轴承 |
Bearing, rear |
|
60125196 |
缸体 |
Cylinder body |
|
60125205 |
柱塞 |
Plunger |
|
60125190 |
滑靴 |
Boots,sliding |
|
60075467 |
压板 |
Plate, pressure |
|
60015817 |
球面衬套 |
Bushing, spherical |
|
60054345 |
弹簧 |
Spring |
|
60015757 |
滑板 |
Plate, sliding |
|
60015821 |
斜盘 |
Plate, swash |
|
60075449 |
倾斜衬套 |
Sleeve, incline |
|
60064450 |
斜盘支撑台 |
Support, swash plate |
|
60075480 |
油封盖 |
Cover, oil seal |
|
60125192 |
泵体 |
Pump body |
|
60075385 |
配油盖 |
Cover, oil distribution |
|
60125201 |
配油盘 |
Plate,oil,distribution |
|
60075438 |
螺钉 |
Screw |
|
60039400 |
油塞 |
Plug, oil |
|
60008728 |
紧定螺钉 |
Setscrew |
|
60008820 |
堵 |
Plug |
|
零件代码 PART NUMBER |
名称 PART NAME |
|
|
60075377 |
挡柱 |
Post, bumping |
|
60075376 |
挡柱 |
Post, bumping |
|
60008549 |
销 |
Pin |
|
60150563 |
O形圈 |
O-Ring |
|
60039422 |
O形圈 |
O-ring |
|
60075479 |
油封 |
Seal, oil |
|
60075424 |
挡圈 |
Ring, retaining |
|
60075423 |
挡圈 |
Ring, retaining |
|
60064417 |
1号太阳齿轮卡环 |
Gear, sun |
|
60008878 |
销 |
Pin |
|
60075426 |
吊环 |
Ring, lifting |
|
60075441 |
螺杆 |
Rod, threaded |
|
零件代码 PART NUMBER |
名称 PART NAME |
|
|
60075453 |
驱动轴 |
Shaft, drive |
|
60075431 |
花键接头 |
Coupler, spline |
|
60006941 |
轴承 |
Bearing, front |
|
60075476 |
轴承垫圈 |
Washer, bearing |
|
60075469 |
增压叶轮 |
Vane, boosting |
|
60150552 |
配油盖 |
Cover Valve |
|
60125200 |
配油盘 |
Plate,oil,distribution |
|
60075439 |
螺钉 |
Bolt |
|
60039371 |
内六角螺栓 |
Screw, socket head |
|
60038654 |
油塞 |
Plug, oil |
|
60075450 |
倾斜销 |
Pin, angular |
|
60075455 |
伺服柱塞 |
Plunger, servo |
|
60093160 |
O形圈 |
O-ring |
|
60125207 |
O形圈 |
O-ring |
|
60125209 |
O形圈 |
O-ring |
|
60075477 |
O形圈 |
O-ring |
|
60038716 |
O形圈 |
Seal, O-ring |
|
60038712 |
O形圈 |
Seal, O-ring |
|
60125208 |
O形圈 |
O-ring |
|
60039359 |
六角螺母 |
Nut, hex |
|
零件代码 PART NUMBER |
名称 PART NAME |
|
|
60075461 |
销 |
Pin |
|
60075440 |
螺杆 |
Rod, screw |
|
60100511 |
铭牌 |
Nameplate |
|
60038620 |
销子 |
Pin |
|
零件代码 PART NUMBER |
名称 PART NAME |
|
|
60008508 |
阀杆 |
Stem, valve |
|
60008493 |
阀座 |
Seat, valve |
|
60008523 |
挡圈 |
Ring, retaining |
|
60008500 |
弹簧 |
Spring |
|
60008496 |
调节螺杆 |
Screw, adjusting |
|
60008505 |
螺母 |
Nut 2903480-0032 |
|
60075382 |
机体 |
Body, machine |
|
60075409 |
齿轮 |
Gear |
|
60075410 |
齿轮 |
Gear |
|
60008491 |
滤芯 |
Element, filter |
|
60075381 |
机体 |
Body, machine |
|
60081461 |
螺钉 |
Screw |
|
60081462 |
螺钉 |
Screw |
|
60081460 |
螺钉 |
Screw |
|
60008724 |
堵 |
Plug |
|
60008504 |
垫圈 |
Washer |
|
60008736 |
销 |
Pin |
|
60008697 |
O形圈 |
O-ring |
|
60008701 |
O形圈 |
O-ring |
|
60075425 |
垫圈 |
Washer |
|
零件代码 PART NUMBER |
名称 PART NAME |
|
60125207 |
O形圈 O-ring |
