零件代码 PART NUMBER |
名称 PART NAME |
|
|
B210780000004 |
对开法兰 |
Flange, split |
|
B230101000456 |
O形圈 |
O-ring |
|
B210780000244 |
对开法兰 |
Flange, split |
|
11328553 |
密封海绵 |
Foam |
|
60129702 |
呼吸阀 |
Valve, breather |
|
A210204000130 |
螺钉 |
Screw M6×16GB70.1 |
|
A210204000337 |
螺钉M12×30GB70.1 10.9级 |
Screw |
|

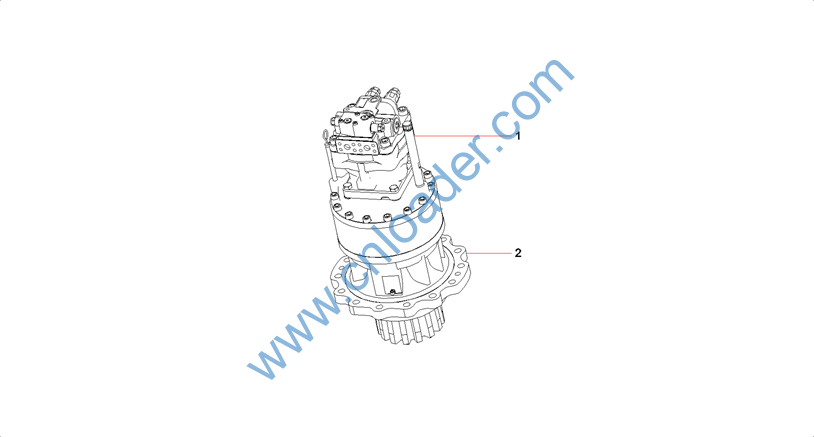

零件代码 PART NUMBER |
名称 PART NAME |
|
60180837 |
回转马达 Rotary motor |
|
60042755 |
减速机 Reduction Gear |
|

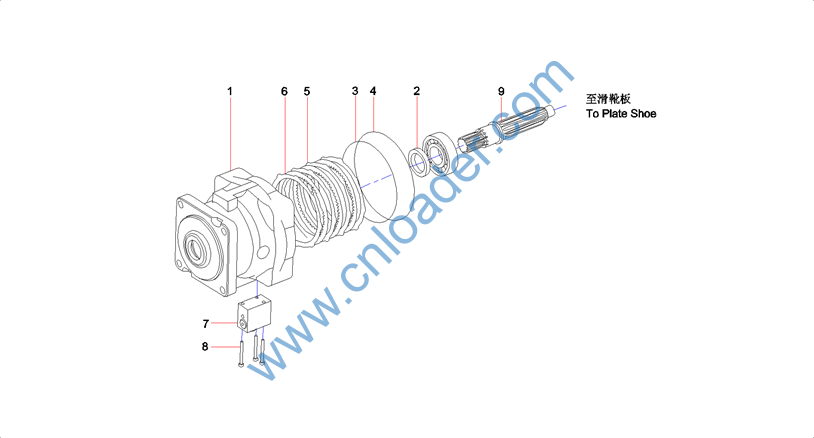

零件代码 PART NUMBER |
名称 PART NAME |
|
|
60081480 |
座 |
Seat |
|
60039294 |
油密封 |
Seal, oil |
|
60039425 |
O形圈 |
O-ring |
|
60039426 |
O形圈 |
O-ring |
|
B229900003195 |
30T回转制动主动片 |
Driven piece, swing brake |
|
B229900003194 |
30T回转制动从动片 |
Driven piece, swing brake |
|
B220401000688 |
回转马达延时阀 |
Valve, timing, swing motor |
|
60038566 |
内六角螺栓 |
Screw, socket head |
|
60081466 |
驱动轴 |
Shaft, drive |
|

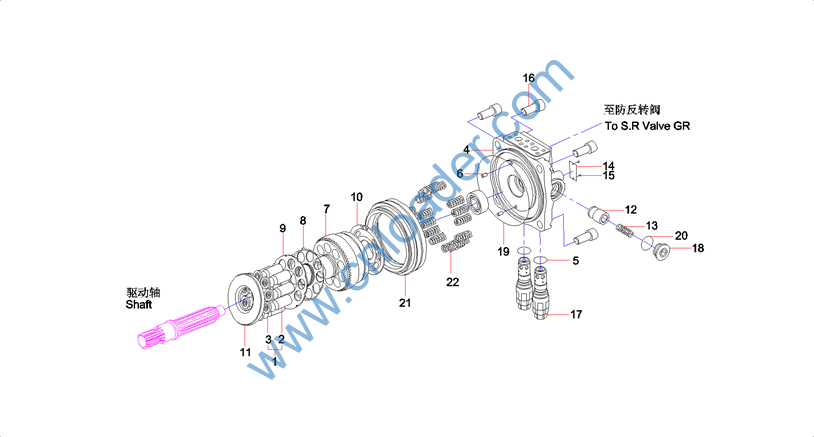

零件代码 PART NUMBER |
名称 PART NAME |
|
|
60081457 |
活塞组件 |
Piston GP |
|
60039347 |
活塞 |
Piston |
|
60081408 |
滑靴 |
Slipper |
|
60039358 |
壳体总成 |
Housing AS |
|
60038721 |
O形圈 |
O-ring |
|
60039385 |
销 |
Pin |
|
60039338 |
缸体 |
Cylinder block |
|
60039322 |
弹簧座 |
Seat, spring |
|
60039382 |
托架 |
Bracket |
|
60039375 |
配油盘 |
Tray, oil distribution |
|
60039336 |
阀座 |
Seat, valve |
|
60039351 |
活塞 |
Piston |
|
60081437 |
弹簧 |
Spring |
|
60038547 |
铭牌 |
Nameplate |
|
60038620 |
销子 |
Pin |
|
60039367 |
内六角螺钉 |
Screw, socket head |
|
60110639 |
回转马达溢流阀芯 |
Spool, relief valve, swing motor |
|
60039401 |
油塞 |
Plug, oil |
|
60039429 |
O形圈 |
O-ring |
|
60039423 |
O形圈 |
O-ring |
|
零件代码 PART NUMBER |
名称 PART NAME |
|
60039406 |
制动活塞 Piston, braking |
|
60039405 |
制动弹簧 Spring, retarding |
|

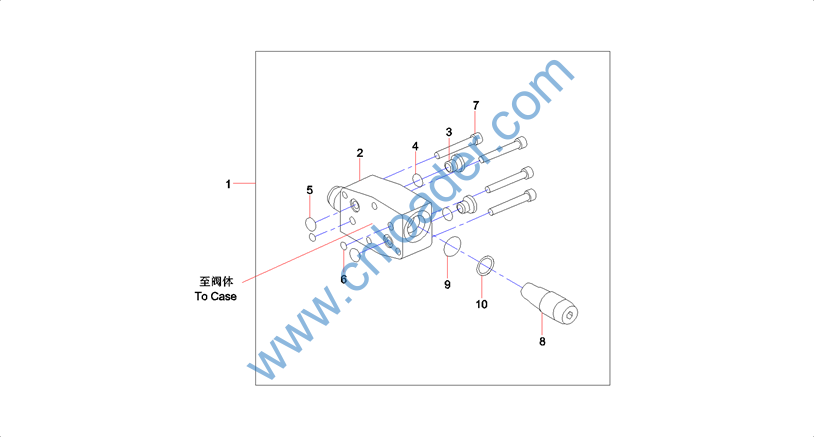

零件代码 PART NUMBER |
名称 PART NAME |
|
|
B220401000687 |
回转马达防摆阀 |
Valve, anti-reverse, swing motor |
|
60008793 |
机体 |
Body, machine |
|
60008711 |
堵 |
Plug |
|
60038711 |
O形圈 |
Seal, O-ring |
|
60039420 |
O形圈 |
O-ring |
|
60039424 |
O形圈 |
O-ring |
|
60039369 |
内六角螺钉 |
Screw, socket head |
|
60008753 |
防反转阀 |
Valve, anti-reverse |
|
60038715 |
O形圈 |
Ring, seal |
|
60039404 |
支承圈 |
Ring, supporting |
|

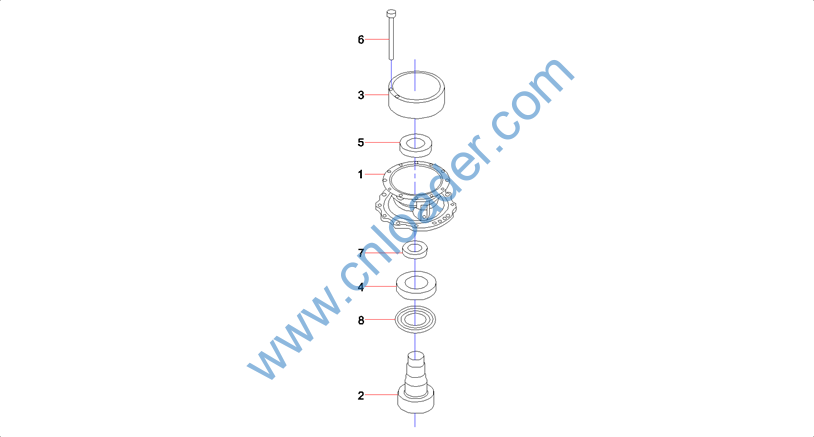

零件代码 PART NUMBER |
名称 PART NAME |
|
|
60110640 |
壳体 |
Housing |
|
60110641 |
驱动轴 |
Shaft, drive |
|
60081432 |
齿圈 |
Ring, gear |
|
60039303 |
圆柱滚珠轴承 |
Bearing, ball, cylindrical |
|
60039302 |
圆柱滚珠轴承 |
Bearing, ball, cylindrical |
|
60081464 |
内六角螺钉 |
Bolt |
|
60081495 |
油封 |
Seal, oil |
|
60081496 |
轴承密封件 |
Seal, bearing |
|

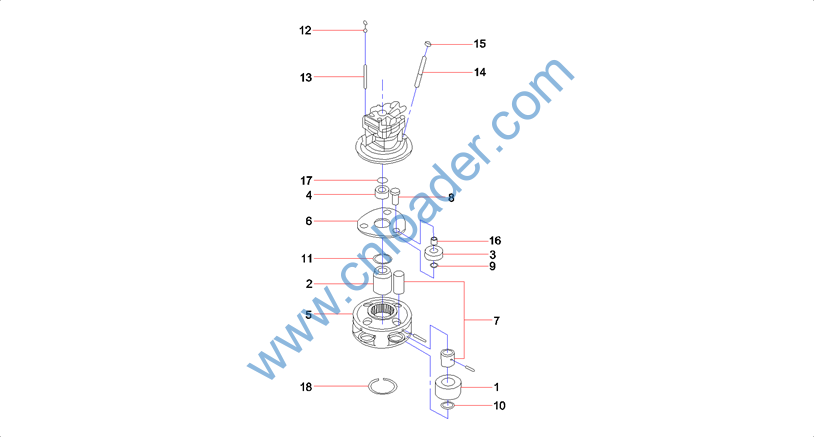

零件代码 PART NUMBER |
名称 PART NAME |
|
|
60081427 |
2号行星齿轮 |
Gear, planetary, No. 2 |
|
60081426 |
2号太阳齿轮 |
Gear, sun, No. 2 |
|
60081429 |
一级行星轮 |
Gear, planetary, first level |
|
60081425 |
1号太阳齿轮 |
Gear, sun, No. 1 |
|
60081431 |
2号支架 |
Bracket, No. 2 |
|
60081469 |
一级行星架 |
Carrier, planetary, first level |
|
60081428 |
二级行星轮组件 |
Gear GP, planetary, secondary |
|
60081470 |
一级行星轮轴 |
Shaft, planetary gear, first level |
|
60081403 |
垫 |
Gasket |
|
60081430 |
2号行星齿轮垫片 |
Gasket, No. 2 planetary gear |
|
60081404 |
垫 |
Gasket |
|
60081471 |
油尺 |
Gauge, oil |
|
60081472 |
油尺外管 |
Tube, oil gauge |
|
60008615 |
加油管 |
Pipe, oil feed |
|
B229900002437 |
呼吸管盖 |
Cover, breathing tube |
|
60081476 |
轴套 |
Sleeve, shaft |
|
60064417 |
1号太阳齿轮卡环 |
Gear, sun |
|
60081447 |
弹性挡圈 |
Ring, snap |
