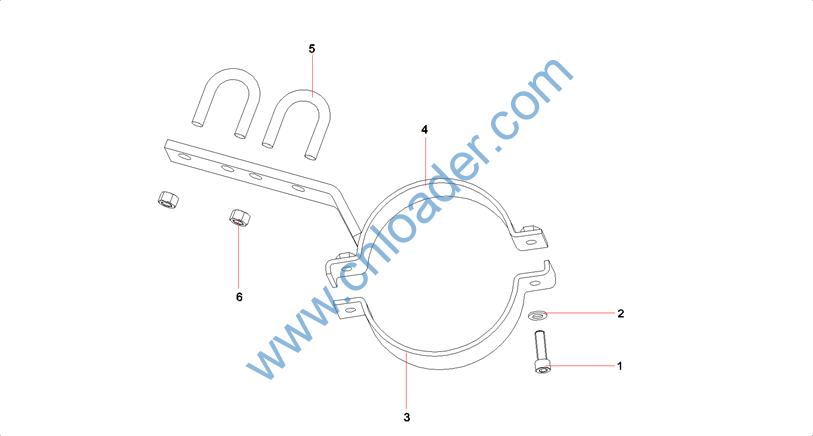

零件代码 PART NUMBER |
名称 PART NAME |
|
|
A210204000355 |
螺钉M10×40GB70.1 10.9级 |
Screw |
|
A210405000011 |
垫圈 |
Washer 10GB97.1 |
|
A820101311191 |
管卡 |
Clamp, pipe |
|
A810312990199 |
管卡焊接 |
Weldment, pipe clip |
|
A820301013877 |
U型螺栓 |
U-bolt |
|
A210307000031 |
螺母M12GB6170 10级 |
Nut |
|

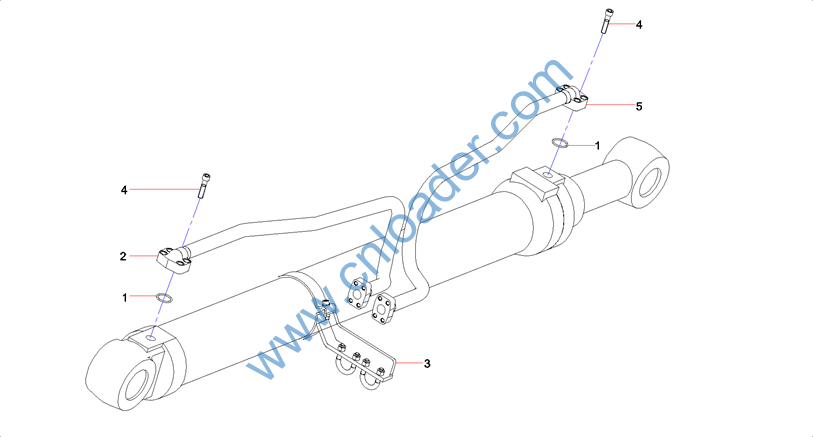

零件代码 PART NUMBER |
名称 PART NAME |
|
|
B230101000456 |
O形圈 |
O-ring |
|
12809821 |
左小腔钢管总成 |
Left locular steel tube |
|
A810201000218 |
管卡组合 |
Clip GP, pipe |
|
A210204000462 |
螺钉M12×45GB70.1 10.9级 |
Screw |
|
12809822 |
左大腔钢管总成 |
Left large-lumen steel |
|
零件代码 PART NUMBER |
名称 PART NAME |
|
|
A210204000355 |
螺钉M10×40GB70.1 10.9级 |
Screw |
|
A210405000011 |
垫圈 |
Washer 10GB97.1 |
|
A820101311191 |
管卡 |
Clamp, pipe |
|
A810201000219 |
管卡焊接 |
Weldment, pipe clip |
|
A820301013877 |
U型螺栓 |
U-bolt |
|
A210307000031 |
螺母M12GB6170 10级 |
Nut |
|

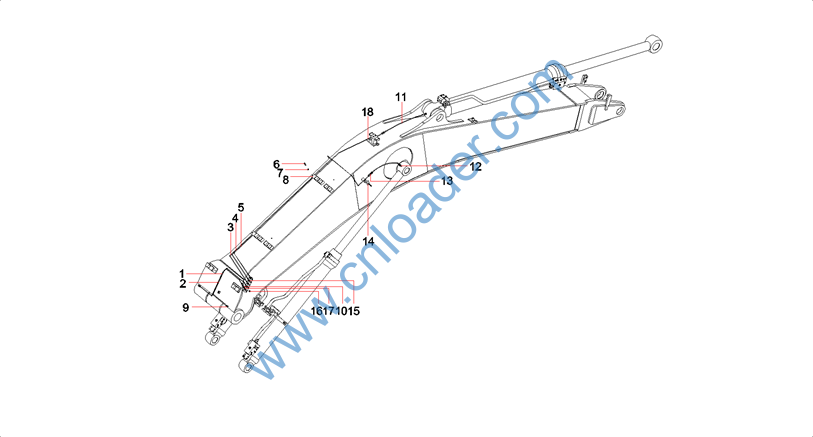

零件代码 PART NUMBER |
名称 PART NAME |
|
|
12109881 |
黄油管组件 |
butter pipe assemble |
|
12109905 |
黄油管组件 |
butter pipe assemble |
|
12109322 |
黄油管组件 |
butter pipe assemble |
|
12109786 |
黄油管组件 |
butter pipe assemble |
|
12109664 |
黄油管组件 |
butter pipe assemble |
|
A210111000348 |
螺栓 |
Bolt M8×12GB5783 10.9 |
|
24000633 |
垫圈8GB97.1 达克锈 |
Washer |
|
A820101211948 |
管夹 |
Clamp, pipe |
|
11102369 |
接头 |
Connector |
|
11102367 |
接头 |
Connector |
|
B230103000815 |
胶管 |
Hose, rubber |
|
A820205000858 |
管接头 |
Connector |
|
11102368 |
接头 |
Connector |
|
A820101211945 |
管夹 |
Clip |
|
A210434000007 |
垫圈 |
Washer 14JB982 |
|
B229900000686 |
黄油嘴 |
Fitting, grease |
|
A210434000005 |
垫圈 |
Washer 10JB982 |
|
A820101216692 |
单管管卡 |
Clip |
|

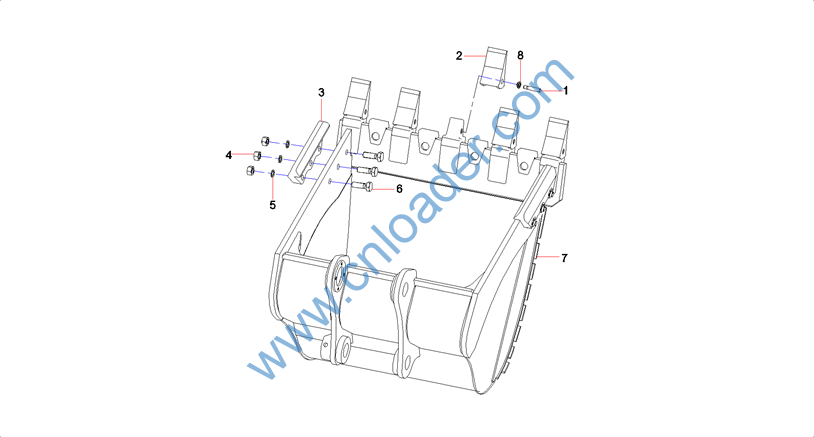

零件代码 PART NUMBER |
名称 PART NAME |
|
|
60116440 |
销子 |
Pin |
|
60116437 |
斗齿 |
Tooth, bucket |
|
A820403000889 |
侧齿 |
Cutter, side |
|
A210307000078 |
螺母 |
Nut |
|
A210402000048 |
垫圈 |
Washer |
|
A210110000424 |
螺栓 |
Bolt |
|
12002289 |
铲斗体 |
BucketSY335C.3.4.1SY335C.3.4.1 |
|
60116439 |
卡簧 |
Spring, snap |
|

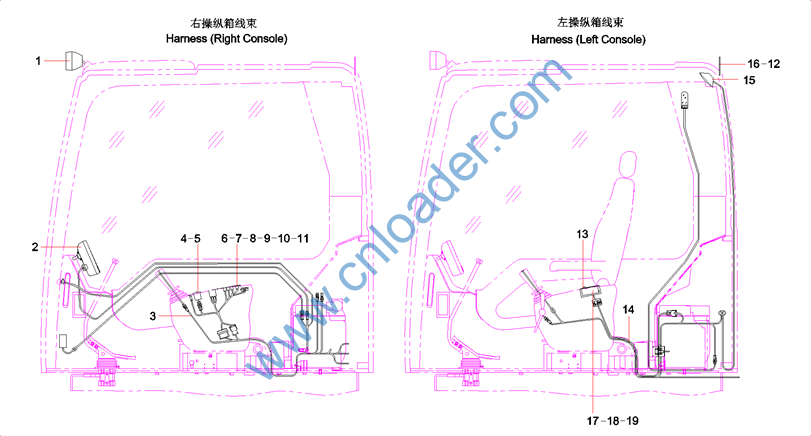

零件代码 PART NUMBER |
名称 PART NAME |
|
|
B241100000391 |
工作灯 |
Lamp, working |
|
变更或见其他配置 |
显示控制屏 |
Sany monitor |
|
12608771 |
驾驶室线束 |
Driver’s Cab |
|
60117463 |
旋钮开关 |
Dial, fuel control |
|
A241200001217 |
启动开关 |
Key Switch |
|
60053220 |
LED指示灯LAS3/24V 红 |
Lamp, indicator, LED, red |
|
60053221 |
LED指示灯LAS3/24V 黄 |
Lamp, indicator, LED, yellow |
|
11147618 |
控制开关线束 |
Harness, control switch |
|
A210111000011 |
螺栓 |
Bolt M10×20GB5783 |
|
A210111000088 |
螺栓 |
Bolt M8×16GB5783 |
|
24000511 |
垫圈8GB93 达克锈 |
Washer 8GB93 达克锈 |
|
60060300 |
天线延长线 |
Extension, antenna |
|
60205002 |
收音机 |
Radio |
|
A230200000170 |
线夹 |
Clip |
|
60023703 |
喇叭 |
Horn |
|
60090606 |
天线 |
Antenna |
|
A210204000115 |
螺钉 |
Screw |
|
A210204000340 |
螺钉M8×16GB70.1 10.9级 |
Screw |
|
24000633 |
垫圈8GB97.1 达克锈 |
Washer |
|

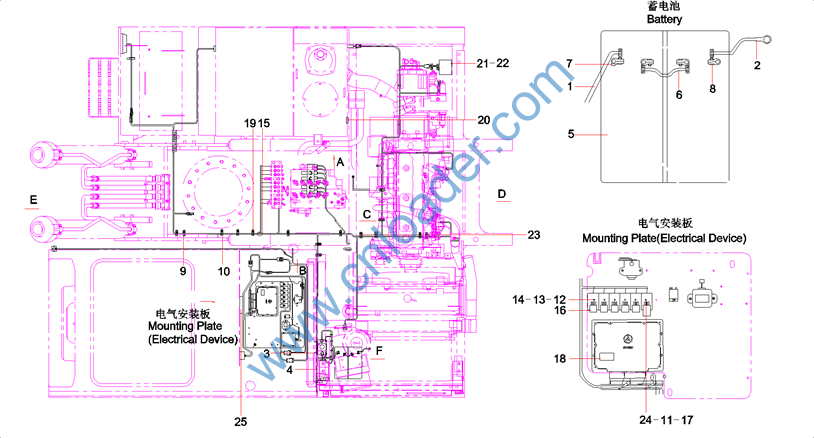

零件代码 PART NUMBER |
名称 PART NAME |
|
|
60012794 |
电源线 |
Wire, power supply |
|
60086354 |
线束固定夹 |
Clamp, harness |
|
13178499 |
车身线束 |
Vehicle Body Harness |
|
60086355 |
线束固定夹 |
Clamp, harness |
|
B241000000022 |
2芯圆形插座 |
Socket, two-wire |
|
A241300000059 |
熔断器盒 |
Box, fuse |
|
A229900001896 |
喇叭 |
Horn |
|
60149356 |
椭圆线夹 |
Clamp, wire, ellipse |
|
A230200000021 |
PVC电气胶带 |
Tape, electric, PVC |
|
60114255 |
工作灯 |
Lamp, work |
|
A210111000199 |
螺栓M12×20GB5783 10.9级 |
Bolt M12×20GB5783 10.9 grade |
|
24000513 |
垫圈12GB93 达克锈 |
Washer 12GB93 |
|

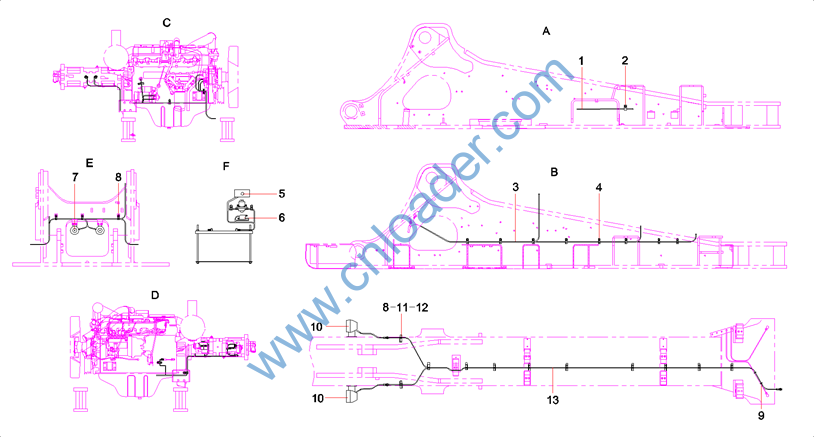

12757095 |
动臂灯线束 |
Work Lamp harness |
