SY335C9I2KH hydraulic excavator SANY FHT



零件代码 PART NUMBER

名称 PART NAME

A241300000019

熔断器5-6.7 国产

Fuse

A241300000018

熔断器

Fuse

A241300000017

熔断器

Fuse

A241300000016

熔断器

Fuse

B229900000686

黄油嘴

Fitting, grease

B229900000379

黄油嘴

Fitting, grease

60118712

随机附件箱

Box, accessories

A241100000596

手提工作灯

Work lamp, portable

A550300000008

工作服 售后人员用

Suit, working, service worker

变更或见其他配置

挖掘机保养光碟

CD, excavator maintenance

变更或见其他配置

液压挖掘机操作保养手册

Manual, operation and

12745158

SY335C9零部件图册

SY335C9 spare parts drawing

变更或见其他配置

三一挖掘机保养及保修手册

Manual, operation and

60102032

维修说明书

Maintenance Manual

变更或见其他配置

三一重机常用件价格目录

Catalog, spare part

B222100000640

空气滤清器安全滤芯

Element, safety, air cleaner

B222100000641

空气滤清器主滤芯

Element, primary, air cleaner

59006107

服务第一品牌手册

Brochure for No.1 Service Brand

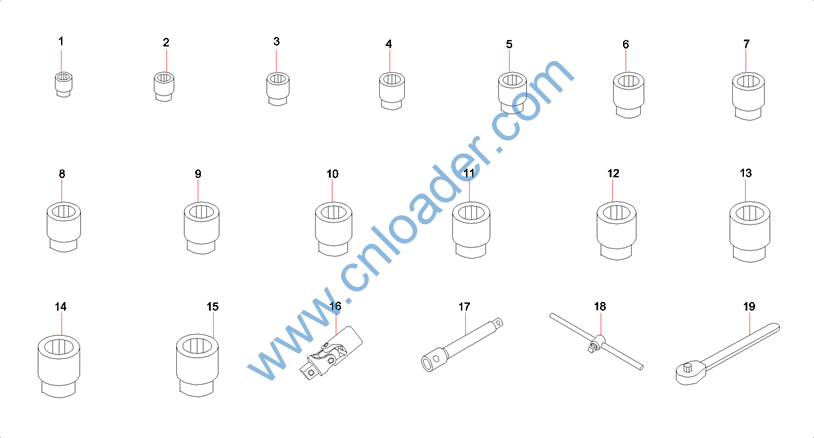

零件代码 PART NUMBER

名称 PART NAME

A260401010023

套筒

Socket

A260401010063

套筒

Socket

A260401010024

套筒

Socket

A260401010095

套筒

Socket

A260401010025

套筒

Socket

A260401010077

套筒

Socket

60001295

套筒

Socket

A260401010081

套筒

Socket

A260401010027

套筒

Socket

A260401010078

套筒

Socket

A260401010051

套筒

Socket

A260401010031

套筒

Socket

A260401010037

套筒

Socket

A260401010055

套筒

Socket

A260401010057

套筒

Socket

A229900007607

万向接头

Joint, universal

A260401010065

接杆

Rod, extension

60001293

滑行头手柄

Handgrip

A260401090010

可逆式棘轮扳手

Wrench, ratchet, reversible

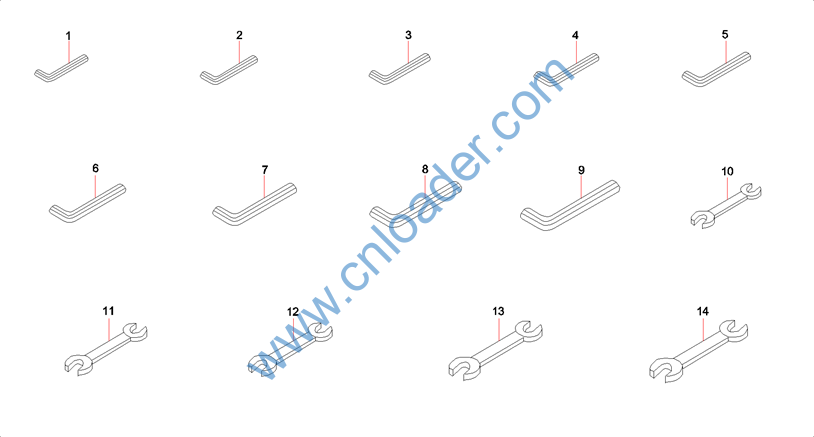

零件代码 PART NUMBER

名称 PART NAME

A260401020014

内六角扳手

Wrench, hexagon, inner

A260401020015

内六角扳手

Wrench, hexagon, inner

A260401020008

内六角扳手

Wrench, hexagon, inner

A260401020009

内六角扳手

Wrench, hexagon, inner

A260401020010

内六角扳手

Wrench, hexagon, inner

A260401020011

内六角扳手

Wrench, hexagon, inner

A260401020004

内六角扳手

Wrench, hexagon, inner

B260401020048

内六角扳手

Wrench, hexagon, inner

B260401020049

内六角扳手

Wrench, hexagon, inner

A260401030002

双头呆扳手

Spanner

A260401030001

双头呆扳手

Spanner

A260401030027

双头呆扳手

Spanner

A260401030005

双头呆扳手

Spanner, double-ended

A260401030029

双头呆扳手

Spanner

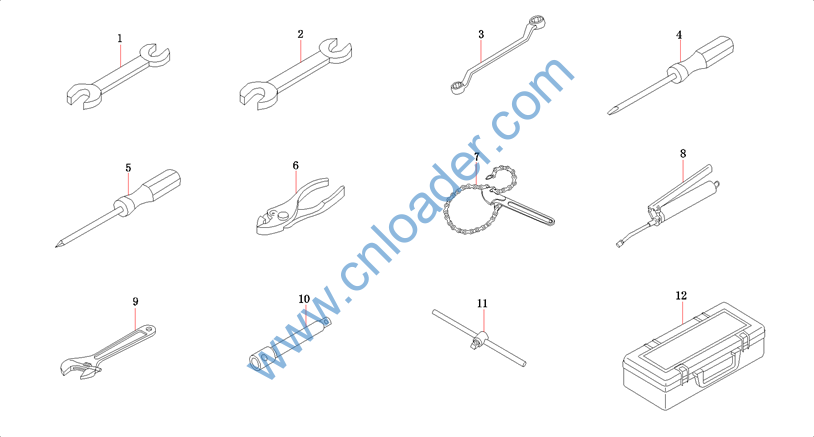

零件代码 PART NUMBER

名称 PART NAME

A260401030007

双头呆扳手

Spanner

A260401030008

双头呆扳手

Spanner

A260401030100

双头梅花扳手

Wrench – Box

A260402010022

一字槽螺钉旋具

Rotator, screw, slot

A260402020026

十字槽螺钉旋具

Rotator, screw, cross slot

A260404000002

钢丝钳

Cutter, wire

60001296

链条扳手20节

Wrench

B260409000015

高压黄油枪

Gun, grease, high pressure

A260401040004

活扳手

Spanner, adjustable

A260401010021

接杆

Rod, extension

60001294

滑行头手柄

Handgrip

A290000000155

手提工具箱

Toolbox, portable

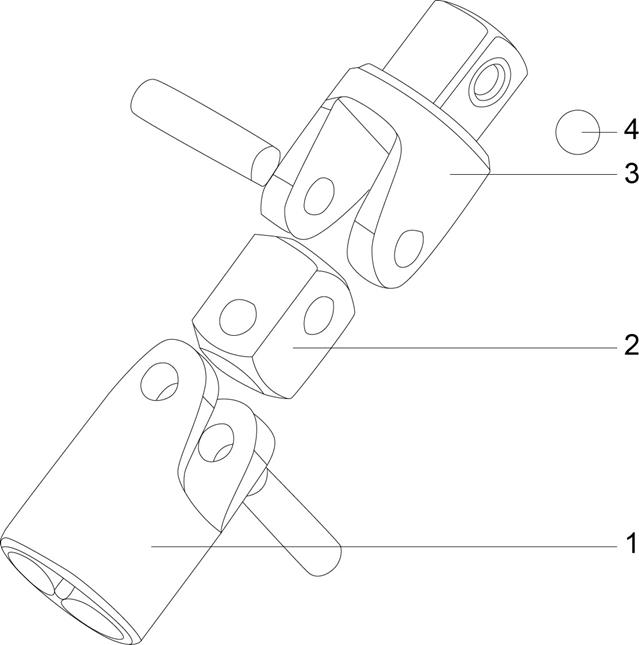

零件代码 PART NUMBER

名称 PART NAME

60153627

金属件

Metalwork

60153628

金属件

Metalwork

60153629

金属件

Metalwork

60153630

金属球

Metal ball

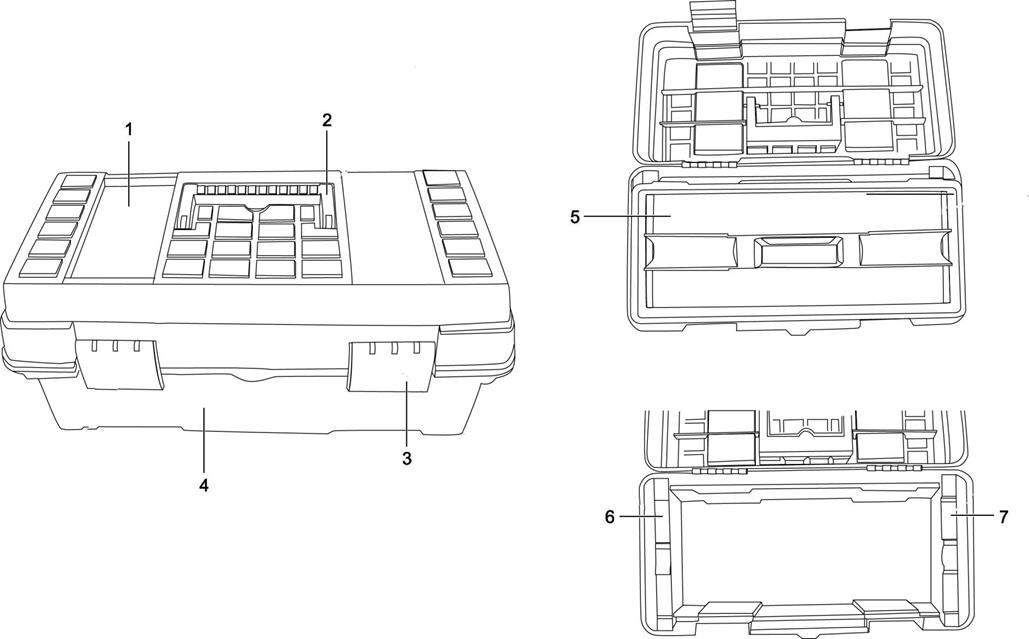

零件代码 PART NUMBER

名称 PART NAME

60153777

上盖

Cover, upper

60153697

把手

Handle

60153693

锁扣

Lock catch

60153713

底座

Base

60153827

托盘

Pallet

60153665

左架

Support, left

60153654

右架

Support, right

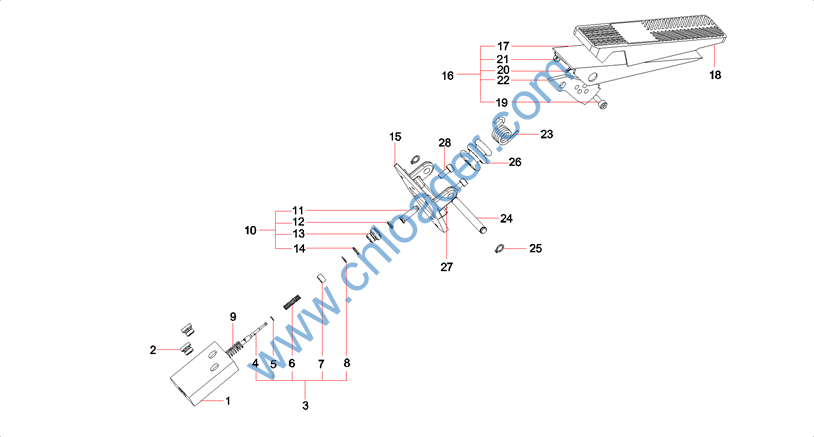

零件代码 PART NUMBER

名称 PART NAME

60209583

阀体

Body, valve

60209584

堵头

Plug

60209585

阀芯组件

Spool AS, valve

60209586

阀芯

Spool, valve

60082153

弹簧座

Seat, spring

60209587

弹簧

Spring

60082154

弹簧座

Seat, spring

60082140

挡环

Ring, retaining

60209588

弹簧

Spring

60209589

插销组件

Pin GP

60209590

推杆组件

Plunger GP

60209591

油封

Seal, oil

60209592

密封圈

Ring, seal

60038815

O形圈

O-ring

60209593

Plate

60209594

踏板组件

Pedal GP

60209595

踏板

Pedal

60209596

踏板面

Panel, pedal

A210204000220

螺钉M8×20GB70.1 10.9级

Screw M8×20GB70.1

A210405000007

垫圈

Washer 8GB97.1
