零件代码 PART NUMBER |
名称 PART NAME |
|
|
60083627 |
缸体 |
Block, cylinder |
|
60083636 |
支座 |
Support |
|
60083624 |
弹簧 |
Spring |
|
60083629 |
螺母 |
Nut |
|
60083623 |
锁片 |
Plate, lock |
|
60083628 |
拉杆 |
Rod, pull |
|
60083631 |
螺栓 |
Bolt |
|
A229900000869 |
垫片 |
Shim |
|
60083625 |
挡圈 |
Ring, retaining |
|
60083644 |
密封圈 |
Ring, sealing |
|
60083622 |
抗磨圈 |
Ring, wear |
|
60083643 |
防尘圈 |
Ring, dust |
|
60083637 |
轴 |
Shaft |
|
B229900000862 |
黄油阀 |
Valve, grease |
|
A229900000710 |
板 |
Plate |
|
24000611 |
垫圈 |
Washer |
|
23000015 |
螺栓 |
Bolt |
|
A210110000202 |
螺栓M20×80GB5782 10.9级 |
Bolt |
|
A210491000132 |
垫圈 |
Washer 20GB1230 |
|

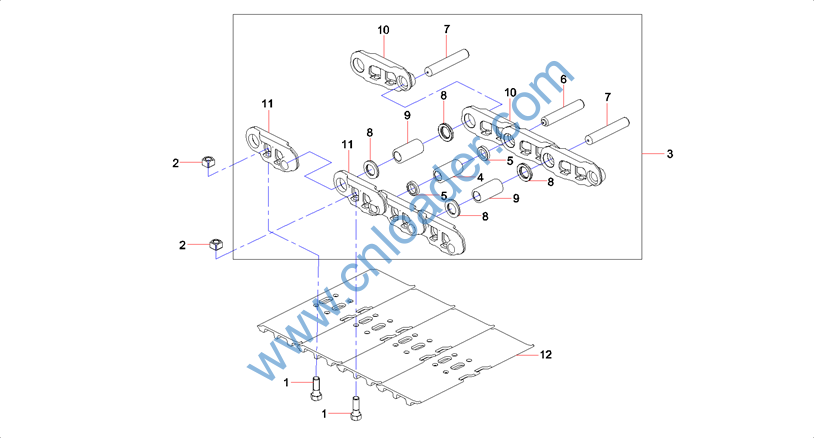

零件代码 PART NUMBER |
名称 PART NAME |
|
|
60019260 |
履带螺栓 |
Bolt,crawler |
|
60018960 |
履带螺母 |
Nut,crawler |
|
11574003 |
链轨总成 |
Track GP,chain |
|
11402652 |
主销套 |
Master bushSTC216MA-6045.1-1 |
|
11402654 |
垫片 |
Shim |
|
11402653 |
主销轴 |
Master pinSTC216MA-6045.1-2 |
|
11402655 |
销轴 |
Shaft,pin |
|
60019265 |
密封圈 |
Ring,seal |
|
11402166 |
销套 |
Bushing,pin |
|
11402657 |
右链轨节 |
Link,track,chain,right |
|
11402676 |
左链轨节 |
Link,chain,left |
|
60047802 |
履带板 |
Shoe,crawler |
|

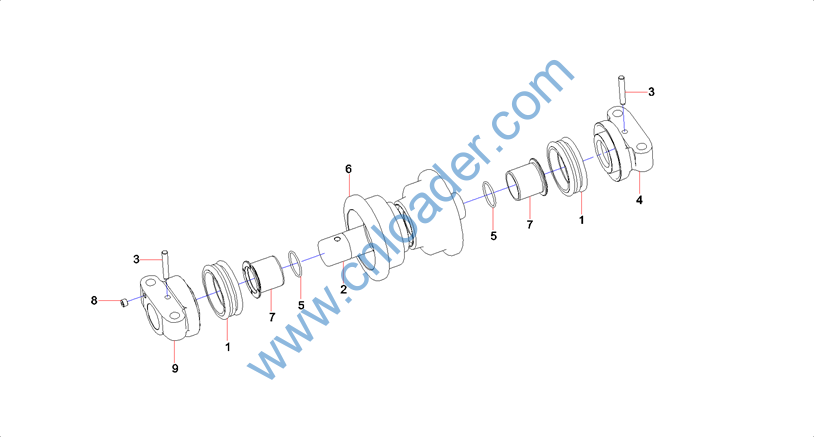

零件代码 PART NUMBER |
名称 PART NAME |
|
|
60047793 |
支浮动油封 |
Seal, oil |
|
11358476 |
轴 |
Shaft |
|
60047787 |
支圆柱销 |
Pin, cylindrical |
|
11358478 |
左轴端盖 |
left_coverSWZ216A-3 |
|
A210609000168 |
O形圈 |
O-ring |
|
11358482 |
支重轮轮体 |
Thrust wheel body |
|
60047784 |
支衬套 |
Sleeve |
|
60027515 |
闷头螺塞 |
Plug, screw |
|
11358477 |
右轴端盖 |
Cover,shaft,right |
|

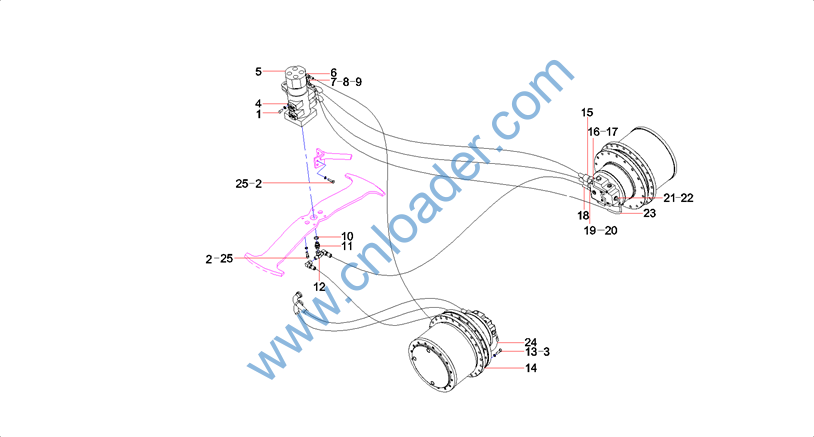

零件代码 PART NUMBER |
名称 PART NAME |
|
|
A210204000354 |
螺钉 M10×30GB70.1 10.9级 |
Screw M10×30GB70.1 10.9 |
|
24000639 |
垫圈12GB97.1 达克锈 |
Washer 12GB97.1 |
|
A210491000122 |
垫圈 |
Washer |
|
B210780000244 |
对开法兰 |
Flange, split |
|
60173157 |
回转接头 |
Joint, swivel |
|
B210780000418 |
管接头 |
Connector, pipe |
|
B210780000172 |
管接头 |
Connector, pipe |
|
A820205000839 |
接头 |
Connector |
|
A230101000247 |
O形圈 |
O-ring |
|
A229900001581 |
O形圈 |
O-ring |
|
A820205000842 |
M24-M22接头 |
Connector |
|
B210780000413 |
管接头 |
Connector, pipe |
|
60022788 |
螺栓M24×70DIN933 10.9级 |
bolt |
|
B220501000129 |
减速机总成 |
Reducer AS |
|
B230103002697 |
胶管 |
Hose |
|
A820205001334 |
G1-M42接头 |
Connector |
|
B230101000050 |
O形圈 |
O-ring |
|
B230103000293 |
胶管 |
Hose, rubber |
|
A820205000843 |
接头 |
Connector |
|
B230101000090 |
O形圈 |
O-ring |
|
零件代码 PART NUMBER |
名称 PART NAME |
|
|
A820205000844 |
接头 |
Connector |
|
B230101000047 |
O形圈 |
O-ring |
|
B230103001563 |
胶管 |
Hose |
|
B230103002658 |
胶管 |
Hose |
|
A210111000204 |
螺栓 |
Bolt M12×40GB5783 10.9 |
|

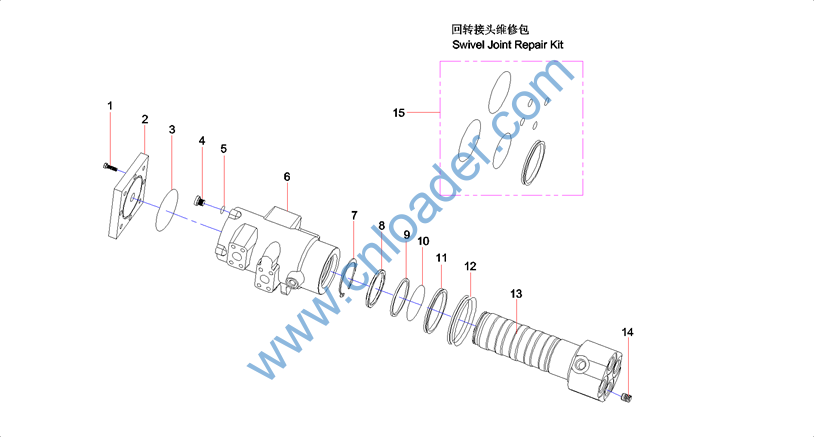

零件代码 PART NUMBER |
名称 PART NAME |
|
|
60076044 |
固定螺钉 |
Setscrew |
|
60076043 |
盖板 |
Coverplate |
|
60076049 |
密封圈 |
Ring, seal |
|
60076042 |
堵头 |
Plug |
|
60076050 |
密封圈 |
Ring, seal |
|
60076032 |
回转体 |
Body, swing |
|
60076041 |
挡圈 |
Ring, retaining |
|
60076040 |
挡圈 |
Ring, retaining |
|
60076047 |
旋转挡圈 |
Ring, retainer, rotary |
|
60076051 |
密封圈 |
Ring, seal |
|
60076048 |
防尘圈 |
Ring, dust |
|
60200529 |
防尘套 |
Boot, dust |
|
60076045 |
回转轴 |
Shaft, swing |
|
60076033 |
锥堵 |
Plug, conical |
|
B260409000279 |
回转接头维修包 |
Repair, joint, swivel |
|

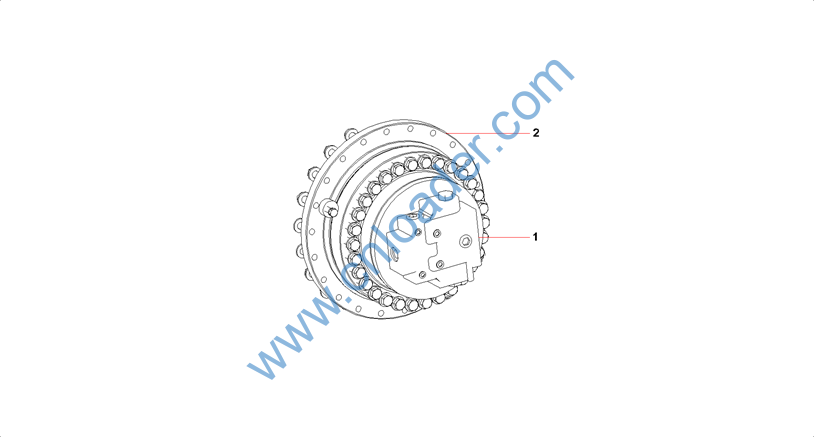

零件代码 PART NUMBER |
名称 PART NAME |
|
60181101 |
液压马达 HYDRAULIC MOTOR ASSEMBLY |
|
60181100 |
减速机 REDUCTION GEAR |
|

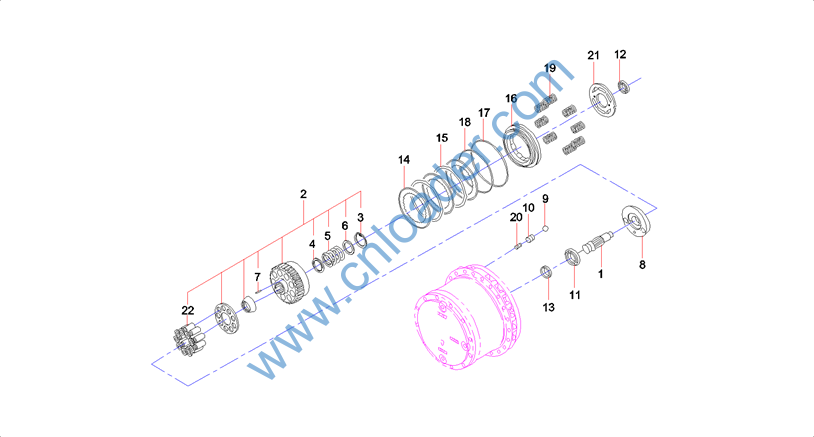

零件代码 PART NUMBER |
名称 PART NAME |
|
|
60081475 |
轴 |
Shaft |
|
60081479 |
柱塞缸组件 |
Cylinder AS, plunger |
|
60008473 |
压环 |
Ring, pressure |
|
60008468 |
弹簧座 |
Seat, spring |
|
60008466 |
弹簧 |
Spring |
|
60008469 |
卡套 |
Ferrule |
|
60008462 |
销 |
Pin |
|
60081468 |
斜盘 |
Plate, swash |
|
60008474 |
钢球 |
Ball, steel |
|
60081456 |
活塞组件 |
Piston GP |
|
60081424 |
球轴承 |
Bearing, ball |
|
60081423 |
球轴承 |
Bearing, ball |
|
60081494 |
密封圈 |
Ring, sealing |
|
B229900003196 |
30T行走制动从动片 |
Plate |
|
B229900003197 |
30T行走制动主动片 |
Plate |
|
60081467 |
刹车活塞 |
Piston, brake |
|
60081493 |
密封环 |
Ring, sealing |
|
60081492 |
密封环 |
Ring, sealing |
|
60081433 |
弹簧 |
Spring |
|
60008467 |
弹簧 |
Spring |
