SY215C9M2K hydraulic excavator SANY DFE

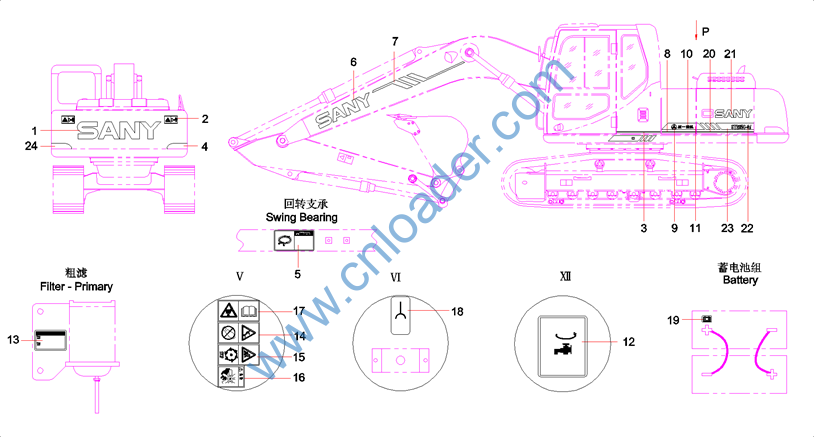

零件代码 PART NUMBER	名称 PART NAME
A820699000786	配重贴花	Decal, counterweight
A820699001016	配重警示牌	Decal, warning, counterweight
10220816	机身左侧前部条贴花	Decal, left front, strip
11624276	配重反光膜	Film, reflective, counterweight
12403550	回转支承警示牌	Decal, warning,swing bearing
A820699000747	动臂贴花	Decal, boom
10220811	动臂两侧贴花	Decal, boom, side
10220831	机身左侧中部条贴花	Decal, left middle, strip
10220833	三一VI标志	Decal, SANY logo
10220834	三一重机标识贴花	Decal, SANY logo
10220818	机身左侧前贴花	Decal, left front, machine body
A820601990929	油箱放水标识	Label, drain, fuel tank
A820601990962	油水分离器放水标识	Decal, drain, water separator
A820601990973	机顶罩警示牌	Decal, warning, engine hood
A820699001017	皮带安全警示牌	Decal, warning, belt safety
A820101050793	风扇打手警示牌	Mark, warning, “Hand injury by fan”
A820699000948	防喷溅警示牌	Decal, warning, anti-spray
A820699001109	电源插座标志	Label, power socket
A820601990972	电源标志	Label, power supply
10220817	机身右侧前部条贴花	Decal, right, front

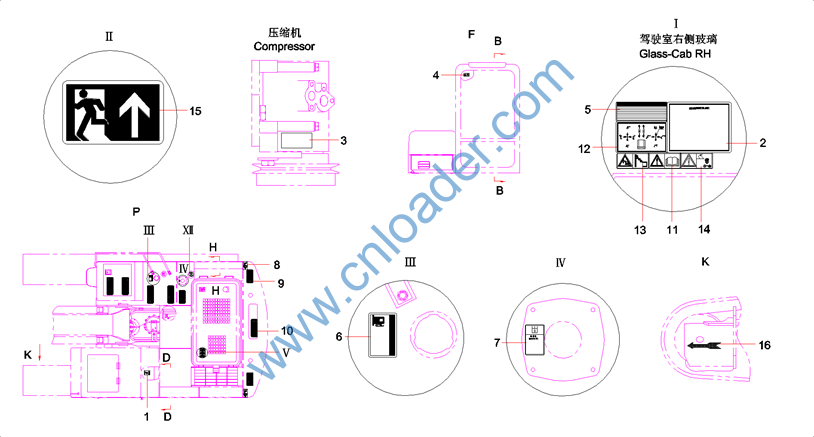

零件代码 PART NUMBER	名称 PART NAME
A820603000251	配重文字	Decal, counterweight
10785840	机器型号贴花	Film – Machine Model
10220815	机身左侧后贴花	Decal, left rear, machine body
11624373	配重反光膜	Film, reflective, counterweight

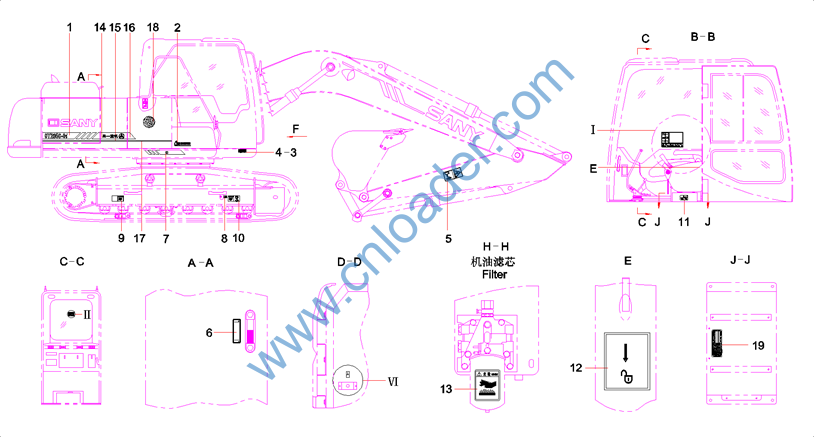

零件代码 PART NUMBER	名称 PART NAME
10220820	机身右侧后贴花	Decal, right, rear
60119518	服务热线贴花	Decal, service hotline
10251978	铭牌	Nameplate
A210510000007	铆钉	Rivet
A820601990963	斗杆警示牌	Decal, warning, arm
A820601990928	油位标签	Label, oil level
12033801	重心标牌	Decal, center of gravity
A820601990968	张紧装置警示牌	Decal, warning, tensioner
A820601990934	装运固定点标志	Decal,tie-down,shipment
A820101990552	吊钩点标示图	Diagram, hoisting point
A820601990967	座椅调节指示牌	Decal, instruction, seat adjustment
A820601990927	开锁标识牌	Label, unlock
10123433	烫手警示标牌	Decal, warning, hot surface
10220832	机身右侧中贴花	Decal, right, middle
10220819	机身右侧中部条贴花	Decal, right middle, strip
10220830	机身右侧前贴花	Decal, right, front
10220814	机身侧后部条状贴花	Decal, strip, side rear
A290000003291	省油王标识	Decal, fuel-saving
11993325	铭牌	Nameplate

零件代码 PART NUMBER	名称 PART NAME
11323371	严禁坐人警示牌	Decal, warning, no-sitting
11464411	润滑图表	Graph, lubrication
A820699001284	冷媒更换说明	Decal, instruction, refrigerant
A820699001019	前窗锁紧警示牌	Decal, warning, front window
11648786	启动发动机前注意事项标识牌	Decal, warning, pre-start
A820601990965	燃油箱标识牌	Decal, fuel tank
A820603000253	液压油箱指示牌	Label, instruction, hydraulic tank
A820601990926	防跌落警示牌	Decal, warning, falling
A820699000370	短防滑贴	Anti-skid, short
A820699000369	长防滑贴	Anti-skid, long
11464425	查阅说明书警示牌	Label, warning, “Read manual”
A820601990961	操纵标示图	Label, instruction, operation
11464432	高压回避警示牌	Decal, warning, high-voltage
11464441	钥匙断电警示牌	Decal, warning, power-off
A820601990969	安全出口标志	Label, emergency exit
12057746	前进方向标志	Decal, instruction, forward

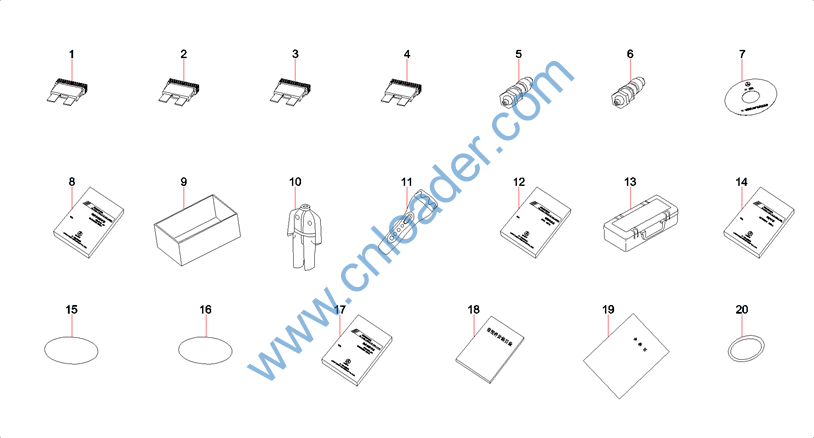

零件代码 PART NUMBER	名称 PART NAME
A241300000016	熔断器	Fuse 10-13.35A
A241300000017	熔断器	Fuse
A241300000018	熔断器	Fuse
A241300000019	熔断器5-6.75A 国产	Fuse
B229900000379	黄油嘴	Fitting, grease
B229900000686	黄油嘴	Fitting, grease
变更或见其他配置	挖掘机保养光碟	CD, excavator maintenance
变更或见其他配置	三一挖掘机保养及保修手册	Manual, operation and
60041997	随机附件箱	Box, accessory
A550300000008	工作服售后人员用	Suit, working, service worker
A241100000596	手提工作灯	Flashlight
11557241	零部件图册	Parts Boom

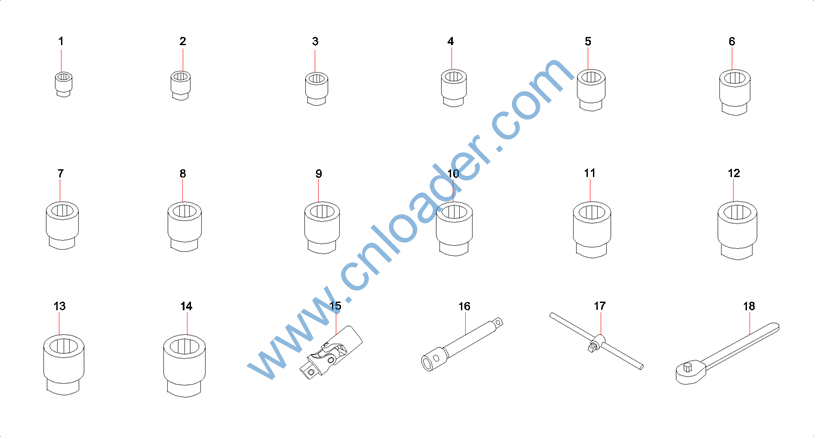

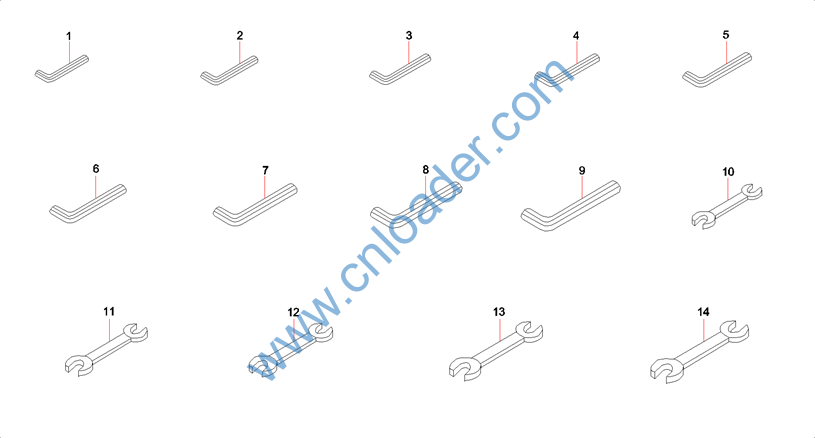

10442741	随机工具	Box, tool
60021874	维护手册	Maintenance Manual
A210609000324	O形圈	O-ring 130×10(GB3452.1)
B230101000588	O形圈	O-ring 179.3×5.7JISB2401
变更或见其他配置	SY195~265C履带式液压挖掘机操	SY195~265C excavator
12252559	三一重机常用件价格目录	Catalog, spare part
59000039	产品合格证	Certificate, product quality
A229900005005	钥匙扣	Catch, lock
