SY215C9M2K hydraulic excavator SANY BRG

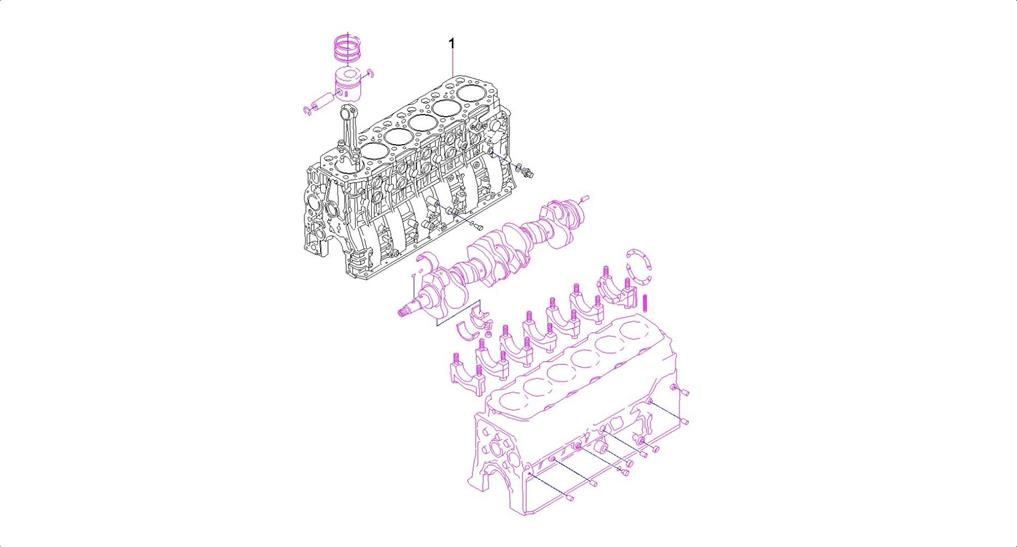

零件代码 PART NUMBER

名称 PART NAME

B220401001140

气缸活塞润滑检查阀

Bolt, banjo

B229900004198

齿轮室盖垫

Gasket

B229900004690

缸套 标准

Liner, Cylinder

B229900005118

缸体机油喷嘴

Nozzle, Engine Oil

B229900004696

缸体弹簧销

Dowel

B229900004695

缸体弹簧销

Sleeve

B229900004699

缸体销

Dowel

B229900004698

Dowel

B229900004697

缸体销

Dowel

B230101001788

密封环

Plug, Cup

B230101001783

密封环

Plug, Cup

B230101001785

密封环

Plug, Cup

B230101001787

密封环

Plug, Cup

B230101001789

密封环

Plug, Cup

B229900004692

缸体衬套

Sleeve, Bearing

B229900004693

缸体衬套

Sleeve, Bearing

B229900004694

缸体衬套

Sleeve, Bearing

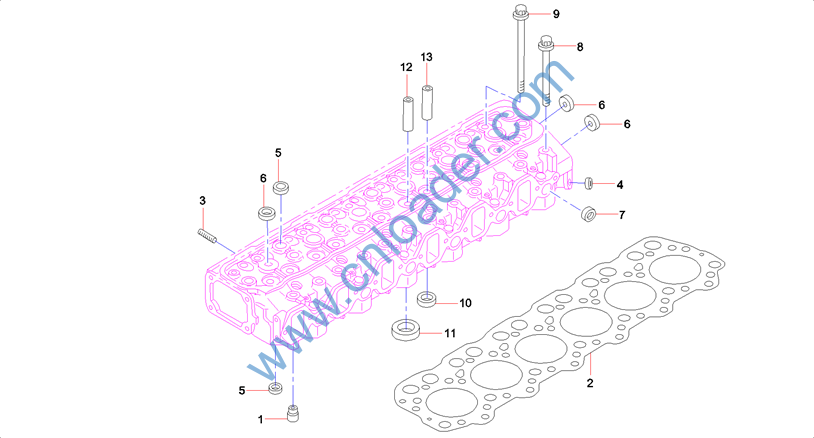

零件代码 PART NUMBER

名称 PART NAME

B229900004263

缸盖水管

Tube, Water (Cylinder Head)

B229900003687

气缸垫

Gasket AS

B229900004689

缸盖螺柱

Stud, Cylinder Head

B230101001784

密封环

Plug, Cup

B230101001785

密封环

Plug, Cup

B230101001787

密封环

Plug, Cup

B230101001786

密封环

Plug, Cup

B229900004687

缸盖螺栓

Bolt

B229900004688

缸盖螺栓

Bolt

B229900004389

排气门座

Seat, Valve (Exhaust )

B229900004352

进气门座

Seat, Valve (Inlet)

B229900004748

进气导管

Guide, Inlet

B229900005020

排气导管

Guide, Exhaust

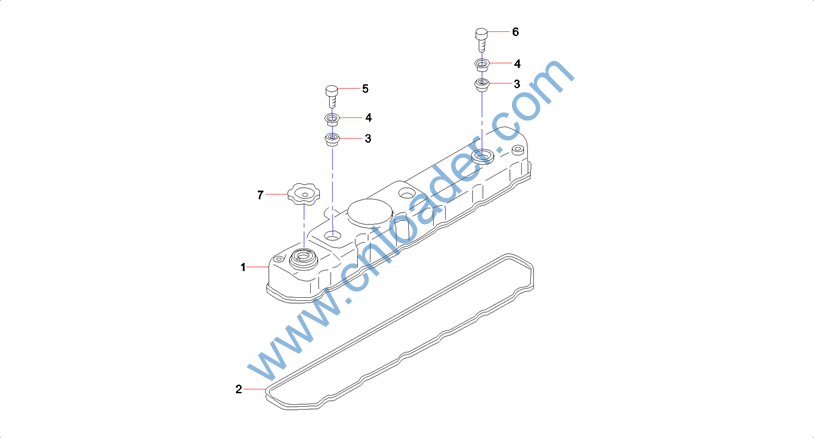

零件代码 PART NUMBER

名称 PART NAME

B229900004264

缸盖罩

Cover, valve

B229900003688

气门室盖垫

Seal, Valve Cover

B229900003690

气门室塞螺栓垫

Sleeve, Spacer

B229900003689

气门室盖螺栓垫

Sleeve, Spacer

B229900004967

螺栓

Bolt

B229900004966

螺栓

Bolt

B229900003680

油盖

Cap, engine oil

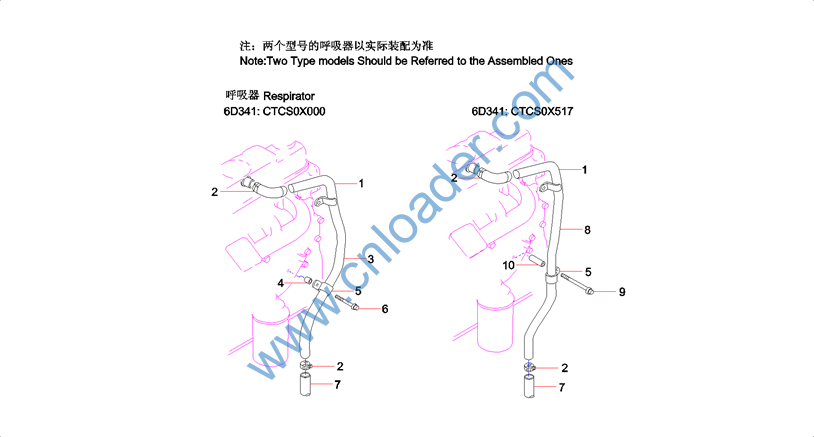

零件代码 PART NUMBER

名称 PART NAME

B229900004317

呼吸管

Tube, Breather

B229900004767

卡箍

Clamp, Hose

B229900004316

呼吸管

Tube, Breather

B229900004426

套管

Sleeve

B229900004304

管卡

Clip

B229900004980

螺栓 带法兰

Bolt

B229900002825

下排气管

Hose, Exhaust (Lower)

B229900004315

呼吸管

Tube, Breather

B229900004977

螺栓 带法兰

Bolt

B229900004427

套管

Sleeve

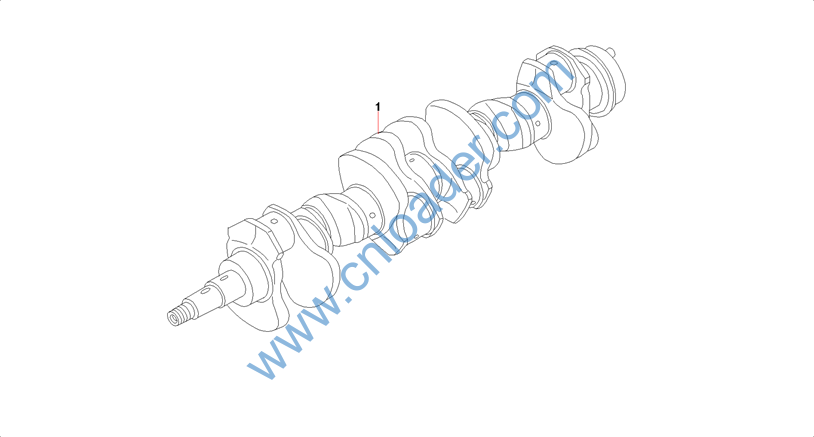

零件代码 PART NUMBER

名称 PART NAME

B229900004403

曲轴总成    Crankshaft GP

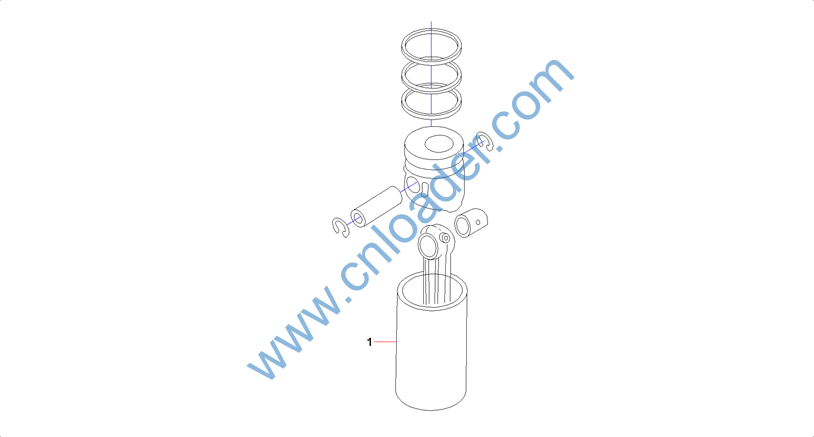

零件代码 PART NUMBER

名称 PART NAME

B229900003694

修理四配套    Repair kit, piston & rod

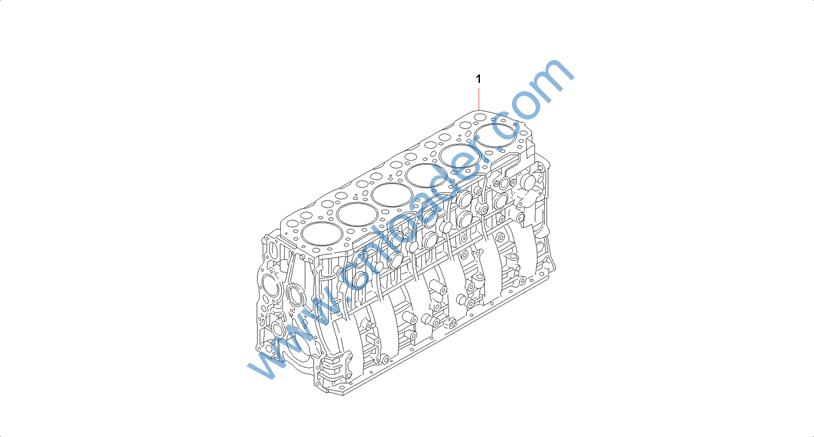

零件代码 PART NUMBER

名称 PART NAME

B229900005040

气缸总成    Cylinder Block GP

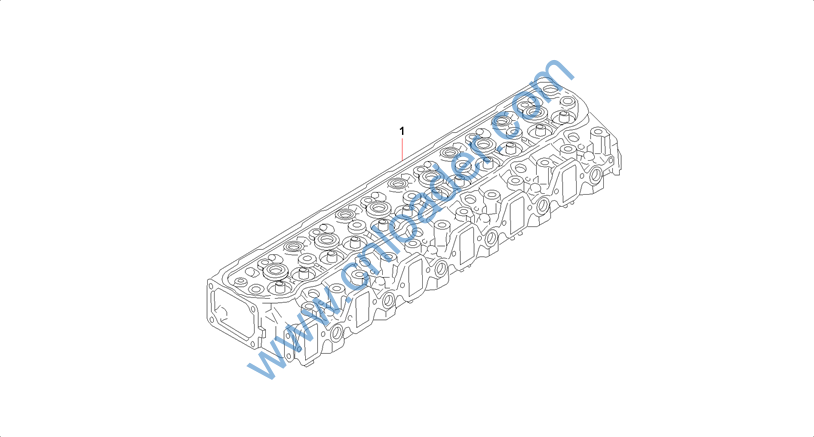

零件代码 PART NUMBER

名称 PART NAME

B229900005035

气缸盖总成    Cylinder Head GP
