零件代码 PART NUMBER |
名称 PART NAME |
|
|
B229900005102 |
支架 |
Bracket |
|
B229900005103 |
支架 |
Bracket |
|
B229900002474 |
小减震垫 |
Isolator, engine |
|
B229900002824 |
减震垫 |
Isolator, engine |
|
B229900002476 |
小碗垫 |
Cover |
|
B229900002476 |
小碗垫 |
Cover |
|
B229900002478 |
小座垫 |
Washer |
|
B229900002478 |
小座垫 |
Washer |
|
B229900004998 |
螺栓 |
Bolt |
|
B229900004998 |
螺栓 |
Bolt |
|

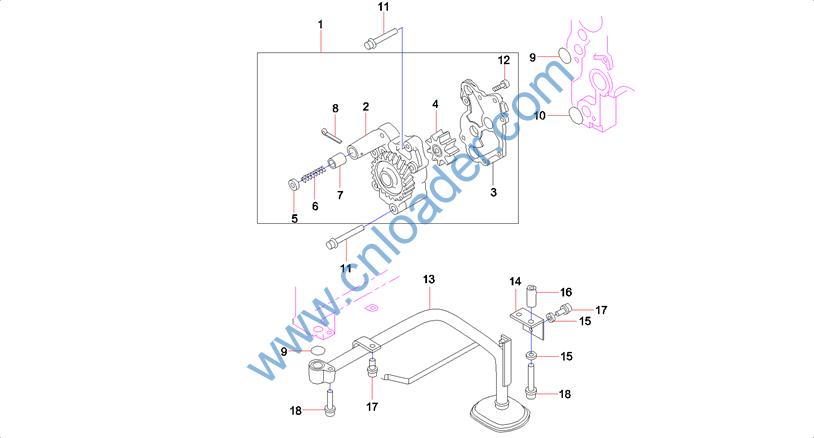

零件代码 PART NUMBER |
名称 PART NAME |
|
|
B220301000576 |
机油泵总成 |
Pump, engine oil |
|
B229900004195 |
齿轮安装座 |
Pump, engine oil base |
|
B229900004194 |
泵盖 |
Cover – Pump |
|
B221801000037 |
齿轮 |
Gear |
|
B220401001130 |
减压阀座 |
Base, Pressure reducing Valve |
|
B229900004736 |
减压阀弹簧 |
Spring, Pressure reducing Valve |
|
B220401001129 |
减压阀 |
Valve, Pressure reducing |
|
B229900005077 |
油泵销 开口销 |
Pin, Oil Pump |
|
B230101001772 |
O形圈 |
O-ring |
|
B230101001773 |
O形圈 |
O-ring |
|
B229900004974 |
螺栓 带法兰 |
Bolt |
|
B229900004964 |
螺栓 |
Bolt |
|
B222100000651 |
过滤器 |
Filter |
|
B229900005097 |
支架 |
Bracket |
|
B229900004640 |
垫圈 |
Washer |
|
B229900004724 |
过滤隔套 |
Spacer |
|
B229900004969 |
螺栓 带法兰 |
Bolt |
|
B229900004970 |
螺栓 带法兰 |
Bolt |
|

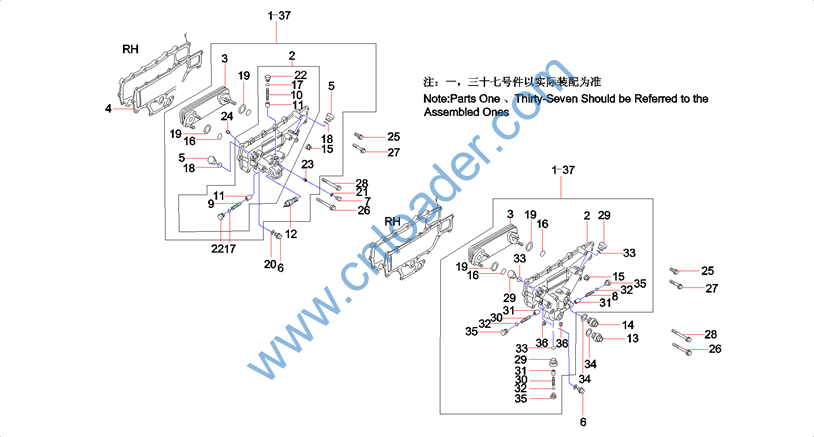

零件代码 PART NUMBER |
名称 PART NAME |
|
|
B220700000034 |
机油冷却器总成 |
Cooler GP, Engine Oil |
|
B220700000036 |
冷却器盖 |
Cover, Oil Cooler (Engine) |
|
B220700000037 |
冷却器芯 |
Core, Oil Cooler (Engine) |
|
B229900004637 |
垫圈 |
Washer |
|
B229900004664 |
堵头 |
Plug |
|
B229900004680 |
堵头 |
Plug |
|
B229900004679 |
堵头 |
Plug |
|
B229900004508 |
弹簧 |
Spring |
|
B229900004498 |
弹簧 |
Spring |
|
B229900004507 |
弹簧 |
Spring |
|
B220401001137 |
旁通阀 |
Valve, Bypass |
|
B220401001139 |
旁通阀 |
Valve, Bypass |
|
B229900004746 |
接头 |
Connector |
|
B229900004745 |
接头 |
Connector |
|
B229900004828 |
螺母 |
Nut |
|
B230101001776 |
O形圈 |
O-ring |
|
B230101001766 |
O形圈 |
O-ring |
|
B230101001765 |
O形圈 |
O-ring |
|
B229900004636 |
垫圈 |
Washer |
|
B229900004580 |
垫圈 |
Washer |
|
零件代码 PART NUMBER |
名称 PART NAME |
|
|
B229900004635 |
垫圈 |
Washer |
|
B229900004665 |
堵头 |
Plug |
|
B229900004666 |
堵头 |
Plug |
|
B229900004678 |
堵头 |
Plug |
|
B229900004972 |
螺栓 带法兰 |
Bolt |
|
B229900004994 |
螺栓 带法兰 |
Bolt |
|
B229900004974 |
螺栓 带法兰 |
Bolt |
|
B229900004978 |
螺栓 带法兰 |
Bolt |
|
B229900004667 |
堵头 |
Plug |
|
B229900004499 |
弹簧 |
Spring |
|
B220401001138 |
旁通阀 |
Valve, Bypass |
|
B230101001768 |
O形圈 |
O-ring |
|
B230101001767 |
O形圈 |
O-ring |
|
B229900004579 |
垫圈 |
Washer |
|
B229900004668 |
堵头 |
Plug |
|
B229900004669 |
堵头 |
Plug |
|
B229900003906 |
机油散热器组件 |
Cooler AS, Engine Oil |
|

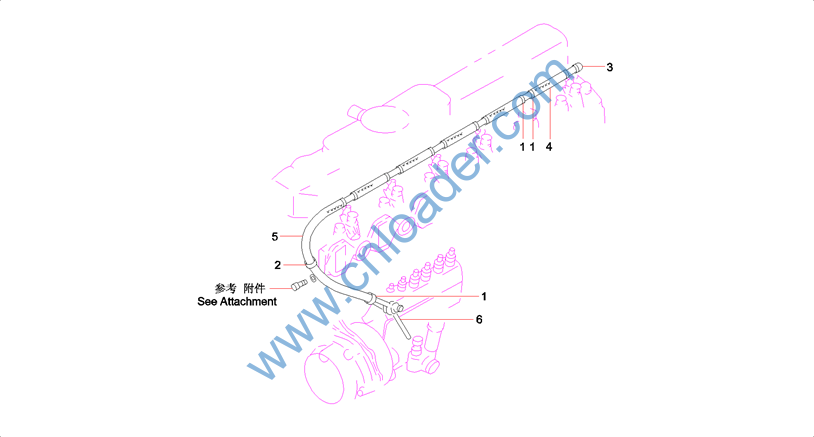

零件代码 PART NUMBER |
名称 PART NAME |
|
|
B229900004726 |
回油管 |
Tube, Return |
|
B229900004750 |
进油管 |
Tube, Inlet |
|
B229900004770 |
空心螺栓 带法兰 |
Bolt, banjo |
|
B229900004425 |
套 |
Spacer |
|
B229900004714 |
管夹 |
Clip |
|
B229900004771 |
空心螺栓 带法兰 |
Bolt, banjo |
|
B230101001771 |
O形圈 |
O-ring |
|
B229900004772 |
空心螺栓 |
Bolt, banjo |
|
B229900004642 |
垫圈 |
Washer |
|
B229900004775 |
空心螺栓 |
Bolt, banjo |
|
B229900004639 |
垫圈 |
Washer |
|
B229900004776 |
空心螺栓 带法兰 |
Bolt, banjo |
|
B229900004735 |
机油管 |
Tube, Engine Oil |
|
B229900004275 |
固定座 |
Bracket |
|
B229900004719 |
管夹 |
Clip |
|
B229900004769 |
空心螺栓 带法兰 |
Bolt, banjo |
|

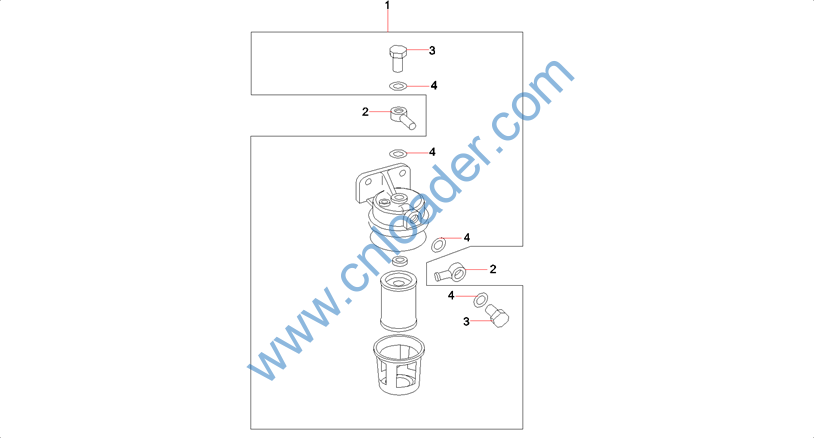

零件代码 PART NUMBER |
名称 PART NAME |
|
|
B229900002809 |
油水分离器 |
Separator, oil-water |
|
B229900004747 |
接头 |
Connector |
|
B229900004773 |
空心螺栓 |
Bolt, hollow stay |
|
B229900004645 |
垫圈 |
Washer |
|

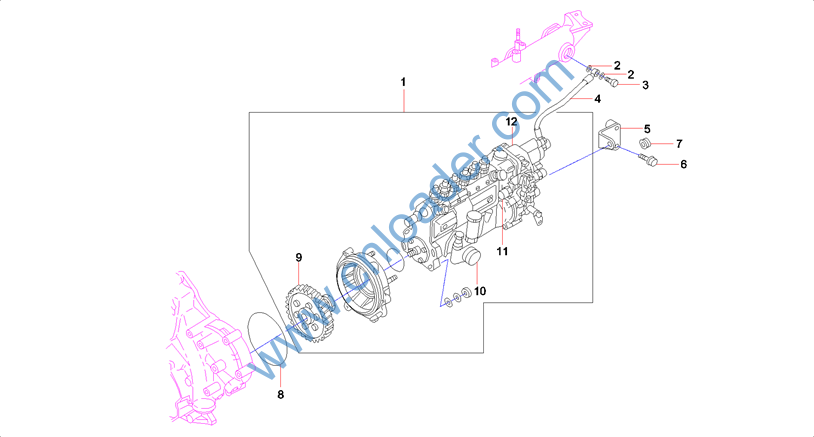

零件代码 PART NUMBER |
名称 PART NAME |
|
|
B220301000522 |
高压油泵总成 |
Pump, fuel injection |
|
B229900004642 |
垫圈 |
Washer |
|
B229900004774 |
空心螺栓 |
Bolt, banjo |
|
B229900005086 |
油管 |
Tube |
|
B229900005106 |
支架 |
Bracket |
|
B229900004992 |
螺栓 带法兰 |
Bolt |
|
B229900004835 |
螺母 带法兰 |
Nut |
|
B230101001775 |
O形圈 |
O-ring |
|
B229900004428 |
提前器 |
Gear, timing |
|
B220301000574 |
手油泵 |
Pump, Fuel Priming |
|
B229900004488 |
泵堵头 |
Plug, Pump |
|
B229900004649 |
调速器 |
Regulator, Speed |
|

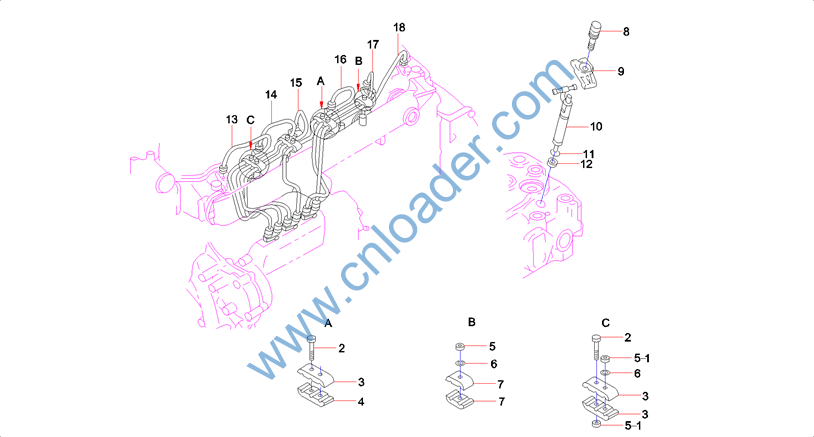

零件代码 PART NUMBER |
名称 PART NAME |
|
|
B229900004833 |
螺母 带法兰 |
Nut |
|
B229900004983 |
螺栓 |
Bolt |
|
B229900004717 |
管夹 |
Clip |
|
B229900004718 |
管夹 |
Clip |
|
B229900004830 |
螺母 |
Nut |
|
B229900004641 |
垫圈 弹簧垫 |
Washer |
|
B229900004716 |
管夹 |
Clip |
|
B229900004988 |
螺栓 带垫圈 |
Bolt |
|
B229900004190 |
安装座 |
Base, mounting |
|
B220299000211 |
喷油器总成 |
Injector, fuel |
|
B230101001769 |
O形圈 |
O-ring |
|
B229900004638 |
垫圈 |
Washer |
|
B229900005022 |
喷油管 |
Tube, Injection (Cylinder ) |
|
B229900005023 |
喷油管 6.35X2.0X590第二缸 |
Tube, Injection (Cylinder ) |
|
B229900005024 |
喷油管 6.35X2.0X590第三缸 |
Tube, Injection (Cylinder ) |
|
B229900005025 |
喷油管 6.35X2.0X590第四缸 |
Tube, Injection (Cylinder ) |
|
B229900005026 |
喷油管 6.35X2.0X590第五缸 |
Tube, Injection (Cylinder ) |
|
B229900005027 |
喷油管 6.35X2.0X591第六缸 |
Tube, Injection (Cylinder ) |
