零件代码 PART NUMBER |
名称 PART NAME |
|
60180836 |
回转马达 Rotary motor |
|
60010554 |
减速机 Reducer |
|
零件代码 PART NUMBER |
名称 PART NAME |
|
|

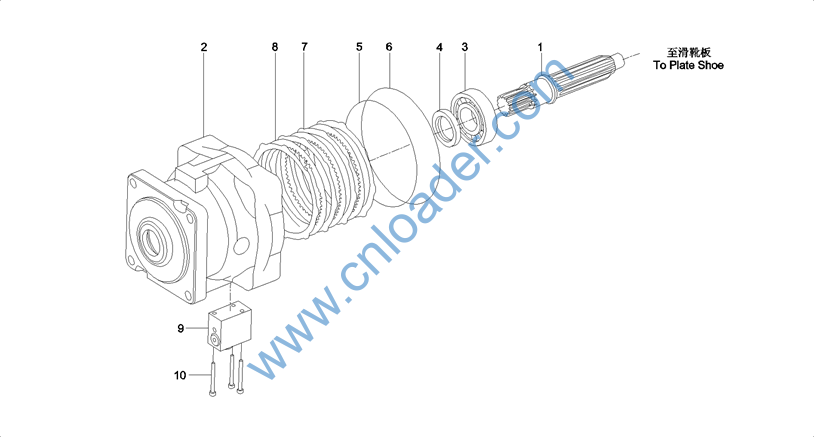

60039315 |
传动轴 |
Shaft, drive |
|
60039357 |
壳体 |
Housing |
|
60039303 |
圆柱滚珠轴承 |
Bearing, ball, cylindrical |
|
60039294 |
油密封 |
Seal, oil |
|
60039425 |
O形圈 |
O-ring |
|
60039426 |
O形圈 |
O-ring |
|
B229900003195 |
30T回转制动主动片 |
Driven piece, swing brake |
|
B229900003194 |
30T回转制动从动片 |
Driven piece, swing brake |
|
B220401000688 |
回转马达延时阀 |
Valve, timing, swing motor |
|
60008845 |
螺栓 |
Bolt |
|
零件代码 PART NUMBER |
名称 PART NAME |
|
|

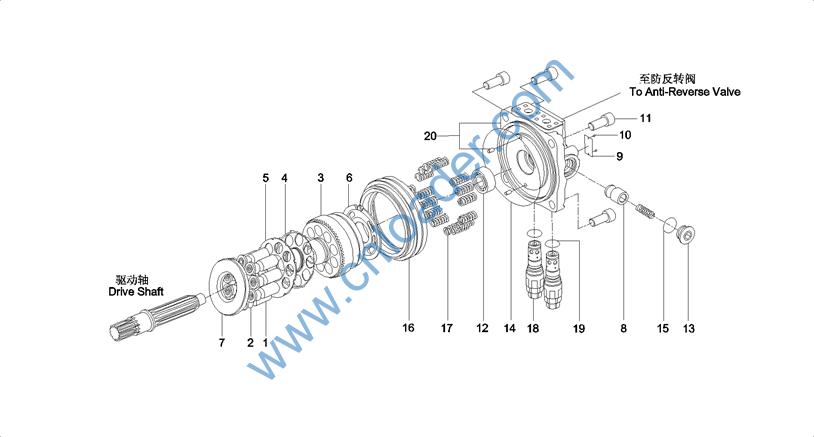

60039347 |
活塞 |
Piston |
|
60039291 |
滑靴 |
Slipper |
|
60039338 |
缸体 |
Cylinder block |
|
60039322 |
弹簧座 |
Seat, spring |
|
60039382 |
托架 |
Bracket |
|
60039375 |
配油盘 |
Tray, oil distribution |
|
60039336 |
阀座 |
Seat, valve |
|
60039351 |
活塞 |
Piston |
|
60038547 |
铭牌 |
Nameplate |
|
60008722 |
铆钉 |
Rivet |
|
60008840 |
螺栓 |
Bolt |
|
60039302 |
圆柱滚珠轴承 |
Bearing, ball, cylindrical |
|
60039401 |
油塞 |
Plug, oil |
|
60039429 |
O形圈 |
O-ring |
|
B230101001312 |
O形圈 |
O-ring |
|
60039406 |
制动活塞 |
Piston, braking |
|
60039405 |
制动弹簧 |
Spring, retarding |
|
B220401000693 |
20T回转溢流阀 |
Valve, overflow, swing |
|
B230101000036 |
O形圈 |
O-ring 29.4×3.1JISB2401 |
|
60039358 |
壳体总成 |
Housing AS |
|
零件代码 PART NUMBER |
名称 PART NAME |
|
|

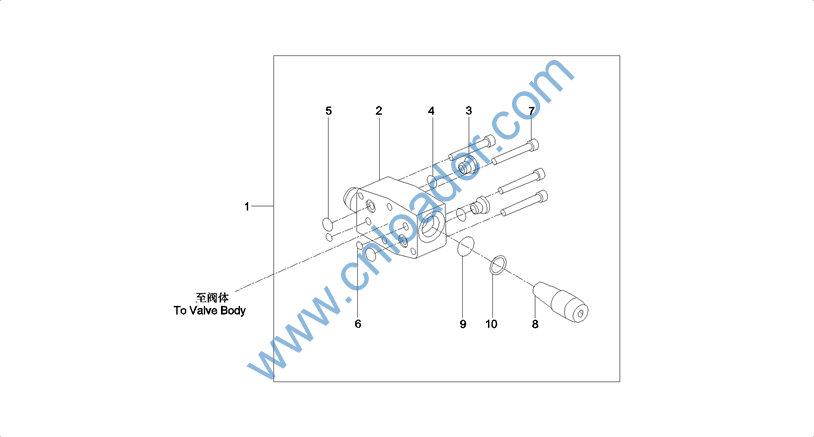

B220401000687 |
回转马达防摆阀 |
Valve, anti-reverse, swing motor |
|
60008793 |
机体 |
Body, machine |
|
60008711 |
堵 |
Plug |
|
B230103003795 |
O形圈 |
O-ring |
|
60008699 |
O形圈 |
O-ring |
|
60008707 |
O形圈 |
O-ring |
|
60008848 |
螺钉 |
Screw |
|
60008753 |
防反转阀 |
Valve, anti-reverse |
|
B230101000363 |
O形圈 |
O-ring |
|
60008867 |
密封挡圈 |
Ring, retainer, sealing |
|
零件代码 PART NUMBER |
名称 PART NAME |
|
|

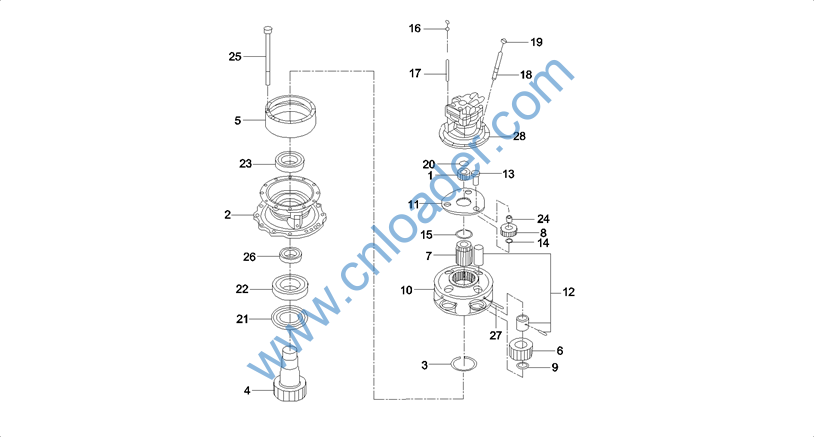

60039304 |
No.1太阳轮 |
Gear, sun |
|
60039314 |
齿轮马达壳体 |
Casing, gear motor |
|
60077883 |
挡圈 |
Ring, retaining |
|
60039316 |
传动轴 |
Shaft, drive |
|
B229900005524 |
齿圈 |
Ring, gear |
|
60015792 |
行星齿轮 |
Gear, planetary |
|
60015785 |
太阳齿轮 |
Gear, sun |
|
60015790 |
行星齿轮 |
Gear, planetary |
|
60077884 |
垫片 |
Gasket |
|
60039311 |
No.2支座 |
Seat |
|
60039309 |
No.1支座 |
Seat |
|
60039310 |
销轴 |
Pin |
|
60039308 |
轮轴 |
Pin |
|
60039384 |
垫片 |
Gasket |
|
60065255 |
垫片 |
Gasket |
|
60008605 |
油尺 |
Dipstick, oil |
|
60008614 |
油尺外管 |
Tube, dipstick, oil |
|
60008615 |
加油管 |
Pipe, oil feed |
|
B229900002437 |
呼吸管盖 |
Cover, breathing tube |
|
60008723 |
挡圈 |
Ring, retainer |
|
零件代码 PART NUMBER |
名称 PART NAME |
|
|
60039448 |
轴承密封件 |
Sealing, bearing |
|
60015782 |
轴承 |
Bearing |
|
60015781 |
轴承 |
Bearing |
|
60039295 |
轴套 |
Needle gauge |
|
B229900005536 |
齿圈螺栓 |
Bolt, gear ring |
|
60015832 |
轴端油封 |
Seal, oil, bearing |
|
60008877 |
弹性销 |
Pin, elastic |
|
60075595 |
减速机法兰盘 |
Flange, reducer |
|
零件代码 PART NUMBER |
名称 PART NAME |
|
|

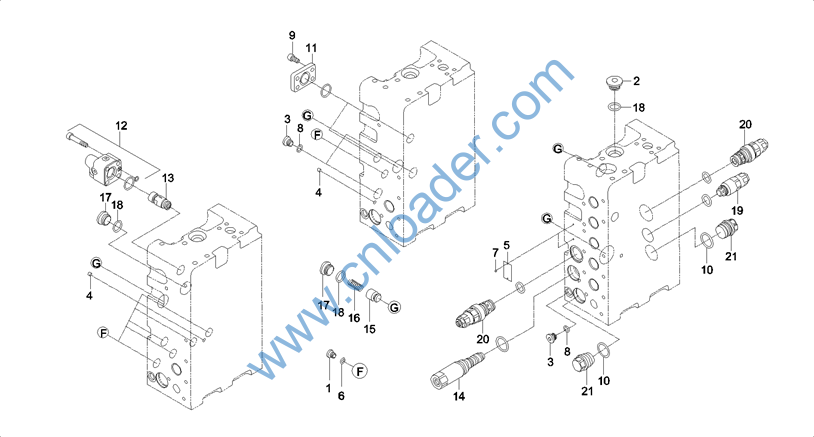

60100508 |
挡圈 |
Ring, retaining |
|
60008801 |
挡圈 |
Ring, retaining |
|
60038243 |
弹簧 |
Spring |
|
60038244 |
弹簧 |
Spring |
|
60100505 |
弹簧盖 |
Cover, spring |
|
60100506 |
弹簧盖 |
Cover, spring |
|
60100507 |
弹簧盖 |
Cover, spring |
|
60008789 |
盖 |
Cover |
|
60008790 |
盖 |
Cover |
|
60100469 |
盖 |
Cover |
|
60100509 |
活塞 |
Piston |
|
60100468 |
堵 |
Plug |
|
60100466 |
堵 |
Plug |
|
60100514 |
O形圈 |
O-ring |
|
60008821 |
O形圈 |
O-ring |
|
60050051 |
O形圈 |
O-ring |
|
60008721 |
内六角螺钉 |
Bolt |
|

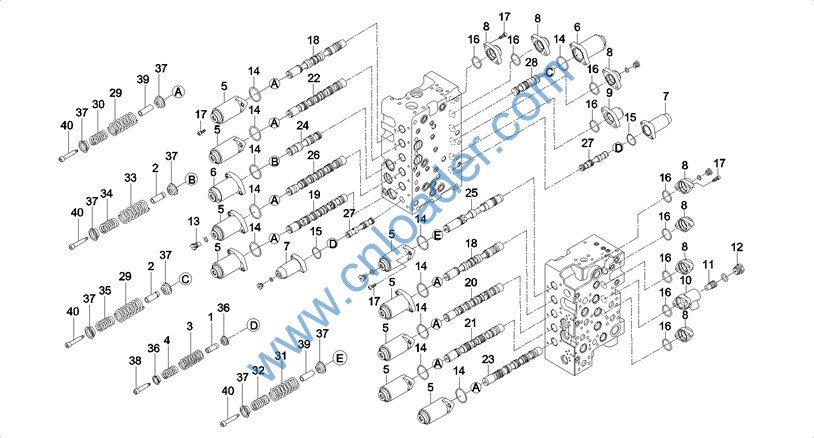

60100501 |
左行走阀芯 |
Spool, travel valve |
|
60100481 |
斗杆阀芯 |
Spool, valve, arm |
|
60100479 |
动臂阀芯 |
Spool, valve, boom |
|
零件代码 PART NUMBER |
名称 PART NAME |
|
|
60100474 |
铲斗阀芯 |
Spool, bucket valve |
|
60100485 |
回转阀芯 |
Spool, swing valve |
|
60100482 |
斗杆阀芯 |
Spool, valve, arm |
|
60100480 |
动臂阀芯 |
Spool, valve, boom |
|
60100498 |
直线行走阀芯 |
Spool, valve, straight travel |
|
60100473 |
备用阀芯 |
Spool, service valve |
|
60100496 |
液压切断阀 |
Valve, hydraulic cutoff |
|
60100487 |
回转优先阀 |
Valve, swing priority |
|
60008769 |
弹簧 |
Spring |
|
60008770 |
弹簧 |
Spring |
|
60100502 |
弹簧 |
Spring |
|
60100503 |
弹簧 |
Spring |
|
60008771 |
弹簧 |
Spring |
|
60008772 |
弹簧 |
Spring |
|
60039319 |
弹簧 |
Spring |
|
60008825 |
座 |
Seat |
|
60008823 |
座 |
Seat |
|
60038528 |
螺栓 |
Bolt |
|
60008818 |
挡圈 |
Ring, retaining |
|
60008819 |
螺柱 |
Stud |
