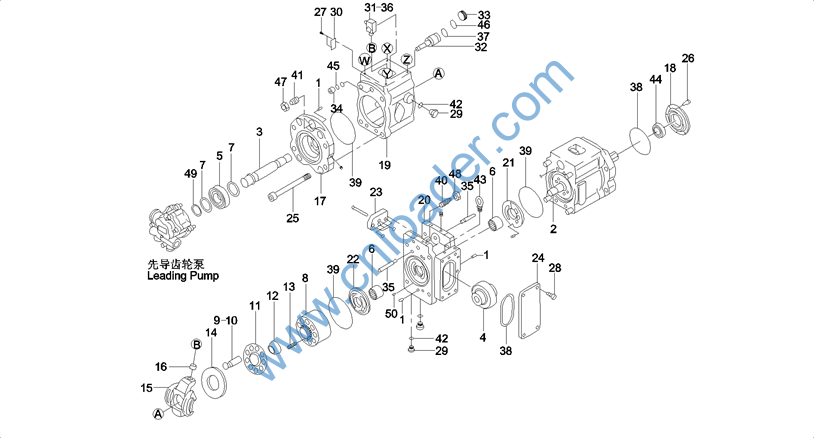

零件代码 PART NUMBER |
名称 PART NAME |
|
|
60008878 |
销 |
Pin |
|
60008528 |
驱动轴 |
Sprocket |
|
60008527 |
驱动轴 |
Sprocket |
|
60008492 |
1号齿轮 |
Gear |
|
60006940 |
前轴承 |
Bearing, front |
|
60008726 |
轴承 |
Bearing |
|
60008582 |
垫片 |
Gasket |
|
B229900005459 |
主泵缸体 |
Body, cylinder, main pump |
|
60008519 |
柱塞 |
Plunger |
|
60008517 |
滑靴 |
Slipper |
|
60008516 |
架体 |
Bracket |
|
B229900005452 |
球面衬套 |
Bushing, spherical |
|
60008545 |
弹簧 |
Spring |
|
B229900005449 |
滑靴盘 |
Plate, shoe |
|
B229900005455 |
斜盘 |
Plate, swash |
|
60008732 |
衬套 |
Sleeve |
|
B229900005456 |
斜盘支撑台 |
Support, swash plate |
|
60008531 |
轴承盖板 |
Coverplate, bearing |
|
60039298 |
泵体 |
Pump body |
|
60039372 |
配油壳体 |
Casing, oil distribution |
|
零件代码 PART NUMBER |
名称 PART NAME |
|
|
60093151 |
配油盘 |
Tray, oil distribution |
|
60151387 |
配油盘 |
Tray, oil distribution |
|
60008550 |
盖 |
Cover |
|
60008511 |
盖 |
Cover |
|
60008543 |
内六角螺栓 |
Bolt, hexagon |
|
60039371 |
内六角螺栓 |
Screw, socket head |
|
60008722 |
铆钉 |
Rivet |
|
60008717 |
螺栓 |
Bolt |
|
60008725 |
堵 |
Plug |
|
60038547 |
铭牌 |
Nameplate |
|
60008530 |
销 |
Pin |
|
60008518 |
活塞 |
Piston |
|
60008521 |
挡板 |
Plate, retaining |
|
60008542 |
挡板 |
Plate, retaining |
|
60008501 |
套 |
Sleeve |
|
60008549 |
销 |
Pin |
|
60008693 |
O形圈 |
O-ring |
|
60008695 |
O形圈 |
O-ring |
|
60008691 |
O形圈 |
O-ring |
|
60008544 |
螺柱 |
Stud |
|
零件代码 PART NUMBER |
名称 PART NAME |
|
|
60008742 |
螺柱 |
Stud |
|
60008705 |
O形圈 |
O-ring |
|
60038330 |
吊环螺栓 |
Eyebolt |
|
60151388 |
油封 |
Seal, oil |
|
60039326 |
挡圈 |
Ring, retaining |
|
60039325 |
挡圈 |
Ring, retaining |
|
60038452 |
六角螺母 |
Nut, hex |
|
60039359 |
六角螺母 |
Nut, hex |
|
60008723 |
挡圈 |
Ring, retainer |
|
60008737 |
销 |
Pin |
|

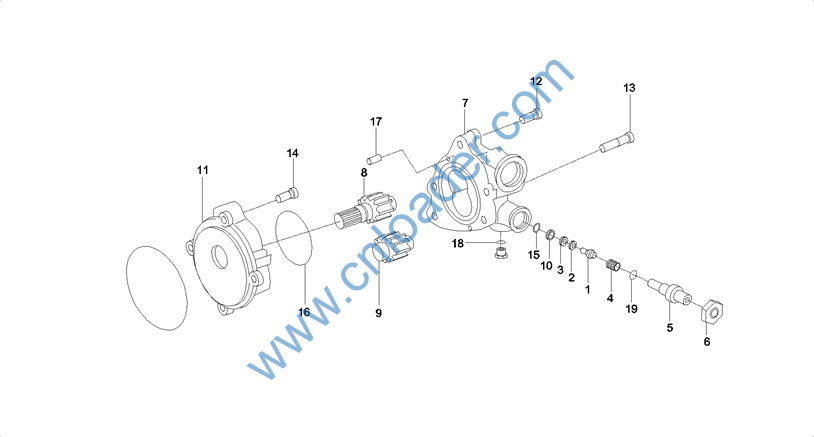

零件代码 PART NUMBER |
名称 PART NAME |
|
|
60008508 |
阀杆 |
Stem, valve |
|
60008493 |
阀座 |
Seat, valve |
|
60008523 |
挡圈 |
Ring, retaining |
|
60008500 |
弹簧 |
Spring |
|
60008496 |
调节螺杆 |
Screw, adjusting |
|
60008505 |
螺母 |
Nut 2903480-0032 |
|
60008512 |
机体 |
Body, machine |
|
60008552 |
齿轮 |
Gear |
|
60008581 |
齿轮 |
Gear |
|
60008491 |
滤芯 |
Element, filter |
|
60008509 |
机体 |
Body, machine |
|
60008730 |
螺钉 |
Screw |
|
60008731 |
螺钉 |
Screw |
|
60008729 |
螺钉 |
Screw |
|
60008873 |
垫圈 |
Washer |
|
60008504 |
垫圈 |
Washer |
|
60008736 |
销 |
Pin |
|
B230101000047 |
O形圈 |
O-ring |
|
B230101000229 |
O形圈 |
O-ring |
|

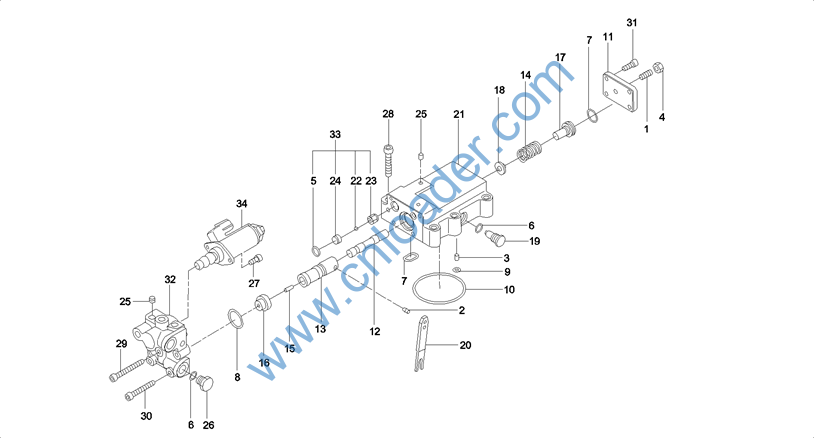

零件代码 PART NUMBER |
名称 PART NAME |
|
|
60118638 |
螺栓 |
Bolt |
|
60118639 |
销 |
Pin |
|
60008546 |
销 |
Pin |
|
60118637 |
螺母 |
Nut |
|
60008698 |
O形圈 |
O-ring |
|
60008697 |
O形圈 |
O-ring |
|
60008702 |
O形圈 |
O-ring |
|
A210609000036 |
O形圈 |
O-ring |
|
60008708 |
O形圈 |
O-ring |
|
60008694 |
O形圈 |
O-ring |
|
60118625 |
盖 |
Cover |
|
60118643 |
柱塞 |
Plunger |
|
60118631 |
阀套 |
Sleeve, valve |
|
60118632 |
弹簧 |
Spring |
|
60118636 |
活塞 |
Piston |
|
60118640 |
支座 |
Support |
|
60118641 |
支座 |
Bearer |
|
60118630 |
密封 |
Seal |
|
60118634 |
堵头 |
Plug |
|
60118644 |
杠杆 |
Lever |
|
零件代码 PART NUMBER |
名称 PART NAME |
|
|
60118627 |
机体 |
Body, machine |
|
60119019 |
钢球 |
Ball, steel |
|
60118635 |
阀座 |
Seat, valve |
|
60118629 |
密封 |
Seal |
|
60008728 |
紧定螺钉 |
Setscrew |
|
60008724 |
堵 |
Plug |
|
60150556 |
螺钉 |
Screw |
|
60150559 |
螺钉 |
Screw |
|
A210204000217 |
螺钉M6×40GB70.1 10.9级 |
Screw M6×40GB70.1 10.9 |
|
60018102 |
螺栓 |
Bolt |
|
60038565 |
内六角螺栓 |
Screw, socket head |
|
60118626 |
机体 |
Body, machine |
|
60119020 |
单向阀组件 |
Valve GP, check |
|
60081917 |
比例减压阀 |
Valve, reducing, proportional |
|

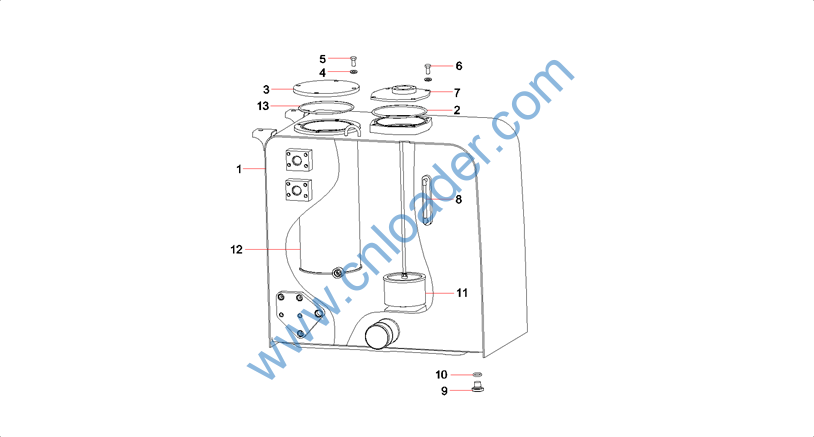

零件代码 PART NUMBER |
名称 PART NAME |
|
|
A810201015035 |
工作油箱 |
Tank, hydraulic oil |
|
B230101000588 |
O形圈 |
O-ring 179.3×5.7JISB2401 |
|
11829245 |
回油盖 |
Cover, oil return |
|
A210405000001 |
垫圈 |
Washer 12GB97.1 |
|
A210111000038 |
螺栓 |
Bolt M12×30GB5783 |
|
A210111000037 |
螺栓 |
Bolt M12×25GB5783 |
|
11310338 |
吸油盖 |
Cover, oil suction |
|
A250100000174 |
液位计 |
Gauge, sight glass |
|
10514225 |
堵头 |
Plug |
|
B230101000356 |
O形圈 |
O-ring 23.7×3.5JISB2401 |
|
B222100000235 |
吸油滤芯 |
Element, filter, oil suction |
|
B222100000379 |
回油滤芯 |
Filter, return oil |
|
60112246 |
O形圈 |
O-ring |
|

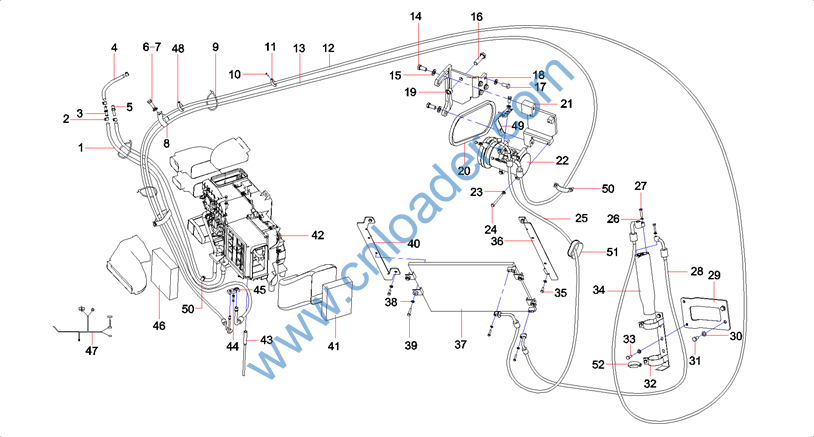

零件代码 PART NUMBER |
名称 PART NAME |
|
|
10472127 |
蒸汽胶管 |
Hose, steam |
|
A210855000005 |
喉箍 |
Hoop |
|
A820205002617 |
水管变径接头 |
Reduction union, water pipe |
|
10472128 |
蒸汽胶管 |
Hose, rubber |
|
10453599 |
管接头 |
Connector |
|
A210111000199 |
螺栓M12×20GB5783 10.9级 |
Bolt M12×20GB5783 10.9 |
|
变更或见其他配置 |
垫圈 |
Washer 12GB97.1 |
|
60119587 |
线束固定夹 |
Clamp, harness |
|
A239900000066 |
尼龙扎带 |
Strap, nylon (black) |
|
A210111000079 |
螺栓 |
Bolt M6×16GB5783 |
|
60086355 |
线束固定夹 |
Clamp, harness |
|
60001239 |
液体胶管 |
Hose, rubber, liquid |
|
60001235 |
吸气胶管 |
Hose, air intake |
|
A210204000343 |
螺钉 |
Screw |
|
A210444000001 |
垫圈 |
Washer 14(GB1230) |
|
A210110000324 |
螺栓M16×65GB5782 10.9级 |
Bolt |
|
A210111000202 |
螺栓 |
Bolt M12×30GB578310.9 |
|
11222274 |
压缩机支架 |
Bracket, compressor |
|
A210307000028 |
螺母 |
Nut M16GB617010 |
|
A230106000321 |
V带 |
V-belt |
