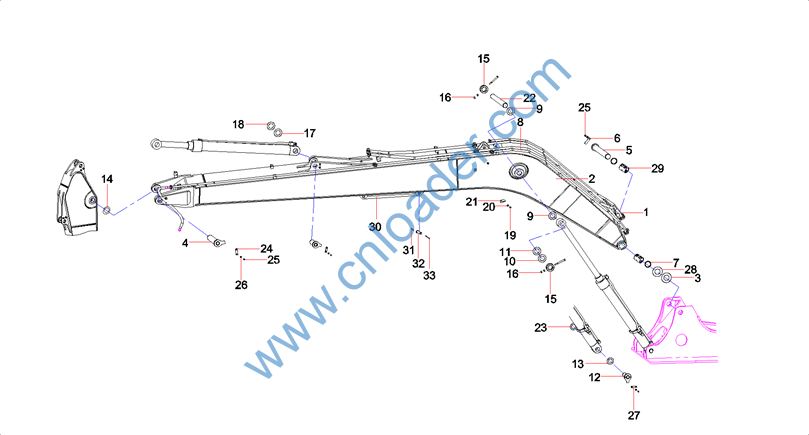

(Lengthening boom SY215C9I2K.3L)
|
零件代码 PART NUMBER |
名称 PART NAME |
|
|
11692917 |
工作装置液压管路 |
Work device Tube |
|
12590993 |
动臂 |
Lengthening boom SY215C.3L.2A |
|
11041901 |
树脂垫片 |
Gasket, resin |
|
A810312110019 |
销轴 |
Roll, pin |
|
11856384 |
销轴 |
Roll, pin |
|
11324336 |
压板 |
Plate, pressure |
|
60055872 |
DLI防尘圈 |
DLI-ring, dustproof |
|
12837388 |
工作装置润滑管路 |
Lubricating pipeline of Work device |
|
11169582 |
树脂垫片 |
Gasket, resin |
|
11112320 |
树脂垫片 |
Gasket, resin |
|
11041905 |
树脂垫片 |
Gasket, resin |
|
A810312110017 |
销轴 |
Roll, pin |
|
11041902 |
树脂垫片 |
Gasket, resin |
|
A820102010387 |
垫片 |
Gasket |
|
A820202002009 |
板 |
Plate |
|
A210307000029 |
螺母M20GB6170 10级 |
Nut M20GB6170 10 |
|
A820102010381 |
垫片 |
Gasket |
|
A820102010382 |
垫片 |
Gasket |
|
A210111000263 |
螺栓 M16×30GB5783 10.9级 |
Bolt M16×30GB5783 10.9 |
|
24000514 |
垫圈16GB93 达克锈 |
Washer |
|
零件代码 PART NUMBER |
名称 PART NAME |
|
|
A820101322531 |
灯架 |
Bracket, lamp |
|
A820301020461 |
销轴 |
Roll, pin |
|
11112311 |
树脂垫片 |
Gasket, resin |
|
11308781 |
压板 |
Plate, pressure |
|
A210111000212 |
螺栓M16×35GB5783 10.9级 |
Bolt M16×35GB5783 10.9 |
|
24000642 |
垫圈16GB97.1 达克锈 |
Washer |
|
11272926 |
压板 |
Plate, pressure |
|
11112327 |
树脂垫片 |
Gasket, resin |
|
11307308 |
轴套 |
Sleeve, shaft |
|
10591539 |
运输连接杆 |
Connecting rod,transportation |
|
A210307000017 |
螺母 |
Nut M10GB6170 |
|
10591504 |
轴 |
Shaft |
|
A210111000111 |
螺栓M10×60GB5783 10.9级 |
Bolt M10×60GB5783 10.9 |
|

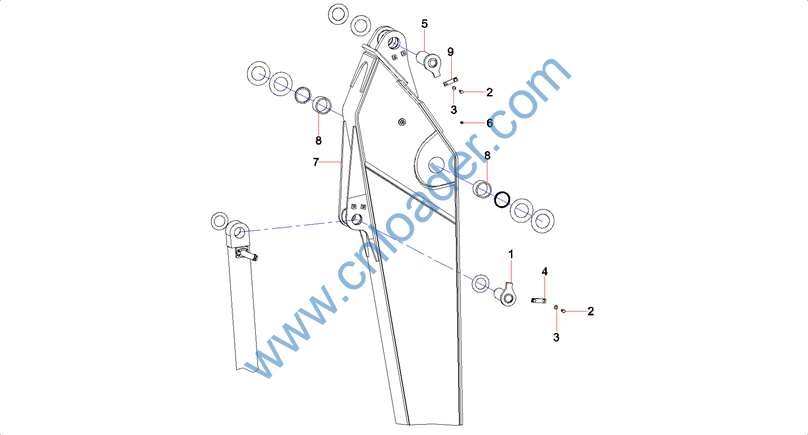

零件代码 PART NUMBER |
名称 PART NAME |
|
|
A810312110107 |
销轴 |
Roll, pin |
|
A210111000202 |
螺栓 |
Bolt M12×30GB578310.9 |
|
24000639 |
垫圈12GB97.1 达克锈 |
Washer |
|
A810312019061 |
固定板 |
Plate, fixing |
|
A810312110021 |
销轴 |
Roll, pin |
|
B229900000686 |
黄油嘴 |
Fitting, grease |
|
11636713 |
斗杆 |
Arm |
|
11216201 |
轴套 |
Sleeve, shaft |
|
A820101119187 |
板 |
Plate |
|

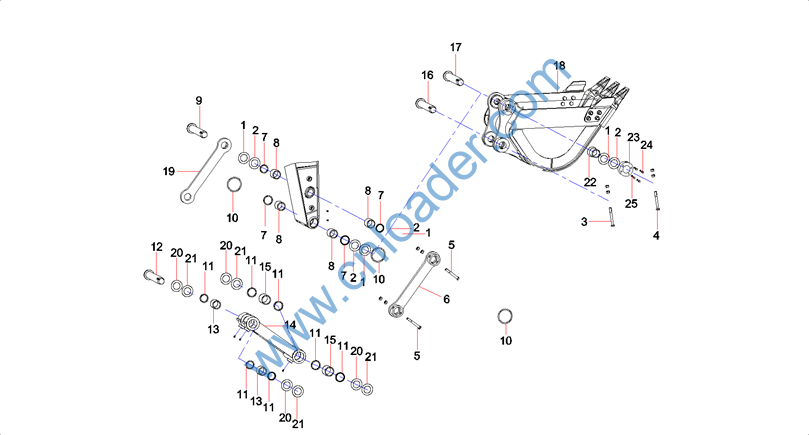

零件代码 PART NUMBER |
名称 PART NAME |
|
|
A810312019065 |
垫板 |
Plate |
|
10217951 |
垫板 |
Plate |
|
A210110000352 |
螺栓 M20×180GB5782 10.9级 |
Bolt |
|
A210110000347 |
螺栓M20×200GB5782 10.9级 |
Bolt M20×200GB5782 10.9 |
|
A210110000300 |
螺栓M20×160GB5782 10.9级 |
Bolt M20×160GB5782 10.9 |
|
11821941 |
左摇杆 |
Rocker, left |
|
B230101001123 |
防尘圈 |
ME-2-ring, dustproof |
|
A820202005381 |
轴套 |
Sleeve, shaft |
|
A810312110112 |
销轴 |
Roll, pin |
|
A210609000352 |
O形圈 |
O-ring |
|
B230101001124 |
防尘圈 |
ME-2-ring, dustproof |
|
A810312110110 |
销轴 |
Roll, pin |
|
A820202005379 |
轴套 |
Sleeve, shaft |
|
A810312100033 |
连杆 |
Rod, connecting |
|
A820202005380 |
轴套 |
Sleeve, shaft |
|
A810312110111 |
销轴 |
Roll, pin |
|
A810312110113 |
销轴 |
Roll, pin |
|
11589886 |
普通铲斗 |
Bucket,common |
|
11821876 |
右摇杆 |
Rocker, right |
|
A820102010791 |
垫片 |
Shim |
|
零件代码 PART NUMBER |
名称 PART NAME |
|
|
10167602 |
垫片 |
Shim |
|
A810312019064 |
压板 |
Plate, pressure |
|
A810312019066 |
套 |
Sleeve, spacer |
|
A210110000272 |
螺栓M16×80GB5782 10.9级 |
Bolt M16×80GB5782 10.9 |
|
A210401000004 |
垫圈 |
Washer 16GB93 |
|
零件代码 PART NUMBER |
名称 PART NAME |
|
|
60234659 |
铲斗油缸 |
BucketCylinder |
|
B230103005242 |
胶管 |
Hose |
|
11719325 |
钢管总成 |
Steel Pipe Assy. |
|
60031620 |
胶管 |
Hose, rubber |
|
A210204000462 |
螺钉M12×45GB70.1 10.9级 |
Screw M12×45GB70.1 10.9 |
|
11881917 |
管夹 |
Clamp, pipe |
|
B210780000244 |
对开法兰 |
Flange, split |
|
A210204000364 |
螺钉M10×45GB70.1 10.9级 |
Screw M10×45GB70.1 10.9 |
|
11719012 |
钢管总成 |
Steel Pipe Assy. |
|
11719040 |
钢管总成 |
Steel Pipe Assy. |
|
B230101000456 |
O形圈 |
O-ring |
|
11719440 |
钢管总成 |
Steel Pipe Assy. |
|
60011373 |
斗杆油缸 |
Cylinder, arm |
|
11144317 |
管夹 |
Clamp |
|
12527246 |
钢管总成 |
Steel Pipe Assy |
|
B210780000004 |
对开法兰 |
Flange, split |
|
B210780000693 |
对开法兰 |
Flange, SAE |
|
A210204000353 |
螺钉M14×50GB70.1 10.9级 |
Screw |
|
60037640 |
胶管 |
Hose |
|
60068308 |
胶管 |
Hose |
|

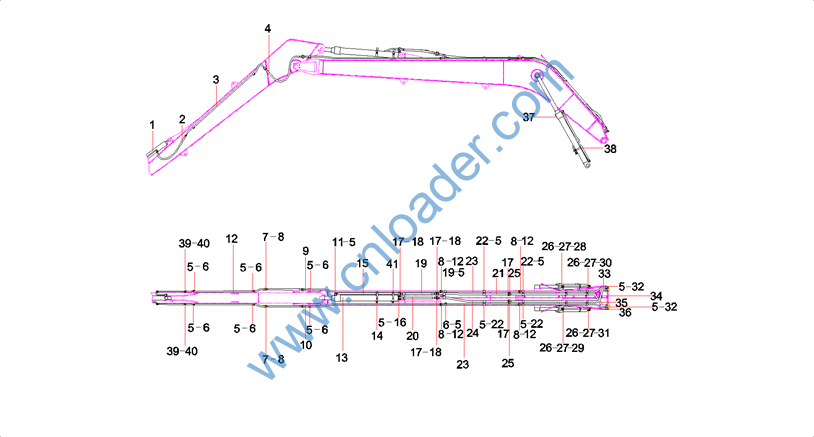

零件代码 PART NUMBER |
名称 PART NAME |
|
|
11718709 |
钢管总成 |
Steel Pipe Assy. |
|
11881917 |
管夹 |
Clamp, pipe |
|
11718919 |
钢管总成 |
Steel Pipe Assy. |
|
11718629 |
钢管总成 |
Steel Pipe Assy. |
|
B230101000996 |
O形圈 |
O-ring |
|
A210609000136 |
O形圈 |
O-ring 29.7×3.5JISB2401 |
|
A210204000357 |
螺钉M10×60GB70.1 10.9级 |
Screw |
|
11088310 |
油管组件 |
Pipe AS, oil |
|
11608938 |
油管组件 |
Pipe AS, oil |
|
11609402 |
油管组件 |
Pipe AS, oil |
|
11088308 |
油管组件 |
Pipe AS, oil |
|
11149373 |
管夹 |
Clamp |
|
11719828 |
钢管总成 |
Steel Pipe Assy. |
|
11717851 |
钢管总成 |
Steel Pipe Assy. |
|
11716425 |
钢管总成 |
Steel Pipe Assy. |
|
11717239 |
钢管总成 |
Steel Pipe Assy. |
|
11347703 |
动臂油缸总成 |
Cylinder AS, boom |
|
11088311 |
管卡 |
Clip |
|
A820205002473 |
接头 |
Connector |
|
B230101000356 |
O形圈 |
O-ring 23.7×3.5JISB2401 |
