零件代码 PART NUMBER |
名称 PART NAME |
|
B210780000191 |
螺母 Nut |
|
B229900001092 |
特型卡套 Sleeve, special |
|
A820205001235 |
管接头 Connector |
|

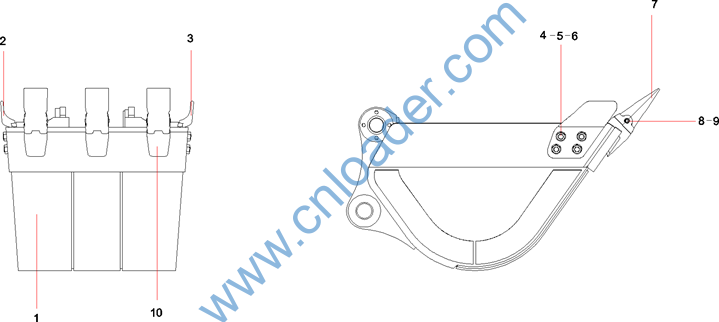

零件代码 PART NUMBER |
名称 PART NAME |
|
|
11589955 |
普通铲斗体 |
Bucket body,common |
|
A229900007131 |
左侧齿 |
Cutter, side |
|
A229900007130 |
右侧齿 |
Cutter, side |
|
A210111000301 |
螺栓 |
Screw |
|
A210307000006 |
螺母 |
Nut M22GB6170 |
|
A210444000002 |
垫圈 |
Washer 22GB1230 |
|
11912709 |
斗齿 |
Tooth, bucket |
|
12915776 |
齿销 |
Tooth pinsy |
|
12915777 |
卡簧 |
Clip |
|
12076838 |
斗齿座 |
Base of tooth SY135.3.4.1-15 |
|

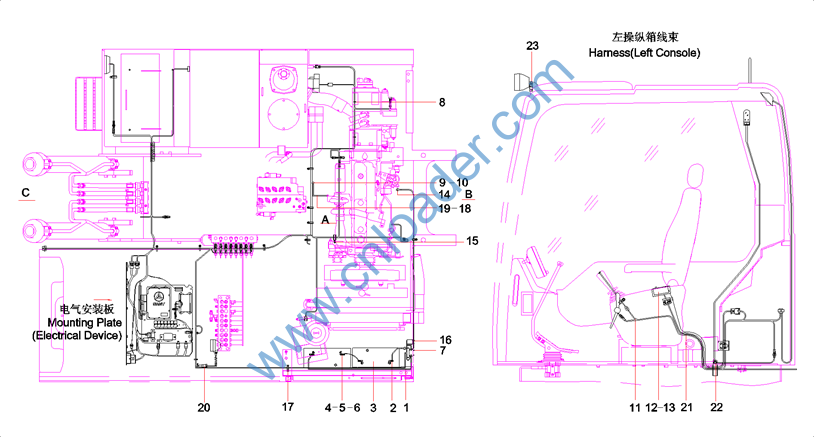

零件代码 PART NUMBER |
名称 PART NAME |
|
|
60190200 |
电源线 |
Wire, power supply |
|
60012803 |
电源线 |
Wire, power supply |
|
A242200000027 |
蓄电池 |
Battery |
|
60012793 |
电源线 |
Line, power |
|
60013322 |
A型蓄电池正极接头总成 |
Terminal Group, Battery Postive |
|
60013321 |
A型蓄电池负极接头总成 |
Terminal Group, Battery Negative |
|
A210111000091 |
螺栓 |
Bolt M8×30GB5783 |
|
A239900000065 |
尼龙扎带 |
Strap, nylon |
|
A210111000348 |
螺栓 |
Bolt |
|
A210405000007 |
垫圈 |
Washer 8GB97.1 |
|
11944566 |
驾驶室线束 |
Harness, cab |
|
A240500000113 |
收音机 |
Radio |
|
A210401000015 |
垫圈 |
Washer 5GB93 |
|
A210404000005 |
垫圈 |
Washer 8GB96.1 |
|
A210405000006 |
垫圈 |
Washer 6GB97.1 |
|
A241300000059 |
熔断器盒 |
Box, fuse |
|
A820606030059 |
护孔环 |
Grommet |
|
A230200000021 |
PVC电气胶带 |
Tape, electric, PVC |
|
A810201058132 |
电源线 |
Wire, power supply |
|
B241000000022 |
2芯直流插座 |
Socket, two-wire |
|
零件代码 PART NUMBER |
名称 PART NAME |
|
60060300 |
天线延长线 Extension, antenna |
|
A210204000340 |
螺钉M8×16GB70.1 10.9级 Screw M8×16GB70.1 10.9 |
|
11400099 |
线夹 Clip |
|

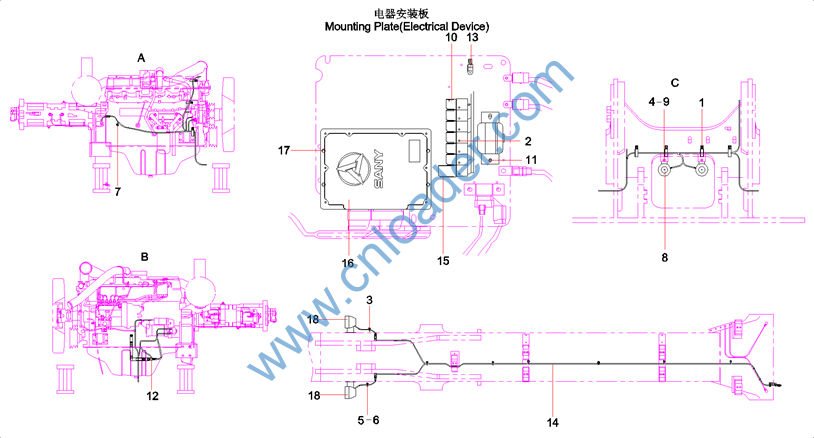

零件代码 PART NUMBER |
名称 PART NAME |
|
|
60086357 |
线束固定夹 |
Harness clamp |
|
11766760 |
车身线束 |
Body wire harness |
|
60173565 |
电源线 |
Wire, power supply |
|
60086354 |
线束固定夹 |
Clamp, harness |
|
60086356 |
线束固定夹 |
Clamp, harness |
|
B241100000391 |
工作灯70-24-P1 长方 |
Lamp, working |
|
A210204000115 |
螺钉 |
Screw M5×12GB70.1 |
|
A210404000010 |
垫圈 |
Washer 5GB96.1 |
|
11888261 |
三一显示屏 |
Sany monitor |
|
A230200000170 |
线夹 |
Clamp |
|
60117463 |
旋钮开关 |
Switch, fuel control |
|
A210401000013 |
垫圈 |
Washer 4GB93 |
|
A210405000004 |
垫圈 |
Washer 4GB97.1 |
|
A241200001217 |
启动开关 |
Switch, ignition |
|
60053220 |
指示灯 |
Lamp, indicator, LED, red |
|
60053221 |
指示灯 |
Lamp, indicator, LED, yellow |
|
11854607 |
控制开关线束 |
Harness, control switch |
|
60021249 |
翘板开关 |
Switch, rocker |
|
A210111000199 |
螺栓M12×20GB5783 10.9级 |
Bolt M12×20GB5783 10.9 |
|

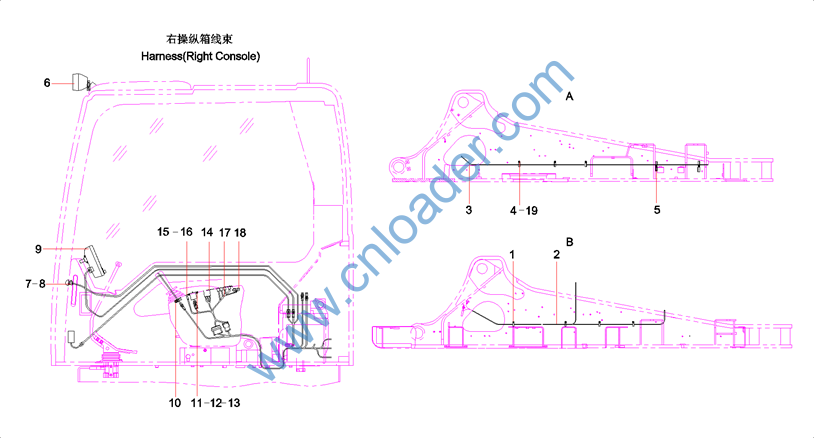

零件代码 PART NUMBER |
名称 PART NAME |
|
|
60086355 |
线束固定夹 |
Clamp, harness |
|
A210202000011 |
螺钉 |
Screw M4×12GB67 |
|
60149356 |
椭圆线夹 |
Clamp, wire, ellipse |
|
A210111000089 |
螺栓 |
Bolt M8×20GB5783 |
|
A210111000195 |
螺栓 |
Bolt M10×16GB5783 10.9 |
|
A210405000011 |
垫圈 |
Washer 10GB97.1 |
|
60086353 |
线束固定夹 |
Clamp, harness |
|
A229900001896 |
喇叭 |
Horn |
|
A210401000017 |
垫圈 |
Washer 8GB93 |
|
B240700000250 |
中间继电器 |
Relay, auxiliary |
|
A210202000020 |
螺钉 |
Screw |
|
11420499 |
凌星电装接插件固定夹 |
Clamp, holding, connector |
|
60065369 |
DK金属固定夹 |
Support, fixed, medal, plug-in |
|
60067864 |
时间继电器 |
Relay, time |
|
60169136 |
可编程控制器 |
Control |
|
A210204000146 |
螺钉 |
Screw M8×16GB70.1 |
|
60114255 |
工作灯 |
Lamp, work |
