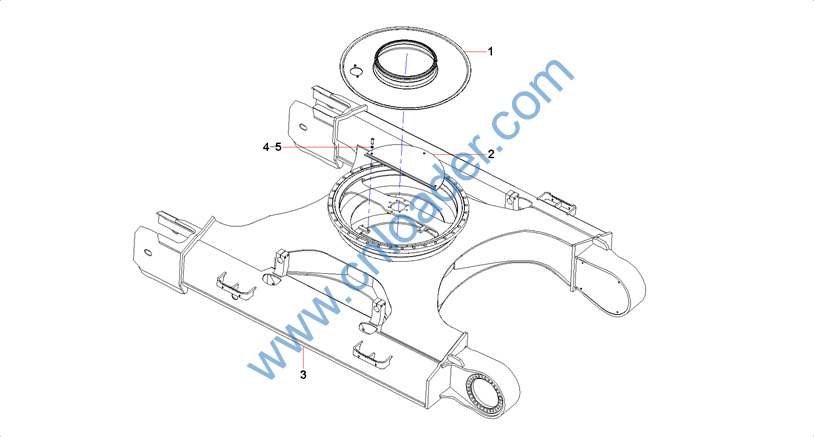

零件代码 PART NUMBER |
名称 PART NAME |
|
60008368 |
螺栓 Bolt |
|

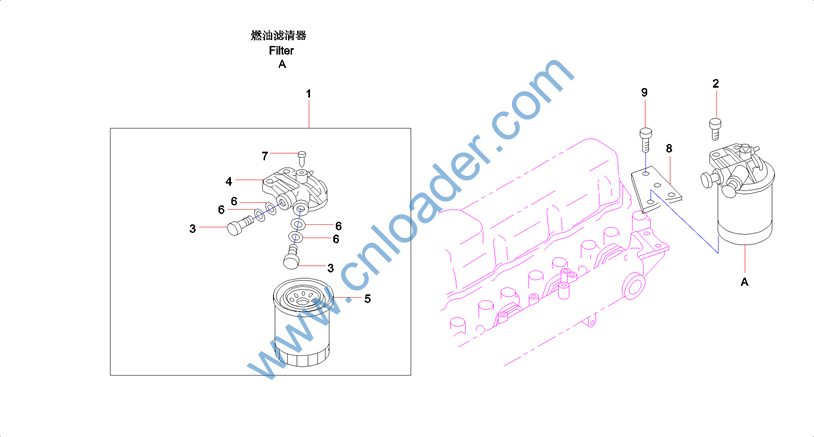

零件代码 PART NUMBER |
名称 PART NAME |
|
|
B222100000549 |
柴油滤清器 |
Filter, fuel |
|
B229900004981 |
螺栓 带法兰 |
Bolt |
|
B229900004773 |
空心螺栓 |
Bolt, hollow stay |
|
B229900003356 |
精燃油滤芯座盖 |
Mount, fuel filter |
|
B222100000430 |
柴油滤清器 |
Filter, fuel |
|
B229900004645 |
垫圈 |
Washer |
|
B229900004681 |
堵头 |
Plug |
|
B229900004782 |
滤清器支架 |
Bracket, Filter |
|
B229900004991 |
螺栓 |
Bolt |
|

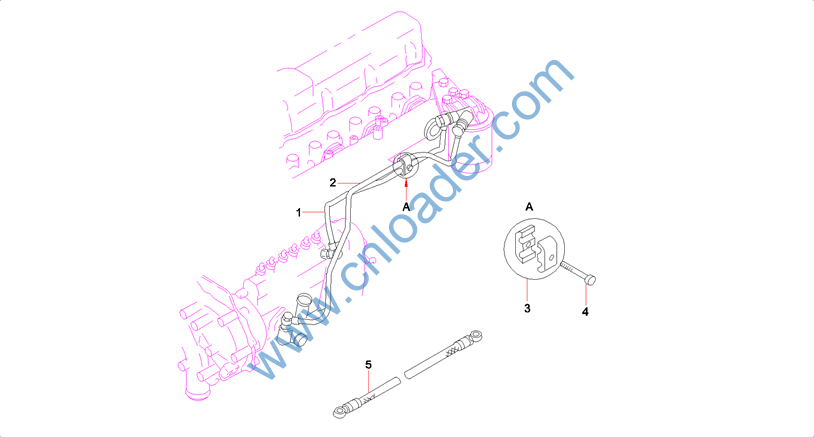

零件代码 PART NUMBER |
名称 PART NAME |
|
|
B229900005085 |
油管 |
Pipe, Oil |
|
B229900005084 |
油管 |
Pipe, Oil |
|
B229900004305 |
管卡 |
Clip |
|
B229900004984 |
螺栓 |
Bolt |
|
B229900002693 |
燃油滤清器管 |
Hose, fuel |
|

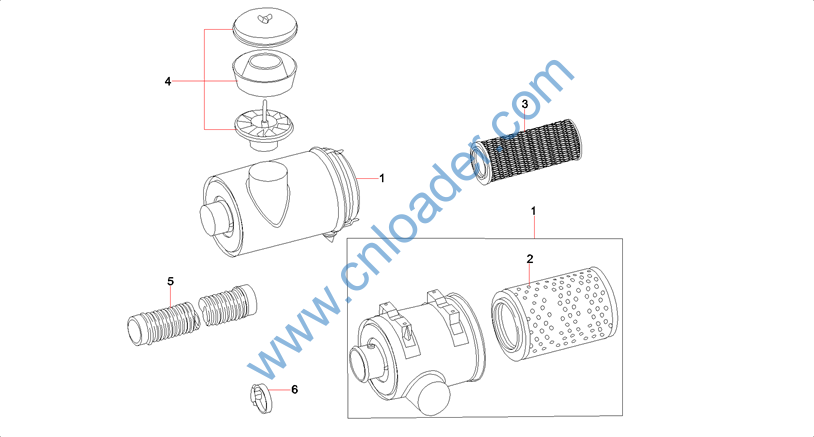

零件代码 PART NUMBER |
名称 PART NAME |
|
|
B222100000436 |
空气滤清器 |
Air cleaner |
|
B222100000509 |
空气滤清器安全滤芯 |
Element, safety, air cleaner |
|
B222100000433 |
气滤清器主滤芯 |
Element, primary, air cleaner |
|
B222100000658 |
预滤器 |
Precleaner |
|
B229900002831 |
软管 |
Hose |
|
B229900004137 |
卡箍(无引用) |
Clamp |
|
零件代码 PART NUMBER |
名称 PART NAME |
|
|
变更或见其他配置 |
配重主体 |
Body, counterweight |
|
A820606030358 |
盖 |
Cover |
|
A820699001243 |
密封海绵 |
Sponge, sealing |
|
A820699001112 |
右部海绵 |
Sponge, right |
|
A820699001111 |
中部海绵 |
Sponge, middle |
|
A820699000247 |
左部海绵 |
Sponge, left |
|

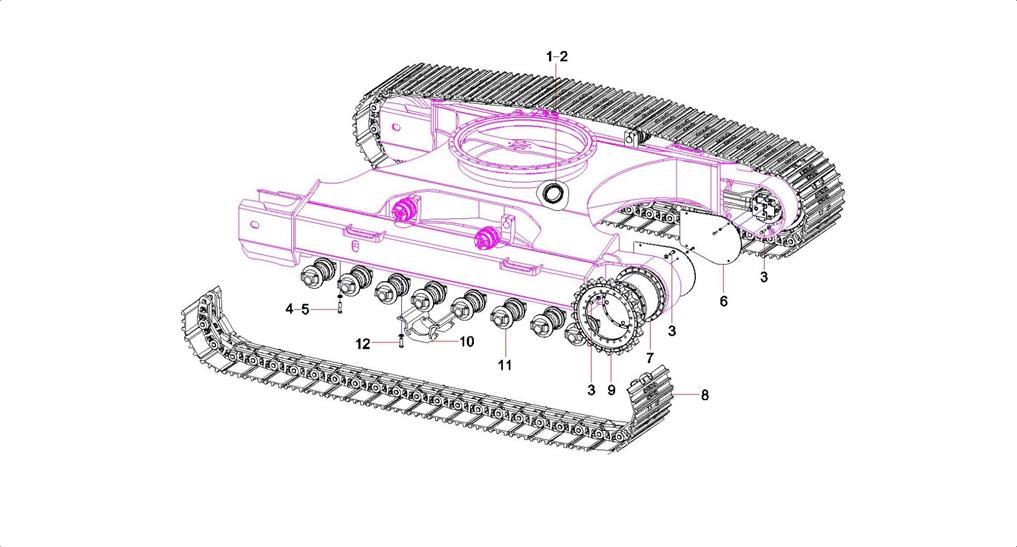

零件代码 PART NUMBER |
名称 PART NAME |
|
|
10398371 |
密封组件 |
Seal AS |
|
10131971 |
盖板总成 |
Coverplate GP |
|
变更或见其他配置 |
履带架 |
Frame, track |
|
变更或见其他配置 |
螺栓 |
Bolt M12×30GB578310.9 |
|
A210401000002 |
垫圈 |
Washer 12GB93 |
|
零件代码 PART NUMBER |
名称 PART NAME |
|
|
A229900008843 |
引导轮 |
Idler |
|
A210111000054 |
螺栓M16×55GB5783 10.9级 |
Bolt M16×55GB5783 10.9 |
|
A210491000118 |
垫圈 |
Washer 16GB1230 |
|
A229900006383 |
张紧装置 |
Tensioner |
|
12168856 |
托链轮总成 |
Roller As, carrier |
|
A210111000101 |
螺栓M12×25GB5783 10.9级 |
Bolt M12×25GB5783 10.9 |
|
B229900000862 |
黄油阀 |
Valve, grease |
|
A820101010372 |
支板 |
Plate, support |
|
A210111000347 |
螺栓M16×90GB5783 10.9级 |
Bolt M16×90GB5783 10.9 |
