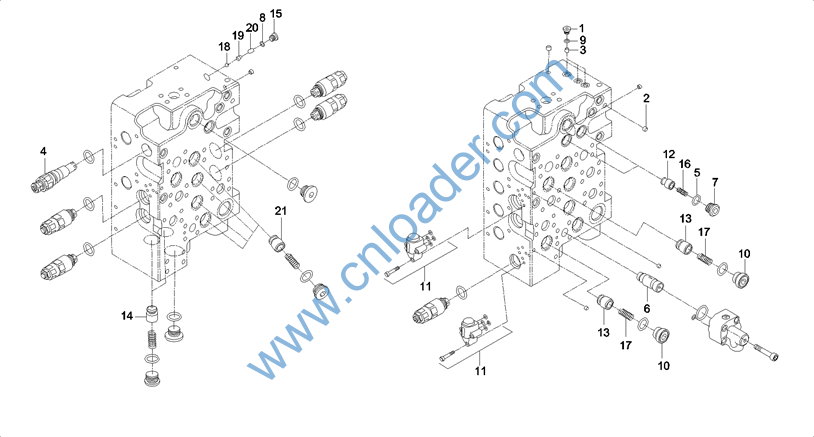

零件代码 PART NUMBER |
名称 PART NAME |
|
|
60008711 |
堵 |
Plug |
|
60008712 |
堵 |
Plug |
|
60008713 |
堵 |
Plug |
|
60008728 |
紧定螺钉 |
Setscrew |
|
60100511 |
铭牌 |
Nameplate |
|
60008697 |
O形圈 |
O-ring |
|
60008722 |
铆钉 |
Rivet |
|
60008700 |
O形圈 |
O-ring |
|
60008717 |
螺栓 |
Bolt |
|
60100516 |
O形圈 |
O-ring |
|
60008781 |
法兰 |
Flange |
|
60100494 |
逻辑阀 |
Bolt |
|
60100476 |
单向阀 |
Valve, check |
|
60100484 |
斗杆再生阀 |
Valve, arm regeneration |
|
60008783 |
单向阀 |
Valve, check |
|
60008817 |
弹簧 |
Spring |
|
60008715 |
堵 |
Plug |
|
60008705 |
O形圈 |
O-ring |
|
60100490 |
节流阀 |
Valve, throttle |
|
60100488 |
节流阀 |
Valve, throttle |
|

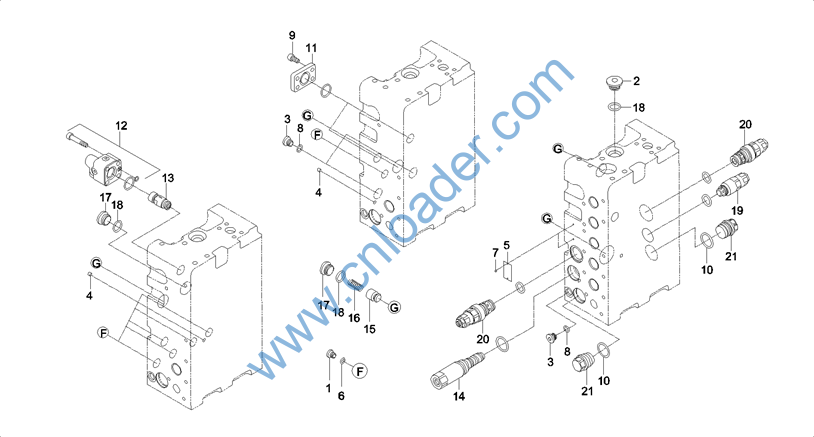

零件代码 PART NUMBER |
名称 PART NAME |
|
60100465 |
堵 Plug |
|
零件代码 PART NUMBER |
名称 PART NAME |
|
|
60100467 |
堵 |
Plug |
|
60008820 |
堵 |
Plug |
|
60100492 |
节流阀 |
Valve, throttle |
|
60100500 |
主溢流阀 |
Valve, relief, main |
|
60008703 |
O形圈 |
O-ring |
|
60100477 |
单向阀 |
Valve, check |
|
60038656 |
油塞 |
Plug, oil |
|
60008696 |
O形圈 |
O-ring |
|
60008708 |
O形圈 |
O-ring |
|
60008779 |
堵 |
Plug |
|
60100493 |
控制阀组件 |
Valve GP, control |
|
60038108 |
提升阀 |
Valve, lift |
|
60008784 |
单向阀 |
Valve, check |
|
60100475 |
单向阀 |
Valve, check |
|
60008714 |
堵 |
Plug |
|
60100504 |
弹簧 |
Spring |
|
60008765 |
弹簧 |
Spring |
|
60075545 |
球 |
Ball |
|
60075575 |
节流阀 |
Valve, throttle |
|
60075592 |
弹簧 |
Spring |
|
零件代码 PART NUMBER |
名称 PART NAME |
|
60008783 |
单向阀 Valve, check |
|

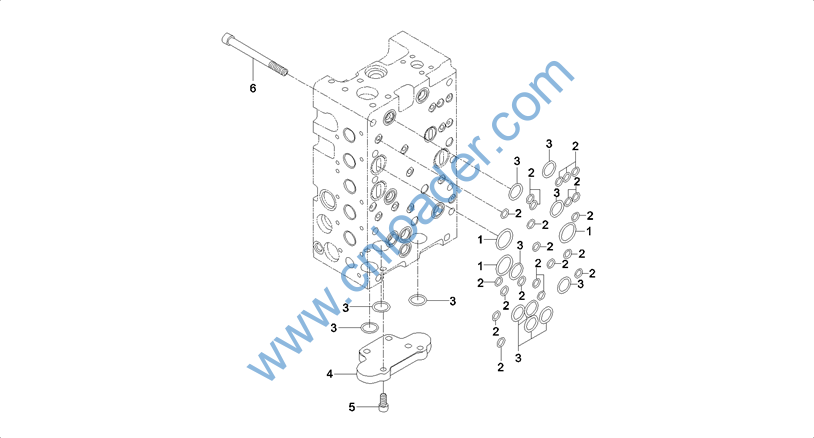

零件代码 PART NUMBER |
名称 PART NAME |
|
|
60100517 |
O形圈 |
O-ring |
|
60100515 |
O形圈 |
O-ring |
|
60100513 |
O形圈 |
O-ring |
|
60100470 |
盖 |
Cover |
|
60100512 |
内六角螺钉 |
Bolt |
|
60100510 |
螺栓 |
Bolt |
|

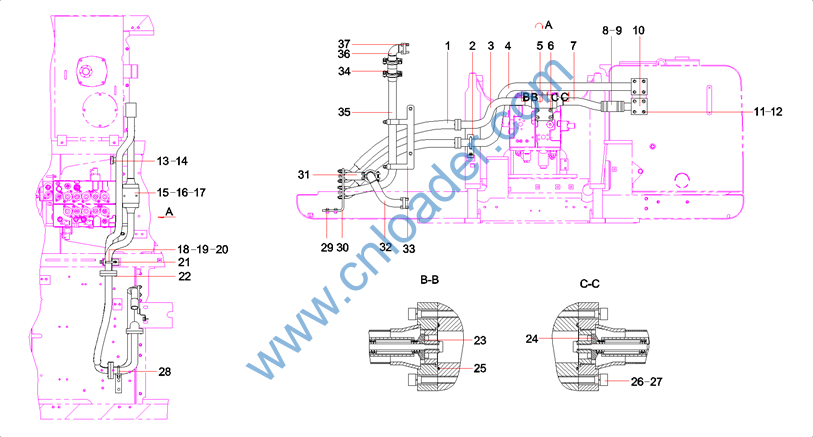

零件代码 PART NUMBER |
名称 PART NAME |
|
|
11579519 |
胶管总成 |
Hose GP |
|
11562055 |
支架 |
Bracket |
|
11539445 |
钢管总成 |
Pipe GP,steel |
|
11539449 |
回油钢管总成 |
Pipe AS, oil return |
|
10741295 |
过渡块 |
Adapter |
|
A210204000464 |
螺钉M12×90GB70.1 10.9级 |
Screw M12×90GB70.1 10.9 |
|
11539447 |
回油钢管总成 |
Tube AS, oil return |
|
11609298 |
回油橡胶管 |
Hose, oil return |
|
60135749 |
T型抱箍 |
Clamp, T-type |
|
11501863 |
回油钢管总成 |
Tube AS, oil return |
|
A210204000345 |
螺钉M10×70GB70.1 10.9级 |
Screw M10×70GB70.1 10.9 |
|
A210401000001 |
垫圈 |
Washer 10GB93 |
|
A820205002644 |
G1堵头 |
Plug |
|
B230101000050 |
O形圈 |
O-ring 28.7×3.5JISB2401 |
|
A820201001260 |
R2阀盖板 |
Cover plate, valve |
|
A210204000161 |
螺钉 |
Screw M10×25GB70.1 |
|
B230101000244 |
O形圈 |
O-ring |
|
A210307000031 |
螺母M12GB6170 10级 |
Nut M12GB6170 10 |
|
11162794 |
U形螺栓 |
U-bolt |
|
A210405000001 |
垫圈 |
Washer 12GB97.1 |
|
零件代码 PART NUMBER |
名称 PART NAME |
|
|
A210111000101 |
螺栓M12×25GB5783 10.9级 |
Bolt M12×25GB5783 10.9 |
|
A210204000338 |
螺钉M12×40GB70.1 10.9级 |
Screw M12×40GB70.1 10.9 |
|
B220401000589 |
单向阀 |
Valve, check |
|
B220401000590 |
单向阀 |
Valve, check |
|
B230101000366 |
O形圈 |
O-ring 59.4×3.1JISB2401 |
|
A210204000462 |
螺钉M12×45GB70.1 10.9级 |
Screw M12×45GB70.1 10.9 |
|
A210401000002 |
垫圈 |
Washer 12GB93 |
|
11617653 |
U型螺栓 |
U-bolt |
|
A210111000202 |
螺栓 |
Bolt M12×30GB578310.9 |
|
11563955 |
管夹支撑 |
Support, clamp |
|
12104149 |
油散进油钢管总成 |
Tube AS, oil feed, radiator |
|
12104942 |
油散进油钢管总成 |
Tube AS, oil feed, radiator |
|
12102864 |
支撑板 |
Plate, supporting |
|
A229900004566 |
管夹 |
Clamp, pipe |
|
12102900 |
油散出油钢管总成 |
Tube AS, oil delivery, radiator |
|
12104076 |
油散出油钢管总成 |
Tube AS, oil delivery, radiator |
|
A210204000206 |
螺钉M12×35GB70.1 10.9级 |
Screw M12×35GB70.1 10.9 |
|

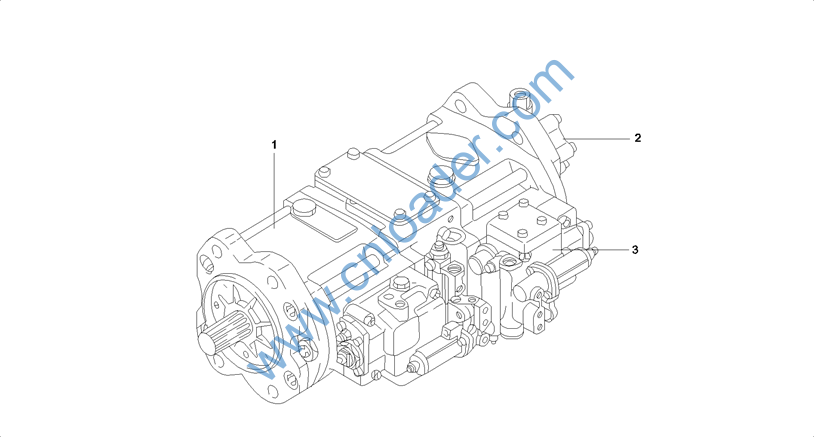

零件代码 PART NUMBER |
名称 PART NAME |
|
60081915 |
柱塞泵组件 Pump GP, plunger |
|
60000735 |
先导齿轮泵 Pump, gear, pilot |
|
60119021 |
调节器 Regulator |
