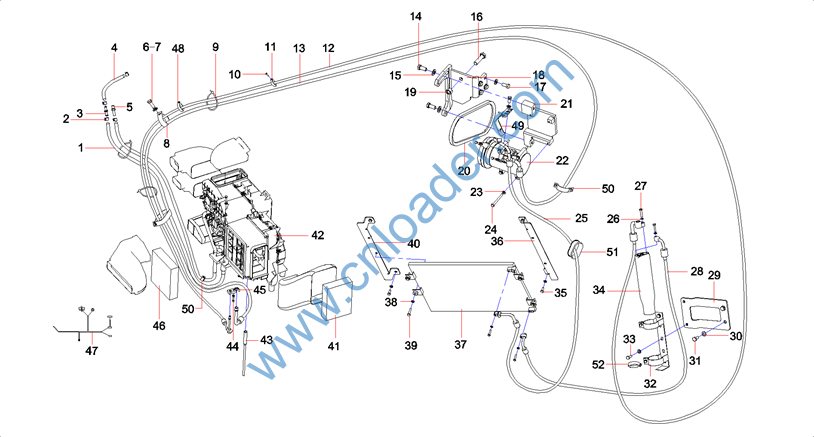

零件代码 PART NUMBER |
名称 PART NAME |
|
|
10062285 |
调整板 |
Plate, adjusting |
|
B220203000007 |
压缩机 |
Compressor |
|
A210405000007 |
垫圈 |
Washer 8GB97.1 |
|
A210108000097 |
螺栓 |
Bolt M8×80GB5782 |
|
60001232 |
排气胶管 |
Hose, exhaust |
|
A210405000006 |
垫圈 |
Washer 6GB97.1 |
|
A210111000082 |
螺栓 |
Bolt |
|
60001238 |
液体胶管 |
Hose |
|
10368409 |
干燥瓶支架 |
Bracket, drying bottle |
|
A210405000011 |
垫圈 |
Washer 10GB97.1 |
|
A210111000012 |
螺栓 M10×20GB5783 10.9级 |
Bolt M10×20GB5783 10.9 |
|
A229900008784 |
储液器支架 |
Support, container, liquid storage |
|
A210111000343 |
螺栓M8×20GB5783 10.9级 |
Bolt M8×20GB5783 10.9 |
|
B229900005141 |
储液器 |
Container, liquid storage |
|
A210111000323 |
螺栓M8×25GB5783 10.9级 |
Bolt M8×25GB5783 10.9 |
|
10368407 |
冷凝器右支架 |
Bracket, condenser |
|
A220700000028 |
冷凝器总成 |
Assembly, condenser |
|
A210404000005 |
垫圈 |
Washer 8GB96.1 |
|
A210111000092 |
螺栓 |
Bolt M8×35GB5783 |
|
10368408 |
冷凝器左支架 |
Bracket, condenser |
|
零件代码 PART NUMBER |
名称 PART NAME |
|
|
B222100000660 |
外气过滤器 |
Filter, air, external |
|
60168171 |
空调单元总成 |
Assembly, air conditioner unit |
|
A229900009481 |
排水管 |
Pipe, drainage |
|
A210204000132 |
螺钉 |
Screw M6×25GB70.1 |
|
B229900005758 |
管接头 |
Connector, pipe |
|
B222100000711 |
内气过滤器 |
Filter, air, inner |
|
10473304 |
空调电气系统 |
Electrical system, air conditioner |
|
60166393 |
单联管夹 |
Clamp, pipe |
|
12049464 |
压缩机接插件固定夹 |
The fixed bracket for the |
|
60149606 |
线束固定夹 |
Harness clamp |
|
11779657 |
胶套 |
Sleeve, rubber |
|
A230200000170 |
线夹 |
Clamp |
|

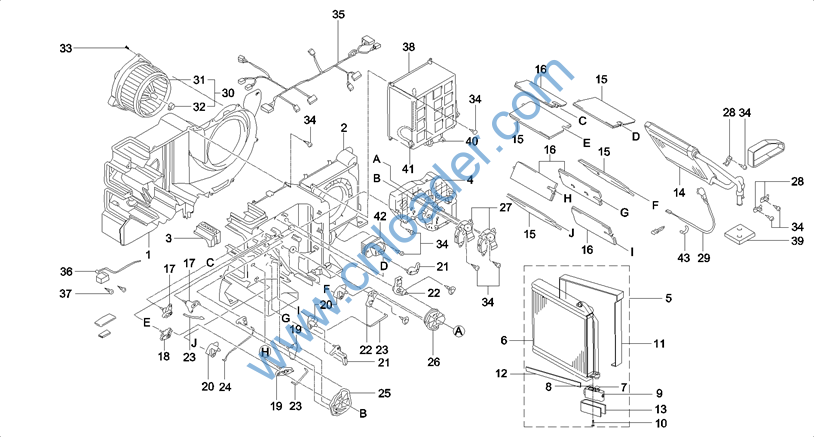

零件代码 PART NUMBER |
名称 PART NAME |
|
|
60153212 |
冷却机组外壳 |
Outer shell, cooling motor group |
|
60153213 |
冷却机组外壳 |
Outer shell, cooling motor group |
|
60153195 |
片 |
Plate |
|
60153196 |
片 |
Plate |
|
60153202 |
带部件蒸发器总成 |
Evaporator assembly with parts |
|
60153218 |
蒸发器分总成 |
Evaporator sub-assembly |
|
60153192 |
O型环 |
O-type ring |
|
60153193 |
O型环 |
O-type ring |
|
60153197 |
膨胀阀 |
Valve, expansion |
|
60153215 |
螺栓 |
Bolt |
|
60153203 |
隔热密封垫 |
Seal, insulation |
|
60153205 |
隔热密封垫 |
Seal, insulation |
|
60153204 |
隔热密封垫 |
Seal, insulation |
|
60153242 |
加热器芯分总成 |
Core SUB, heater |
|
60049962 |
门分总成 |
Door SUB |
|
60153216 |
门分总成 |
Door SUB |
|
60049956 |
连杆分总成 |
Rod SUB, connecting |
|
60049957 |
连杆分总成 |
Rod SUB, connecting |
|
60049958 |
连杆分总成 |
Rod SUB, connecting |
|
60049959 |
连杆分总成 |
Rod SUB, connecting |
|
零件代码 PART NUMBER |
名称 PART NAME |
|
|
60049941 |
杆 |
Rod |
|
60049960 |
连杆分总成 |
Rod sub-assembly, connecting |
|
60049963 |
轴 |
Shaft |
|
60049964 |
轴 |
Shaft |
|
60049943 |
片 |
Plate |
|
60049944 |
片 |
Plate |
|
60049947 |
伺服电机总成 |
Motor AS, servo |
|
60049955 |
夹具 |
Clamp |
|
60033039 |
水温传感器 |
Sensor, water temperature |
|
60153199 |
带风扇电机总成 |
Motor As, with fan |
|
60049951 |
风扇叶 |
Blade, fan |
|
60049954 |
夹具 |
Clamp |
|
60049950 |
带垫圈自攻螺钉 |
Screw, tapping, with washer |
|
60049965 |
自攻螺钉 |
Screw, self-tapping |
|
60049948 |
空调机电束总成 |
Harness AS, air conditioner |
|
60049966 |
防结霜传感器 |
Sensor, anti-frost |
|
60049949 |
带垫圈螺钉 |
Screw, with washer |
|
60049942 |
盒分总成 |
Box, SUB |
|
60049953 |
隔热密封垫 |
Seal, insulation |
|
60049945 |
带附件伺服电机总成 |
Motor AS, servo |
|
零件代码 PART NUMBER |
名称 PART NAME |
|
60153240 |
热敏电阻总成 Thermistor AS |
|
60049968 |
空调功率晶体管总成 Transistor AS, air conditioner |
|
60049952 |
感温包零件支架 Bracket, thermo-bulb parts |
|

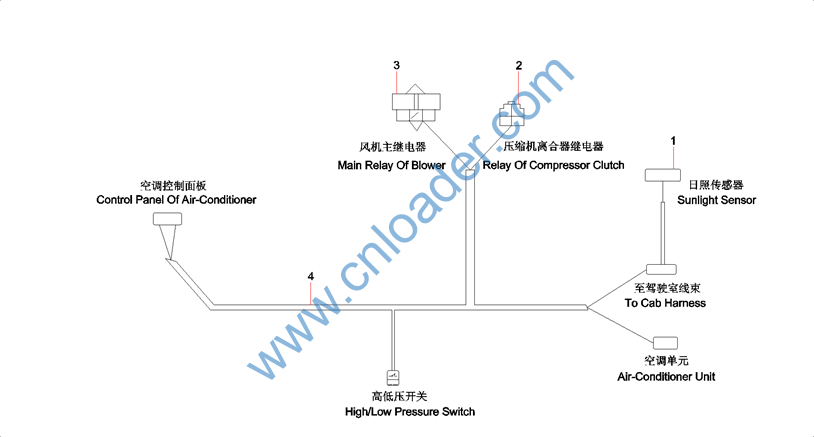

零件代码 PART NUMBER |
名称 PART NAME |
|
|
B240600000334 |
日照传感器 |
Sensor, sunlight |
|
B240700000473 |
继电器 |
Relay |
|
B240700000472 |
继电器 |
Relay |
|
10448933 |
空调连接线 |
Wire, connecting, air conditioner |
|

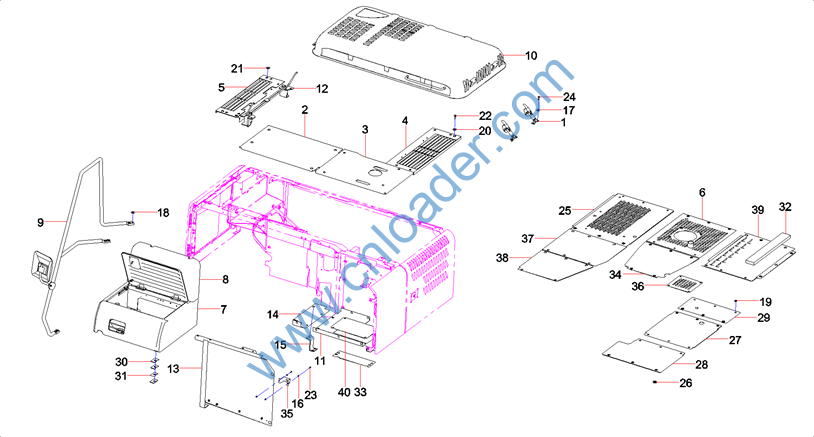

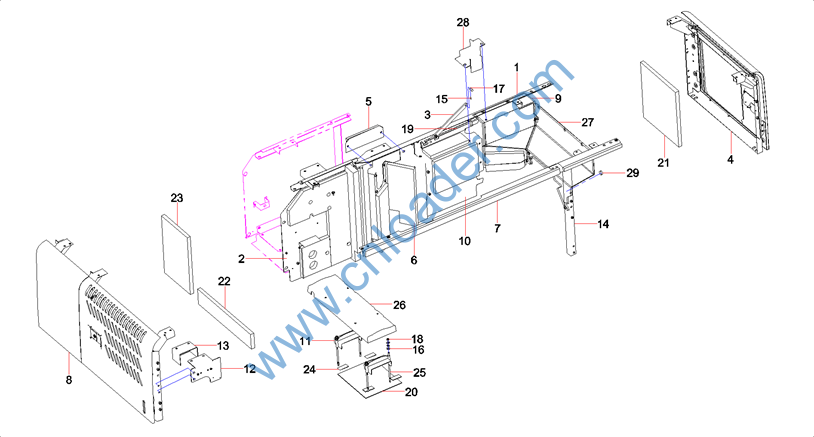

零件代码 PART NUMBER |
名称 PART NAME |
|
|
A222200000065 |
机罩锁 |
Lock, door |
|
11768700 |
中盖板 |
Coverplate, middle |
|
12199530 |
盖 |
Cover PlateSY200.1.6.13C.1 |
|
11769163 |
左上后盖板 |
Left Upper Rear Cover Plate |
|
11769378 |
右上后盖板 |
Right upper rear cover plate |
|
11627730 |
盖 |
Cover |
|
A810502017020 |
电瓶箱总成 |
Box GP, battery |
|
A810502990126 |
装饰盖 |
Cover, ornament |
|
A810502020139 |
扶手 |
Handhold |
|
12169042 |
机顶罩总成 |
Engine hood GP |
|
11504920 |
盖板 |
Coverplate |
|
11616245 |
托架 |
Bracket |
|
12199560 |
左前隔板总成 |
left front spacing plate |
|
11504680 |
先导管盖板 |
Coverplate, pilot pipe |
|
11459285 |
撑板 |
Plate, supporting |
|
A210405000006 |
垫圈 |
Washer 6GB97.1 |
|
A210404000005 |
垫圈 |
Washer 8GB96.1 |
|
A210491000121 |
垫圈 |
Washer 12GB1230 |
|
A210401000002 |
垫圈 |
Washer 12GB93 |
|
A210404000004 |
垫圈 |
Washer 12GB96.1 |
|
零件代码 PART NUMBER |
名称 PART NAME |
|
|
A210405000001 |
垫圈 |
Washer 12GB97.1 |
|
A210111000202 |
螺栓 |
Bolt M12×30GB578310.9 |
|
A210204000130 |
螺钉 |
Screw M6×16GB70.1 |
|
A210111000090 |
螺栓 |
Bolt M8×25GB5783 |
|
A820101117951 |
右侧底盖板 |
Coverplate, bottom, right |
|
A820299000383 |
套 |
Sleeve |
|
A820101117949 |
后中盖板 |
Coverplate, rear middle |
|
A820101117950 |
驾驶室底前盖板 |
Coverplate, bottom front, cab |
|
A820101119480 |
底盖板 |
Coverplate, bottom |
|
A820101210711 |
垫片 |
Gasket |
|
A820101210712 |
垫片 |
Gasket |
|
A820699000269 |
底海绵 |
Sponge, bottom |
|
12119218 |
过渡块盖板 |
Coverplate, adapter |
|
A820101337218 |
主阀底盖板 |
Coverplate, bottom, main valve |
|
A820101216763 |
检修灯安装支架零件图 |
Parts book, mounting bracket, |
|
A820101357570 |
盖 |
Cover |
|
10723433 |
液压油箱底盖板 |
Coverplate, bottom, hydraulic tank |
|
12181098 |
燃油箱底盖板 |
Coverplate, bottom, fuel tank |
|
12290557 |
左中底盖板 |
Coverplate, bottom, middle left |
|
11459078 |
先导管检修板 |
Access door, pilot pipe |
