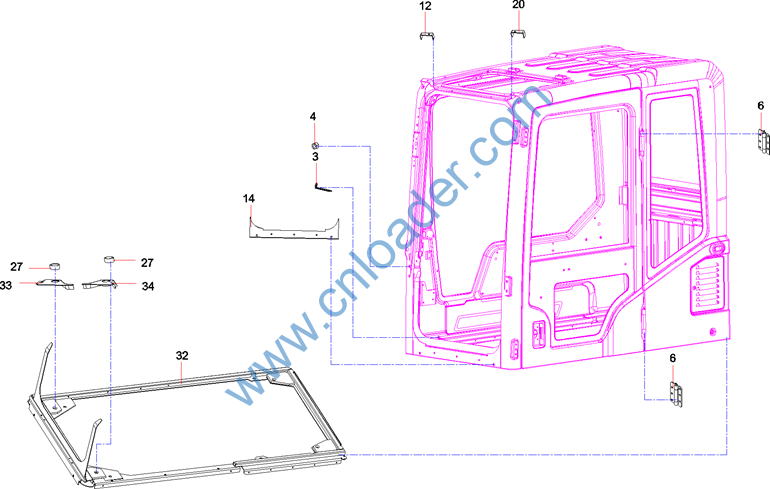

SY215C9M2K hydraulic excavator FGR



零件代码 PART NUMBER

名称 PART NAME

11653946

右侧围总成

Side wall GP,right

10138014

右侧前部导轨

Right-hand front part guide rail

11533105

右后围裙边加强板

Reinforcement plate,right rear

10138017

右侧上部导轨

Guide rail,upper,right-hand

A229900008234

导轨右上块

Block, guide rail, upper right

10144592

吊环座

Lifting eye seat








零件代码 PART NUMBER

名称 PART NAME

A230200000170

线夹

Clamp

A210307000001

螺母

Nut M12GB6170

10125155

门铰链总成

Hinge AS, cab door

10463612

前照灯座

Support, head lamp

11158300

前下横梁外板

External board, cross rail, front

11649986

左前照灯座

Seat,lamp,work

10144352

支撑管

Supporting tube

11767111

地板总成

Assembly, floorTJ06.2221.1D.1.4

11158247

右前下加强板

Plate,reinforced,lower,front,right

11158254

左前下加强板

Plate,reinforcing,lower

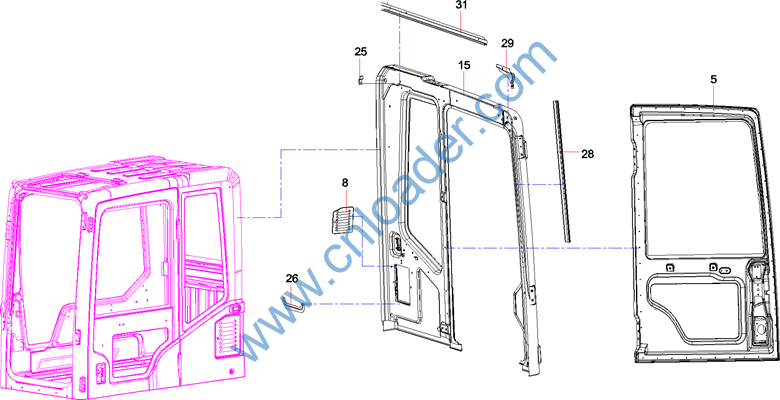

零件代码 PART NUMBER

名称 PART NAME

10137623

门总成

Cab door AS

10137650

风窗盖总成

Cover GP,windshield

10137546

左侧围总成

Left side wall assembly

10138020

拉力器固定板

Fixed plate,spring exerciser

10125135

风道下固定板

Fixed plate,lower,wind duct

10138015

左侧前部导轨

Left-hand front guide rail

A229900008236

导轨左上块总成

Block AS, guide rail, upper left

10138018

左侧上部导轨

Guide rail, left hand upper

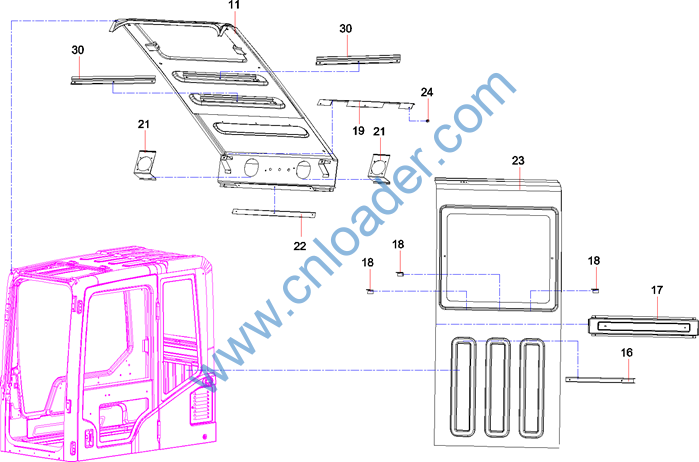

零件代码 PART NUMBER

名称 PART NAME

11156412

顶盖总成

Assembly, top cover

10683994

储风管安装板总成

Plate GP,mounting,air Reservoir

11156595

后围加强筋

Rib,reinforcement,rear wall

10684003

内饰安装板总成

Plate

11158331

顶棚安装板总成

Installation plate assembly, ceiling

10137552

扬声器支架总成

Speaker support assembly

11158302

内饰安装板总成

Plate

11156542

后围板

Panel,wall,rear

A210307000015

螺母

Nut M5GB6170

11158337

顶棚中部安装板

Installation plate, ceiling center

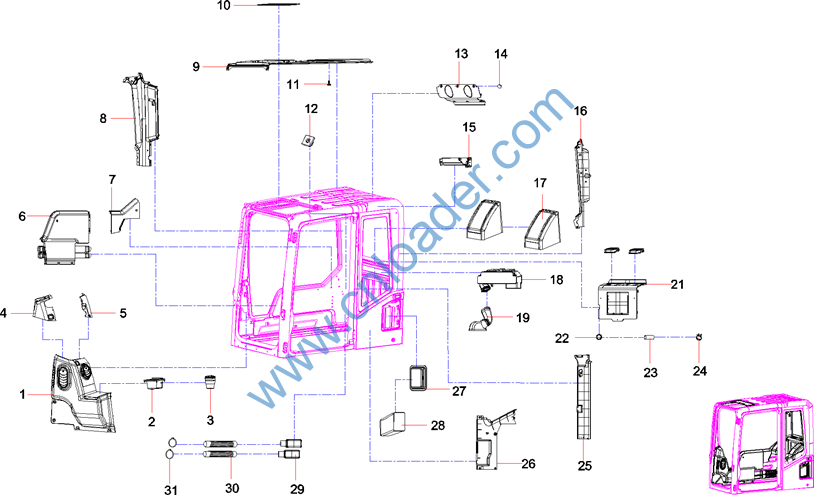

零件代码 PART NUMBER

名称 PART NAME

11334877

前控箱总成

Front,control,box,assy

11334825

水杯托

Saucer

11334840

烟灰缸

Ashtray

11334843

前控箱上护罩总成

Front,control,box,upper,guar,assy

11334218

前控箱上护罩盖板

Front, controlling, box, upper,

11334874

右侧围总成

Side wall GP,right

11334865

右侧围后饰板总成

Cover plate,rear,side wall,right

10640038

右后立柱板

Plate,upright column,right rear

11169629

顶棚

Ceiling

11169628

天窗内饰

Trim, roof window

11334708

顶棚卡扣

Bayonet catch, top shed

11209482

方形膨胀卡扣

Expansion clip, square

11169630

扬声器罩

Speaker, cover

10640709

装饰扣

Stud

10640105

左上柱

Left, upper, column

10640091

左后立柱板

Plate,pillar,rear,left

10639298

工具箱

Toolbox

11169633

储风管

Reservoir,air

11573808

后部风管接头总成

Connector GP,ventilation pipe,rear

11169632

空调罩

Harness, air conditioner








零件代码 PART NUMBER

名称 PART NAME

11334721

杂物盒冷藏通风管保护套

Protective sleeve,ventilation

11334726

杂物盒冷藏通风管

Ventilation pipeline,cold,case,glove

60090310

双钢丝式环箍

Clamp

10640108

左中柱

Left-middle, column

10640127

左侧围

Left, side, wall

10640698

空调进风接口

Connection,air inlet,air conditioner

11169634

空调进风接管

Connection pipe,air inlet,air

11551410

右侧风口接头

Joint,air outlet,right-hand

11551411

波纹连接管

Pipe,connection,corrugated

A210855000012

喉箍

Clamp

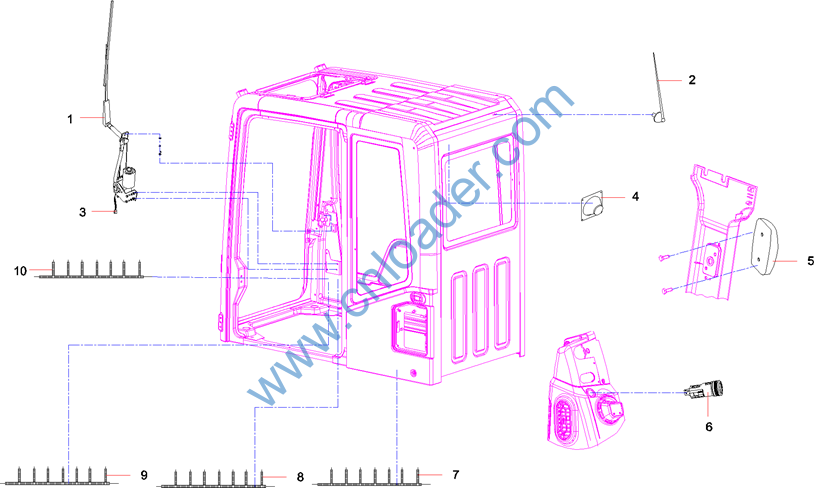

零件代码 PART NUMBER

名称 PART NAME

A229900008240

刮水器总成

Wiper AS

60090606

天线

Antenna

11541446

雨刮器线束

Harness,wiper

60023703

音箱

Speaker

A229900003178

厢灯

Lamp, cab

A229900003764

点烟器

Lighter, cigarette

11140229

驾驶室左侧线束

Harness,left,cab

11139788

OPUS显示器线束

Harness,monitor

11822542

GPRS有源线束

GPRS active harness

11822508

GPS有源线束

GPS active antenna

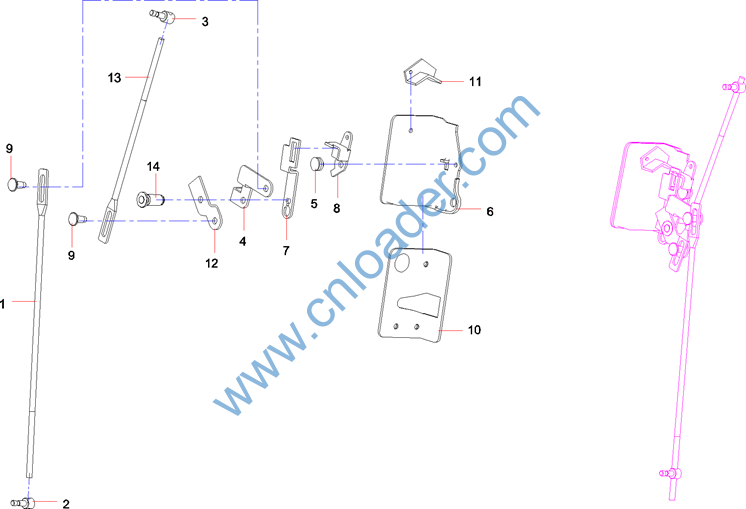

零件代码 PART NUMBER

名称 PART NAME

10708367

推拉杆

Bar, sliding

10708368

推拉杆

Bar, sliding

10708369

固定销

Pin, fixing

10708373

推拉块

Block, sliding

10708376

Pin

10708370

锁止机构

Lock mechanism

10708375

推拉块

Block, sliding

10708377

固定座

Braket

10708365

固定销

Pin, fixing

10708364

车门锁固定底板

Fixed base plate, cab door lock

10708371

车门锁固定座

Braket, cab door lock

10708374

推拉块

Block, sliding

10708366

推拉杆

Bar, sliding

10708372

Pin
