SY215C9M2K hydraulic excavator DGE

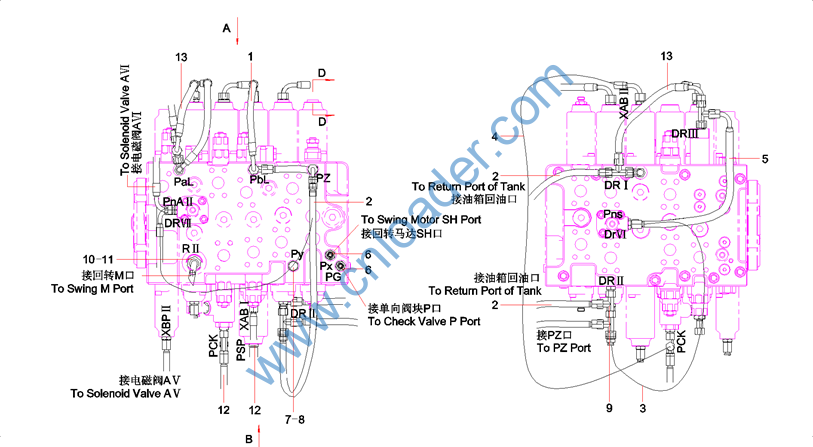

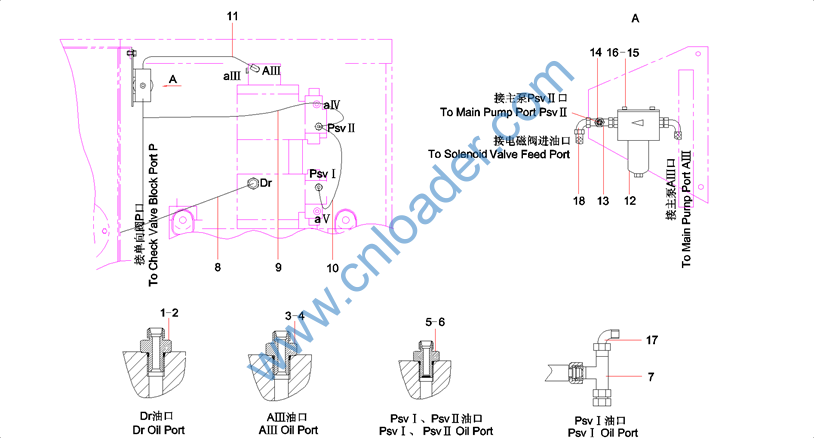

零件代码 PART NUMBER	名称 PART NAME
21008079	螺钉M10×85(GB70.1) 12.9级	Screw M10×85(GB70.1)
A210404000003	垫圈	Washer 10GB96.1
21020054	胶管	Hose,rubber
21053860	胶管	Hose
B230103003295	胶管	Hose
B230103000993	胶管	Hose, rubber
B230103003547	胶管	Hose, rubber
B230103001633	胶管	Hose
60116349	压力传感器	Sensor,pressure
B230103002045	胶管	Hose, rubber
B220400000169	三通梭阀	Valve, shuttle, tee
B210780001045	管接头	Connector, pipe
A820205001061	负流量传感器接头	Coupler, sensor, negative flow
10077269	过渡块	Adapter
B230103000886	胶管	Hose

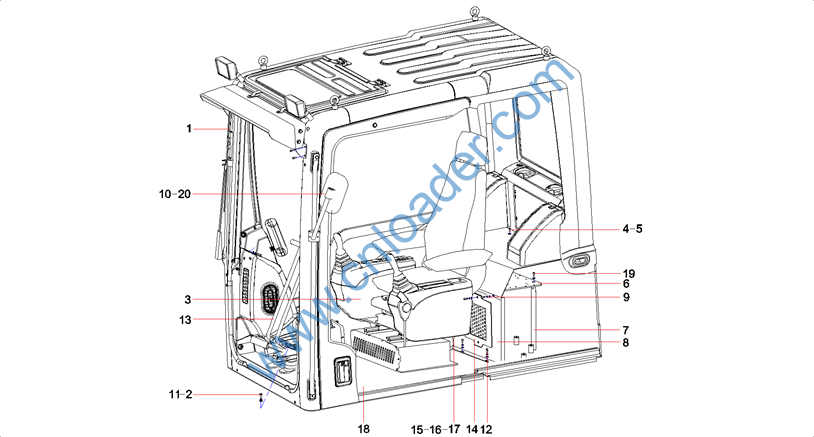

零件代码 PART NUMBER	名称 PART NAME
12302648	车身总成	Body AS, machine
A210401000001	垫圈	Washer 10GB93
11839176	座椅及操纵箱	Seat and control console
A210210000027	螺钉	Screw M6×30GB818
A210405000007	垫圈	Washer 8GB97.1
11423128	电气安装板	Plate, mounting, electrical
12752753	支撑杆	Brace
11646746	立板	Plate, vertical
A210405000006	垫圈	Washer 6GB97.1
12051215	后视镜支架组件	Bracket GP, rear view mirror
A210111000195	螺栓	Bolt M10×16GB5783 10.9
A210204000146	螺钉	Screw M8×16GB70.1
12076176	行走操纵机构	Control mechanism, travel
10244287	内气盖板	Plate, cover, air, inner
A210264000004	自攻螺钉	Screw, tapping
A229900010630	吹脚风道	Passage, air, foot-blowing
10567493	吹脚风道密封海绵	Sponge, sealing, floor air outlet
11540709	底板架	Support, bottom plate
A210111000089	螺栓	Bolt M8×20GB5783
60151838	驾驶室后视镜	Mirror, rear view, cab

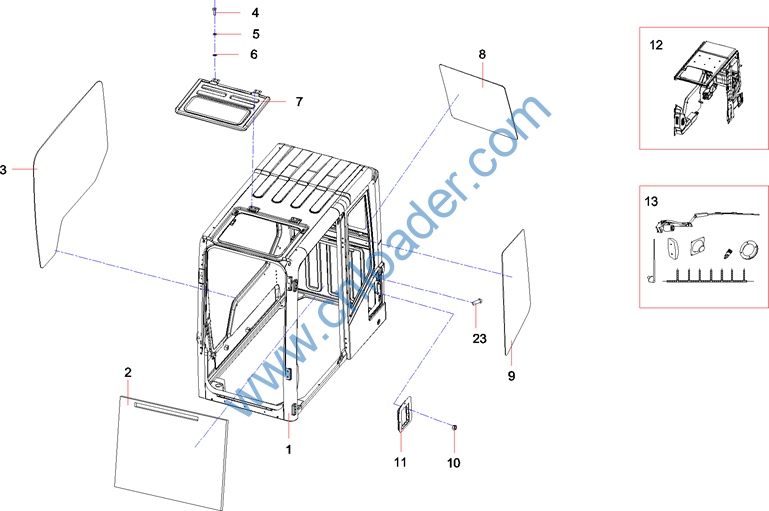

零件代码 PART NUMBER	名称 PART NAME
11654149	车身主体	Body, machine
11141356	吸音海绵	Foam, noise absorbing
11648012	右侧玻璃	Glass,right-hand
A210111000082	螺栓	Bolt
A210405000007	垫圈	Washer 8GB97.1
A210401000017	垫圈	Washer 8GB93
11162034	天窗总成	Window AS, cab roof
11094594	后围玻璃	Glass, rear wall
10138049	左侧玻璃	Glass, left
A210307000017	螺母	Nut M10GB6170
10137654	风窗挡水板总成	Baffle GP, windshield
11646101	内饰件总成	Plate GP,protect,decoration,inner
12302091	中挖驾驶室GPS电气总成	Electrical systerm
A210299000025	螺钉	Screw M6×16GB70.3

零件代码 PART NUMBER	名称 PART NAME

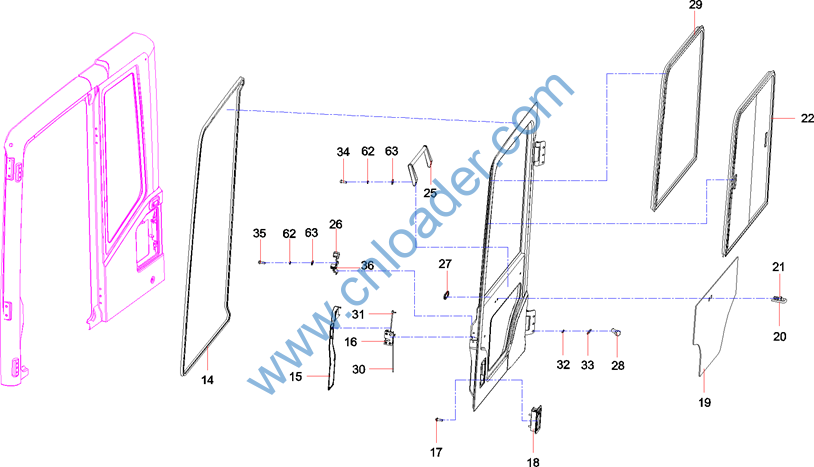

10128925	门内侧密封条	Strip, inner sealing, cab door
10128962	门内盖板	Coverplate, inside, cab door
A222200000147	车门锁	Lock AS
A210210000006	螺钉	Screw
A229900008575	车门锁外把手总成	Grip handle AS, outer, cab door
10138052	门下玻璃	Glass, lower, cab door
10138053	门外锁扣	Catch, lock, cab door lock
10133023	橡胶保护帽	Cap, protection, rubber
10139872	门窗框总成	Frame AS, cab door window
A229900002860	门拉手	Handle, grip, cab door
10166212	门锁内把手	Handhold, inside, cab door lock
10128922	橡胶帽	Cap, rubber
A210111000037	螺栓	Bolt M12×25GB5783
10473839	门窗框橡胶条	Seal, Sliding Door
60107456	门锁推杆	Push rod, door lock
60107458	门锁推杆	Push rod, door lock
A210405000001	垫圈	Washer 12GB97.1
A210401000002	垫圈	Washer 12GB93
A210204000130	螺钉	Screw M6×16GB70.1
A210210000027	螺钉	Screw M6×30GB818
