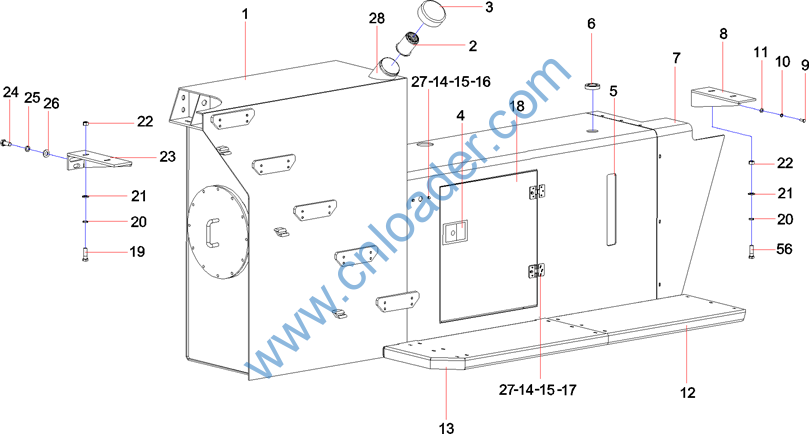

Body,container reach stacker, SRSC45H1 D





Item No.

Part No.

Description

1

13216636

Body, fuel tank

2

60022607

Stainer

3

60333717

Cover, oil tank

4

A222200000042

Latch, cover

5

A250100000041

Gauge, liquid level and temperature

6

A222100000265

Cleaner, air

7

12602467

Cap, front, right

8

14066238

Support, rear, fuel tank

9

A210111000089

Bolt

10

A210401000017

Washer

11

A210404000005

Washer

12

10043086

Pedal

13

10043085

Pedal, 2

14

A210401000016

Washer

15

A210405000006

Washer

16

A210307000016

Nut

17

A210891000015

Hinge

18

12506004

Door, battery box

19

A210111000040

Bolt

20

A210401000002

Washer

21

A210404000004

Washer

22

A210307000001

Nut


















Item No.

Part No.

Description

23

14066237

Support, front, fuel tank

24

A210204000233

Screw M20×45GB70.1 10.9-grade

25

A210401000006

Washer

26

A210491000132

Washer

27

A210111000080

Bolt

28

A210264000004

Self-tapping screw

56

A210111000041

Bolt

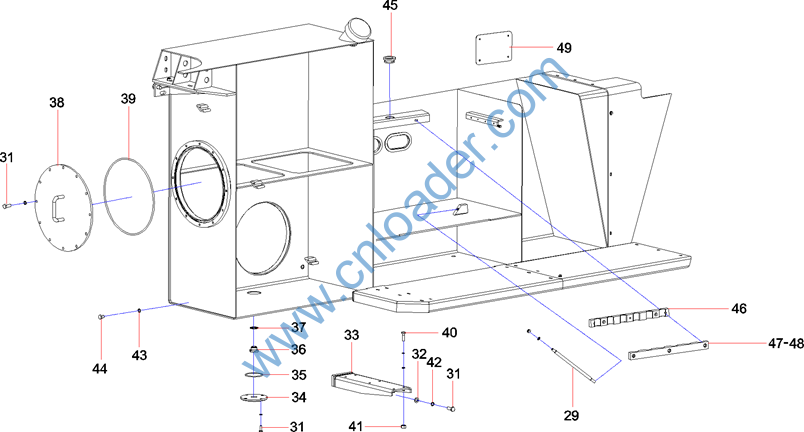

Item No.

Part No.

Description

29

12495270

Bolt, compressed, battery

31

A210204000161

Screw

32

A210405000011

Washer

33

10465351

Support, pedal

34

10774636

Plate, cover, oil washing hole

35

A210609000082

O-ring 85×3.55GB3452.1

36

21051814

Plug, screw

37

A210434000014

Washer

38

10121195

Assembly, manhole cover plate

39

A210609000295

O-ring 387×7GB3452.1

40

A210111000091

Bolt

41

A210307000012

Nut

42

A210401000001

Washer

43

A210434000009

Washer

44

A210333000011

Screw plug M18×1.5JB1000

45

13915252

Sleeve, protective

46

12583792

Seat, pipe clamp

47

12583791

Clamp

48

A210204000162

Screw

49

12495272

Plate

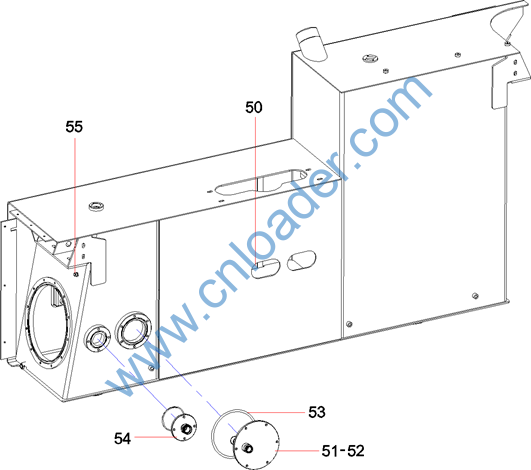

Item No.

Part No.

Description

50

11804806

Sleeve, protective, rubber

51

24004877

Filter

52

10835468

Components, oil-suction cover plate

53

A210609000174

O-ring

54

A810102000050

Assembly, cover plate, oil returm

55

B210780000746

Fitting, Adapter

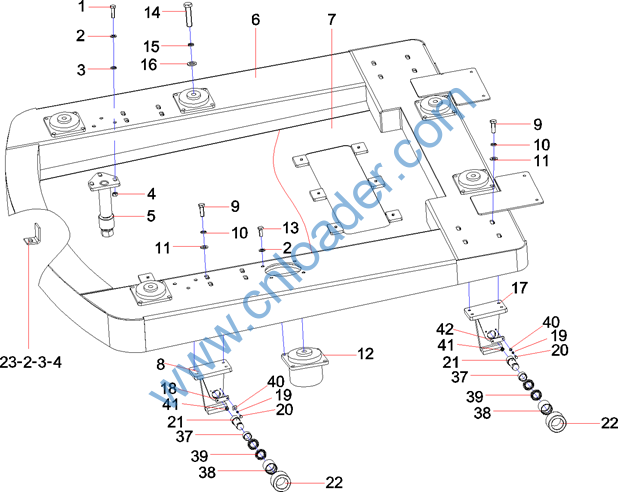

Group 14

Mechanism, cab moving
















Item No.

Part No.

Description

1

A210111000023

Bolt

2

A210405000011

Washer

3

A210401000001

Washer

4

A210307000017

Nut

5

13552532

Component, guide wheel

6

13462144

Board

7

10940028

Assembly, sound insulation plate

8

13624138

Seat, mounting, wheel, front

9

A210111000203

Bolt

10

A210401000002

Washer

11

A210405000001

Washer

12

60100351

Absorber, shock

13

A210111000018

Bolt

14

A210110000281

Bolt

15

A210405000003

Washer

16

A210401000004

Washer

17

13624135

Seat, mounting, wheel, rear

18

A820101314487

Baffle, shaft end

19

A210401000016

Washer

20

A210111000079

Bolt

21

13295507

Shaft

22

13294871

Roller
















Item No.

Part No.

Description

23

A210111000028

Bolt

37

13295491

Thimble

38

12830208

Bushing

39

60197234

Bearing, rolling

40

A210404000004

Washer

41

A210804000002

Fitting, Grease

42

13544363

Board

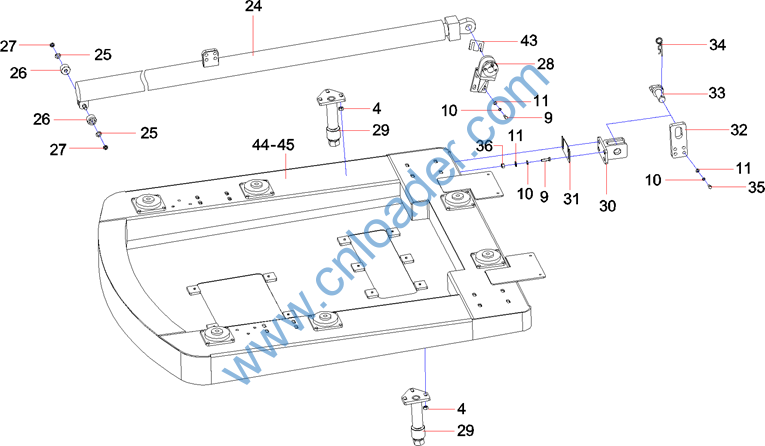

Item No.

Part No.

Description

4

A210307000017

Nut

9

A210111000203

Bolt

10

A210401000002

Washer

11

A210405000001

Washer

24

11250059

Cylinder, moving, right

25

12805036

Ring, retaining

26

10856971

Roller

27

A210310000019

Nut

28

10120851

Assembly, front earring seat

29

13552549

Component, guide wheel

30

12760048

Components, connecting

31

12835398

Pad, adjusting

32

13462558

Components, plate

33

12863195

Shaft, pin

34

A820301020089

Pin, cross

35

A210111000119

Bolt

36

A210307000031

Nut M12

43

13580970

Board

44

14094997

Sleeve

45

14094981

Roller
