Body,container reach stacker, SRSC45H1 F

Item No.

Part No.

Description

1

60009847

Device, fire extinguisher, dry powder, superfine, pressureless

2

24000529

Bolt

3

A210404000005

Washer

4

A210401000017

Washer

5

A210307000012

Nut

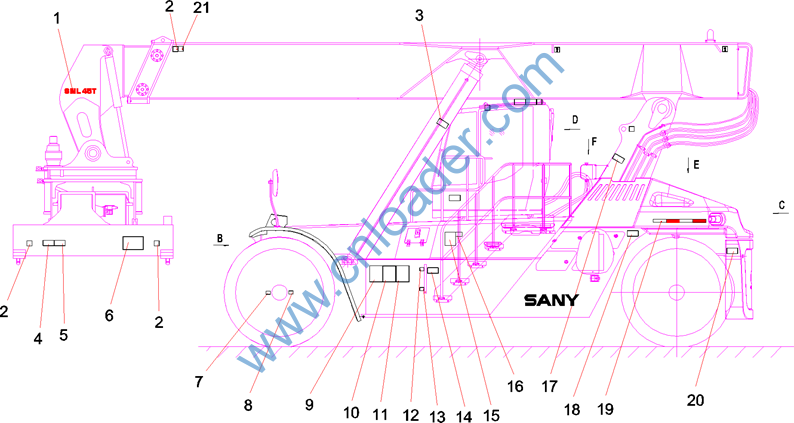

Item No.

Part No.

Description

1

10061340

Label, safety load

2

A820101990552

Mark diagram of hook point

3

13567189

Label, beware of head

4

13564363

Label, caution high voltage wire

5

13567166

Label, watchful of the hanged objects

6

13609639

Label, warning, spreader

7

13564381

Label, air pressure of tyre

8

13564392

Label, check, tyre bolt

9

13564394

Label, hydraulic pressur

10

13578390

Label, lubrication points

11

13564292

Label, safety operating

12

12120439

Label, instruction, max. oil level

13

12120438

Label, instruction, min. oil level

14

13564377

Label, hydraulic oil tank

15

12393603

Nameplate

16

10061841

Nameplate, CE

17

13567179

Label, warning, no climbing

18

13567191

Label, warning, tyre

19

A290000003269

Mark, reflecting, carrier

20

13567194

Label, no going closer, turning caution board

21

13816362

Label, fixed point

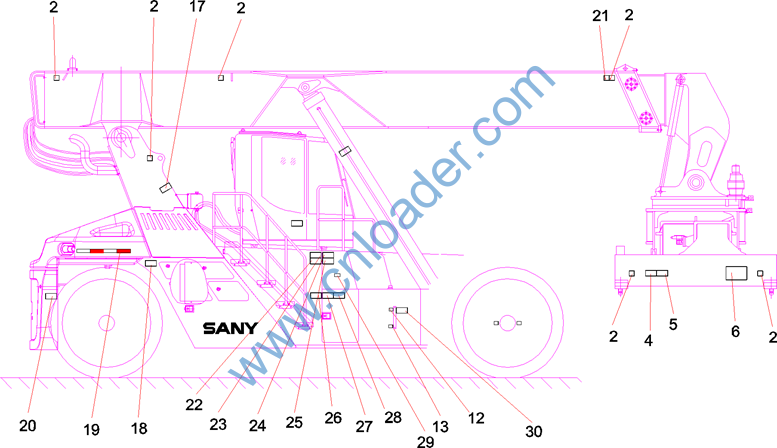

Item No.

Part No.

Description

2

A820101990552

Mark diagram of hook point

4

13564363

Label, caution high voltage wire

5

13567166

Label, watchful of the hanged objects

6

13609639

Label, warning, spreader

12

12120439

Label, instruction, max. oil level

13

12120438

Label, instruction, min. oil level

17

13567179

Label, warning, no climbing

18

13567191

Label, warning, tyre

19

A290000003269

Mark, reflecting, carrier

20

13567194

Label, no going closer, turning caution board

21

13816362

Label, fixed point

22

13564376

Label, fuel tank

23

13567217

Label, no aether

24

13567167

Label, warning, anti-pinching

25

13567185

Label, no smoke or fire

26

13564372

Label, power supply switch

27

13564373

Label, battery

28

13567164

Label, warning, prevent electricity attack

29

13781617

Label, moving direction

30

13564379

Label, brake oil

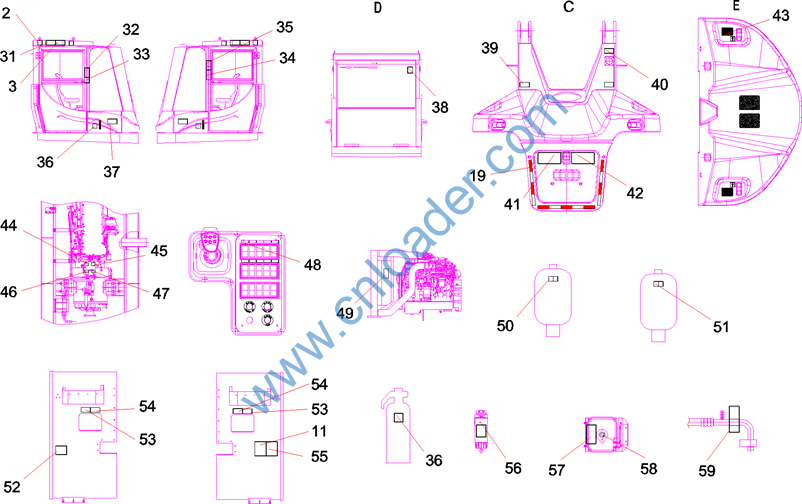

Item No.

Part No.

Description

2

A820101990552

Mark diagram of hook point

3

13567189

Label, beware of head

11

13564292

Label, safety operating

19

A290000003269

Mark, reflecting, carrier

31

13567200

Label, no rider

32

13564359

Label, warning, operation

33

13564398

Label, load

34

13567210

Label, stop

35

13567208

Label, Safety belt

36

13278376

Label, instruction, preventing fire disaster

37

13567186

Label, moving without people

38

13564367

Label, emergency exit

39

13567193

Label, anti-cutting

40

13567188

Decal, warning, hot surface

41

13609641

Label, warning, dismantlement ounterweight

42

13609643

Label, no going closer

43

10049665

Sticker, antislip

44

13564391

Filler, oil, gearbox

45

13564389

Plate, mounting, front end, engine

46

13564390

Point, engine oil level check

47

13564382

Point, gearbox oil level check

48

13525786

Label, control function

Item No.

Part No.

Description

49

13567176

Label, hand-injury-proof

50

13567192

Label, brake accumulator

51

13644652

Label, brake accumulator

52

12120476

Label, load

53

13567181

Label, warning, no jumping off

54

13567169

Label, warning, mind the fallen parts

55

13564383

Decal, maintenance

56

13564374

Label, oil-water separator

57

13567177

Label, no trample

58

13677224

Label, warning, scalding, expansion water tank

59

14175910

tabel SRSC45H4.7-101

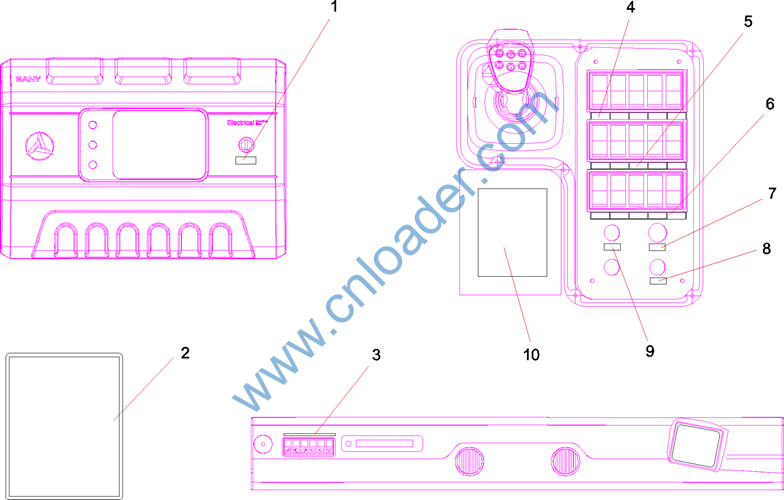

Item No.

Part No.

Description

1

12120437

Decal, instruction, cab moving

2

13525767

Label, fuse instruction

3

13525363

Label, front operation panel

4

13525776

Label, operation panel, right

5

13525779

Label, operation panel, right 2

6

13525773

Label, operation panel, right 3

7

13525784

Label, safety pass

8

12943544

Plate, indication, emergency stop button

9

12120480

Plate, instruction, ignition key

10

13521864

Label, joystick function
