Item No. |
Part No. |
Description |
|
1 |
10207100 |
Assembly, cylinder barrel |
|
2 |
A880803040036 |
Guide ring |
|
3 |
B230101000219 |
Sealing, piston rod |
|
4 |
B230101000065 |
Ring, dustproof |
|
5 |
A210609000162 |
O-ring |
|
6 |
12002149 |
Sleeve, guide |
|
7 |
A880801010065 |
Screw |
|
8 |
12720571 |
Cover, pressure |
|
9 |
A210208000001 |
Screw |
|
10 |
10206486 |
Piston |
|
11 |
A880803040047 |
Ring, guide, UP |
|
12 |
A880806030022 |
Seal Ring,MD |
|
13 |
A210608000122 |
O-ring |
|
14 |
10206485 |
Sleeve, spacer |
|
15 |
10207098 |
Components, piston rod |
|
16 |
A210804000002 |
Fitting, Grease |
|
17 |
A210416000039 |
Ring, Snap |
|
18 |
A221500000035 |
Bearing, Joint |
|
19 |
A210414000012 |
Ring, retaining |
|
20 |
10207092 |
Seat, cylinder |
|
21 |
10209797 |
Package, sealing parts, industrial art |
|
22 |
14179071 |
Sealing kit |
|
Item No. |
Part No. |
Description |
|
1 |
B230101000065 |
Ring, dustproof |
|
2 |
A880806030023 |
Seal |
|
3 |
A880803040036 |
Guide ring |
|
4 |
A210609000162 |
O-ring |
|
5 |
A210608000122 |
O-ring |
|
6 |
A880806030022 |
Seal Ring,MD |
|
7 |
A880803040047 |
Ring, guide, UP |
|

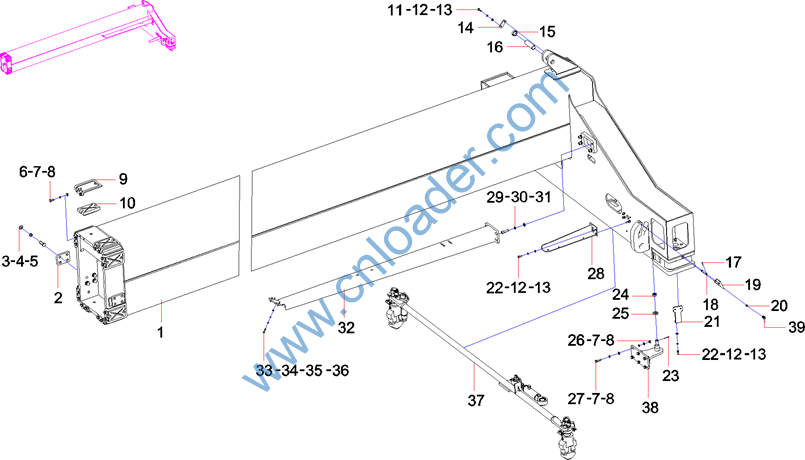

Item No. |
Part No. |
Description |
|
1 |
12604810 |
Components, beam, telescopic, left |
|
2 |
13191928 |
Plate, retaining |
|
3 |
A210111000053 |
Bolt |
|
4 |
A210401000004 |
Washer |
|
5 |
A210405000003 |
Washer |
|
6 |
A210111000197 |
Bolt |
|
7 |
A210401000001 |
Washer |
|
8 |
A210405000011 |
Washer |
|
9 |
A820101328209 |
Plate, sliding block, 1 |
|
10 |
12058087 |
Block, sliding |
|
11 |
A210111000088 |
Bolt |
|
12 |
A210401000017 |
Washer |
|
13 |
A210405000007 |
Washer |
|
14 |
11478611 |
Plate, lock |
|
15 |
11482652 |
Ring, retaining |
|
16 |
11172032 |
Pin, cylinder, twistlock |
|
17 |
A210491000014 |
Pin, cotter |
|
18 |
10759532 |
Shaft, pin |
|
19 |
10759366 |
Baffle |
|
20 |
A210804000002 |
Fitting, Grease |
|
21 |
12608220 |
Support, sensor |
|
22 |
A210204000147 |
Screw |
|
Item No. |
Part No. |
Description |
|
23 |
A210501000025 |
Pin, Cotter |
|
24 |
A210319000012 |
Nut |
|
25 |
12612646 |
Ring, retainer |
|
26 |
A210307000017 |
Nut |
|
27 |
A210111000025 |
Bolt |
|
28 |
12783485 |
Components, left support |
|
29 |
A210401000002 |
Washer |
|
30 |
A210405000001 |
Washer |
|
31 |
A210204000021 |
Screw |
|
32 |
11479449 |
Groove, wire-towing |
|
33 |
A210401000016 |
Washer |
|
34 |
A210405000006 |
Washer |
|
35 |
A210319000003 |
Nut |
|
36 |
A210204000132 |
Screw |
|
37 |
13559316 |
Mechanism, twistlock |
|
38 |
13559331 |
Components, seat, twistlock cylinder |
|
39 |
10762009 |
Spring, torsion |
|

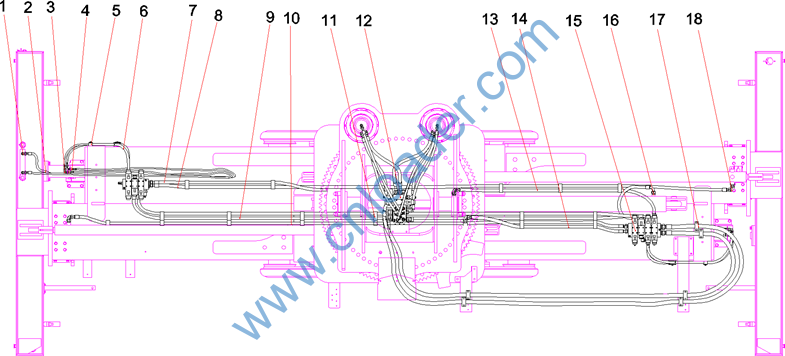

Item No. |
Part No. |
Description |
|
1 |
B210780000176 |
Stud Straight Connector |
|
2 |
B230103005618 |
Hose, rubber |
|
3 |
B210780000418 |
Fitting |
|
4 |
B210780000195 |
Bulkhead Straight Connector and Locknut |
|
5 |
60352336 |
Tube clamp body |
|
6 |
B230103005615 |
Hose, rubber |
|
7 |
60025560 |
Hose, rubber |
|
8 |
B230103004301 |
Hose, rubber |
|
9 |
B230103004752 |
Hose, rubber |
|
10 |
60118940 |
Hose, rubber |
|
11 |
60352339 |
Tube clamp body |
|
12 |
14002572 |
Revolving valve group |
|
13 |
B230103003970 |
Hose, rubber |
|
14 |
B230103000335 |
Rubber hose |
|
15 |
12618980 |
Group, telescopic side-shifting valve |
|
16 |
B210780000042 |
Pipe connector |
|
17 |
60165339 |
Body, pipe clamp |
|
18 |
B210780000025 |
Fitting, Elbow |
|

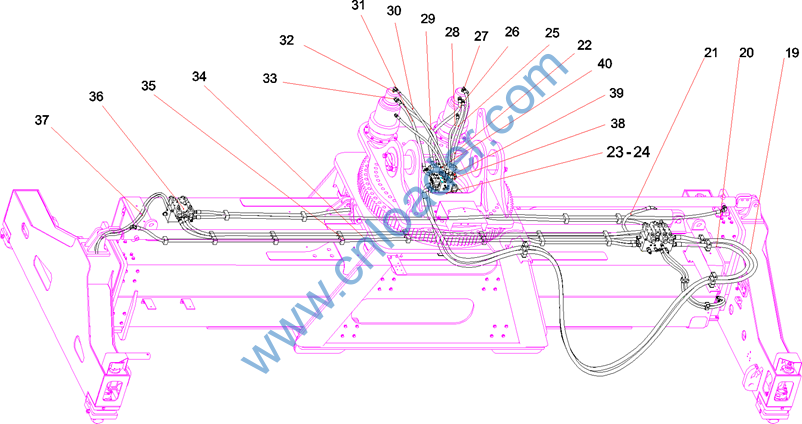

Item No. |
Part No. |
Description |
|
19 |
B230103004299 |
Hose, rubber |
|
20 |
B230103007871 |
Hose, rubber |
|
21 |
B230103005377 |
Hose, rubber |
|
22 |
B230103000354 |
Hose, rubber |
|
23 |
B210780000049 |
Fitting, Adapter |
|
24 |
A229900005468 |
Joint, slewing |
|
25 |
B230103004913 |
Hose, rubber |
|
26 |
B230103004933 |
Hose, rubber |
|
27 |
B210780000636 |
Fitting, Elbow |
|
28 |
B230103003376 |
Rubber hose |
|
29 |
B230103004807 |
Rubber hose |
|
30 |
B230103000478 |
Hose, rubber |
|
31 |
A210204000184 |
Screw |
|
32 |
B210780000733 |
Stud Straight Connector |
|
33 |
B210780000043 |
Stud straight connector |
|
34 |
B230103003376 |
Rubber hose |
|
35 |
60352333 |
Tube clamp body |
|
36 |
12618950 |
Group, telescopic twistlock valve |
|
37 |
12627017 |
Diagram, schematic, hydraulic system |
|
38 |
B210780000025 |
Fitting, Elbow |
|
39 |
B210780000015 |
Fitting, Tee |
|
40 |
B230103000123 |
Hose, rubber |
|

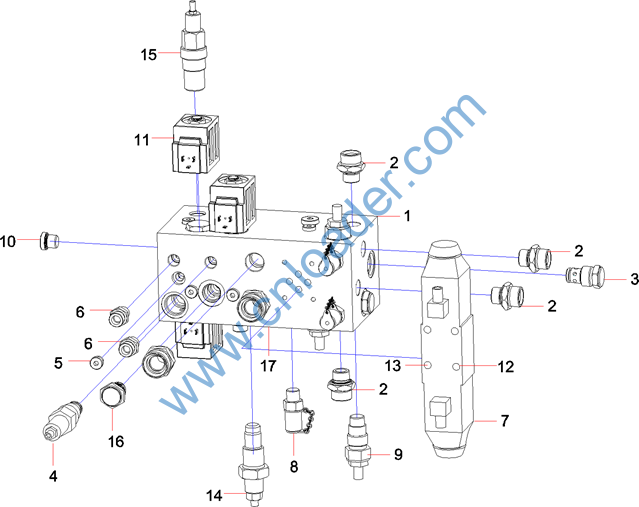

Item No. |
Part No. |
Description |
|
1 |
14002571 |
Block, valve, slewing |
|
2 |
B210780000040 |
Fitting, Adapter |
|
3 |
B220401000049 |
Check Valve |
|
4 |
B220401000492 |
Valve, throttle |
|
5 |
B210399000003 |
Plug |
|
6 |
B210780000036 |
Fitting, Adapter |
|
7 |
60155033 |
Valve, reversal, electromagnetic |
|
8 |
B210770000084 |
Connector, pressure measuring |
|
9 |
B220401000105 |
Valve, overflow |
|
10 |
B210780000201 |
Plug |
|
11 |
60338457 |
Valve, electromagnetic reversing |
|
12 |
A210204000168 |
Screw |
|
13 |
A820601020466 |
Cover, waterproof |
|
14 |
B220401000913 |
Valve, Pressure Reducing |
|
15 |
B220401000546 |
Valve, trottle, one-way |
|
16 |
B220400000072 |
Valve, Check |
|
17 |
B210780000015 |
Fitting, Tee |
|

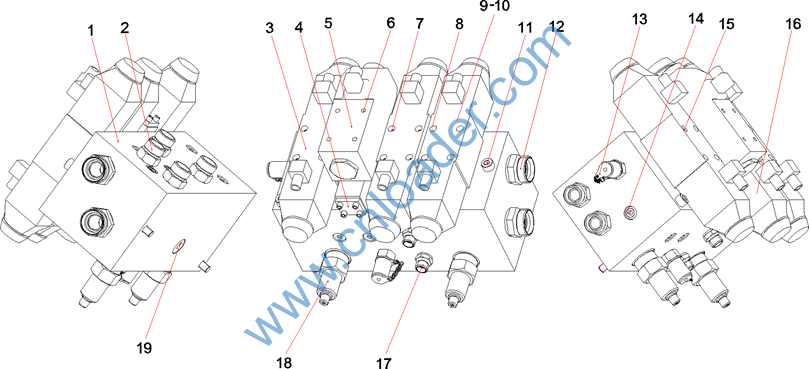

Item No. |
Part No. |
Description |
|
1 |
12618969 |
Block, telescopic side-shifting valve |
|
2 |
B210780000040 |
Fitting, Adapter |
|
3 |
60155033 |
Valve, reversal, electromagnetic |
|
4 |
A220401000153 |
Valve, throttle, one-way, double |
|
5 |
60155035 |
Valve, reversal, electromagnetic |
|
6 |
A210204000125 |
Screw M5×60GB70.1 |
|
7 |
A210204000168 |
Screw |
|
8 |
A210204000127 |
Screw M5×70(GB70.1) |
|
9 |
A220401000010 |
Overlapped one-way valve |
|
10 |
60059724 |
Valve, reversal, electromagnetic |
|
11 |
A210204000477 |
Bolt |
|
12 |
B210780000712 |
Fitting, Adapter |
|
13 |
B210770000084 |
Connector, pressure measuring |
|
14 |
B210399000003 |
Plug |
|
15 |
A820601020466 |
Cover, waterproof |
|
16 |
60155034 |
Valve, reversal, electromagnetic |
|
17 |
B210780000176 |
Stud Straight Connector |
|
18 |
B220401000105 |
Valve, overflow |
|
19 |
B210780000201 |
Plug |
