Body,container reach stacker, SRSC45H1 E



Item No.

Part No.

Description

Qty.

1

A210612000019

Bearing, joint

2

2

13658825

Handspike

1

3

12607684

Pad, adjusting

1

4

A210204000023

Screw

1

5

A210307000001

Nut

1

6

12607683

Block, sliding

1

7

A210405000001

Washer

1

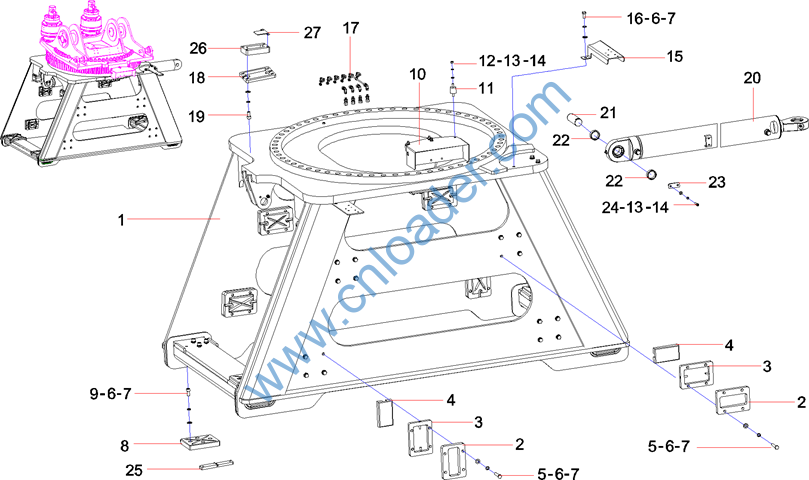

Item No.

Part No.

Description

Qty.

1

12581754

Components, lower rotary platform

1

2

12588667

Plate, backup, side valve block

8

3

12588669

Components, sliding block seat

8

4

12058087

Block, sliding

12

5

A210111000118

Bolt

32

6

A210401000002

Washer

71

7

A210405000001

Washer

71

8

11486218

Block, sliding, main beam

4

9

A210111000039

Bolt

16

10

A810497000955

Cover, indicator lamp

1

11

A810421000802

Stud, bamper

4

12

A210307000012

Nut

8

13

A210401000017

Washer

26

14

A210405000007

Washer

26

15

13300441

Support, tube, oil

1

16

A210111000037

Bolt

3

17

11783402

Assembly, pipeline, lubrication oil

1

18

12768776

Components, sliding block plate, upper

4

19

A210204000028

Screw M12×75GB70.1-00

16

20

13355793

Cylinder, sideshift

1

21

A820301015793

Shaft, pin, cross shifting

1

22

11484122

Ring, retaining

2

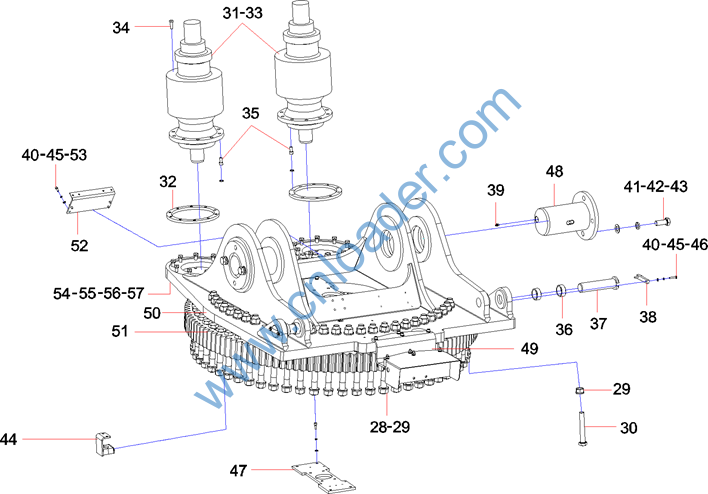

Item No.

Part No.

Description

Qty.

23

11478611

Plate, lock

1

24

A210204000162

Screw

10

25

12768778

Components, lower baffle

8

26

12812324

Plate, backup, slide block, upper

4

27

12812934

Pad, adjusting

8
















Item No.

Part No.

Description

Qty.

28

A210110000213

Bolt

60

29

A229900007632

Nut M24

108

30

A210110000260

Bolt

48

31

60136999

Reductor

2

32

60013683

Washer

20

33

60006613

Motor, gerotor

2

34

A210110000009

Bolt

20

35

A210204000206

Screw

4

36

A820202004454

Bushing

4

37

12598170

Shaft, connecting

2

38

A820199003267

Plate, clamp, shaft

2

39

A210804000001

Fitting, Grease

2

40

A210401000016

Washer

8

41

A210111000221

Bolt

4

42

A210401000006

Washer

4

43

A210405000008

Washer

4

44

11335616

Plate, support

1

45

A210405000006

Washer

8

46

A210204000133

Screw

4

47

A820101328029

Plate, connecting, slewing joint

1

48

13196906

Shaft, pin, connecting

2

49

13149184

Support, indication lamp

1
















Item No.

Part No.

Description

Qty.

50

13697380

Platform, upper rotary

1

51

11135150

Bearing, slewing

1

52

10023667

Seat, rope-fastening

1

53

A210204000130

Screw

4

54

A820210000292

Gear, small

2

55

A210111000293

Bolt

8

56

13016694

Plate, pressure

2

57

13016697

Plate, pressure

2














Item No.

Part No.

Description

Qty.

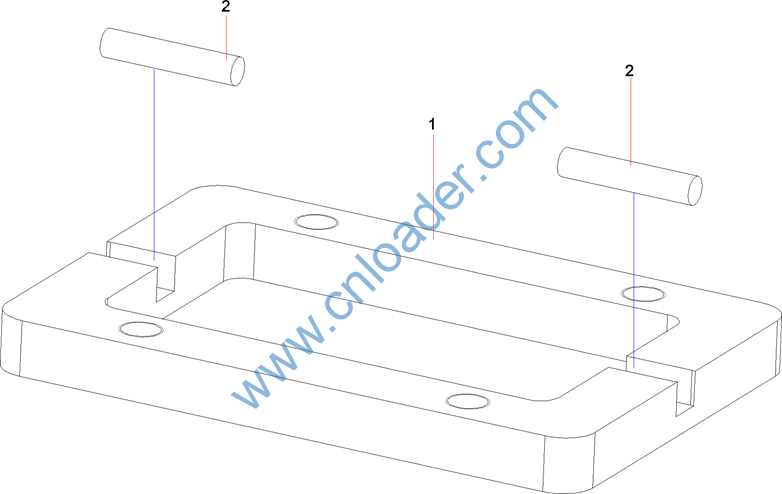

1

12588668

Seat, sliding block

1

2

11484175

Pin, spacing

2

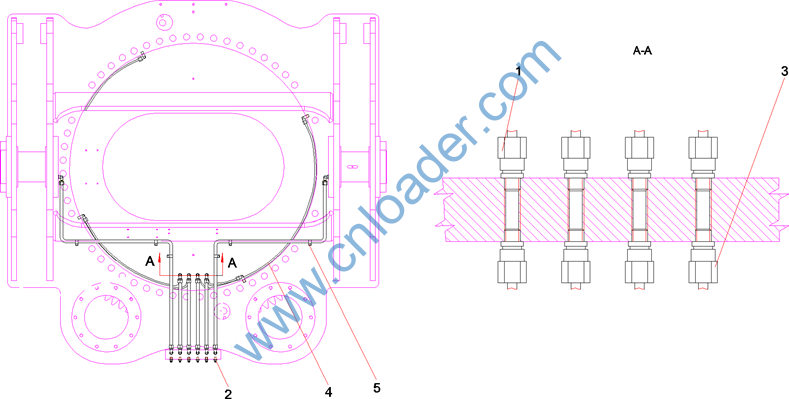

Item No.

Part No.

Description

Qty.

1

A210770000195

Pipe connector

4

2

A210804000002

Fitting, Grease

6

3

A210711000010

Pipe connector

4

4

11783389

Pipe, oil

1

5

A229900010155

Clamp

6

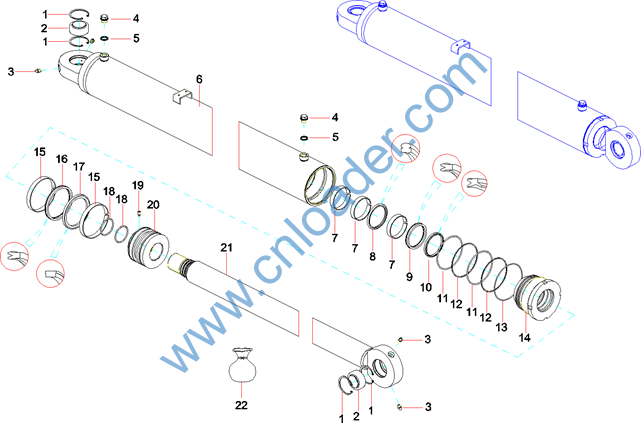

Item No.

Part No.

Description

Qty.

1

A210416000037

Ring, Snap

4

2

A210612000023

Bearing, joint

2

3

A210805000003

Fitting, grease

4

4

10041694

Screw Plug

2

5

A210434000009

Washer

2

6

13355541

Assembly, cylinder barrel

1

7

B230101000099

UP guide ring

3

8

B230101000732

OD seal ring 75×90.1×6.3

1

9

B230101002125

MPS seal ring

1

10

60013848

Ring, dustproof

1

11

A210609000157

O-ring

2

12

10250738

Retaining ring

2

13

A210609000292

O-ring

1

14

13349656

Sleeve, guide

1

15

B230101002190

Ring, guide, UP

2

16

B230101001330

B7 seal ring 120×105×11.4

1

17

B230101000136

OK seal ring 120×99×8

1

18

A210609000067

O-ring

2

19

A210208000001

Screw

1

20

13349655

Piston

1

21

13355545

Assembly, piston rod

1

22

14181163

Sealing kit

1
