Body,container reach stacker, SRSC45H1 R





Item No.

Part No.

Description

1

60232826

Working light

2

A239900000561

Bellows, Nylon

3

B241200000590

Plug, 2-position

4

B241200000584

Lock, 2-position Plug

5

B229900001093

Socket

6

60120496

Tail, plug, 2-wire

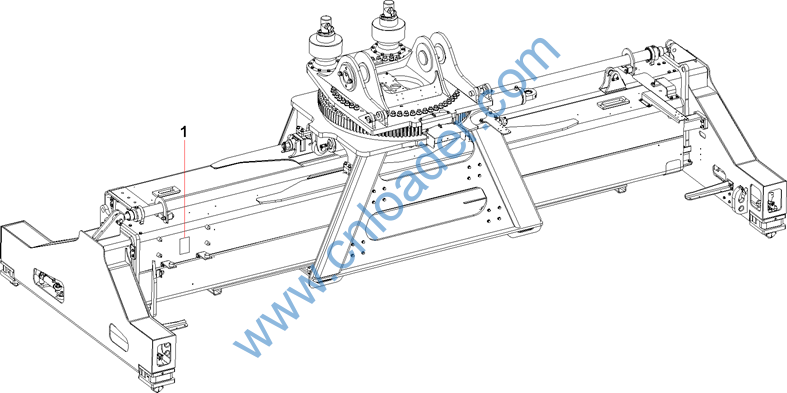

Item No.

Part No.

Description

1

10580895

Nameplate

2

10518408

Nameplate, electrical, spreader

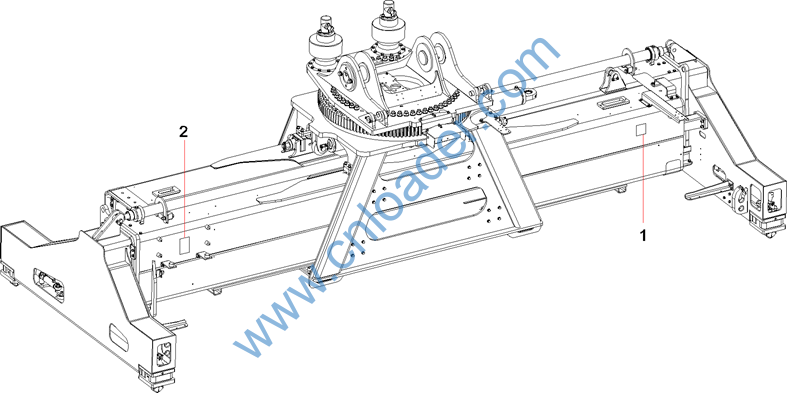

Item No.

Part No.

Description

1

10451446

Diagram, number and function, spreader

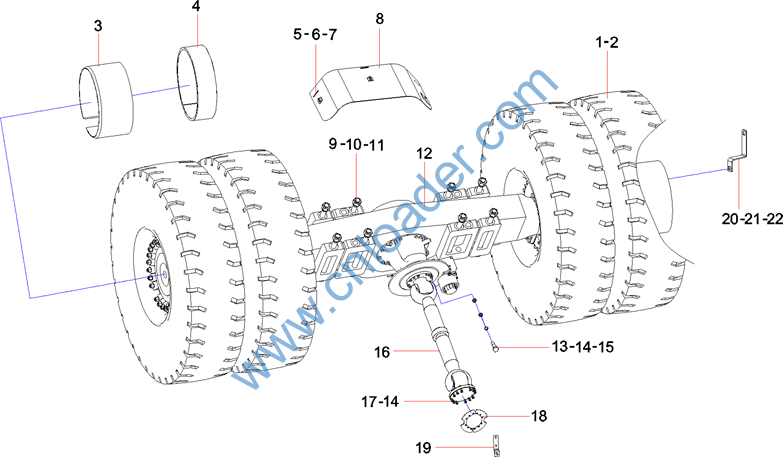

Group 11

System, traveling














Item No.

Part No.

Description

1

A229900002057

Rim

2

60321540

TYRE

3

60112798

Ring, lock

4

12938597

Ring, sleeve, middle

5

A210111000348

Bolt

6

A210405000007

Washer

7

A210401000017

Washer

8

11346189

Plate, oilproof

9

A829900001442

Bolt

10

A210401000012

Washer 36GB93

11

A820204000388

Nut

12

60308535

Drive axle

13

A210204000353

Screw

14

A210319000019

Nut

15

A210401000003

Washer

16

60341728

Shaft, transimission

17

21005237

Bolt M14×60GB5783 Grade 10.9

18

13938227

Plate, sensor

19

11342780

Support, speed sensor

20

A820101313646

Plate, lock, fixed, air pipe

21

A210204000021

Screw

22

A210401000002

Washer

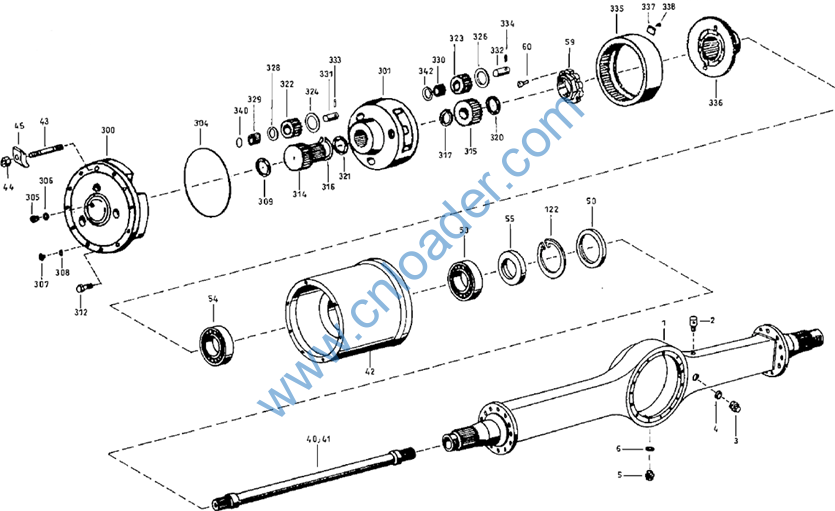

Item No.

Part No.

Description

1

60121013

Shell, shaft

2

60061416

Plug, ventilation

5

60099157

Plug, Pipe

6

60099263

Ring, seal

40

60099180

Axle, driving

42

60054025

Hub

43

B229900002716

Stud

50

60099258

Ring, seal

53

60099167

Bearing, roller, tapered

54

60099167

Bearing, roller, tapered

55

60099195

Sleeve, separating

59

60099179

Nut

60

60099214

Screw, hexagon, inner

122

60121071

Ring, retaining, elastic

300

60099175

Chamber, planet gear

301

60120996

Bracket, planet gear

304

60099253

O-ring

305

60099157

Plug, Pipe

306

60099263

Ring, seal

307

60099155

Plug

308

60121015

Ring, seal

309

60099231

Ring, thrust
















Item No.

Part No.

Description

312

60099219

Bolt, hexagon

314

60099171

Gear, central

315

60099172

Gear, central

316

60099199

Ring, retaining, elastic

317

60121005

Ring, retaining, elastic

320

60099233

Washer, thrusting

321

60099231

Ring, thrust

322

60099174

Gear, planet

323

60099173

Gear, planet

324

60099230

Washer, Thrust

326

60099232

Washer, thrust

329

60099163

Bearing, needle

330

60099162

Bearing, needle

331

60099235

Pin, planet

332

60099236

Pin, planet

333

60099226

Pin, lock

334

60099225

Pin, lock

335

60099183

Ring, gear

336

60121003

Support, toothed ring

337

60099178

Bracket

338

60099210

Bolt, hexagon

340

60099252

O-ring

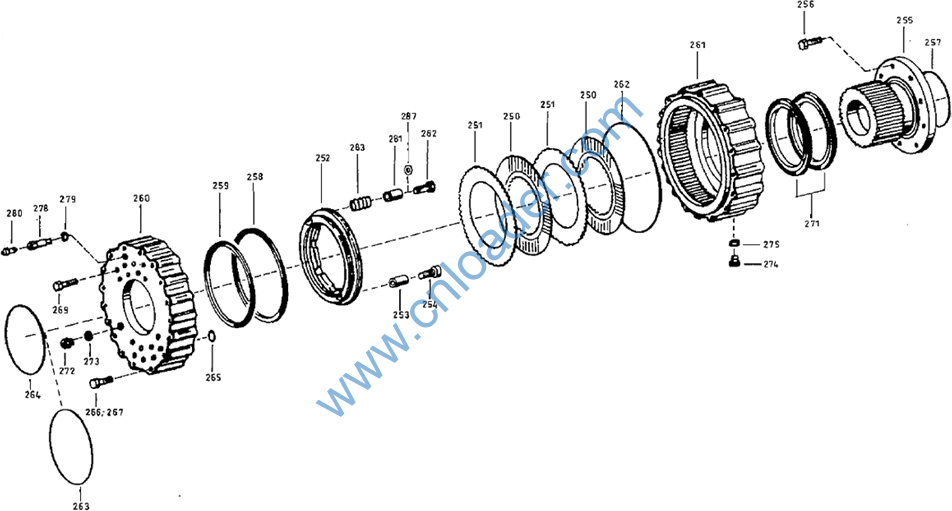

Item No.

Part No.

Description

250

60062647

Disc, friction plate, brake

251

60062646

Blade, steel, brake

252

60121008

Piston

253

60099227

Bushing

254

60099215

Bolt, hexagon

255

60099241

Bearer, brake

256

60099206

Screw, Cap

257

60099251

O-ring

258

60099257

Seal, oil, piston

259

60099256

Seal, oil, piston

260

60099240

Housing, axle

261

60099239

Housing, axle

262

60099254

O-ring

263

60099250

O-ring

264

60099249

O-ring

265

60099248

O-ring

266

60099218

Screw, hexagon, inner

267

60099217

Bolt, hexagon

269

60099211

Bolt, hexagon

271

60062648

Seal, mirror surface

272

60099156

Plug, pipe

273

60099262

Ring, seal
