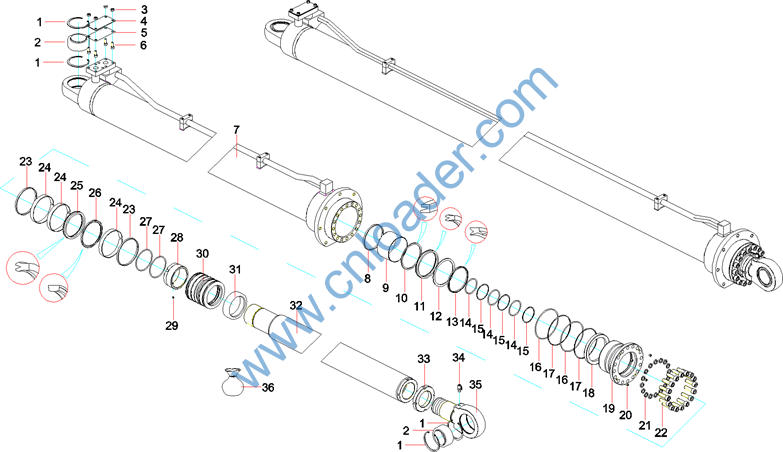

Body,container reach stacker, SRSC45H1 W



Item No.

Part No.

Description

Qty.

1

10202945

Assembly, cylinder barrel

1

2

B230101001155

Seal

1

3

10202940

Piston

1

4

24004294

Screw

1

5

A210609000087

O-ring

1

6

10201417

Ring, retaining

1

7

10202939

Sleeve, guide

1

8

60013716

Ring, guide, UP

2

9

A880806030136

Seal Ring,GS

1

10

B230101001951

Seal Ring,ZBR

1

11

B230101001948

Ring, dustproof, PW

1

12

A210609000044

O-ring 28×3.55GB3452.1

1

13

10202948

Assembly, piston rod

1

14

A210804000002

Fitting, Grease

1

15

A210416000037

Ring, Snap

2

16

A210612000023

Bearing, joint

1

17

14155960

Cylinder repair kit

1


































Item No.

Part No.

Description

Qty.

1

B230101001951

Seal Ring,ZBR

1

2

B230101001948

Ring, dustproof, PW

1

3

60013716

Ring, guide, UP

2

4

B230101001155

Seal

1

5

A210609000087

O-ring

1

6

A880806030136

Seal Ring,GS

1

7

A210609000044

O-ring 28×3.55GB3452.1

1

8

10201417

Ring, retaining

1


















Item No.

Part No.

Description

Qty.

1

A210416000035

Ring, Retainer

4

2

A221500000141

Bearing, joint

2

3

A210307000031

Nut M12

4

4

10424846

Plate, protective

1

5

10424847

Cushion, protective

1

6

A210204000021

Screw

4

7

13243226

Assembly, cylinder barrel

1

8

B230101001561

Seal, Dust

1

9

11567379

Bearing, oilless

1

10

60247455

Ring, seal

1

11

60115011

Ring, seal, BS

1

12

12298498

Retaining Ring

1

13

B230101000428

Seal, Dust

1

14

A880802010064

O-ring

3

15

10424845

Ring, retaining

3

16

A210609000260

O-ring

2

17

10250757

Ring, Back-up

2

18

13147815

Sleeve, guide

1

19

11567377

Ring, retaining

1

20

24004768

Screw M12×16GB78

4

21

A210401000006

Washer

16

22

A210204000061

Screw

16


















Item No.

Part No.

Description

Qty.

23

B230101001571

UP guide ring

2

24

B230101001322

Ring, Wear

3

25

60249668

Ring, seal

1

26

B230101000034

OK seal ring 180×159×8

1

27

A210609000314

O-ring 132×5.3GB3452.1

2

28

13242575

Nut

1

29

24004294

Screw

1

30

13242577

Piston

1

31

13177234

Sleeve, separating

1

32

13242576

Body, piston rod

1

33

10424844

Nut, lock

1

34

B210770000084

Connector, pressure measuring

1

35

13050608

Ring, ear

1

36

14155957

Cylinder repair kit

1


































Item No.

Part No.

Description

Qty.

1

B230101001561

Seal, Dust

1

2

B230101000034

OK seal ring 180×159×8

1

3

B230101001322

Ring, Wear

3

4

A880802010064

O-ring

3

5

A210609000260

O-ring

2

6

A210609000314

O-ring 132×5.3GB3452.1

2

7

B230101001571

UP guide ring

2

8

60247455

Ring, seal

1

9

60115011

Ring, seal, BS

1

10

60249668

Ring, seal

1

11

B230101000428

Seal, Dust

1

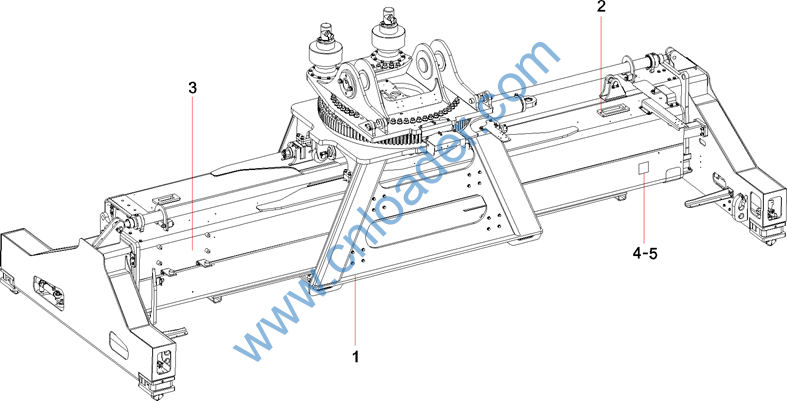

Group 10

Body, spreader






















Item No.

Part No.

Description

Qty.

1

13648509

Assembly, spreader mechanical

1

2

12616119

System, hydraulic

1

3

12602851

System, electrical, spreader, reach stacker

1

4

A810508000146

Nameplate

1

5

A210510000007

Rivet

4

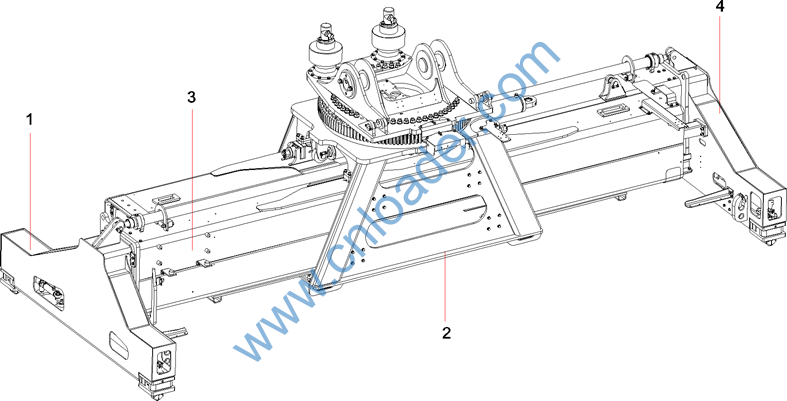

Item No.

Part No.

Description

Qty.

1

12608291

Assembly, beam, telescopic, right

1

2

13394002

Assembly, turntable

1

3

12606356

Assembly, beam, main

1

4

12608221

Assembly, beam, telescopic, left

1
