Item No. |
Part No. |
Description |
Qty. |
|
23 |
60236836 |
Adjuster, telescopic |
1 |
|
24 |
60236837 |
Cap, steering wheel |
1 |
|
25 |
60191992 |
Key, switch |
2 |

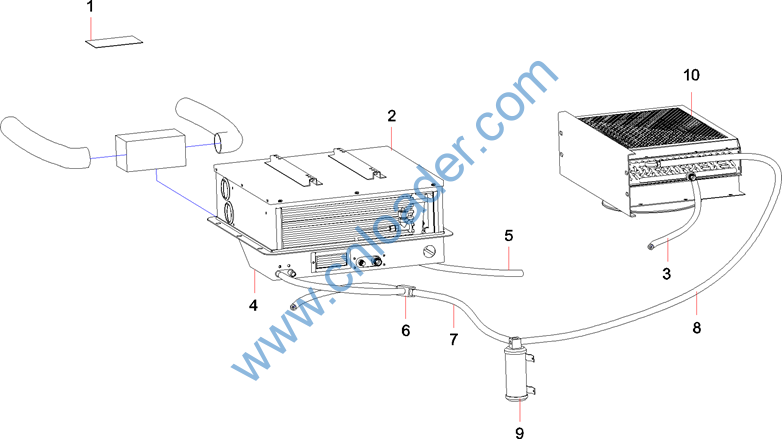

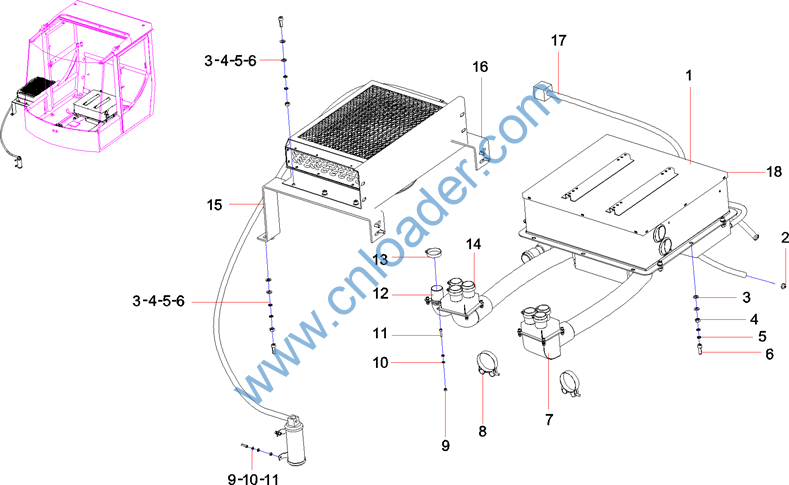

Group 8
System, air conditioning
|
Item No. |
Part No. |
Description |
Qty. |
|
1 |
60347035 |
Assembly, air conditioner |
1 |
|
2 |
A210855000066 |
Hoop |
10 |
|
3 |
A210405000011 |
Washer |
22 |
|
4 |
A210307000017 |
Nut |
15 |
|
5 |
A210401000001 |
Washer |
22 |
|
6 |
A210204000181 |
Screw |
15 |
|
7 |
11621235 |
Cover, guide wind |
1 |
|
8 |
21004569 |
Clamp |
4 |
|
9 |
A210307000016 |
Nut |
23 |
|
10 |
A210405000006 |
Washer |
46 |
|
11 |
A210111000081 |
Bolt |
23 |
|
12 |
11815375 |
Duct, air, defrosting |
1 |
|
13 |
60021999 |
Clamp |
10 |
|
14 |
11906229 |
Cover, guide wind |
1 |
|
15 |
11783412 |
Support, right |
1 |
|
16 |
11783411 |
Support, left |
1 |
|
17 |
14234144 |
Pipe SRSC45H4.16-12 |
2 |
|
18 |
14098130 |
Support |
1 |
|
Item No. |
Part No. |
Description |
Qty. |
|

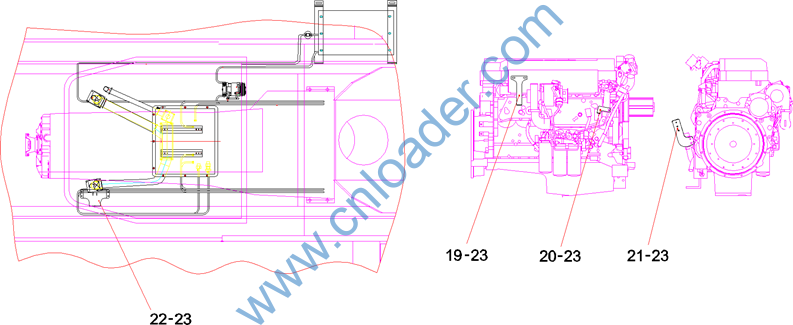

19 |
14208075 |
board SRSC45H1.3.201-3 |
1 |
|
20 |
14208072 |
board SRSC45H1.3.201-4 |
1 |
|
21 |
14222556 |
bending part SRSC45H1.3.201-12 |
1 |
|
22 |
14186323 |
board SRSC45H4.16-10 |
1 |
|
23 |
A229900004096 |
Clamp |
18 |

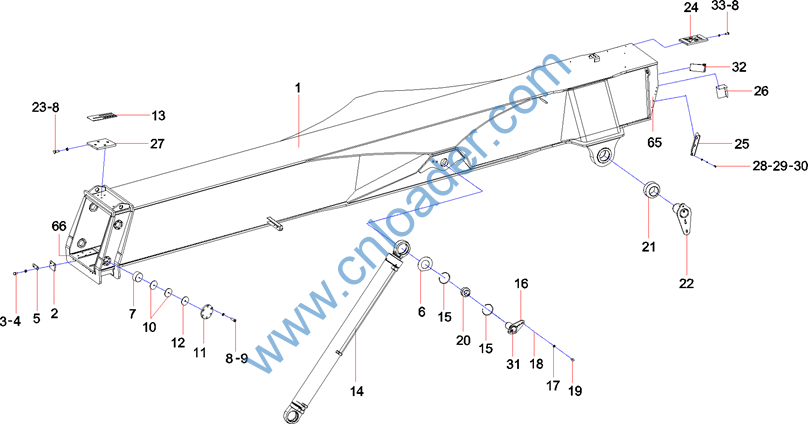

Group 9
Assembly, boom
|
Item No. |
Part No. |
Description |
Qty. |
|
1 |
13114451 |
Section, basic, boom |
1 |
|
2 |
13045436 |
Plate, pressure, slide block |
4 |
|
3 |
A210111000040 |
Bolt |
8 |
|
4 |
A210401000002 |
Washer |
32 |
|
5 |
13055370 |
Plate, support |
4 |
|
6 |
11307173 |
Plate, back-up, nylon |
4 |
|
7 |
A820499000044 |
Block, valve, side |
6 |
|
8 |
A210401000004 |
Washer |
80 |
|
9 |
A210204000165 |
Screw M16×40GB70.1 |
36 |
|
10 |
A820101312402 |
Gasket, side valve block |
18 |
|
11 |
12586921 |
Plate, side-sliding block |
6 |
|
12 |
12823092 |
Pad, adjusting, side-sliding block |
12 |
|
13 |
A820101312400 |
Gasket, adjusting, sliding block, 2 |
10 |
|
14 |
13178278 |
Cylinder, pitching |
2 |
|
15 |
A210416000022 |
Ring, Back-up |
4 |
|
16 |
10201907 |
Assemlby, shaft, pitching cylinder |
4 |
|
17 |
A210491000122 |
Washer |
10 |
|
18 |
A210401000008 |
Washer |
10 |
|
19 |
A210110000122 |
Bolt M24×65GB5783 |
16 |
|
20 |
10859971 |
Bearing, sliding |
8 |
|
21 |
10859963 |
Bearing, sliding |
2 |
|
22 |
10201926 |
Assembly, rear shaft |
2 |
|
Item No. |
Part No. |
Description |
Qty. |
|
23 |
A210111000112 |
Bolt |
16 |
|
24 |
12055819 |
Components, lower sliding block |
4 |
|
25 |
10089451 |
Support |
1 |
|
26 |
13118471 |
Cover, rainproof |
1 |
|
27 |
A810303990183 |
Components, sliding block, upper |
4 |
|
28 |
A210111000011 |
Bolt |
6 |
|
29 |
A210405000011 |
Washer |
6 |
|
30 |
A210401000001 |
Washer |
6 |
|
31 |
A210804000002 |
Fitting, Grease |
10 |
|
32 |
13818139 |
Support |
1 |
|
33 |
A210111000229 |
Bolt |
16 |
|
65 |
12586919 |
Support, drawing wire box |
1 |
|
66 |
A210405000001 |
Washer |
32 |
