Body,container reach stacker, SRSC45H1 SVD





Item No.

Part No.

Description

Qty.

1

13027649

Doorframe, right

1

2

13114095

Cover, radiator, air conditoner

1

3

A222200000042

Latch, cover

1

4

11898462

Plate, connecting, door lock

1

5

A210204000202

Screw M10×16GB70.1

2

6

A210401000001

Washer

2

7

A210405000011

Washer

2

8

10196926

Hinge

3

9

A210111000080

Bolt

9

10

A210404000009

Washer

9

11

A210319000003

Nut

9

12

A210211000011

Screw M6×10GB819.1

9

13

A229900009852

Spring, air

1

14

21005351

Bolt

2

15

A210401000017

Washer

2

16

A210405000007

Washer

6

17

A210307000012

Nut

4

18

11360286

Pad, elastic

5

19

10196925

Plate, support, air spring

1

20

A210111000018

Bolt

2

















Group 6

Subassembly, cab, container reach stacker
















Item No.

Part No.

Description

Qty.

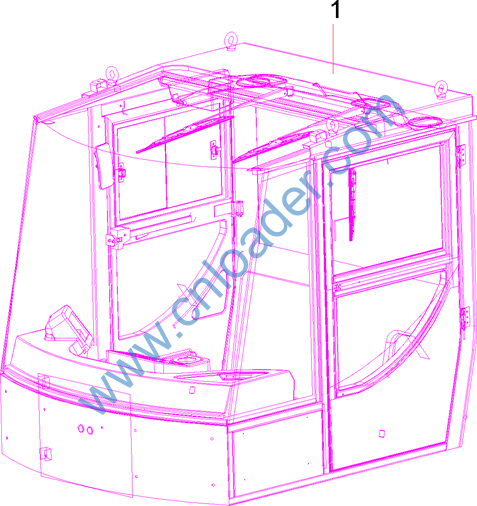

1

12370924

Sub-body, cab, container reach stacker

1

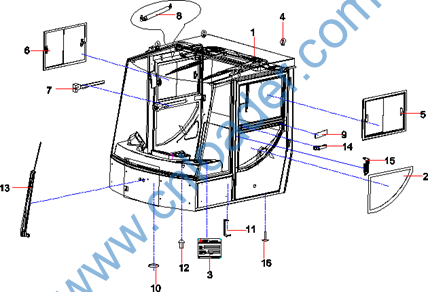

Item No.

Part No.

Description

Qty.

1

11507974

Preassembly, cab, reach stacker

1

2

13764738

Assembly, inner-decoration

1

3

11270627

Nameplate

1

4

A210491000001

Screw M20GB825

4

5

10260234

Window, sliding, horizontal

1

6

10260237

Window, sliding, horizontal

1

7

60028231

Door lock

1

8

A290000000354

Spring, air

2

9

11262101

Belt, locating, door

2

10

A820606010865

Grommet

8

11

59001251

Bracket, Fire Extinguisher, 1Kg

2

12

60042056

Plug

3

13

13889736

System, electrical, cab

1

14

60061748

Handle, door

2

15

60001291

Hammer, emergency

1

16

60014124

Pintle, fixed

22

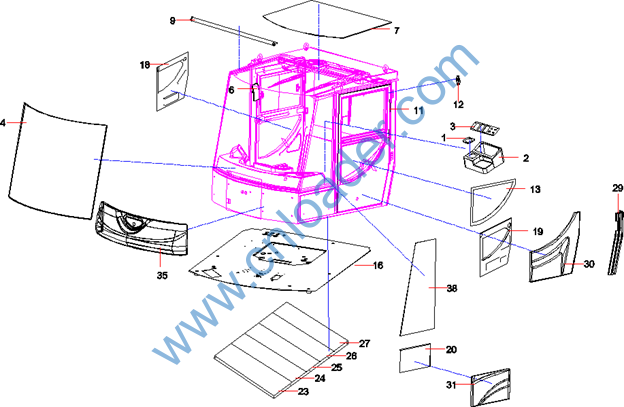

Item No.

Part No.

Description

Qty.

1

11157309

Plate, cover

1

2

11040455

Seat, operation handle

1

3

11081454

Panel

1

4

12087111

Glass, front window

1

6

A229900004406

Mirror, rearview, inner

1

7

12087113

Glass, window,upper

1

9

60299586

Curtain, sunshield

1

11

10134884

Strip, rubber, door, left

1

12

A229900005559

Hook, hat & coat

2

13

12087114

Glass, lower, door, left

1

16

13001852

Floor, leather

1

18

11214259

Plate, decorating, right door

1

19

11214158

Plate, decorating, left door

1

20

11079915

Plate, left

1

23

13821305

Bottom, sponge, I

1

24

13821334

Bottom, sponge, II

1

25

13821350

Bottom, sponge, III

1

26

13821431

Bottom, sponge, IV

1

27

13821437

Bottom, sponge, V

1

29

13860596

Decoration, outer, left rear pillar

1

30

13860639

Decoration, outer, left door panel

1

31

13860580

Decoration, outer, left front panel

1
























Item No.

Part No.

Description

Qty.

35

13860579

Front, wall, outer, decoration

1

38

12087112

Glass, window, left

1

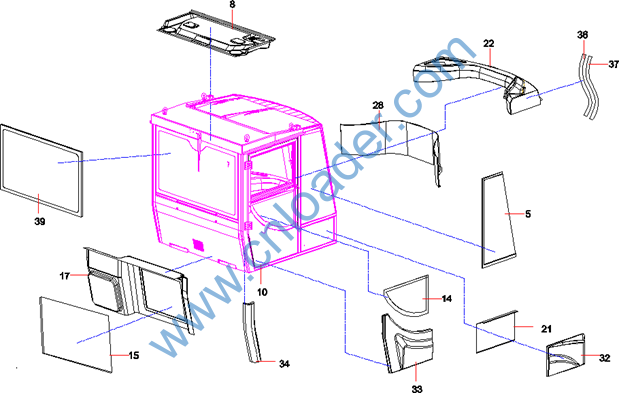

Item No.

Part No.

Description

Qty.

5

12087117

Glass, window, right

1

8

11470344

Parts, decorating, top

1

10

10134881

Strip, rubber, door, right

1

14

12087115

Glass, lower, right door

1

15

A490000000007

Pad, foam

2

17

10227673

Parts, decorating, back plate

1

21

11079916

Plate, right

1

22

11175597

Console, instrument

1

28

13842273

Plate, lower, instrumentation console

1

32

13860578

Decoration, outer, right front panel

1

33

13860577

Decoration, outer, right door panel

1

34

13860560

Decoration, outer, right rear pillar

1

36

13904663

Pipe, instrumentation console

8

37

13904664

Pipe, instrumentation console

2

39

12087116

Glass, rear window

1

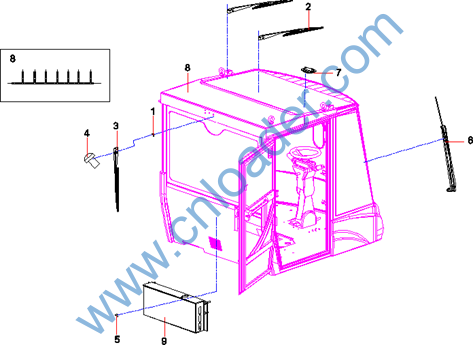

Item No.

Part No.

Description

Qty.

1

60210750

Nozzle, plastic

2

2

60069682

Assembly, wiper, top window

1

3

A229900002144

Assemlby, wiper, rear window

1

4

A241200000089

Strain Relief

1

5

60120291

Connector, bend

2

6

A229900003376

Assembly, wiper, front window

1

7

60058851

Light, roof

2

8

11775790

Harness, top, rear, cab

1

9

10902844

Washer, automobile windscreen

1
