Body,container reach stacker, SRSC45H1 SVE

Item No.	Part No.	Description	Qty.
1	A820301014341	Bolt	4
2	A210405000001	Washer	4
3	A210309000016	Nut M12GB6172.1	4
4	A810502000239	Column, elastic	4
5	A210405000006	Washer	12
6	A210307000016	Nut	12
7	12955479	Plate, net	2
8	10437783	Sponge, sound-absorbing & heat-insulation	1
9	12955480	Plate, net	1
10	12613080	Plate, cover	1
11	A210203000039	Screw M4×10GB819.1	8
12	A210405000004	Washer	8
13	A210307000014	Nut	8
14	A229900003988	Buckle	2
15	12014413	Gasket	8
16	A210210000027	Screw	8
17	A210404000009	Washer	7

Item No.	Part No.	Description	Qty.
1	11326045	Plate, cover, oil filler	1
2	11326040	Plate, backup	1
3	A210204000130	Screw	12
4	A210405000006	Washer	36
5	A210307000016	Nut	20
6	A210111000081	Bolt	4
7	12014413	Gasket	4
8	A210404000009	Washer	4
9	11338700	Flap, 5	1
10	12955148	Plate, meshed	1
11	11338702	Sponge, sound-absorbing & heat-insulation	1
12	A820301014341	Bolt	4
13	A210405000001	Washer	4
14	A210309000016	Nut M12GB6172.1	4
15	A810502000239	Column, elastic	4
16	A820301014172	Handle	2
17	A820101313322	Seat, handle	4

Item No.	Part No.	Description	Qty.
1	A210601000027	Screw M3×10GB819.1	4
2	A229900003988	Buckle	1
3	A210405000027	Washer	4
4	A314140000314	Nut	4
5	11326042	Plate,cover,oil filler	1
6	11326043	Sponge,sound-absorbing & heat-insulation	1
7	A820301014341	Bolt	4
8	A210405000001	Washer	4
9	A210309000016	Nut M12GB6172.1	4
10	A810502000239	Column, elastic	4
11	A210405000006	Washer	4
12	A210307000016	Nut	4
13	11326044	Strip,trim	2

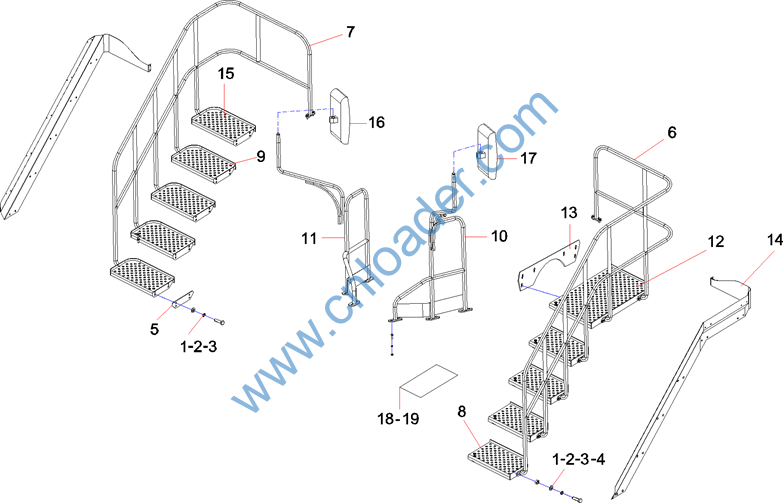

Item No.	Part No.	Description	Qty.
1	A210111000025	Bolt	76
2	A210401000001	Washer	76
3	A210405000011	Washer	112
4	A210307000017	Nut	36
5	10941204	Pad, adjusting	9
6	12472844	Handrail, rear, left	1
7	10939948	Handrail, rear, right	1
8	10940334	Pedal, lef	4
9	10940336	Pedal, right	4
10	13585208	Armrest, upper(left)	1
11	13585209	Armrest, upper(right)	1
12	12472494	Pedal, left	1
13	12647067	Pad, adjusting	1
14	12570559	Assembly, handrail and platform and pedal	1
15	13568086	Pedal, right	1
16	A229900002197	Mirror, Hoist	1
17	A229900002196	Mirror, rearview, left	1
18	13713425	Dashboard	2
19	13713423	Dashboard	2

Item No.	Part No.	Description	Qty.
1	13144274	Lamp bracket, left	1
2	12904926	Sleeve, rubber	1
3	13723376	Bracket electric connector	2
4	A210401000001	Washer	2
5	A210404000003	Washer	4
6	A210307000017	Nut	2
7	A210111000023	Bolt	2
8	12462194	Banding, (left)	1
9	A210401000016	Washer	13
10	A210404000009	Washer	13
11	A210210000017	Screw	13
12	A210111000091	Bolt	6
13	A210401000017	Washer	6
14	A210404000005	Washer	12
15	A210307000012	Nut	6
16	10477981	Plate, support	1
17	13723372	Left front splashboard combination weldi	1
