Item No. |
Part No. |
Description |
Qty. |
|
1 |
60120988 |
Body, rim |
1 |
|
2 |
60120997 |
Ring, lock |
1 |
|
3 |
60121014 |
Ring, seat |
1 |
|
4 |
60121006 |
Ring, retainer |
2 |
|
Item No. |
Part No. |
Description |
Qty. |
|
1 |
13897558 |
Connecting rod axial pin |
1 |
|
2 |
13897559 |
Plate |
1 |
|
3 |
A210401000017 |
Washer |
2 |
|
4 |
A210204000147 |
Screw |
2 |
|

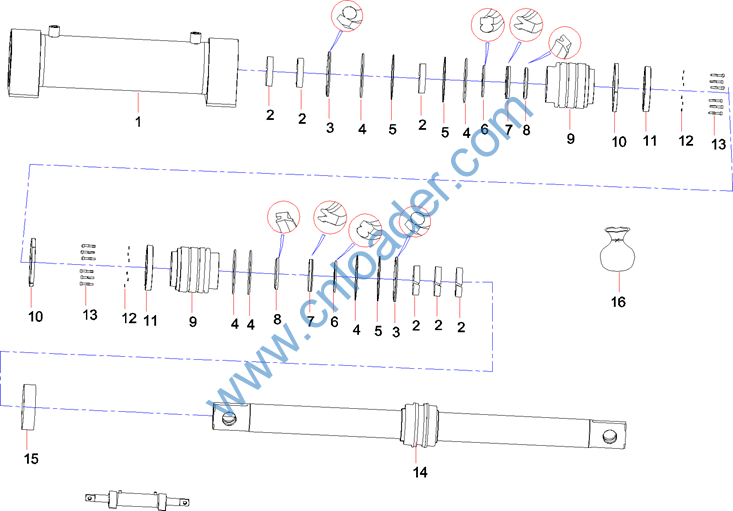

Item No. |
Part No. |
Description |
Qty. |
|
1 |
10421964 |
Components, cylinder barrel |
1 |
|
2 |
A880803040012 |
Ring, guide, UP |
6 |
|
3 |
60124157 |
Ring, seal |
2 |
|
4 |
60011161 |
O-ring |
2 |
|
5 |
10250757 |
Ring, Back-up |
2 |
|
6 |
13599577 |
Ring, seal |
2 |
|
7 |
B230101002134 |
Ring, seal, ZBR |
2 |
|
8 |
60000474 |
Ring, dustproof, PWD |
2 |
|
9 |
10421956 |
Sleeve, guide |
2 |
|
10 |
10421958 |
Key, clipping |
2 |
|
11 |
10421959 |
Ring, retaining |
2 |
|
12 |
A210401000017 |
Washer |
12 |
|
13 |
24002398 |
Screw M8×50GB70.1 |
12 |
|
14 |
10421967 |
Components, piston rod |
1 |
|
15 |
A880806030154 |
Seal, MD |
1 |
|
16 |
14155964 |
Seal package |
1 |
S
|
Item No. |
Part No. |
Description |
Qty. |
|
1 |
B230101002134 |
Ring, seal, ZBR |
2 |
|
2 |
13599577 |
Ring, seal |
2 |
|
3 |
A880803040012 |
Ring, guide, UP |
6 |
|
4 |
60011161 |
O-ring |
2 |
|
5 |
10250757 |
Ring, Back-up |
4 |
|
6 |
60000474 |
Ring, dustproof, PWD |
2 |
|
7 |
A880806030154 |
Seal, MD |
1 |
|
8 |
60124157 |
Ring, seal |
2 |

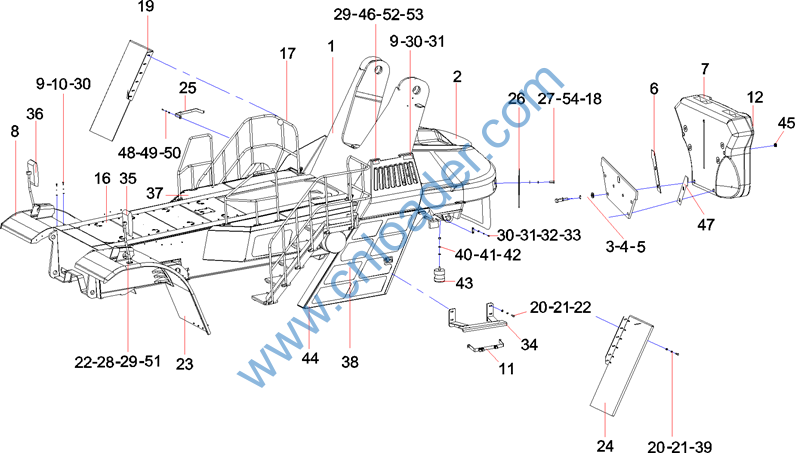

Group 5
Assembly, frame
|
Item No. |
Part No. |
Description |
Qty. |
|
1 |
13571844 |
Weldment, frame body |
1 |
|
2 |
13026020 |
Counterweight, fixed |
1 |
|
3 |
A210401000012 |
Washer 36GB93 |
4 |
|
4 |
A820102010533 |
Washer |
4 |
|
5 |
60269169 |
Bolt M36×220 GB5783 |
4 |
|
6 |
12898172 |
Board, connecting board, lower counterweight |
2 |
|
7 |
13013690 |
Counterweight, rear |
1 |
|
8 |
13723413 |
Dashboard, right |
1 |
|
9 |
A210111000038 |
Bolt |
24 |
|
10 |
A210404000004 |
Washer |
24 |
|
11 |
11849040 |
Support |
1 |
|
12 |
14067854 |
Screw plug |
1 |
|
16 |
12451260 |
Plate, cover |
1 |
|
17 |
10941541 |
Assembly, handrail and platform |
1 |
|
18 |
A210405000006 |
Washer |
8 |
|
19 |
12009348 |
Dashboard, rear, right |
1 |
|
20 |
A210404000008 |
Washer |
24 |
|
21 |
A210401000004 |
Washer |
24 |
|
22 |
A210111000090 |
Bolt |
8 |
|
23 |
13723377 |
Dashboard, left |
1 |
|
24 |
13116970 |
Dashboard, rear, left |
1 |
|
25 |
10136225 |
Support, oil-water separator |
1 |
|
Item No. |
Part No. |
Description |
Qty. |
|
26 |
11006387 |
Plate, mounting, tail lamp |
2 |
|
27 |
A210210000017 |
Screw |
8 |
|
28 |
A210405000007 |
Washer |
8 |
|
29 |
A210401000017 |
Washer |
12 |
|
30 |
A210401000002 |
Washer |
33 |
|
31 |
A210405000001 |
Washer |
12 |
|
32 |
A210111000039 |
Bolt |
4 |
|
33 |
10106057 |
Block, retaining |
2 |
|
34 |
10246102 |
Support, oil-radiation, hydraulic |
2 |
|
35 |
10201511 |
Assembly, rearview mirrow, left |
1 |
|
36 |
10182064 |
Assembly, rearview mirrow, right |
1 |
|
37 |
13861321 |
Support |
1 |
|
38 |
13434648 |
Cover, guide wind |
1 |
|
39 |
A210111000112 |
Bolt |
24 |
|
40 |
A210307000029 |
Nut |
2 |
|
41 |
A210405000008 |
Washer |
2 |
|
42 |
A210401000006 |
Washer |
2 |
|
43 |
A222000000066 |
Absorber, shock |
2 |
|
44 |
13115789 |
Assembly, covering parts |
1 |
|
45 |
10480997 |
Sleeve, mounting |
8 |
|
46 |
10545244 |
Plate, coupling |
4 |
|
48 |
A210404000003 |
Washer |
2 |
|
Item No. |
Part No. |
Description |
Qty. |
|
49 |
A210401000001 |
Washer |
2 |
|
50 |
A210111000018 |
Bolt |
2 |
|
51 |
A210307000012 |
Nut |
6 |
|
52 |
A210111000093 |
Bolt |
4 |
|
53 |
A210404000005 |
Washer |
4 |
|
54 |
A210401000016 |
Washer |
8 |
