Body,container reach stacker, SRSC45H1 DEB





Item No.

Part No.

Description

Qty.

1

60181998

Filter, air

1

2

A210111000091

Bolt

2

3

A210401000017

Washer

4

4

A210404000005

Washer

10

5

A229900002262

Clamp, T-type

2

6

13571464

Pipe, air intake

1

7

13571497

Pipe, air outlet

1

8

A210111000089

Bolt

4

9

A229900006719

T-type anchor ear

2

10

A210111000040

Bolt

2

11

A210401000002

Washer

2

12

A210405000001

Washer

4

13

A210307000001

Nut

2

14

12564193

Support, air filter

1


















Item No.

Part No.

Description

Qty.

15

B230103005004

Hose, rubber, connecting

1

16

B240600000220

Sensor

1

17

12565449

Pipe, connecting, air intake

1

18

B229900001056

Clamp, T-type

1

19

12566017

Support, air intake pipe

1

20

12448158

Hose, rubber, reducing

1

21

60332463

T-clamp

1

22

60188052

Rain cap

1

23

13571492

Pipe, air intake

1

24

A229900002222

Clamp

4

25

14032381

Air intake assembly SRSC45H1.1.22

1

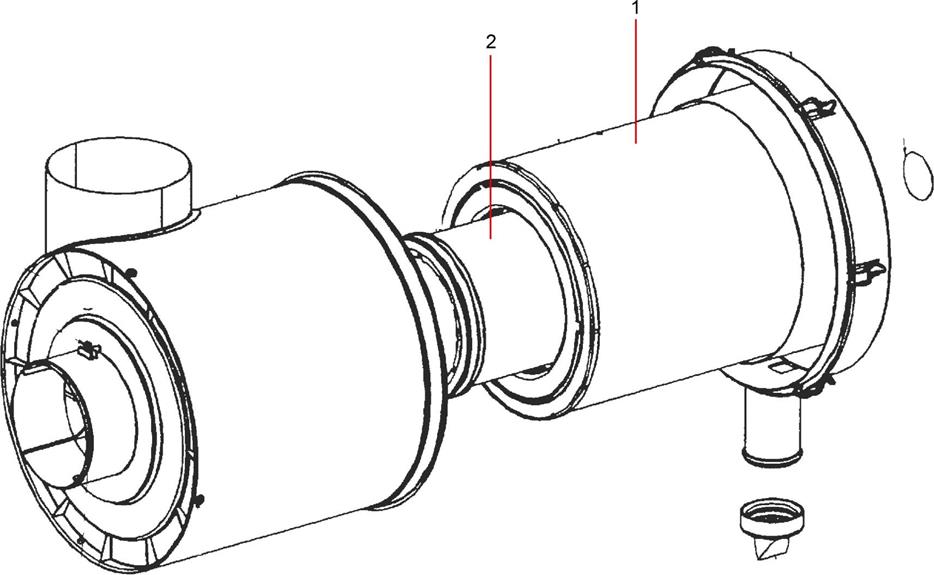

Item No.

Part No.

Description

Qty.

1

60188055

Filter, main

1

2

60188056

Filter, safety

1




















Item No.

Part No.

Description

Qty.

1

12564171

Welding, air intake pipe support

1

2

11577832

Pad, rubber

1

3

11578451

Strip, pressure

1

4

A210307000012

Nut

4

5

A210111000091

Bolt

2

6

A210401000017

Washer

4






















Item No.

Part No.

Description

Qty.

1

A210111000092

Bolt

12

2

A210307000012

Nut

12

3

A210401000017

Washer

12

4

A210405000007

Washer

12

5

13303545

Connect pipe

1

6

13305187

Clamp

2

7

13307386

Rear armrest (Left)

1

8

13440748

Skirting L SRSW31C.3.6.9-2

1

9

13306313

Left pedal II

1

10

13304974

Connect pipe SRSW31C.1.4-1

1

11

13304992

Plate

1

12

13304995

Clamp

2

13

60188052

Rain cap

1
















Item No.

Part No.

Description

Qty.

1

A210111000023

Bolt

8

2

A210401000001

Washer

4

3

A210405000011

Washer

8

4

14140340

Wind guide board

1

5

A829900001456

Clamp, exhaust pipe, Ⅰ

2

6

A210111000041

Bolt

28

7

A210401000002

Washer

28

8

A210405000001

Washer

12

9

A210307000001

Nut

28

10

60137876

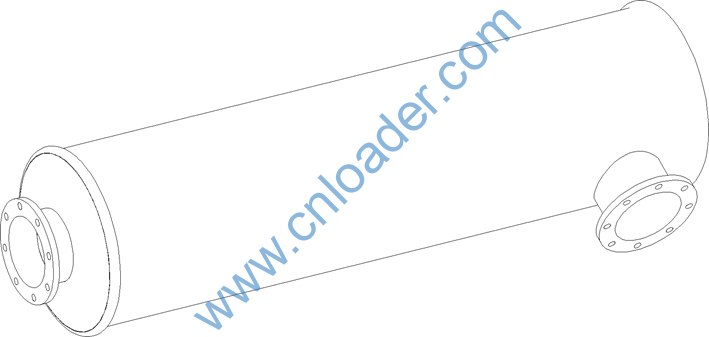

Muffler

1

11

13572889

Support, muffler

2

12

A210111000025

Bolt

4

13

A820603000236

Pad, sealing, tail tube

1

14

13436257

Pipe, tail, exhaust

1

15

A820603000141

Pad, sealing

2

16

13571664

Pipe, exhaust

1

17

10186111

Clamp, fixing, muffler

2

18

13571504

Pipe, exhaust

1

19

13571562

Pipe, exhaust

1

20

13572749

Support, pipe, exhaust

1

21

60000076

Ear, anchor, V-shaped

1

22

14140335

Wind guide board

1

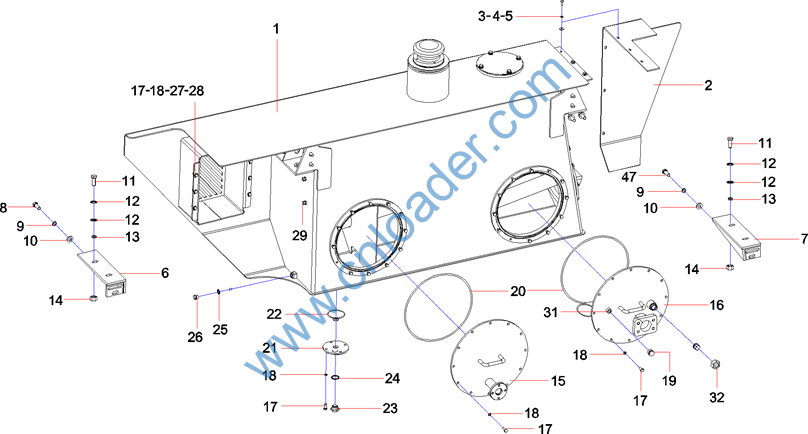

Group 3

Assembly, working oil tank


















Item No.

Part No.

Description

Qty.

1

13061002

Body, working oil tank

1

2

13060564

Cover, front, left

1

3

A210111000089

Bolt

6

4

A210404000005

Washer

18

5

A210401000017

Washer

12

6

14066232

Support, front, oil tank

1

7

14066235

Support, rear, oil tank

1

8

A210204000161

Screw

43

9

A210401000006

Washer

6

10

A210491000132

Washer

6

11

A210111000041

Bolt

4

12

A210404000004

Washer

12

13

A210401000002

Washer

12

14

A210307000001

Nut

4

15

13060517

Assembly, oil-suction cover plate

1

16

13060532

Plate, cover, oil-suction pipe

1

17

A210111000018

Bolt

6

18

A210401000001

Washer

43

19

B210780000091

Choke plug

1

20

A210609000295

O-ring 387×7GB3452.1

3

21

10774636

Plate, cover, oil washing hole

1

22

A210609000082

O-ring 85×3.55GB3452.1

1
