Body,container reach stacker, SRSC45H1 NFB





Item No.

Part No.

Description

Qty.

1

60344721

Starter element

1

5

60130847

Washer

2

6

60131829

6 point socket screw

12

7

60092432

Washer

12

9

60203798

Plane gasket

2

10

60344722

Wiring harness

1

11

60344723

Wiring harness

1

12

60344724

Wiring harness

1

13

60344725

Protective cap

1

14

60199263

Hexagon nut

3

15

60092572

Hexagon nut

1

16

60344726

Relay

1

17

60344727

Cover

1

18

60203739

Flange screw

2

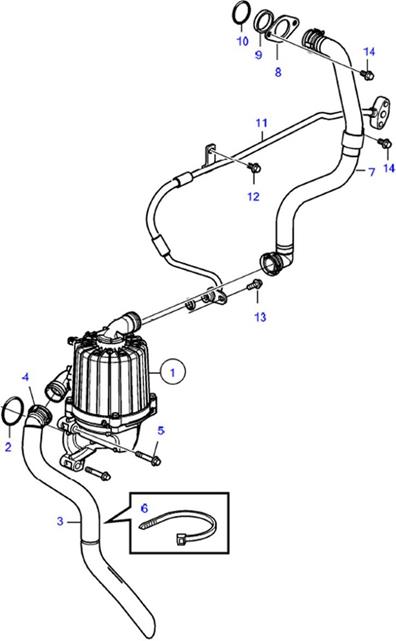

Item No.

Part No.

Description

Qty.

1

60267573

Separator

1

2

60267574

Gasket

1

3

60267575

Breather pipe

1

4

60267576

Connector

1

5

60203729

Flange screw

3

6

60094352

Cable tie

1

7

60267577

Pipe

1

8

60267578

Flange

1

9

60267579

Adapter

1

10

60267580

Sealing ring

1

11

60267581

Pressure hose

1

12

60344728

Flange screw

1

13

60203765

Flange screw

1

14

60203734

Flange screw

3

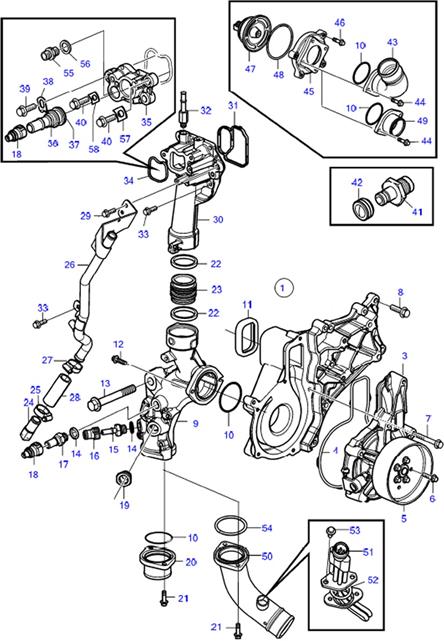

Item No.

Part No.

Description

Qty.

1

60267648

Coolant pump, exch

1

3

60267649

Coolant pump

1

4

60267650

Rubber moulding

1

5

60267651

Pulley

1

6

60203775

Flange screw

5

7

60203741

Flange screw

6

8

60267593

Flange screw

6

9

60344729

Coolant pipe

1

10

60263483

O-ring

1

11

60132420

Rubber moulding

1

12

60203731

Flange screw

2

13

60267653

Flange screw

1

14

60344730

Gasket

2

15

60267981

Connector

1

16

60267976

Quick-coupling kit

1

17

60267654

Nipple

1

18

60267655

Quick-coupling kit

2

19

60267656

Socket

1

20

60267657

Coolant pipe

1

21

60203735

Flange screw

2

22

60086206

Sealing ring

2

23

60267658

Connection pipe

1
















Item No.

Part No.

Description

Qty.

24

60267659

Connector

1

25

60096595

Hose clamp

1

26

60267660

Pipe

1

27

60131948

Hose clamp

1

28

60132528

Rubber hose

2

29

60203765

Flange screw

2

30

60267661

Connection pipe

1

31

60267662

Sealing strip

1

32

60267663

Hose nipple

2

33

60203765

Flange screw

6

34

60267664

Sealing strip

1

35

60267665

Connection pipe

1

36

60267666

Connector

1

37

60075867

Sealing ring

1

38

60267667

Lock brace

1

39

60203731

Flange screw

3

40

60203734

Flange screw

2

41

60087996

Nipple

1

42

60132979

Protecting cap

1

43

60267668

Tube

1

44

60203735

Flange screw

2

45

60267669

Cover

1
















Item No.

Part No.

Description

Qty.

46

60203731

Flange screw

4

47

60199251

Thermostat 82°C

1

48

60267670

Sealing ring

1

49

60267657

Coolant pipe

1

50

60344731

Pipe for engines without engine heater.

1

51

60332430

Engine heater

1

52

60132392

O-ring

1

53

60203735

Flange screw

2

54

60263483

O-ring

1

55

60267672

Plug

1

56

60267673

Sealing ring

1

57

60344732

Connector

1

58

60086174

Lock brace

1

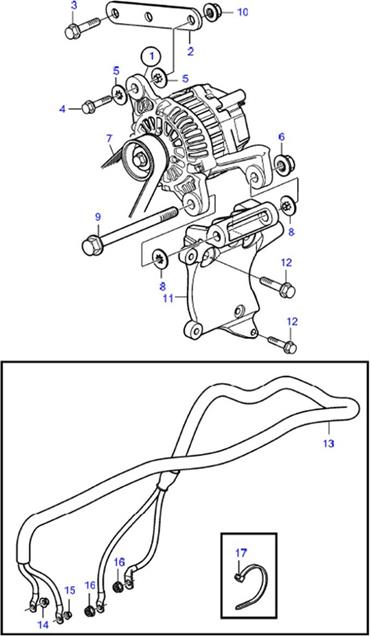

Item No.

Part No.

Description

Qty.

1

60199255

Alternator

1

2

60267714

Bracket

1

3

60203736

Flange screw

1

4

60203768

Flange screw

1

5

60228945

Insulating bushing

2

6

60228948

Flange lock nut

1

7

60356616

pulley

1

8

60228947

Insulating bushing

2

9

60228946

Flange screw

1

10

60203801

Flange nut

1

11

60132218

Bracket

1

12

60267995

Flange screw

4

13

60344733

Wiring harness

1

14

60267717

Flange lock nut

1

15

60199263

Hexagon nut

1

16

60092573

Hexagon nut

2

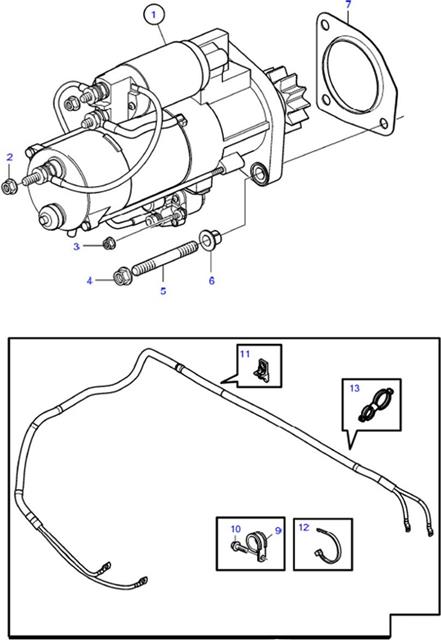

Item No.

Part No.

Description

Qty.

1

60267718

Starter motor

1

2

60228952

Hexagon nut

2

3

60092572

Hexagon nut

2

4

60267542

Flange nut

3

5

60132336

Stud

3

6

60267720

Insulating bushing

3

7

60267721

Gasket

1

9

60267722

Clamp

2

10

60203734

Flange screw

2

11

60267723

Cable tie

1

12

60094352

Cable tie

4

13

60267724

Retainer

2

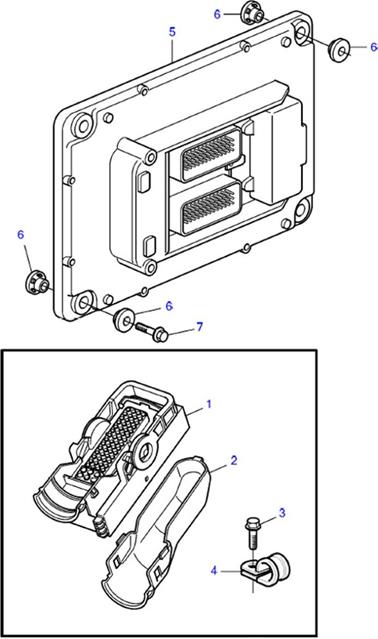

Item No.

Part No.

Description

Qty.

1

60131505

Housing

1

2

60129789

Adapter

1

3

60131268

Clamp

2

4

60203765

Flange screw

2

5

60267730

Control unit, not programmed

1

6

60132012

Rubber cushion

4

7

60203736

Flange screw

4
