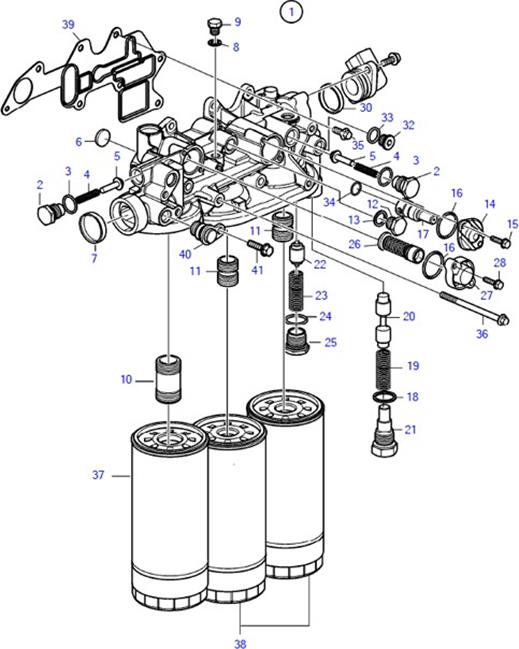

Item No. |
Part No. |
Description |
Qty. |
|
1 |
60344666 |
Oil filter housing |
1 |
|
2 |
60130987 |
Plug |
2 |
|
3 |
60130791 |
Gaske |
2 |
|
4 |
60130636 |
Compression spring |
2 |
|
5 |
60130288 |
Valve cone |
2 |
|
6 |
60130030 |
Cap plug |
1 |
|
7 |
60344667 |
Expansion plug |
1 |
|
8 |
60085751 |
Gasket |
1 |
|
9 |
60092771 |
Plug |
1 |
|
10 |
60344668 |
Nipple |
1 |
|
11 |
60199163 |
Nipple |
2 |
|
12 |
60092408 |
Plug, overflow valve |
1 |
|
13 |
60085707 |
Gasket |
1 |
|
14 |
60129824 |
Cover |
2 |
|
15 |
60131809 |
Flange screw |
2 |
|
16 |
60092706 |
O-ring |
2 |
|
17 |
60344669 |
Reduction valve |
1 |
|
18 |
60130793 |
Gasket, piston cooling |
1 |
|
19 |
60130634 |
Spring |
1 |
|
20 |
60131378 |
Piston |
1 |
|
21 |
60344670 |
Plug |
1 |
|
22 |
60130307 |
Valve cone |
1 |
|
Item No. |
Part No. |
Description |
Qty. |
|
23 |
60130634 |
Spring |
1 |
|
24 |
60130793 |
Gasket, piston cooling |
1 |
|
25 |
60344670 |
Plug |
1 |
|
26 |
60130273 |
Relief valve |
2 |
|
27 |
60129811 |
Cover |
1 |
|
28 |
60131809 |
Flange screw |
2 |
|
30 |
60344671 |
Sealing ring |
1 |
|
32 |
60130999 |
Plug |
1 |
|
33 |
60132389 |
O-ring |
1 |
|
34 |
60132452 |
Sealing ring |
1 |
|
35 |
60203765 |
Flange screw |
5 |
|
36 |
60344625 |
Flange screw |
3 |
|
37 |
60344672 |
Oil filter |
1 |
|
38 |
60344673 |
Oil Cooler |
2 |
|
39 |
60130769 |
Gasket |
1 |
|
40 |
60344620 |
Plug |
1 |
|
41 |
60203765 |
Flange screw |
1 |
|

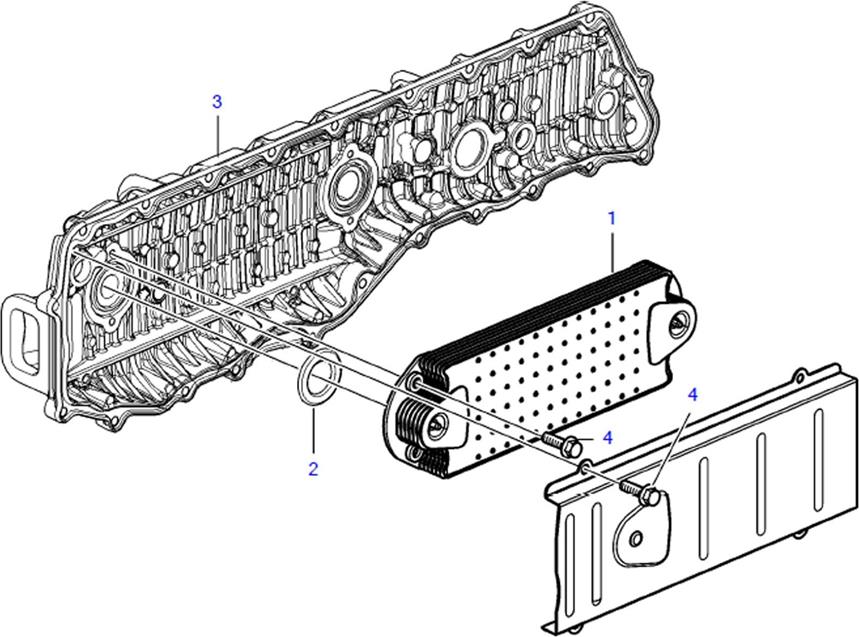

Item No. |
Part No. |
Description |
Qty. |
|
1 |
60344675 |
Radiator |
1 |
|
2 |
60096079 |
Sealing ring |
2 |
|
3 |
60344674 |
Cover |
1 |
|
4 |
60203745 |
Flange screw |
8 |
|

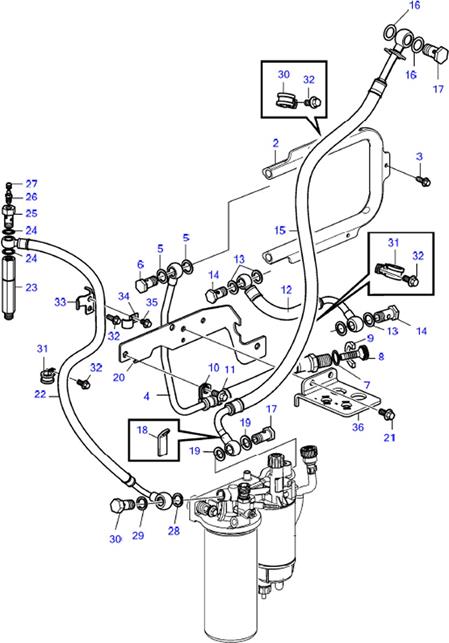

Item No. |
Part No. |
Description |
Qty. |
|
2 |
60344675 |
Radiator |
1 |
|
3 |
60344676 |
Flange screw |
5 |
|
4 |
60344677 |
Fuel hose |
1 |
|
5 |
60191116 |
Sealing ring |
2 |
|
6 |
60199172 |
Hollow screw |
1 |
|
7 |
B230101000993 |
O-ring |
1 |
|
8 |
60344678 |
Nipple |
1 |
|
9 |
60344679 |
Bracket |
1 |
|
10 |
60199197 |
Clamp |
1 |
|
11 |
60203734 |
Flange screw |
1 |
|
12 |
60344680 |
Fuel hose |
1 |
|
13 |
60191116 |
Sealing ring |
4 |
|
14 |
60199172 |
Hollow screw |
2 |
|
15 |
60344681 |
Fuel hose |
1 |
|
16 |
60199169 |
Sealing ring |
2 |
|
17 |
60199170 |
Hollow screw |
2 |
|
18 |
60344682 |
Bracket |
2 |
|
19 |
60191116 |
Sealing ring |
2 |
|
20 |
60344679 |
Bracket |
1 |
|
21 |
60203734 |
Flange screw |
4 |
|
22 |
60344683 |
Fuel hose |
1 |
|
23 |
60344684 |
Spacer |
1 |
|
Item No. |
Part No. |
Description |
Qty. |
|
24 |
60199169 |
Sealing ring |
2 |
|
25 |
60199200 |
Hollow screw |
1 |
|
26 |
60199191 |
Faucet |
1 |
|
27 |
60199192 |
Protecting cover |
1 |
|
28 |
60085632 |
Gasket |
1 |
|
29 |
60203779 |
Gasket |
1 |
|
30 |
60203778 |
Overflow valve |
1 |
|
31 |
60092371 |
Clamp |
6 |
|
32 |
60203734 |
Flange screw |
5 |
|
33 |
60344685 |
Bracket |
1 |
|
34 |
60344686 |
Bracket |
1 |
|
35 |
60203775 |
Flange screw |
1 |
|
36 |
60344687 |
Bracket |
1 |
|

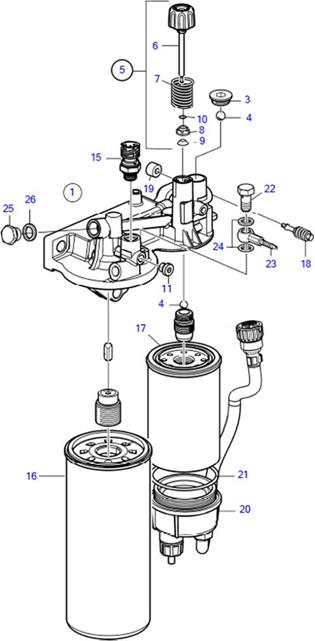

Item No. |
Part No. |
Description |
Qty. |
|
1 |
60344650 |
Oil pan |
1 |
|
3 |
60199208 |
Cardboard tube |
1 |
|
4 |
60199209 |
Ball |
2 |
|
5 |
60344688 |
Hand pump |
1 |
|
6 |
60199210 |
Pump shaft |
1 |
|
7 |
60344689 |
Spring |
1 |
|
8 |
60344690 |
Plunger |
1 |
|
9 |
60199215 |
Support ring |
1 |
|
10 |
60199217 |
O-ring |
1 |
|
11 |
60199211 |
Plug |
1 |
|
15 |
60285682 |
Pressure sensor, oil-pressure |
1 |
|
16 |
60001117 |
Fuel filter |
1 |
|
17 |
60001119 |
Fuel filter |
1 |
|
18 |
60203758 |
Flange screw |
3 |
|
19 |
60199219 |
Rubber element |
3 |
|
20 |
60344691 |
Bowl |
1 |
|
21 |
60092718 |
O-ring |
1 |
|
22 |
60344692 |
Valve |
1 |
|
23 |
60191117 |
Banjo nipple |
1 |
|
24 |
60191116 |
Sealing ring |
2 |
|
25 |
60092408 |
Plug, overflow valve |
1 |
|
26 |
60085632 |
Gasket |
1 |
|

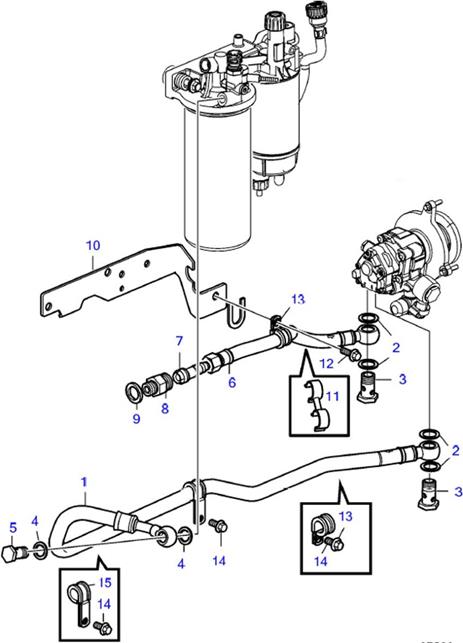

Item No. |
Part No. |
Description |
Qty. |
|
1 |
60344693 |
Fuel hose |
1 |
|
2 |
60199169 |
Sealing ring |
4 |
|
3 |
60199170 |
Hollow screw |
2 |
|
4 |
60191116 |
Sealing ring |
2 |
|
5 |
60199172 |
Hollow screw |
1 |
|
6 |
60344694 |
Fuel hose |
1 |
|
7 |
60085714 |
Nipple |
1 |
|
8 |
60085715 |
Fitting nut |
1 |
|
9 |
60130797 |
Gasket |
1 |
|
10 |
60344679 |
Bracket |
1 |
|
11 |
60344695 |
Retainer |
1 |
|
12 |
60203765 |
Flange screw |
1 |
|
13 |
60092371 |
Clamp |
2 |
|
14 |
60203734 |
Flange screw |
4 |
|
15 |
60203776 |
Clamp |
2 |
|

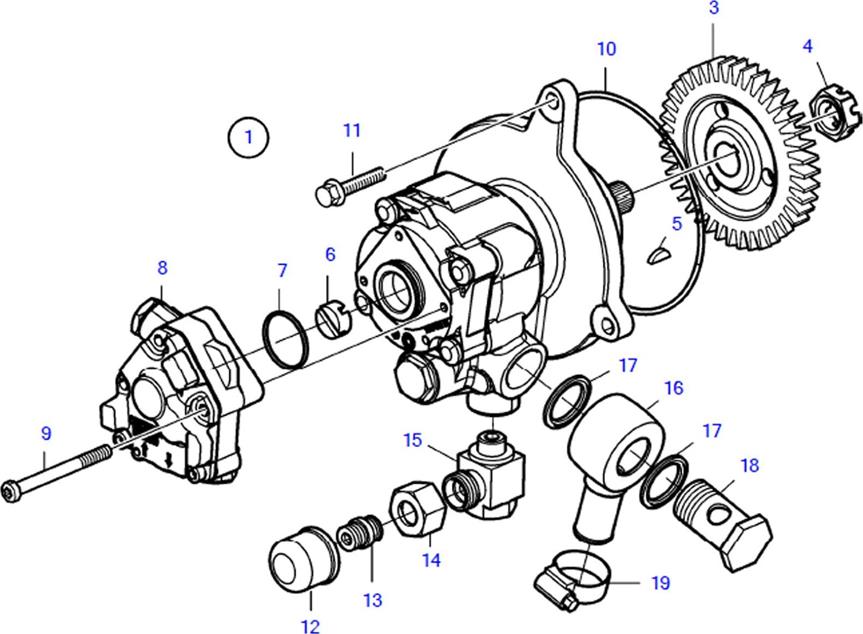

Item No. |
Part No. |
Description |
Qty. |
|
1 |
60344696 |
Tandem pump |
1 |
|
3 |
60130433 |
Gear |
1 |
|
4 |
60131968 |
Castle nut |
1 |
|
5 |
60139371 |
Woodruff key |
1 |
|
6 |
60138975 |
Constant velocity |
1 |
|
7 |
60094478 |
O-ring |
1 |
|
8 |
60096575 |
Fuel pump |
1 |
|
9 |
60139585 |
Hex. socket screw |
3 |
|
10 |
60092731 |
O-ring |
1 |
|
11 |
60228921 |
Flange screw |
3 |
|
12 |
60130028 |
Plastic plug |
1 |
|
13 |
60344697 |
Plug |
1 |
|
14 |
60092557 |
Fitting nut |
1 |
|
15 |
60344698 |
Banjo fitting |
1 |
|
16 |
60131423 |
Banjo nipple |
1 |
|
17 |
60130799 |
Gasket |
2 |
|
18 |
60131516 |
Hollow screw |
1 |
|
19 |
60096595 |
Hose clamp |
1 |
