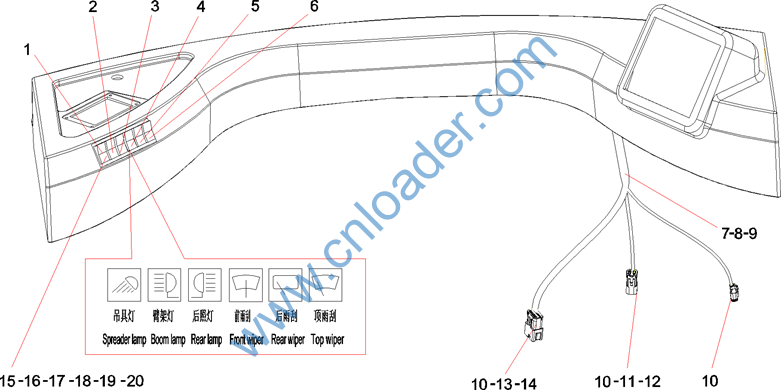

Item No. |
Part No. |
Description |
Qty. |
|
1 |
B241800000016 |
Card, symbol |
1 |
|
2 |
B241800000021 |
Card, symbol |
1 |
|
3 |
B241800000008 |
Card, symbol |
1 |
|
4 |
B241800000020 |
Card, symbol |
1 |
|
5 |
B241800000005 |
Card, symbol |
1 |
|
6 |
B241800000003 |
Card, symbol |
1 |
|
7 |
A241900000014 |
Cable |
2 |
|
8 |
A239900000563 |
Bellows, Nylon |
2 |
|
9 |
A241900000012 |
Cable |
2 |
|
10 |
B249900000288 |
Pin |
20 |
|
11 |
A249900001140 |
Lock, 6-position Receptacle |
1 |
|
12 |
B241200000606 |
Receptacle, 6-position |
1 |
|
13 |
23005309 |
Lock, 12-pin |
1 |
|
14 |
B241200000583 |
Receptacle, 12-position |
1 |
|
15 |
A241200000539 |
Rocker Switch |
6 |
|
16 |
A249900000513 |
Frame, Single, Side |
2 |
|
17 |
A249900000514 |
Frame, Single, Middle |
4 |
|
18 |
A249900000520 |
Holder, indicator |
6 |
|
19 |
A249900000519 |
8-cable socket protective sleeve (rocker switch) |
6 |
|
20 |
A241000000040 |
Receptacle |
26 |
|

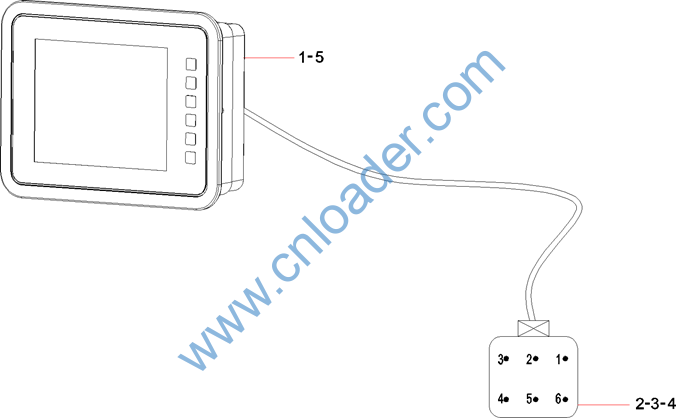

Item No. |
Part No. |
Description |
Qty. |
|
1 |
A810201206090 |
Display |
1 |
|
2 |
B249900000288 |
Pin |
6 |
|
3 |
A249900001140 |
Lock, 6-position Receptacle |
1 |
|
4 |
B241200000606 |
Receptacle, 6-position |
1 |
|
5 |
12493453 |
Transition plate, display |
1 |
|

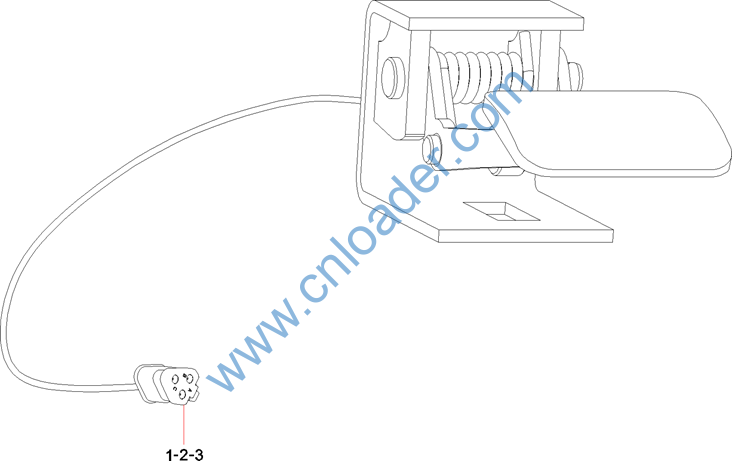

Item No. |
Part No. |
Description |
Qty. |
|
1 |
B241200000591 |
Receptacle, 3-position |
1 |
|
2 |
B241200000603 |
Lock, Secondary Pole, 3-line, (pin) |
1 |
|
3 |
B249900000288 |
Pin |
3 |
|

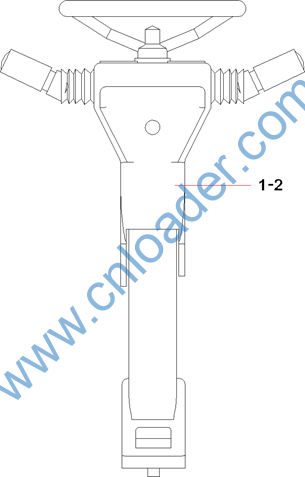

Item No. |
Part No. |
Description |
Qty. |
|
1 |
12907096 |
Layout, steering gear |
1 |
|
2 |
12907089 |
Harness, steering gear |
1 |
|

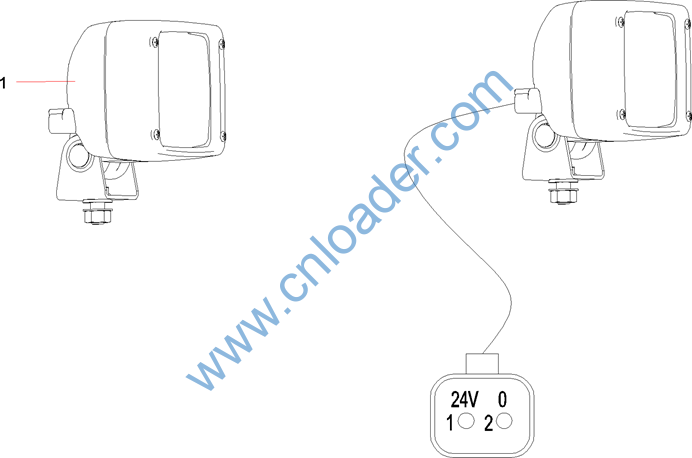

Item No. |
Part No. |
Description |
Qty. |
|
1 |
12952605 |
Plate, installation, working lamp |
2 |
|
2 |
60232826 |
Working light |
2 |
|
3 |
B241200000590 |
Plug, 2-position |
2 |
|
4 |
B241200000584 |
Lock, 2-position Plug |
2 |
|
5 |
B229900001093 |
Socket |
4 |
|
6 |
A241900000177 |
Cable |
8 |
|
7 |
A239900000561 |
Bellows, Nylon |
8 |
|

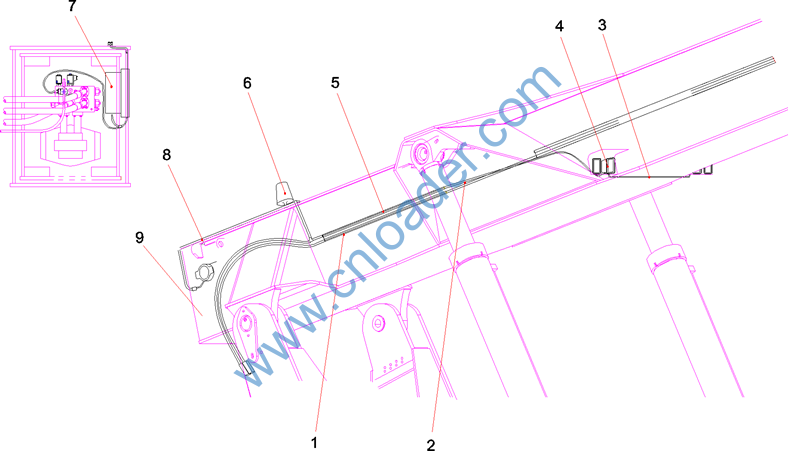

Item No. |
Part No. |
Description |
Qty. |
|
1 |
12894716 |
Harness, boom frame |
1 |
|
2 |
12894791 |
Harness, boom frame |
1 |
|
3 |
13275833 |
Clamp, fastening |
10 |
|
4 |
12895470 |
Lamp, halogen |
4 |
|
5 |
60199416 |
Bridge, cable, boom |
3 |
|
6 |
12893720 |

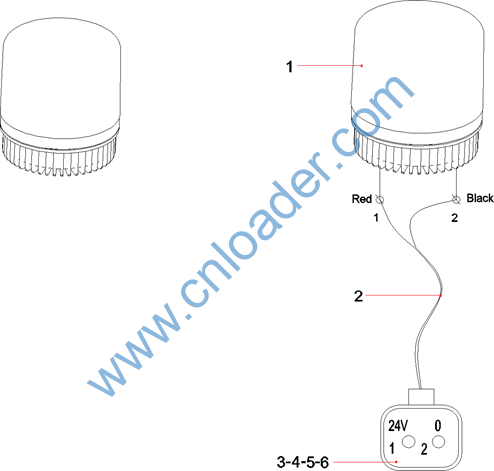

Light, alarm, LED |
1 |
|
7 |
12889986 |
Sensor, length and angle |
1 |
|
8 |
13275826 |
Clamp, fastening |
10 |
|
9 |
13427817 |
Welding, clamp, boom |
1 |
|
Item No. |
Part No. |
Description |
Qty. |
|
1 |
60198785 |
Lamp, working |
1 |
