Body,container reach stacker, SRSC45H1 HBF

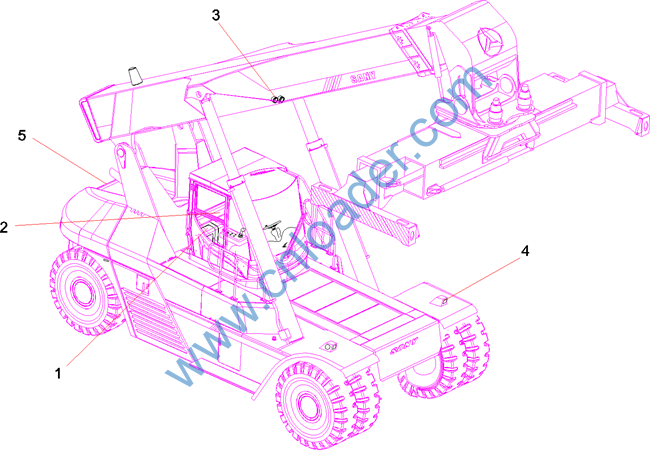

Item No.

Part No.

Description

Qty.

1

13116953

Diagram, schematic, electrical

1

2

13487579

Layout, electric, cab

1

3

13445409

Layout, boom

1

4

13487569

Layout, electric, frame

1

5

14004430

Layout, camera system

1


















Item No.

Part No.

Description

Qty.

1

13120438

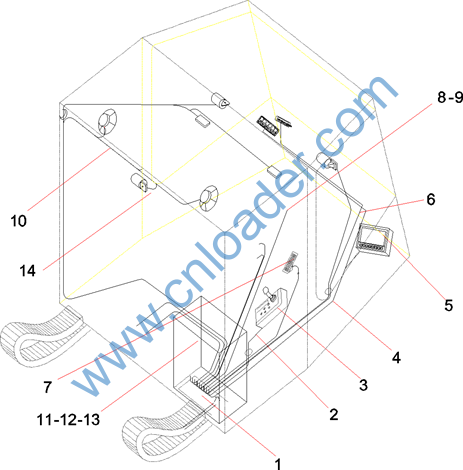

Assembly, electric control cabinet, cab

1

2

12895249

Harness, panel, right

1

3

13484326

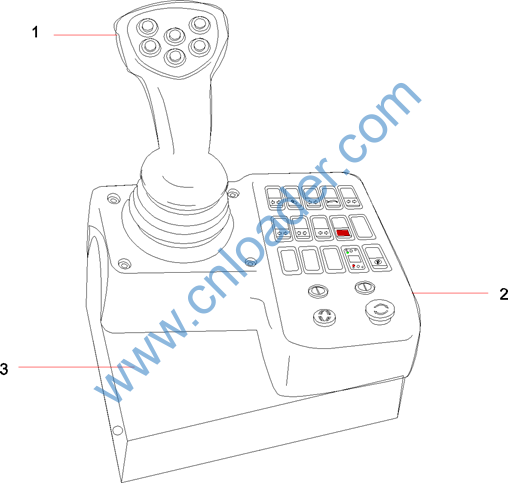

Assembly, operation panel, right

1

4

13487578

Harness, front panel

1

5

13487572

Assembly, front operation panel

1

6

12894959

Harness, air conditioning

1

7

13014972

Pedal, accelerator

1

8

12894939

Harness, steering gear

1

9

12907176

Assembly, operation, steering gear

1

10

13016751

Harness, rear top, cab

1

11

A241200000698

Switch, lamp, brake

2

12

60004572

Head, fixing, cable, waterproof

5

13

A229900004067

Nut, nylon GMK-M32G

10

14

13206545

Illuminating equippment of cab outside R

1
















Item No.

Part No.

Description

Qty.

1

13120382

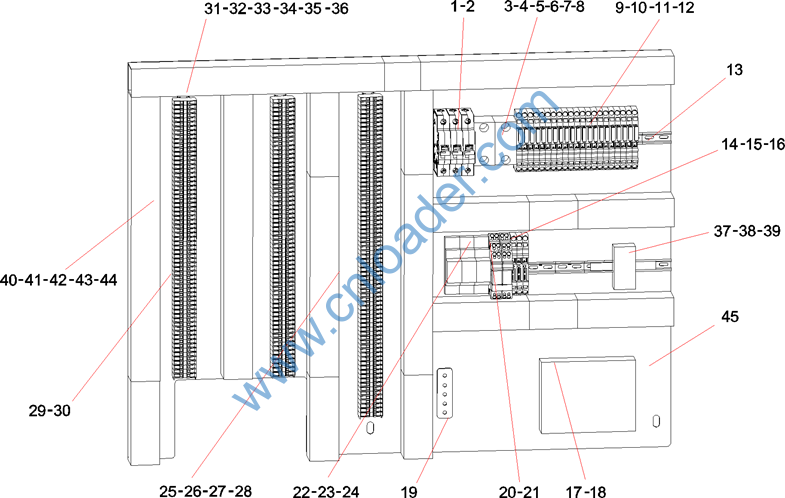

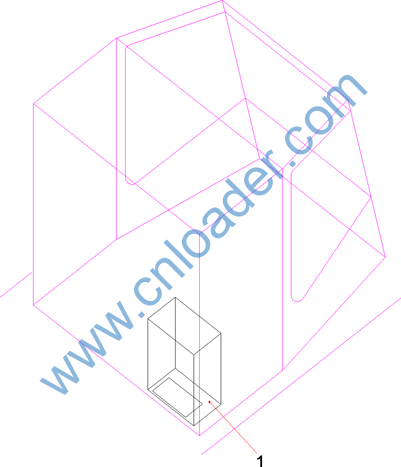

Layout, electric control cabinet, cab

1


















Item No.

Part No.

Description

Qty.

1

A241200000220

Breaker, plastic housing

2

2

A241200000221

Breaker, monopole

1

3

A242000000307

Plate, end and spacer

2

4

A242000000303

Terminal

4

5

60208346

Jumper, high-low

4

6

60208347

Plate, spacer

2

7

21001517

Terminal, connection

2

8

A241900000042

Wire

1

9

A242000000381

Teminal, Wiring

21

10

B241300000020

Fuse

9

11

B241300000021

Fuse

12

12

23003013

Jumper, Adjacent

18

13

60035696

Duct, cabling

4

14

A241600000022

Rail

2

15

A242000000382

Terminal, diode

4

16

60116738

Plug, Terminal

1

17

A810201206151

Assembly, I/O module, SANY

1

18

A810299000589

Harness, wire, terminal

1

19

12561952

Busbar, copper, grounding, empty container handler

1

20

B240700000399

Relay, intermediate

2

21

B240700000395

Seat, relay

2

22

B241600000002

Clip PYC-A1

8


















Item No.

Part No.

Description

Qty.

23

B240700000114

Relay, intermediate

3

24

B240700000125

Seat, relay

3

25

A241900000152

Wire, Black

10

26

A241900000038

Wire

100

27

A239900000052

Strap, nylon

80

28

A242000000390

Terminal

250

29

60183141

Joint, hose with lock

3

30

60183802

Nut, nylon

3

31

60208151

Fixer, terminal

10

32

60208152

Terminal, connection

245

33

60208153

Baffle, combinable socket

25

34

60208154

Terminal, connection

6

35

B241800000030

WSB indication

3

36

B242000000013

Jumper, Adjacent

10

37

B240700000265

Relay, Intermittent, Wiper

1

38

B241000000022

Receptacle, power

1

39

B241000000021

Plug, two-wire

1

40

A210210000015

Screw

44

41

A210210000030

Bolt, socket head

15

42

A210307000014

Nut

34

43

A210405000004

Washer

59

44

A210401000013

Washer

59


















Item No.

Part No.

Description

Qty.

45

60154909

Copper tube terminals

8


































Item No.

Part No.

Description

Qty.

1

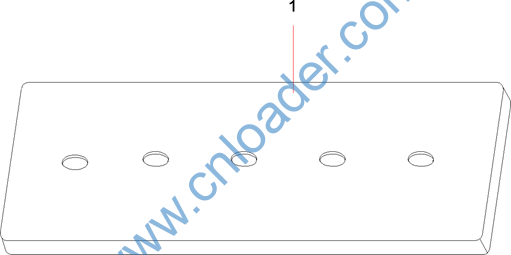

B241900000020

Busbar, copper

1
