Body,container reach stacker, SRSC45H1 HRB


















Item No.

Part No.

Description

Qty.

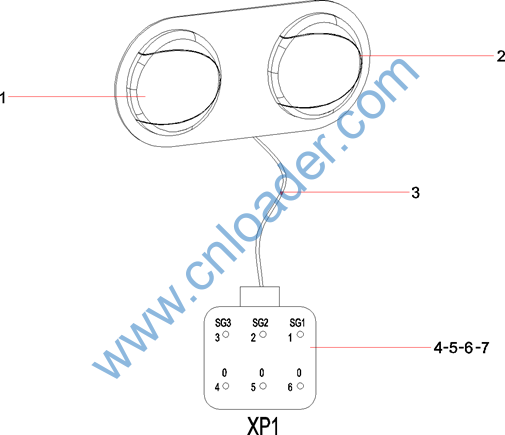

1

B241100000446

Lamp, tail, LED

1

2

B241100000447

Lamp, turn signal, LED

1

3

A239900000561

Bellows, Nylon

1

4

B241200000606

Receptacle, 6-position

1

5

B249900000288

Pin

6

6

A249900001140

Lock, 6-position Receptacle

1

7

60120499

Tail, socket, 6-wire

1




















Item No.

Part No.

Description

Qty.

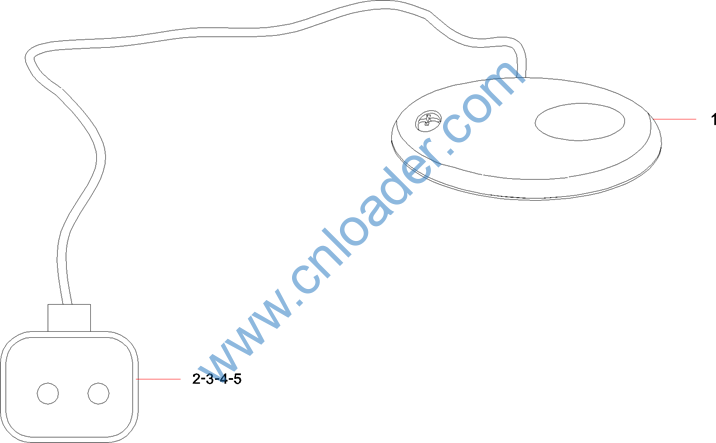

1

A241100000555

Lamp, mark, side, LED

1

2

B241200000582

Receptacle, 2-position

1

3

B249900000288

Pin

2

4

A249900001139

Lock, 2-position Receptacle

1

5

60120497

Tail, socket, 2-wire

1
























Item No.

Part No.

Description

Qty.

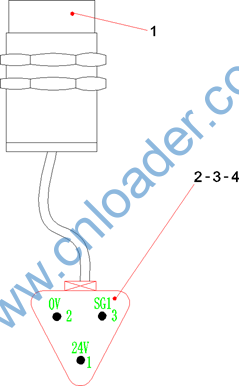

1

B241200000884

Switch, Proximity

1

2

B241200000591

Receptacle, 3-position

1

3

B241200000603

Lock, Secondary Pole, 3-line, (pin)

1

4

B249900000288

Pin

3






















Item No.

Part No.

Description

Qty.

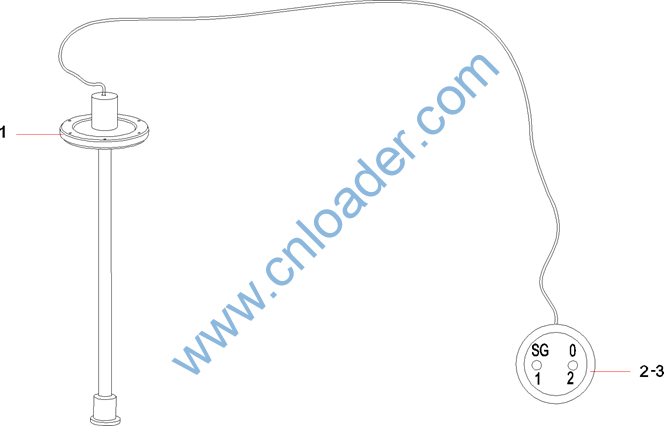

1

60040547

Sensor, liquid level

1

2

B241000000018

Receptacle, 2-core

1

3

B241000000002

Pin

2


























Item No.

Part No.

Description

Qty.

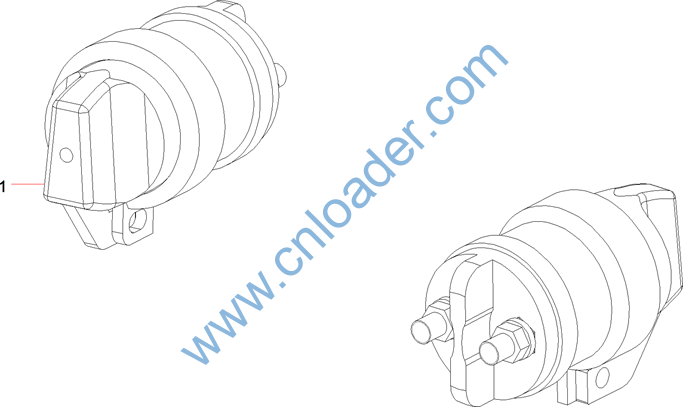

1

60125384

Master switch of power supply

1
























Item No.

Part No.

Description

Qty.

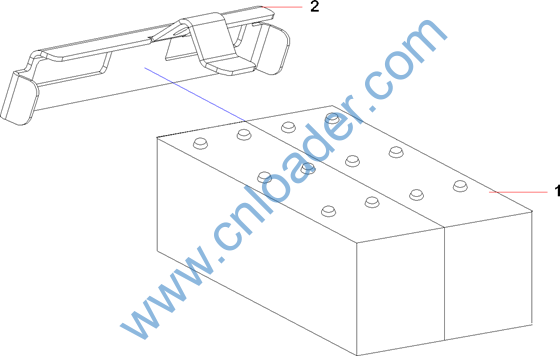

1

60071633

Storage Battery

2

2

12495271

Plate, pressure, battery

1


















Item No.

Part No.

Description

Qty.

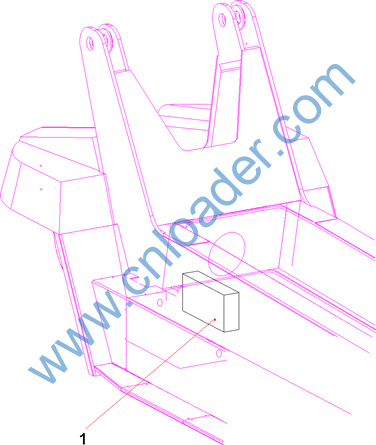

1

13120844

Layout, electric control cabinet, frame

1
