Body,container reach stacker, SRSC45H1 GHK














Item No.

Part No.

Description

Qty.

1

13499487

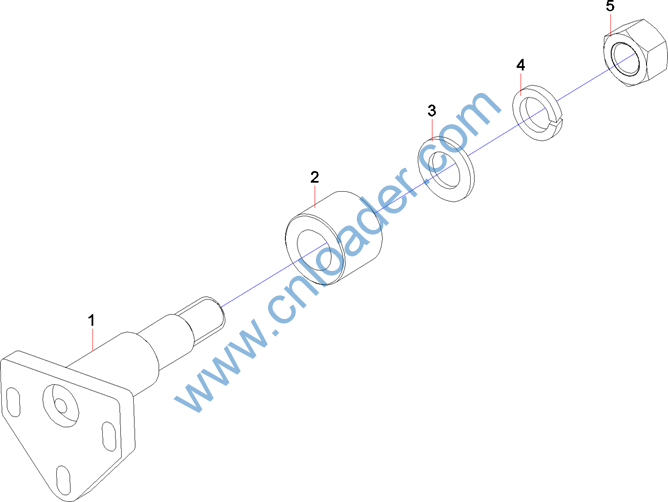

Components, guide wheel shaft

1

2

10975471

Wheel, guide

1

3

A210405000009

Washer

1

4

A210401000008

Washer

1

5

A210307000030

Nut

1


















Item No.

Part No.

Description

Qty.

1

A210204000008

Screw

2

2

A210401000001

Washer

2

3

10710101

Components, seat

1

4

11250060

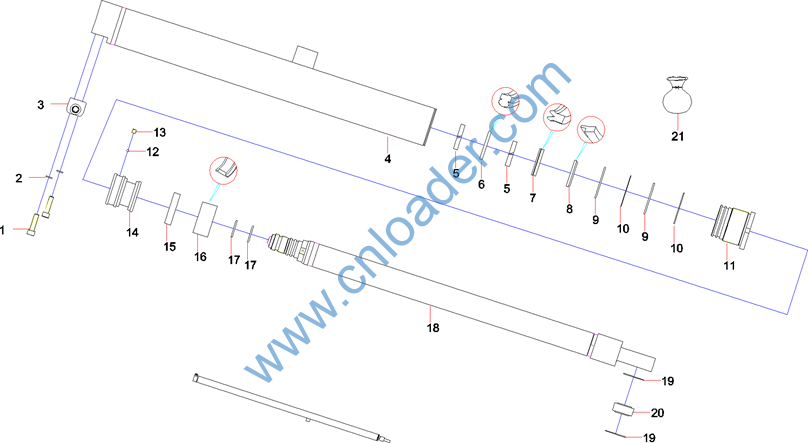

Assembly, cylinder barrel

1

5

B230101001494

Ring, Wear

2

6

B230101001497

Seal Ring,GS

1

7

B230101002121

Seal, MPS

1

8

B230101001682

Seal, Dust, PW

1

9

A210609000134

O-ring

2

10

10250780

Ring, Back-up

2

11

10096737

Sleeve, Guide

1

12

A210661000016

Ball, Steel

1

13

A210206000003

Screw

1

14

10096745

Piston

1

15

B230101001492

Ring, Wear

1

16

B230101001573

Seal Ring,MD

1

17

A210609000272

O-ring

2

18

10710088

Assembly, piston rod

1

19

A210416000039

Ring, Snap

2

20

A221500000035

Bearing, Joint

1

21

14155959

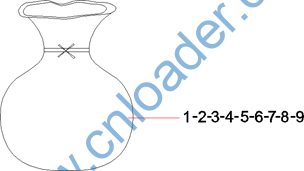

Seal package

1


































Item No.

Part No.

Description

Qty.

1

A210609000272

O-ring

2

2

B230101001573

Seal Ring,MD

1

3

13599606

Seal ring

1

4

B230101001492

Ring, Wear

1

5

B230101001494

Ring, Wear

2

6

B230101001682

Seal, Dust, PW

1

7

10250780

Ring, Back-up

2

8

A210609000134

O-ring

2

9

B230101002121

Seal, MPS

1
















Item No.

Part No.

Description

Qty.

1

13551492

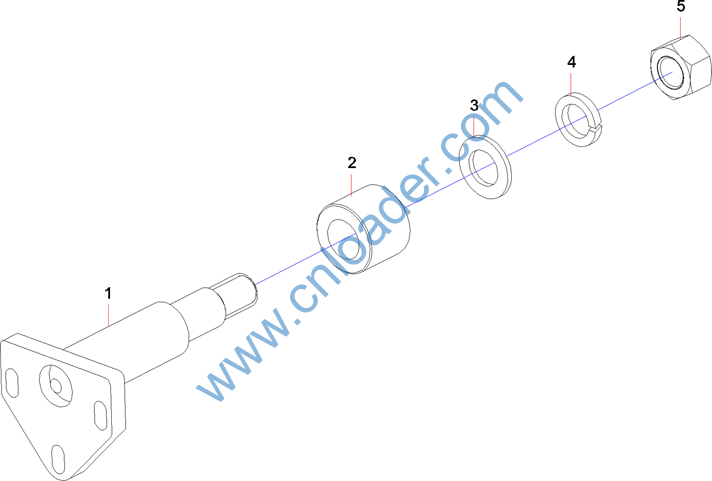

Components, guide wheel shaft

1

2

10975471

Wheel, guide

1

3

A210405000009

Washer

1

4

A210401000008

Washer

1

5

A210307000030

Nut

1





















Group 15

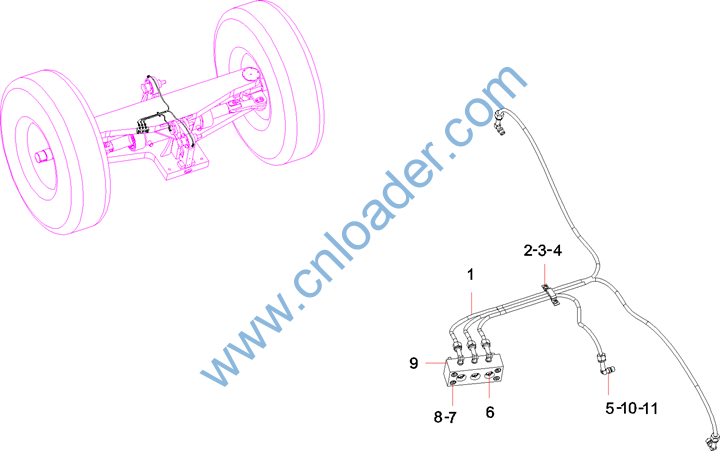

System, lubrication












S





Item No.

Part No.

Description

Qty.

1

10632560

Pipe, oil

3

2

10873493

Plate, pressure

1

3

A210210000006

Bolt, socket head

2

4

A210405000005

Washer

2

5

A210734400001

Connector, pipe

4

6

A210804000002

Fitting, Grease

2

7

A210204000153

Screw

4

8

A210401000017

Washer

4

9

10697673

Block, multi-channel, 2

1

10

B210399000003

Plug

2

11

B210780000609

Screw plug ISK AGM12x1,5-WD

2



















Group 16

System, fire extinguisher
