Body,container reach stacker, SRSC45H1 BJT

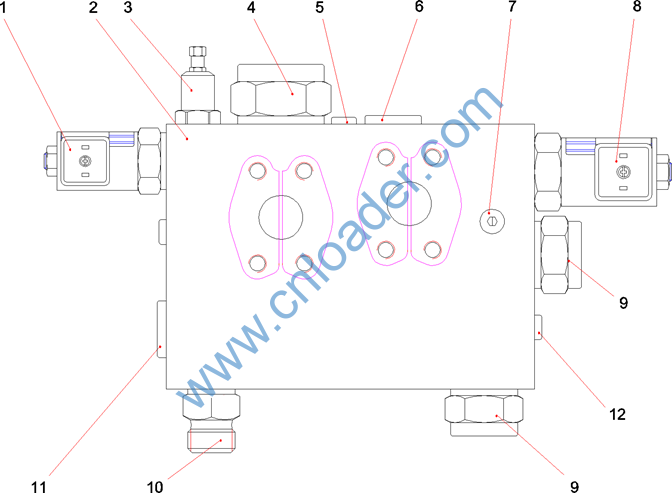

Item No.

Part No.

Description

Qty.

1

60338455

Valve, electromagnetic reversing

1

2

13848004

Block, valve, pitching, left

1

3

60155029

Valve, overflow

1

4

B220401000544

Valve, logic

1

5

B210780000201

Plug

3

6

B210780000799

Plug

1

7

B210399000003

Plug

8

8

60338459

Valve, electromagnetic

1

9

B220401000540

Check Valve

2

10

B210780000899

Fitting, Adapter

1

11

B210780000896

Screw plug

1

12

60126247

Plug

2

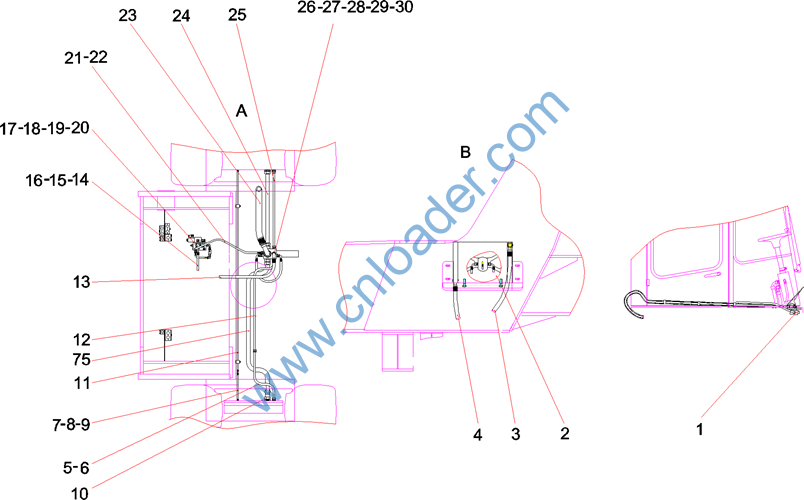

Item No.

Part No.

Description

Qty.

1

12874447

Diagram, assemblying, components, brake valve

1

2

10397015

Assembly, radiator device

2

3

B230103006192

Hose, rubber

1

4

61008165

Rubber hose

1

5

A810299000244

Pipe, steel

1

6

B210780000712

Fitting, Adapter

2

7

A810399000553

Pipe, steel

1

8

B210780000036

Fitting, Adapter

2

9

B210780000015

Fitting, Tee

3

10

B210780000054

Fitting, Adapter

2

11

A810312990132

Pipe, steel

1

12

A810299000245

Pipe, steel

1

13

B230103005251

Hose, rubber

2

14

B230103000467

Hose, rubber

1

15

B210780000016

Fitting, Tee

2

16

B210780001048

Fitting, Adapter

1

17

13805017

Group, brake control valve

1

18

A210111000089

Bolt

2

19

A210405000007

Washer

6

20

A210401000017

Washer

6

21

B230103000332

Hose, rubber

1

22

B210780000024

Fitting, Elbow

1


















Item No.

Part No.

Description

Qty.

23

B230103006977

Hose, rubber

1

24

B230103000683

Rubber hose

1

25

61008235

Rubber hose

1

26

10875728

Assembly, oil collecting block

1

27

A820101320053

Plate, mounting

1

28

A210204000131

Screw

2

29

A210401000016

Washer

2

30

A210405000006

Washer

2

75

60171227

Hose, rubber

1

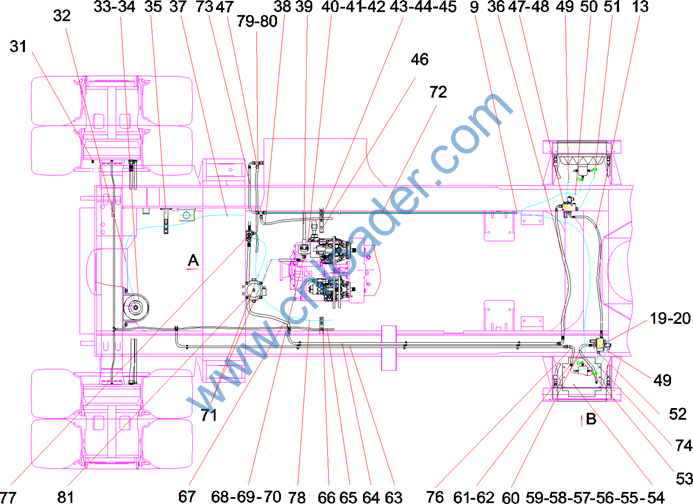

Item No.

Part No.

Description

Qty.

9

B210780000015

Fitting, Tee

3

13

B230103005251

Hose, rubber

2

19

A210405000007

Washer

6

20

A210401000017

Washer

6

31

B210770000084

Connector, pressure measuring

1

32

B230103004472

Rubber hose

1

33

13046845

Assembly, component, big accumulator

1

34

B210780000037

Fitting, Adapter

1

35

13825231

Support

1

36

23001210

Rubber hose

1

37

B230103004916

Hose, rubber

1

38

21030955

Hose, rubber

1

39

60043442

Hose, rubber

1

40

12072267

Flange, oil-suction

1

41

A210204000162

Screw

8

42

A210609000185

O-ring

1

43

A210111000227

Bolt

8

44

A210401000004

Washer

8

45

A210405000003

Washer

8

46

10263816

Plate, support, rubber hose, drag chain, right

2

47

A819700001629

Group, cooling switching valve

2

48

A210204000149

Screw

4
















Item No.

Part No.

Description

Qty.

49

B230103000376

Hose, rubber

2

50

60019597

Hose, rubber

1

51

A832613125000

Hose, rubber

1

52

B210780001310

Fitting, Elbow

7

53

B230103007338

Hose, rubber

1

54

B229900001996

Radiator

1

55

A210111000025

Bolt

6

56

A210405000011

Washer

12

57

B210780000184

Stud Straight Connector

1

58

A210401000001

Washer

6

59

A210336000002

Nut

6

60

B230103002155

Hose, rubber

1

61

12330054

Connector, pipe

1

62

A210609000194

O-ring

1

63

14129802

Steel tube asemmbly

1

64

14130530

Steel tube asemmbly

1

65

61008166

Rubber hose

1

66

10263822

Plate, support, rubber hose, drag chain, left

2

67

B230103000399

Hose, rubber

1

68

A820203002556

Flange

1

69

B230101000482

O-ring

1

70

B210780000316

Fitting, Adapter

1
















Item No.

Part No.

Description

Qty.

71

B230103000393

Hose, rubber

2

72

14214354

Steel tube asemmbly

1

73

B230103005168

Hose, rubber

1

74

B230103003976

Hose, rubber

1

76

B230103000395

Hose, rubber

1

77

12216954

Group, prefill valve

1

78

B230103003395

Hose, rubber

1

79

B230103000475

Hose, rubber

1

80

B210780000683

Fitting, Adapter

1

81

13417232

Assembly, pressure filter

1

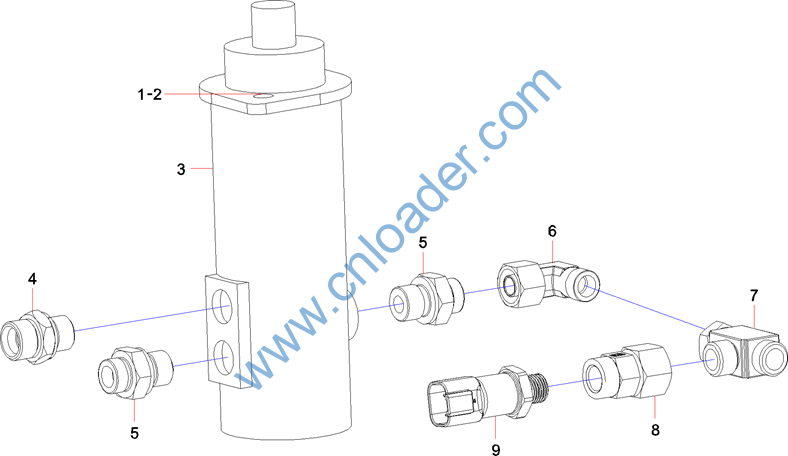

Item No.

Part No.

Description

Qty.

1

A210204000147

Screw

2

2

A210401000017

Washer

2

3

B220401001141

Valve, brake

1

4

B210780000037

Fitting, Adapter

1

5

B210780001026

Fitting, Adapter

2

6

B210780000636

Fitting, Elbow

1

7

B210780000015

Fitting, Tee

1

8

60222700

Connector

1

9

13127423

Sensor, pressure

1
