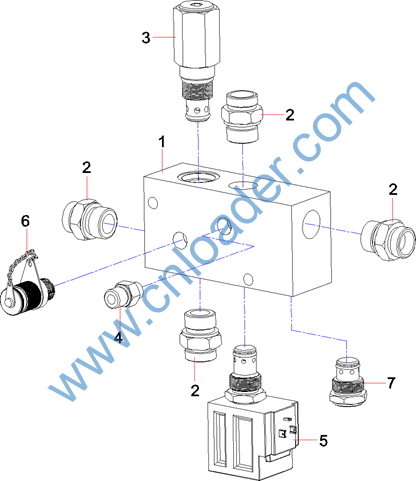

Item No. |
Part No. |
Description |
Qty. |
|
1 |
A829900002452 |
Block, cooling switching valve |
1 |
|
2 |
B210780000131 |
Fitting, Adapter |
4 |
|
3 |
B220400000083 |
Valve, overflow |
1 |
|
4 |
B210780000201 |
Plug |
1 |
|
5 |
60338456 |
Valve, electromagnetic |
1 |
|
6 |
B210770000084 |
Connector, pressure measuring |
1 |
|
7 |
B220401000539 |
Valve, Check |
1 |
|

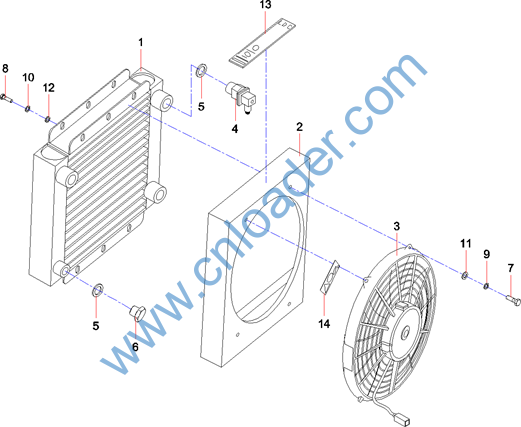

Item No. |
Part No. |
Description |
Qty. |
|
1 |
60136567 |
Panel, specific, cooler |
1 |
|
2 |
60136706 |
Housing, DC Motor |
1 |
|
3 |
60232465 |
EC fan |
1 |
|
4 |
60136742 |
Switch, temperature |
1 |
|
5 |
60136680 |
Seal |
2 |
|
6 |
B210780001384 |
Screw plug |
1 |
|
7 |
A210111000079 |
Bolt |
4 |
|
8 |
A210111000088 |
Bolt |
4 |
|
9 |
A210401000016 |
Washer |
4 |
|
10 |
A210401000017 |
Washer |
4 |
|
11 |
A210405000006 |
Washer |
4 |
|
12 |
A210405000007 |
Washer |
4 |
|
13 |
60136751 |
Label |
1 |
|
14 |
60136738 |
Caution mark for operation |
1 |
|

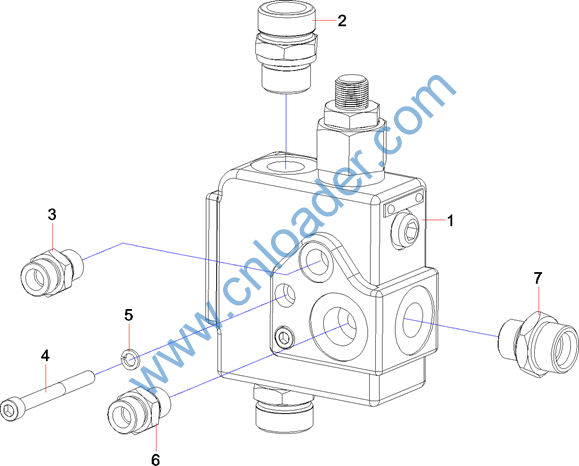

Item No. |
Part No. |
Description |
Qty. |
|
1 |
B220401000020 |
Valve, prefill |
1 |
|
2 |
B210780000316 |
Fitting, Adapter |
2 |
|
3 |
B210780001286 |
Fitting, Adapter |
1 |
|
4 |
A210204000139 |
Screw M6×60GB70.1 |
2 |
|
5 |
A210401000016 |
Washer |
2 |
|
6 |
B210780000698 |
Fitting, Adapter |
1 |
|
7 |
B210780000228 |
Fitting, Adapter |
1 |
|

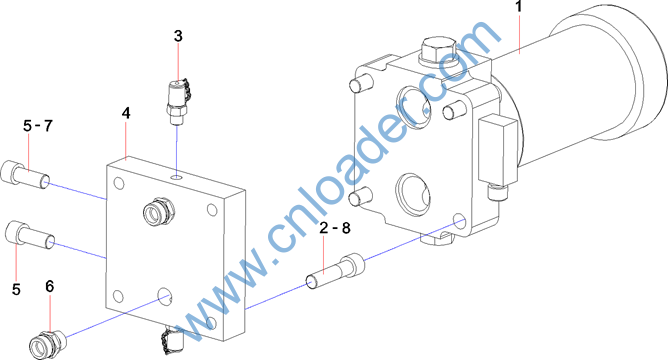

Item No. |
Part No. |
Description |
Qty. |
|
1 |
60072294 |
Filter, pressure oil |
1 |
|
2 |
A210204000043 |
Screw |
4 |
|
3 |
B210770000084 |
Connector, pressure measuring |
2 |
|
4 |
13417229 |
Block, valve, filter, pressure oil |
1 |
|
5 |
A210111000053 |
Bolt |
2 |
|
6 |
B210780000131 |
Fitting, Adapter |
2 |
|
7 |
A210405000003 |
Washer |
2 |
|
8 |
A210401000004 |
Washer |
2 |
|

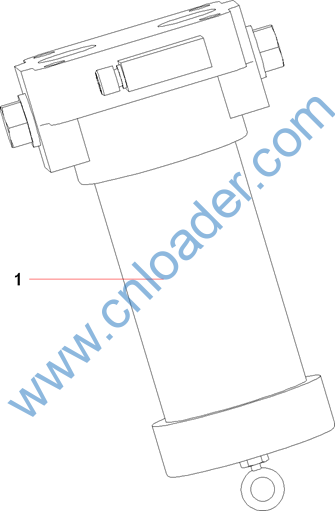

Item No. |
Part No. |
Description |
Qty. |
|
1 |
60167841 |
Element, filter |
1 |
|

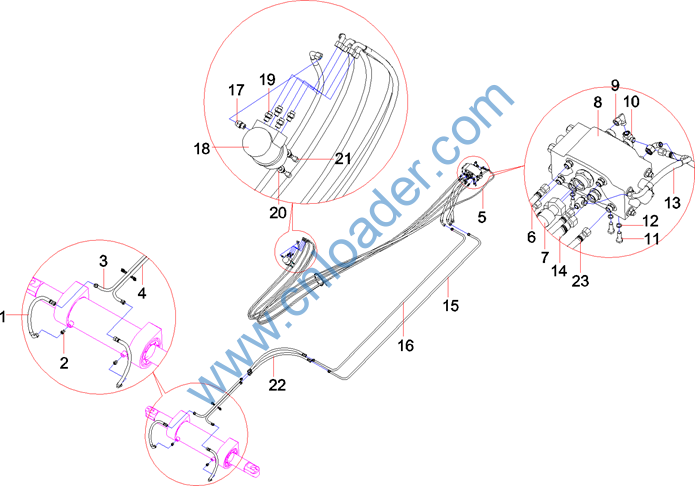

Item No. |
Part No. |
Description |
Qty. |
|
1 |
B230103000960 |
Hose, rubber |
2 |
|
2 |
B210780000049 |
Fitting, Adapter |
2 |
|
3 |
A810299000235 |
Pipe, steel |
1 |
|
4 |
A810299000236 |
Pipe, steel |
1 |
|
5 |
B230103008139 |
Hose, rubber |
1 |
|
6 |
B230103005878 |
Hose, rubber |
4 |
|
7 |
B230103001397 |
Hose, rubber |
1 |
|
8 |
A810201062404 |
Assembly, flow amplifier |
1 |
|
9 |
B210780000636 |
Fitting, Elbow |
2 |
|
10 |
B210780000015 |
Fitting, Tee |
1 |
|
11 |
A210401000001 |
Washer |
7 |
|
12 |
A210111000197 |
Bolt |
3 |
|
13 |
B230103004781 |
Hose, rubber |
1 |
|
14 |
B230103002447 |
Hose, rubber |
1 |
|
15 |
A810201022541 |
Pipe, steel |
1 |
|
16 |
A810312019052 |
Pipe, steel |
1 |
|
17 |
B210780000733 |
Stud Straight Connector |
1 |
|
18 |
60167505 |
Gear, steering, dynamic |
1 |
|
19 |
B210780000179 |
Fitting, Adapter |
4 |
|
20 |
A210405000011 |
Washer |
7 |
|
21 |
A210204000181 |
Screw |
4 |
|
22 |
B230103002476 |
Hose, rubber |
1 |
