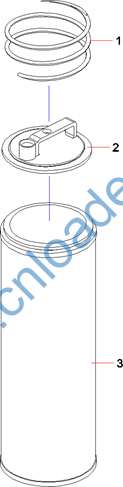

Item No. |
Part No. |
Description |
Qty. |
|
1 |
60222775 |
Spring |
1 |
|
2 |
60222776 |
Valve, bypass |
1 |
|
3 |
60222777 |
Core, filter |
1 |
|

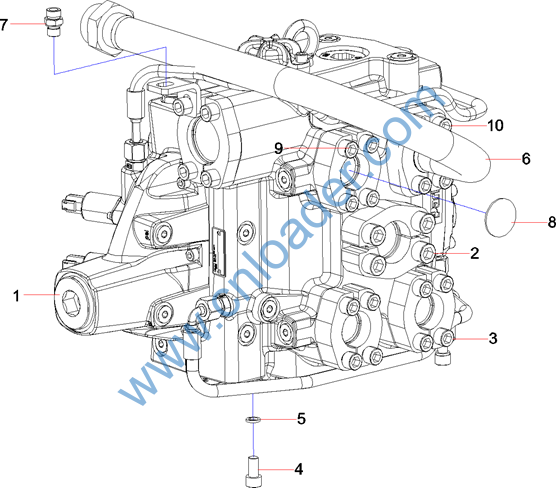

Item No. |
Part No. |
Description |
Qty. |
|
1 |
60332282 |
Valve, multi-way |
1 |
|
2 |
A210204000353 |
Screw |
8 |
|
3 |
A210204000462 |
Bolt |
24 |
|
4 |
A210204000215 |
Bolt |
4 |
|
5 |
A210401000001 |
Washer |
4 |
|
6 |
A810312019045 |
Pipe, steel |
1 |
|
7 |
B210780000036 |
Fitting, Adapter |
3 |
|
8 |
A820199003283 |
Flange |
1 |
|
9 |
A210405000011 |
Washer |
4 |
|
10 |
A210204000206 |
Screw |
8 |
|

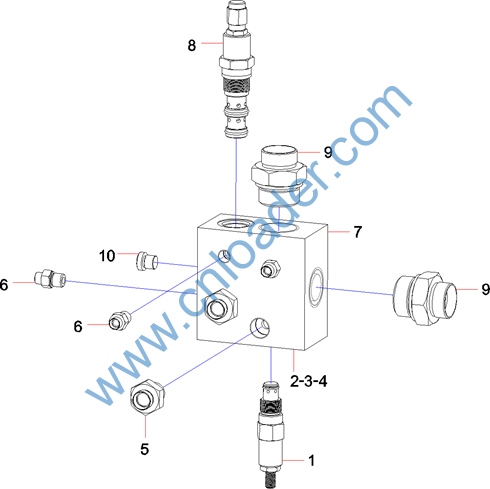

Item No. |
Part No. |
Description |
Qty. |
|
1 |
60155029 |
Valve, overflow |
1 |
|
2 |
A210401000002 |
Washer |
2 |
|
3 |
A210405000001 |
Washer |
2 |
|
4 |
A210204000020 |
Screw |
2 |
|
5 |
B210780000712 |
Fitting, Adapter |
2 |
|
6 |
B210780000036 |
Fitting, Adapter |
3 |
|
7 |
A820199003197 |
Block, multi-channel, spreader |
1 |
|
8 |
B220401000491 |
Valve, pressure reducing |
1 |
|
9 |
B210780000053 |
Fitting, Adapter |
2 |
|
10 |
B210780000201 |
Plug |
1 |
|

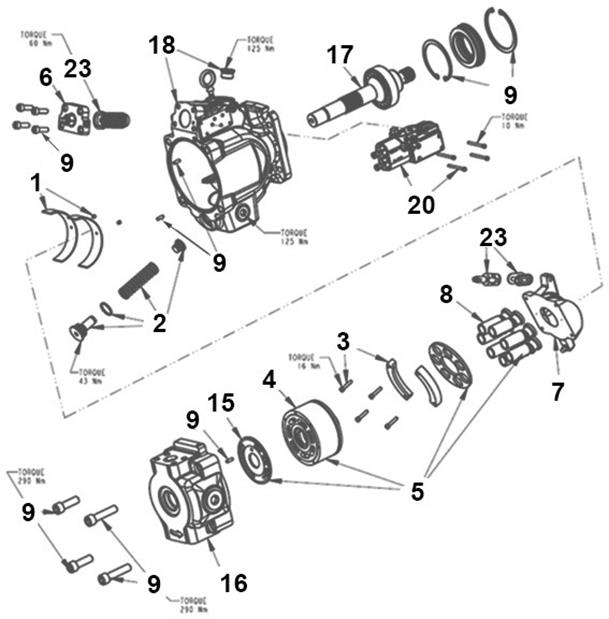

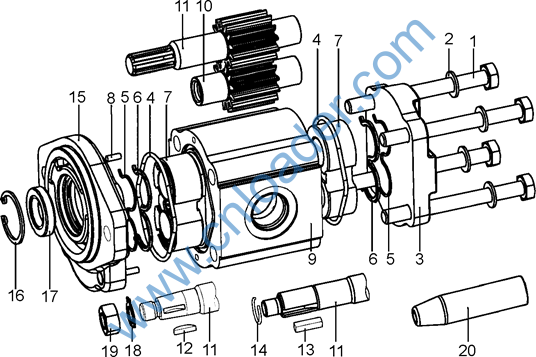

Item No. |
Part No. |
Description |
Qty. |
|
1 |
60136677 |
Bolt |
4 |
|
2 |
60136500 |
Pad, elastic |
4 |
|
3 |
60136630 |
Cover, end |
1 |
|
4 |
60136729 |
O-ring, shell body |
2 |
|
5 |
60136497 |
Seal, back |
2 |
|
6 |
60136523 |
Elements, seal |
2 |
|
7 |
60136570 |
Bearing, thrusting |
2 |
|
8 |
60136692 |
Bolt, pin |
2 |
|
9 |
60136651 |
Body, shell |
1 |
|
10 |
60136574 |
Gear, driven |
1 |
|
11 |
60136685 |
Axle, driving |
1 |
|
12 |
60136578 |
Key, woodruff |
1 |
|
13 |
60136683 |
Key, square |
1 |
|
14 |
60136605 |
Ring, retaining, elastic |
1 |
|
15 |
60136637 |
Flange, fixed |
1 |
|
16 |
60136737 |
Seal, shaft |
1 |
|
17 |
60136606 |
Ring, retaining, elastic |
1 |
|
18 |
60136616 |
Washer |
1 |
|
19 |
60136668 |
Nut |
1 |
|
20 |
60136749 |
Tool, assemblying, shaft sleeve |
1 |
|

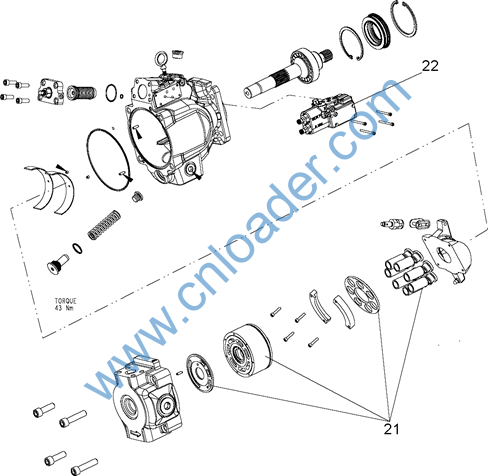

Item No. |
Part No. |
Description |
Qty. |
|
21 |
60136526 |
Group, rotating, clockwise |
1 |
|
22 |
60136499 |
Kits, compensater |
1 |
|

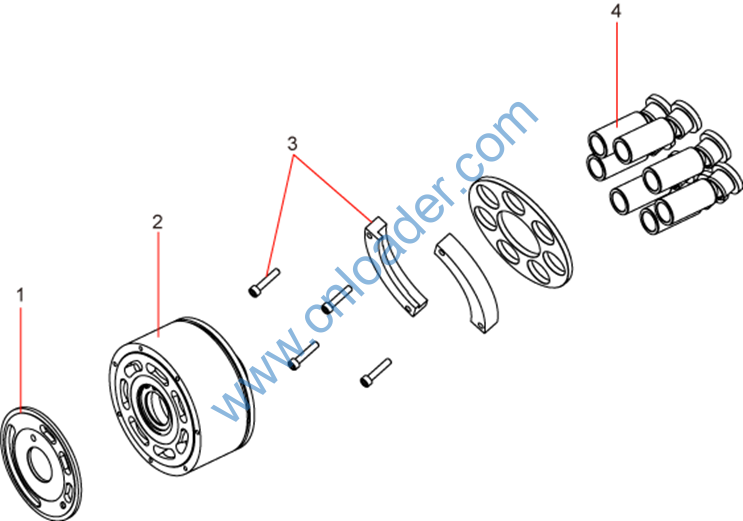

Item No. |
Part No. |
Description |
Qty. |
|
1 |
60136509 |
Kit, keep the fixed clearance |
1 |
|
2 |
60136640 |
Kit, piston cylinder |
1 |
|
3 |
60136707 |
Kits, plunger |
1 |
|
4 |
60136682 |
Kits, port plate |
1 |
|
Item No. |
Part No. |
Description |
Qty. |
|
1 |
60136573 |
Bearing, support |
1 |
|
2 |
60136687 |
Kits, servo spring |
1 |
|
3 |
60136509 |
Kit, keep the fixed clearance |
1 |
|
4 |
60136640 |
Kit, piston cylinder |
1 |
|
5 |
60136526 |
Group, rotating, clockwise |
1 |
|
6 |
60136540 |
Kits, max. volume |
1 |
|
7 |
60136693 |
Kits, swash plate |
1 |
|
8 |
60136707 |
Kits, plunger |
1 |
|
9 |
60136538 |
Kits, specific |
1 |
|
15 |
60136682 |
Kits, port plate |
1 |
|
16 |
60136631 |
Kits, end cover |
1 |
|
17 |
60136587 |
Kits, transmission shaft |
1 |
|
18 |
60136652 |
Kit, shell body |
1 |
|
19 |
60136746 |
Module, torque control |
1 |
|
20 |
60136499 |
Kits, compensater |
1 |
|
23 |
60136688 |
Kits, servo piston |
1 |
