Body,container reach stacker, SRSC45H1 DBR

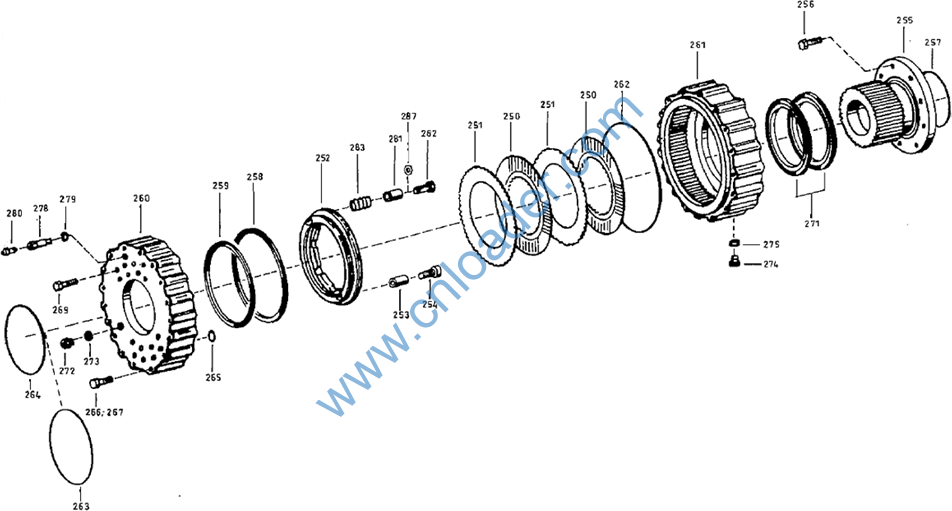

Item No.

Part No.

Description

Qty.

274

60099154

Screw

2

275

60099260

Ring, seal

2

278

60099198

Connector

2

279

60099260

Ring, seal

2

280

60099160

Valve, exhaust

2

281

60099228

Pipe

16

282

60099193

Screw, flange

16

283

60099185

Spring, compressed

16

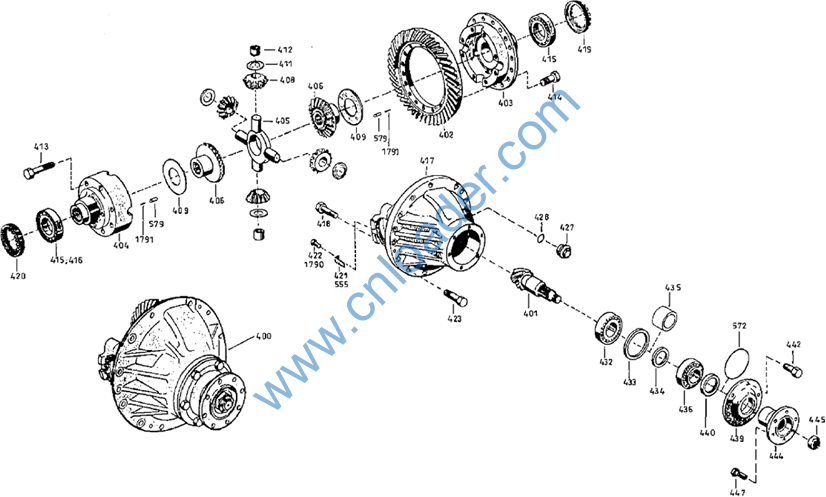

Item No.

Part No.

Description

Qty.

400

60120998

Components, differential and bracket

1

401

60120995

Pinion, transmission

1

402

60121002

Ring, gear

1

403

60120986

Chamber, differential

1

404

60120985

Chamber, differential

1

405

60120999

Joint, differential

1

406

60120994

Gear, half-shaft, differential

2

408

60120993

Gear, differential

4

409

60121007

Disc, flange

2

412

60121012

Bushing, bearing

4

413

60121009

Bolt, hexagon

12

414

60121010

Bolt, hexagon

16

415

60121070

Bearing, roller, tapered

1

416

60121702

Bearing, roller, tapered

1

417

60121000

Bracket, differential

1

418

60099205

Bolt, screw

1

419

60099190

Nut

1

420

60099190

Nut

1

421

60099177

Lock Plate

2

422

60099210

Bolt, hexagon

12

423

60099208

Bolt, screw

16

427

60099158

Plug, Pipe

1


















Item No.

Part No.

Description

Qty.

428

60099264

Ring, seal

1

432

60120992

Bearing, roller, tapered

1

433

60099187

Disc

1

434

60099187

Disc

1

435

60121001

Bushing

1

436

60120991

Bearing, roller, tapered

1

439

60120987

Cover

1

440

60120989

Ring, sleeve

1

442

60099220

Bolt, hexagon

6

444

60121004

Disc, flange, transmission

1

445

60006495

Nut, tightening

1

572

60099246

O-ring

1

579

60099224

Pin, lock

6

1791

60099223

Pin, lock

6


















Item No.

Part No.

Description

Qty.

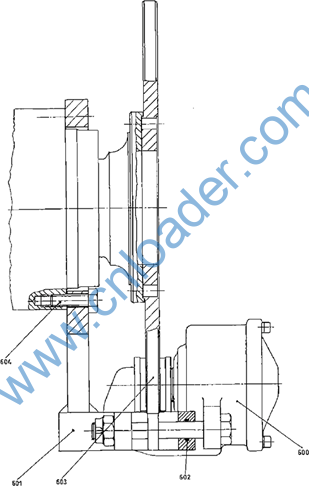

600

60006493

Brake

1

601

60006497

Support, brake

1

602

60099247

O-ring

2

603

60006496

Disc, brake

1

604

60099207

Bolt, hexagon

12




















Item No.

Part No.

Description

Qty.

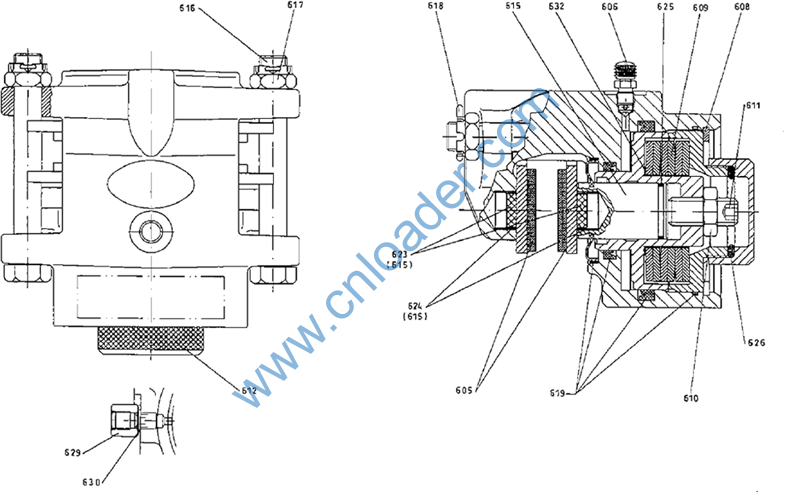

605

60016914

Blade, brake

1

606

60099161

Valve, Exhaust

1

608

60099201

Ring, retaining, elastic

1

609

60099151

Spring, butterfly

5

610

60099212

Bolt, nut

1

611

60099188

Screw, adjusting

1

612

60099213

Cap, nut

1

615

60099238

Bolt, pressure

1

616

60099204

Bolt, hexagon

2

617

60099192

Nut

2

618

60099203

Pin, Cotter

2

619

60099265

Seal, oil

1

623

60099266

Magnet

2

624

60099194

Ring, separating

2

625

60099244

O-ring

1

626

60099245

O-ring

1

629

60121011

Seat, threaded

1

630

60099259

Seal

1

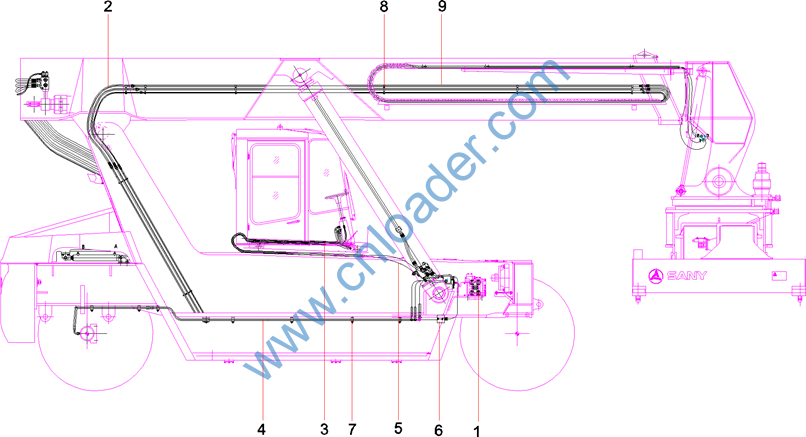

Group 12

System, hydraulic














Item No.

Part No.

Description

Qty.

1

12602652

Layout, pipeline, frame

1

2

11155390

Layout, boom

1

3

10397319

System, brake, radiator

1

4

10450139

System, steering

1

5

10432886

Diagram, layout, moving system

1

6

10427001

System, control

1

7

12364911

Layout, assemblying, pipe clamp, frame

1

8

12591425

Layout, clamp body, boom

1

9

12611373

Diagram, layout, hydraulic system

1
