Body,container reach stacker, SRSC45H1 VDH

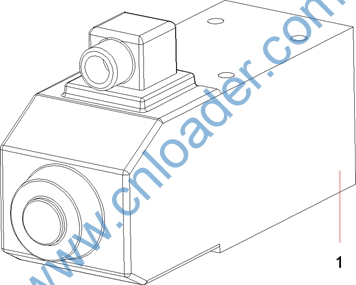

Item No.

Part No.

Description

Qty.

1

60309807

Coil

1

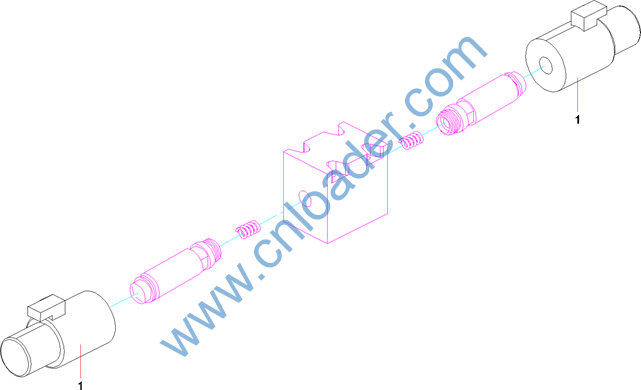

Item No.

Part No.

Description

Qty.

1

60118389

Coil, Solenoid

2

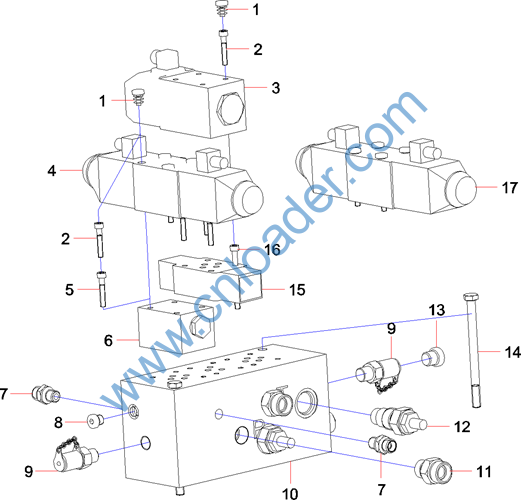

Item No.

Part No.

Description

Qty.

1

A820601020466

Cover, waterproof

12

2

A210204000168

Screw

4

3

60155035

Valve, reversal, electromagnetic

1

4

60059724

Valve, reversal, electromagnetic

1

5

A210204000127

Screw M5×70(GB70.1)

4

6

A220401000010

Overlapped one-way valve

1

7

B210780000174

Stud Straight Connector

2

8

B210399000003

Plug

6

9

B210770000084

Connector, pressure measuring

2

10

12618934

Block, telescopic twistlock valve

1

11

B210780000040

Fitting, Adapter

4

12

B220401000105

Valve, overflow

2

13

B210780000201

Plug

1

14

A210110000367

Bolt

2

15

A220401000153

Valve, throttle, one-way, double

1

16

A210204000125

Screw M5×60GB70.1

4

17

60155034

Valve, reversal, electromagnetic

1

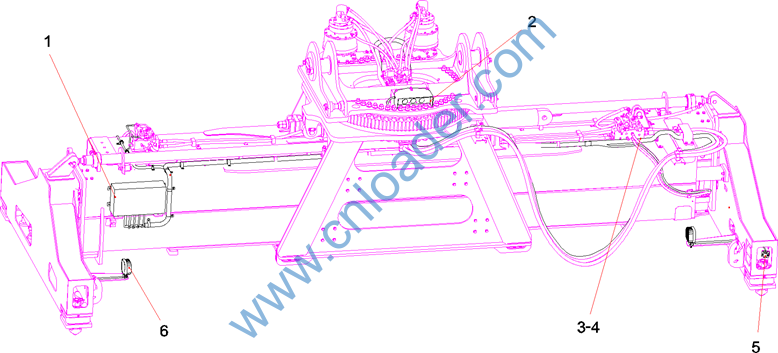

Item No.

Part No.

Description

Qty.

1

A810201052736

Assembly, control box, spreader

1

2

12934357

Lamp, indicator, LED

1

3

13673768

Harness, spreader

1

4

13887509

GP, spreader fixation

1

5

13499521

Switch, proximity

12

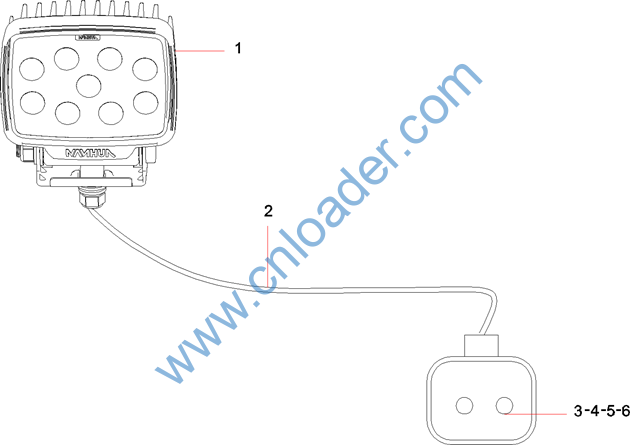

6

13944189

Lamp, working, LED

2

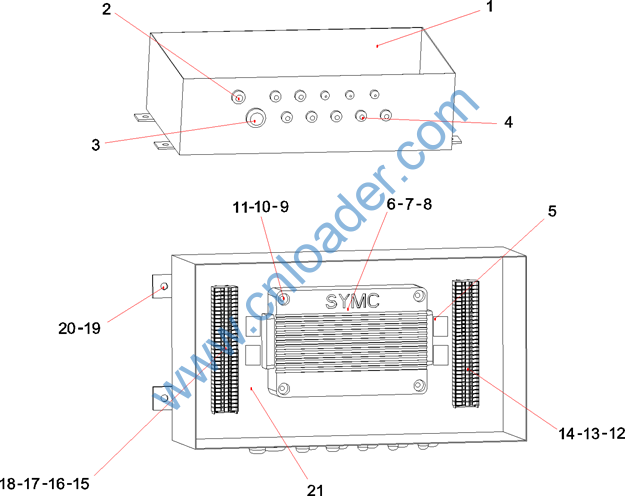

Item No.

Part No.

Description

Qty.

1

60002280

Box, control

1

2

60004572

Head, fixing, cable, waterproof

2

3

A249900000530

Head, fixing, cable

1

4

60004571

Head, fixing, cable, waterproof

9

5

13558814

Harness, terminal, SYMC

1

6

A810201206127

Assembly, movement controller, SANY

1

7

A210204000137

Screw

4

8

A210401000016

Washer

6

9

A241600000002

Rail

1

10

A210210000015

Screw

4

11

A210401000013

Washer

4

12

A210405000004

Washer

4

13

A242300000233

Diode, lighting, plug-in parts

1

14

A242300000026

Resistance, plug-in parts

1

15

A242300000190

Resistance, plug-in

1

16

B242000000017

Terminal

64

17

A242000000306

Plate, end and spacer

2

18

A242000000390

Terminal

136

19

A210307000016

Nut

2

20

A210405000006

Washer

2

21

13889382

Diagram, wiring, electic control box

1

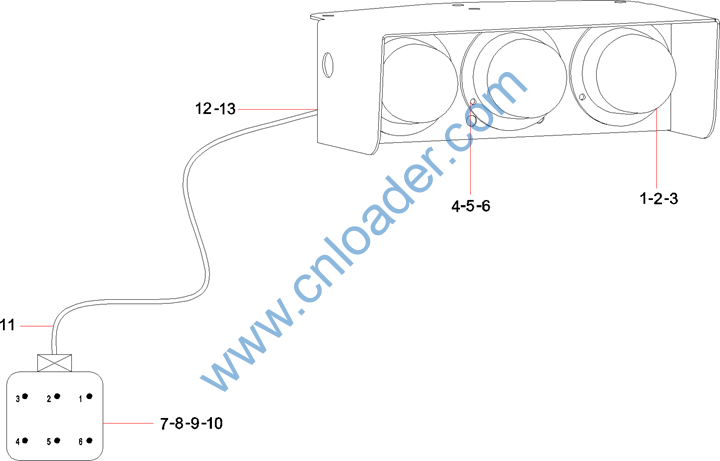

Item No.

Part No.

Description

Qty.

1

60024057

Lamp, indicator, LED, green

1

2

60024056

Lamp, indicator, LED, yellow

1

3

60024055

Lamp, indicator, LED, red

1

4

A210405000004

Washer

9

5

A210401000013

Washer

9

6

A210307000014

Nut

9

7

B241200000606

Receptacle, 6-position

1

8

B249900000288

Pin

6

9

A249900001140

Lock, 6-position Receptacle

1

10

60120499

Tail, socket, 6-wire

1

11

A239900000561

Bellows, Nylon

1

12

60004572

Head, fixing, cable, waterproof

1

13

60183802

Nut, nylon

1

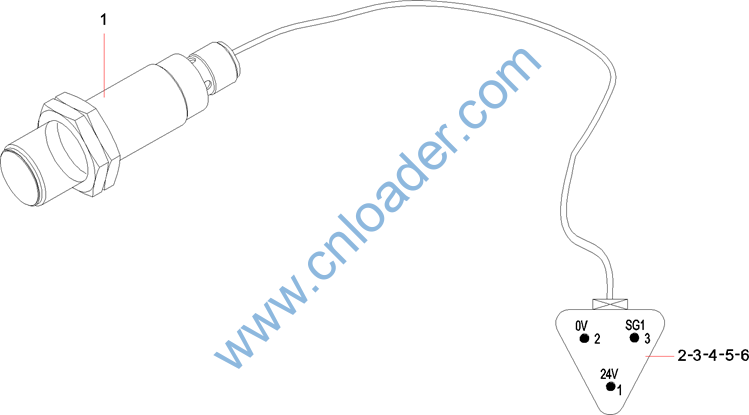

Item No.

Part No.

Description

Qty.

1

60150757

Switch, proximity

1

2

B241200000602

Plug, 3-position

1

3

B241200000585

Lock, 3-position Plug

1

4

B229900001093

Socket

3

5

60145084

Lock head, plug, 3-wire

1

6

A249900000970

Joint, cable, nylon

1
