Body,container reach stacker, SRSC45H1 HGR
































Item No.

Part No.

Description

Qty.

1

B230101001330

B7 seal ring 120×105×11.4

1

2

B230101000136

OK seal ring 120×99×8

1

3

B230101000732

OD seal ring 75×90.1×6.3

1

4

B230101000099

UP guide ring

3

5

B230101002125

MPS seal ring

1

6

60013848

Ring, dustproof

1

7

A210609000292

O-ring

1

8

A210609000157

O-ring

2

9

A210609000067

O-ring

2

10

B230101002190

Ring, guide, UP

2

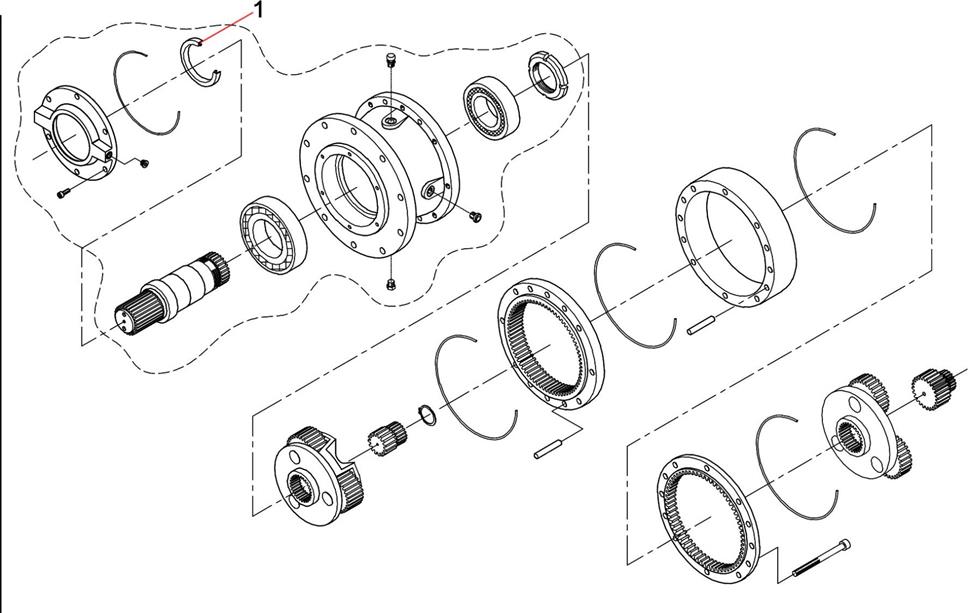

Item No.

Part No.

Description

Qty.

1

60279623

Seal, oil, BASL

1

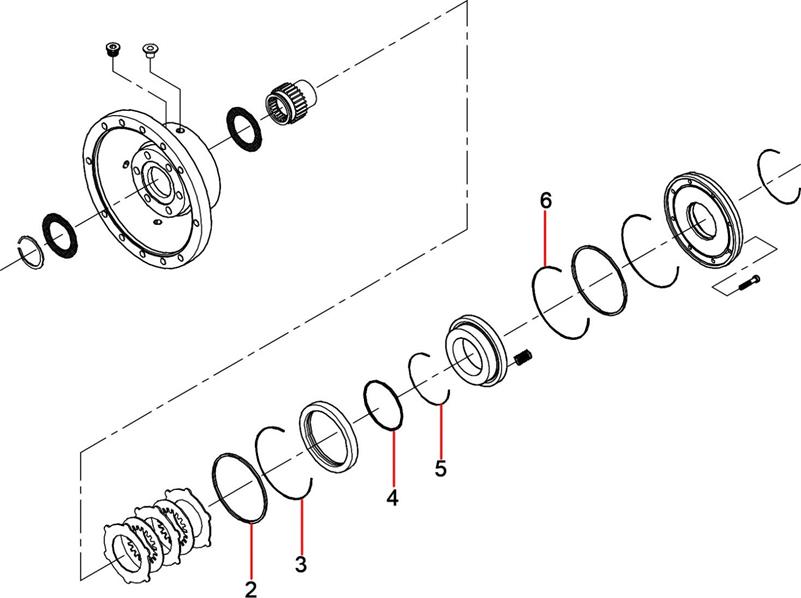

Item No.

Part No.

Description

Qty.

2

60322186

Ring, retaining

1

3

60123244

O-ring 107.62×2.62AS568-156 N70

1

4

60322187

Ring, retaining

1

5

A210609000084

O-ring 88.49×3.53AS568-238

1

6

60123244

O-ring 107.62×2.62AS568-156 N70

1

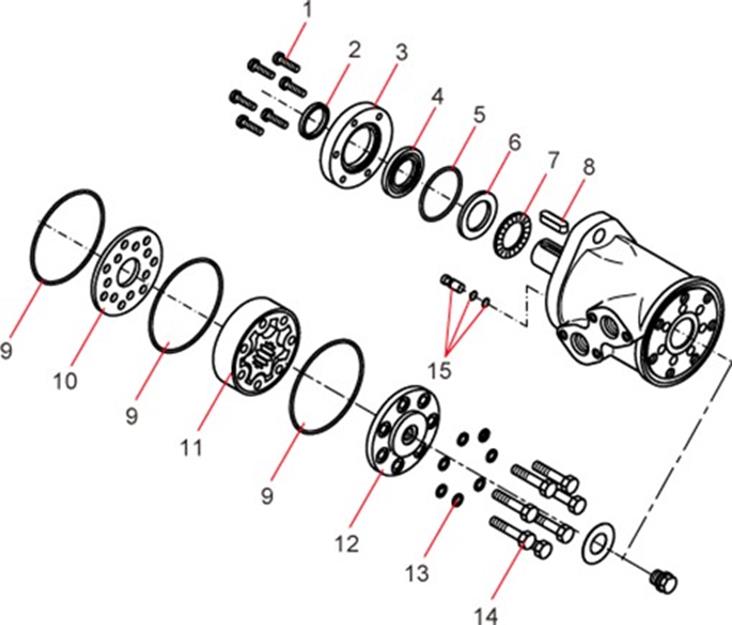

Item No.

Part No.

Description

Qty.

1

60225676

Screw 681×1989

6

2

60225677

Ring, seal, dustproof

1

3

60225678

Flange

1

4

60225679

Seal, oil

1

5

60225680

O-ring 633B1191

1

6

60225681

Ring, bearing seat

1

7

60225682

Bearing, needle, axial

1

8

60225683

Key, parallel

1

9

60140758

O-ring 633B1173

3

10

60225684

Plate, distributor

1

11

60225685

Set, gear wheel

1

12

60225686

Cover, end

1

13

60225687

Washer

7

14

60225688

Bolt 681×0181

7

15

60225689

Valve, check

2






















Item No.

Part No.

Description

Qty.

1

12606359

Components, beam, main

1

2

13024639

Dee

2

3

A210111000038

Bolt

20

4

A210401000002

Washer

8

5

A210405000001

Washer

20

6

13158407

Plate, slide block

2

7

11486218

Block, sliding, main beam

4

8

10030816

Components, buffer pad

2

9

A210111000197

Bolt

4

10

A210401000001

Washer

36

11

A210405000011

Washer

36

12

A210111000240

Bolt M8×10GB5783

4

13

A210401000017

Washer

6

14

A210405000007

Washer

6

15

13158396

Plate, slide block

8

16

12058087

Block, sliding

8

17

13914098

Plate, backup, slide block, upper

2

18

14025069

Plate, backup

8

19

10833167

Support, electric control cabinet

2

20

A210204000162

Screw

2

21

60262866

Chain, drag, telescopic

2

22

A820101331392

Support, hydraulic pipe

1






















Item No.

Part No.

Description

Qty.

23

A210111000125

Bolt

4

24

10207101

Cylinder, telescopic

2

25

13563089

Gasket

12

26

11478611

Plate, lock

1

27

13563088

Plate, pressure

2

28

12588765

Plate, space, upper

2

29

12588756

Pad, rubber

2

30

12588758

Plate, backup

2

31

A210110000033

Bolt M16×100GB5782

4

32

A210405000003

Washer

8

33

A210319000012

Nut

4

34

A820301015793

Shaft, pin, cross shifting

1

35

11484122

Ring, retaining

2

36

14025065

Plate, backup

16

37

13108339

Guard, board

1

38

A210204000132

Screw

4

39

A210401000016

Washer

14

40

A210405000006

Washer

20

41

A210319000003

Nut

10

42

A210356000006

Nut M36×3GB9457

2

43

13563084

Pad, buffer

4

44

A210204000141

Screw

2






















Item No.

Part No.

Description

Qty.

45

A210111000025

Bolt

28

46

12196286

Stud, bamper

2

47

12187870

Stud, bamper

4

48

A210204000143

Screw M6×80(GB70.1)

4

49

A210204000131

Screw

4
