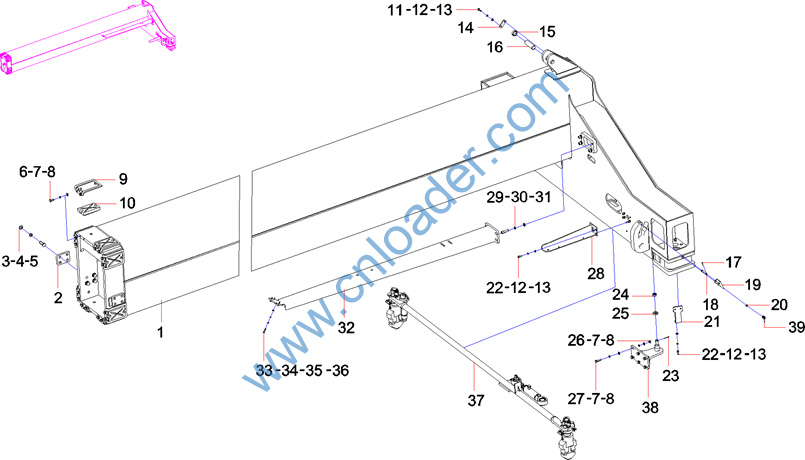

Body,container reach stacker, SRSC45H1 SQB
















Item No.

Part No.

Description

Qty.

1

12604834

Components, beam, telescopic, right

1

2

13191928

Plate, retaining

2

3

A210111000053

Bolt

8

4

A210401000004

Washer

8

5

A210405000003

Washer

8

6

A210111000197

Bolt

16

7

A210401000001

Washer

28

8

A210405000011

Washer

28

9

A820101328209

Plate, sliding block, 1

8

10

12058087

Block, sliding

8

11

A210111000088

Bolt

2

12

A210401000017

Washer

10

13

A210405000007

Washer

10

14

11478611

Plate, lock

1

15

11482652

Ring, retaining

2

16

11172032

Pin, cylinder, twistlock

1

17

A210491000014

Pin, cotter

2

18

10759532

Shaft, pin

2

19

10759366

Baffle

2

20

A210804000001

Fitting, Grease

2

21

12608220

Support, sensor

2

22

A210204000147

Screw

8


















Item No.

Part No.

Description

Qty.

23

A210501000025

Pin, Cotter

1

24

A210319000012

Nut

1

25

12612646

Ring, retainer

1

26

A210307000017

Nut

6

27

A210111000025

Bolt

6

28

12783472

Components, support, right

1

29

A210401000002

Washer

4

30

A210405000001

Washer

4

31

A210204000021

Screw

4

32

11479449

Groove, wire-towing

1

33

A210401000016

Washer

4

34

A210405000006

Washer

4

35

A210319000003

Nut

4

36

A210204000132

Screw

4

37

13559316

Mechanism, twistlock

1

38

13559331

Components, seat, twistlock cylinder

1

39

10762009

Spring, torsion

2

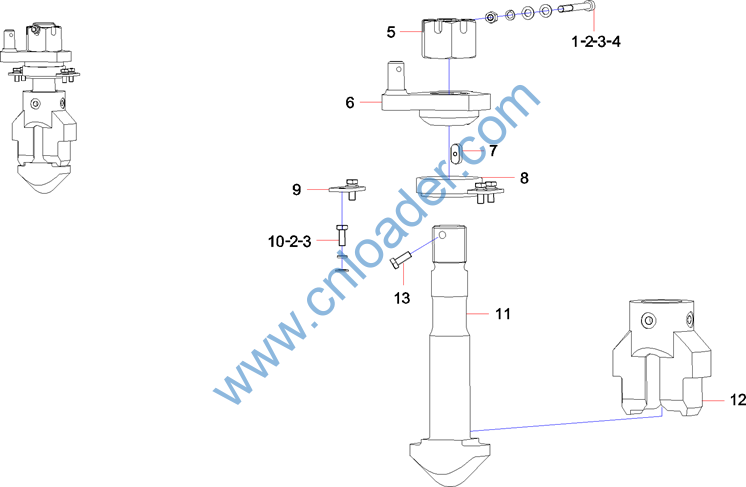

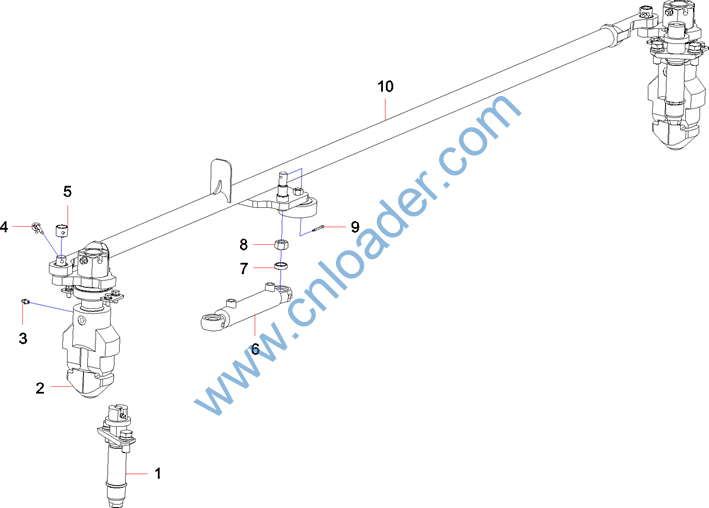

Item No.

Part No.

Description

Qty.

1

13394788

Device, mandrel

2

2

13559292

Device, twistlock

2

3

A210804000001

Fitting, Grease

2

4

13480956

Pin, β

2

5

13658848

Ring, retaining

2

6

12632237

Cylinder, turning lock

1

7

12612646

Ring, retainer

1

8

A210319000012

Nut

1

9

A210501000025

Pin, Cotter

1

10

13559315

Assembly, handspike

1

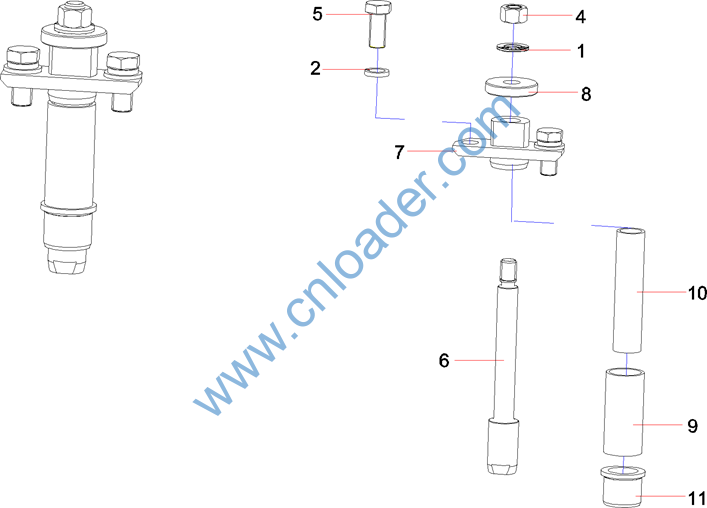

Item No.

Part No.

Description

Qty.

1

60013684

Washer

1

2

A210401000004

Washer

2

4

13880937

Nut

1

5

A210111000100

Bolt

2

6

13858703

Mandrel

1

7

13660100

Seat, mandrel

1

8

13858711

Lock, space

1

9

13141300

Bushing, steel

1

10

10262659

Spring

1

11

11775629

Liner, lower

1

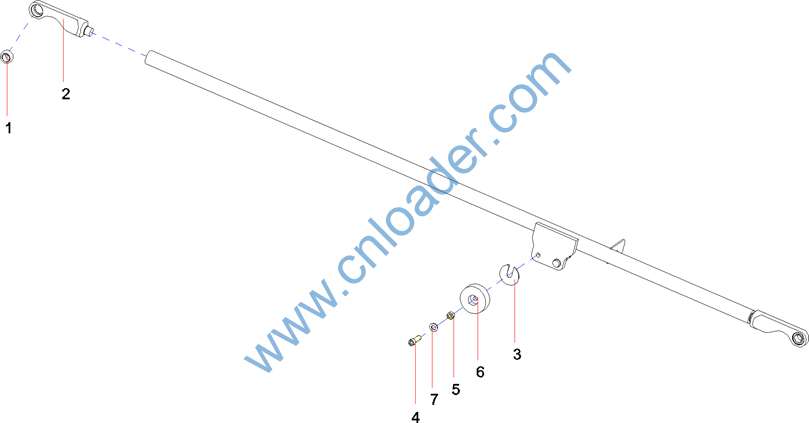

Item No.

Part No.

Description

Qty.

1

A210204000179

Screw

1

2

A210401000017

Washer

5

3

A210405000007

Washer

6

4

A210319000004

Nut

1

5

60277734

Nut M42GB6178

1

6

13582641

Turntable

1

7

13636104

Key

1

8

13866909

Bearing, ball

1

9

10042829

Baffle, bearing

2

10

A210111000089

Bolt

4

11

13559144

Pin, lock

1

12

13141211

Sleeve, protective

1

13

B210399000003

Plug

1

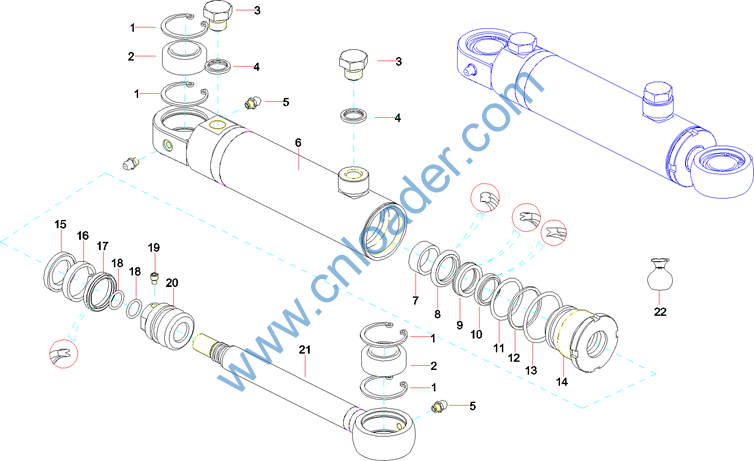

Item No.

Part No.

Description

Qty.

1

A210416000048

Ring, Snap

4

2

A210612000019

Bearing, joint

2

3

10041691

Screw Plug

2

4

A210434000007

Washer

2

5

A210804000003

Fitting, Grease

3

6

12626008

Assembly, cylinder barrel

1

7

B210435000002

F3 guide belt

1

8

B230101000988

Ring, seal, OD

1

9

B230101000498

Seal Ring,B3

1

10

B230101001050

Seal, Dust,AY

1

11

A210608000122

O-ring

1

12

12632236

Ring, retainer

1

13

A210609000110

O-ring 37.5×2.65GB3452.1

1

14

12632233

Sleeve, guide

1

15

B230101000184

Seal Ring,OK

1

16

B230101000953

Ring, Wear

1

17

B230101001011

Ring, seal, B7

1

18

A210609000097

O-ring

2

19

A210208000013

Screw

1

20

13308782

Piston

1

21

12632239

Assembly, piston rod

1

22

14181684

Sealing kit

1

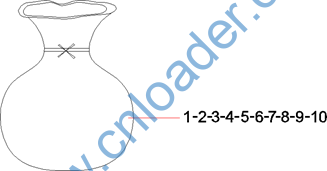

Item No.

Part No.

Description

Qty.

1

B230101001050

Seal, Dust,AY

1

2

A210609000110

O-ring 37.5×2.65GB3452.1

1

3

B230101000498

Seal Ring,B3

1

4

B230101000988

Ring, seal, OD

1

5

B210435000002

F3 guide belt

1

6

A210608000122

O-ring

1

7

A210609000097

O-ring

2

8

B230101001011

Ring, seal, B7

1

9

B230101000184

Seal Ring,OK

1

10

B230101000953

Ring, Wear

1
