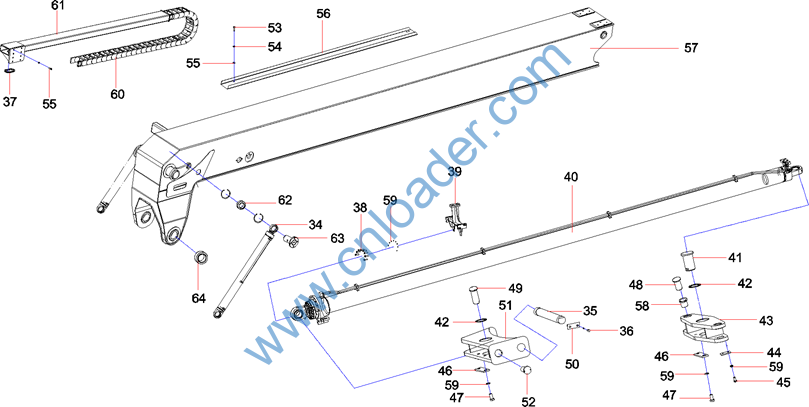

Item No. |
Part No. |
Description |
Qty. |
|
34 |
10202942 |
Cylinder, damping |
2 |
|
35 |
11447998 |
Shaft, coupling |
1 |
|
36 |
A210204000158 |
Screw M16×30GB70.1 |
12 |
|
37 |
11804806 |
Sleeve, protective, rubber |
2 |
|
38 |
A210111000234 |
Bolt |
8 |
|
39 |
13246350 |
Support, sliding, telescopic cylinder |
1 |
|
40 |
13147817 |
Assembly, telescopic cylinder |
1 |
|
41 |
A820301020692 |
Shaft, telescopic cylinder |
1 |
|
42 |
A820102010496 |
Gasket, adjusting, telescopic cylinder |
4 |
|
43 |
A810312100021 |
Frame, connecting, telescopic cylinder |
1 |
|
44 |
A820101312408 |
Baffle, shaft end |
2 |
|
45 |
A210111000039 |
Bolt |
20 |
|
46 |
A820101312407 |
Baffle, shaft end |
2 |
|
47 |
A210111000107 |
Bolt |
4 |
|
48 |
A820301020670 |
Shaft, connecting |
2 |
|
49 |
11865288 |
Shaft, telescopic cylinder |
1 |
|
50 |
11447999 |
Plate, pressure, coupling shaft |
2 |
|
51 |
11446526 |
Bearer, front, telescopic cylinder |
1 |
|
52 |
13245284 |
Pin, clip |
2 |
|
53 |
A210111000090 |
Bolt |
20 |
|
54 |
A210401000017 |
Washer |
20 |
|
55 |
A210307000012 |
Nut |
16 |
|
Item No. |
Part No. |
Description |
Qty. |
|
56 |
A820101312460 |
Groove, drag-chain |
1 |
|
57 |
13045931 |
Boom, telescopic |
1 |
|
58 |
11044952 |
Sleeve, eccentric |
2 |
|
59 |
A210401000006 |
Washer |
11 |
|
60 |
B229900003376 |
Chain, drag |
1 |
|
61 |
13045939 |
Bracket, slot, hose |
1 |
|
62 |
A210612000006 |
Bearing, joint |
2 |
|
63 |
A810312110031 |
Shaft, pin |
2 |
|
64 |
10859964 |
Bearing, sliding |
2 |
|

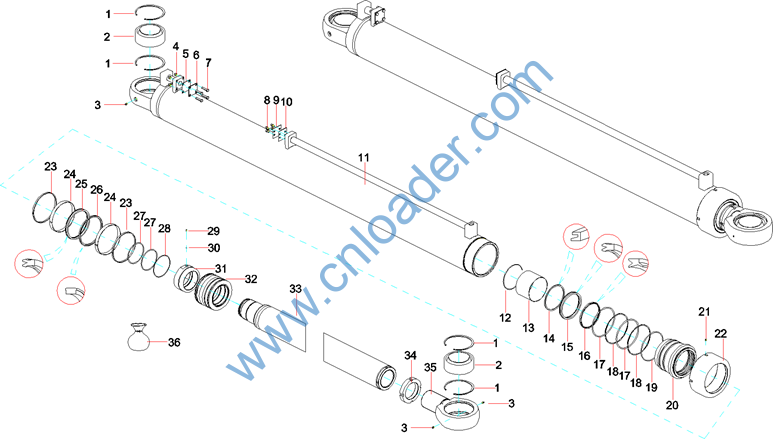

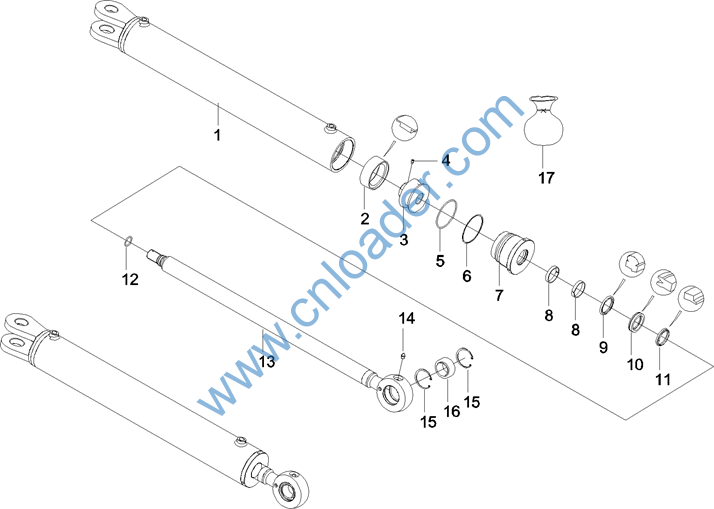

Item No. |
Part No. |
Description |
Qty. |
|
1 |
A210416000050 |
Ring, retaining |
4 |
|
2 |
A221500000265 |
Bearing, joint |
2 |
|
3 |
A210804000002 |
Fitting, Grease |
4 |
|
4 |
A210307000001 |
Nut |
4 |
|
5 |
10198715 |
Cushion, protective |
1 |
|
6 |
10198714 |
Plate, protective |
1 |
|
7 |
A210111000042 |
Bolt |
4 |
|
8 |
A210204000202 |
Screw M10×16GB70.1 |
4 |
|
9 |
10198716 |
Plate, protective |
1 |
|
10 |
10198717 |
Cushion, protective |
1 |
|
11 |
10201638 |
Components, cylinder barrel |
1 |
|
12 |
12265862 |
Ring, Retainer |
1 |
|
13 |
60208499 |
Bearing, oilless |
1 |
|
14 |
60198061 |
Ring, bamper |
1 |
|
15 |
60247456 |
Ring, seal, B3 |
1 |
|
16 |
60208089 |
Seal, Dust |
1 |
|
17 |
A210609000028 |
O-ring |
2 |
|
18 |
10204974 |
Ring, Retainer |
2 |
|
19 |
A210609000112 |
O-Ring-212×5.3GB3452.1 |
1 |
|
20 |
12956405 |
Sleeve, guide |
1 |
|
21 |
A880801010085 |
Screw |
1 |
|
22 |
10204971 |
Nut |
1 |
|
Item No. |
Part No. |
Description |
Qty. |
|
23 |
B230101001559 |
Seal, Dust |
2 |
|
24 |
B230101001639 |
Ring, Wear |
2 |
|
25 |
60249669 |
Ring, seal, B7 |
1 |
|
26 |
B230101000021 |
Ring, seal, OK |
1 |
|
27 |
A210609000124 |
O-ring 150×5.3GB3452.1 |
2 |
|
28 |
A210609000359 |
O-ring |
1 |
|
29 |
A210206000004 |
Screw |
1 |
|
30 |
A210661000016 |
Ball, Steel |
1 |
|
31 |
13178277 |
Nut, lock |
1 |
|
32 |
13178276 |
Piston |
1 |
|
33 |
13178280 |
Assembly, piston rod |
1 |
|
34 |
10204970 |
Nut |
1 |
|
35 |
10201646 |
Ring, ear |
1 |
|
36 |
14138780 |
Seal package |
1 |
|

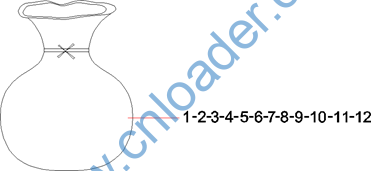

Item No. |
Part No. |
Description |
Qty. |
|
1 |
B230101000021 |
Ring, seal, OK |
1 |
|
2 |
B230101001559 |
Seal, Dust |
2 |
|
3 |
B230101001639 |
Ring, Wear |
2 |
|
4 |
A210609000359 |
O-ring |
1 |
|
5 |
A210609000112 |
O-Ring-212×5.3GB3452.1 |
1 |
|
6 |
A210609000124 |
O-ring 150×5.3GB3452.1 |
2 |
|
7 |
A210609000028 |
O-ring |
2 |
|
8 |
A230101000324 |
O-ring |
1 |
|
9 |
60198061 |
Ring, bamper |
1 |
|
10 |
60208089 |
Seal, Dust |
1 |
|
11 |
60247456 |
Ring, seal, B3 |
1 |
|
12 |
60249669 |
Ring, seal, B7 |
1 |
|

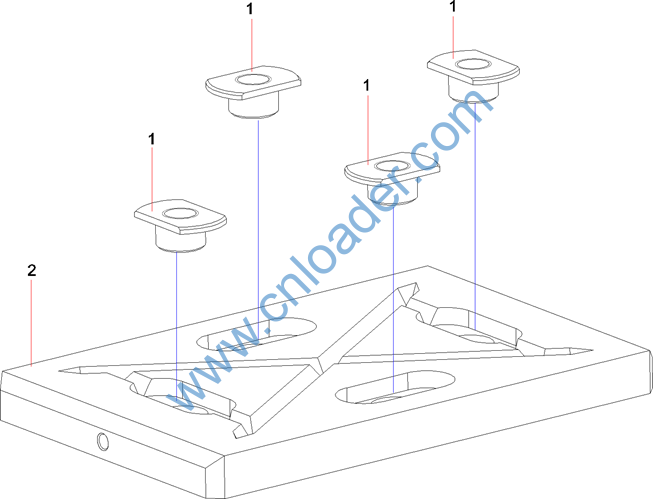

Item No. |
Part No. |
Description |
Qty. |
|
1 |
A820202005521 |
Bushing |
4 |
|
2 |
12055815 |
Block, sliding, lower |
1 |
|
Item No. |
Part No. |
Description |
Qty. |
|
1 |
A820202005521 |
Bushing |
4 |
|
2 |
A820601040420 |
Block, sliding, upper |
1 |
