Body,container reach stacker, SRSC45H1 FLP

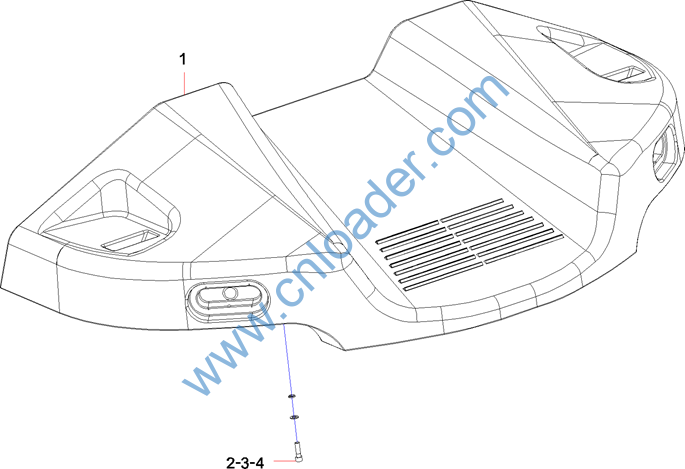

Item No.

Part No.

Description

Qty.

1

13659228

Counterweight, upper

1

2

A210401000006

Washer

10

3

A210405000008

Washer

10

4

21010899

Screw M20×70GB70.1

10

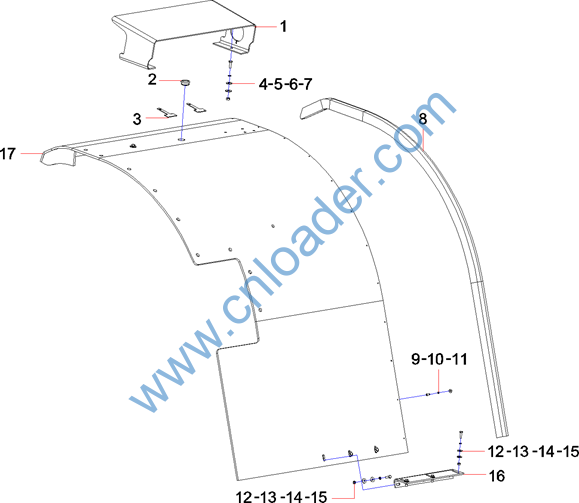

Item No.

Part No.

Description

Qty.

1

13144299

Lamp bracket, right

1

2

12904926

Sleeve, rubber

1

3

13723376

Bracket electric connector

2

4

A210401000001

Washer

2

5

A210404000003

Washer

4

6

A210307000017

Nut

2

7

A210111000023

Bolt

2

8

12462196

Banding, (right)

1

9

A210401000016

Washer

13

10

A210404000009

Washer

13

11

A210210000017

Screw

13

12

A210111000091

Bolt

6

13

A210401000017

Washer

6

14

A210404000005

Washer

12

15

A210307000012

Nut

6

16

10477981

Plate, support

1

17

13723373

Rrhgt front splashboard combination weld

1

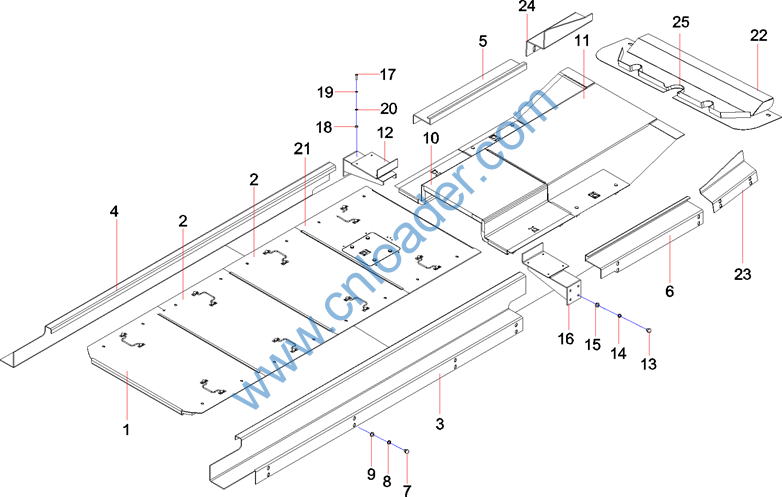

Item No.

Part No.

Description

Qty.

1

10719147

Plate, cover

1

2

10719146

Plate, cover

2

3

10762082

Board, supporting, cover plate, 1

1

4

10762083

Board, supporting, cover plate, 2

1

5

11027922

Plate, support

1

6

11027877

Plate, support

1

7

A210111000227

Bolt

32

8

A210401000004

Washer

32

9

A210405000003

Washer

32

10

10437780

Plate, cover

1

11

12613084

Plate, cover

1

12

10902059

Rack, mounting, carrier, right

1

13

A210204000020

Screw

8

14

A210401000002

Washer

8

15

A210405000001

Washer

8

16

10902060

Rack, mounting, carrier, left

1

17

A210111000090

Bolt

4

18

A210307000012

Nut

4

19

A210401000017

Washer

4

20

A210405000007

Washer

4

21

11338703

Plate, cover

1

22

12759700

Plate, cover

1


















Item No.

Part No.

Description

Qty.

23

11621027

Plate, support

1

24

11621032

Plate, support

1

25

60239386

Strip, sealing

1

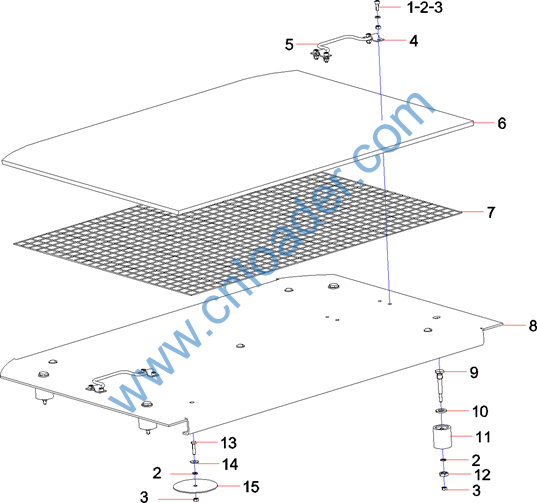

Item No.

Part No.

Description

Qty.

1

A210204000130

Screw

8

2

A210405000006

Washer

28

3

A210307000016

Nut

16

4

A820101313322

Seat, handle

4

5

A820301014172

Handle

2

6

10719142

Sponge, sound-absorbing & heat-insulation

1

7

12955054

Screen

1

8

10719141

Flap, (1)

1

9

A820301014341

Bolt

4

10

A210405000001

Washer

4

11

A810502000239

Column, elastic

4

12

A210309000016

Nut M12GB6172.1

4

13

A210111000081

Bolt

4

14

A210404000009

Washer

4

15

12014413

Gasket

4

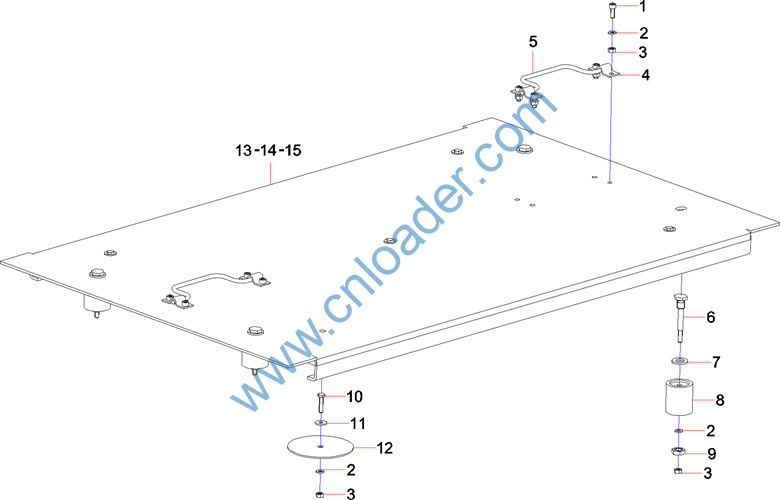

Item No.

Part No.

Description

Qty.

1

A210204000130

Screw

8

2

A210405000006

Washer

28

3

A210307000016

Nut

16

4

A820101313322

Seat, handle

4

5

A820301014172

Handle

2

6

A820301014341

Bolt

4

7

A210405000001

Washer

4

8

A810502000239

Column, elastic

4

9

A210309000016

Nut M12GB6172.1

4

10

A210111000081

Bolt

4

11

A210404000009

Washer

4

12

12014413

Gasket

4

13

12955054

Screen

1

14

10719143

Flap, (2)

1

15

10719144

Sponge, sound-absorbing & heat-insulation

1

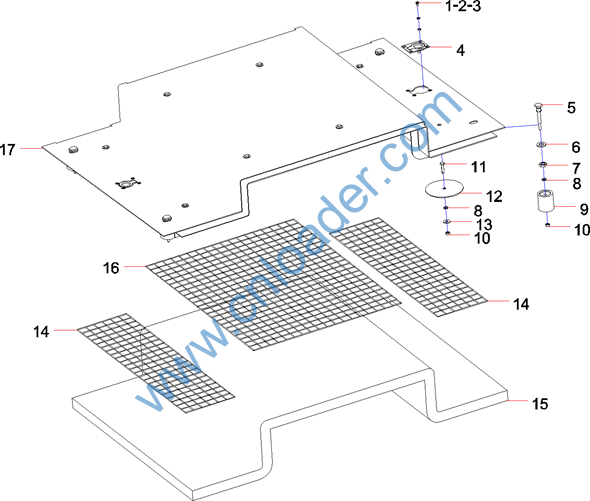

Item No.

Part No.

Description

Qty.

1

A210601000027

Screw M3×10GB819.1

8

2

A210405000027

Washer

8

3

A314140000314

Nut

8

4

A229900003988

Buckle

2

5

A820301014341

Bolt

4

6

A210405000001

Washer

4

7

A210309000016

Nut M12GB6172.1

4

8

A210405000006

Washer

12

9

A810502000239

Column, elastic

4

10

A210307000016

Nut

12

11

A210210000027

Screw

8

12

12014413

Gasket

8

13

A210404000009

Washer

8

14

12955289

Plate, net

2

15

10437779

Sponge, sound-absorbing & heat-insulation

1

16

12955290

Plate, net

1

17

10273343

Welding, panel, 3

1
