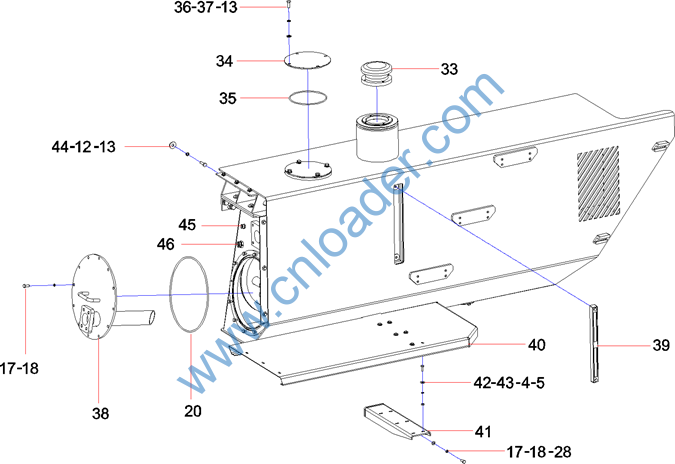

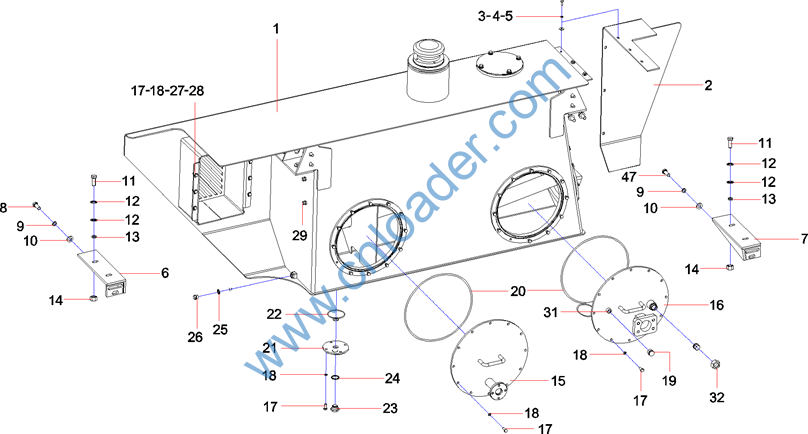

Body,container reach stacker, SRSC45H1 ETU
















Item No.

Part No.

Description

Qty.

23

21051814

Plug, screw

1

24

A210434000014

Washer

1

25

A210434000009

Washer

1

26

A210333000011

Screw plug M18×1.5JB1000

1

27

A210307000017

Nut

6

28

A210405000011

Washer

15

29

B210780000712

Fitting, Adapter

2

31

B210399000002

Plug

1

32

B210780000112

Nut

1

47

A210204000233

Screw M20×45GB70.1 10.9-grade

6


















Item No.

Part No.

Description

Qty.

4

A210404000005

Washer

18

5

A210401000017

Washer

12

12

A210404000004

Washer

12

13

A210401000002

Washer

12

17

A210111000018

Bolt

6

18

A210401000001

Washer

43

20

A210609000295

O-ring 387×7GB3452.1

3

28

A210405000011

Washer

15

33

A222100000264

Cleaner, air

1

34

13060459

Cover, filter, oil return

1

35

A210609000260

O-ring

1

36

A210111000038

Bolt

4

37

A210405000001

Washer

4

38

13060487

Plate, cover, oil-suction tube

1

39

A250100000041

Gauge, liquid level and temperature

1

40

13061020

Pedal

1

41

13060463

Support, pedal

1

42

A210111000091

Bolt

6

43

A210307000012

Nut

6

44

A210111000040

Bolt

4

45

B210780000266

Fitting, Adapter

2

46

B210780000746

Fitting, Adapter

1

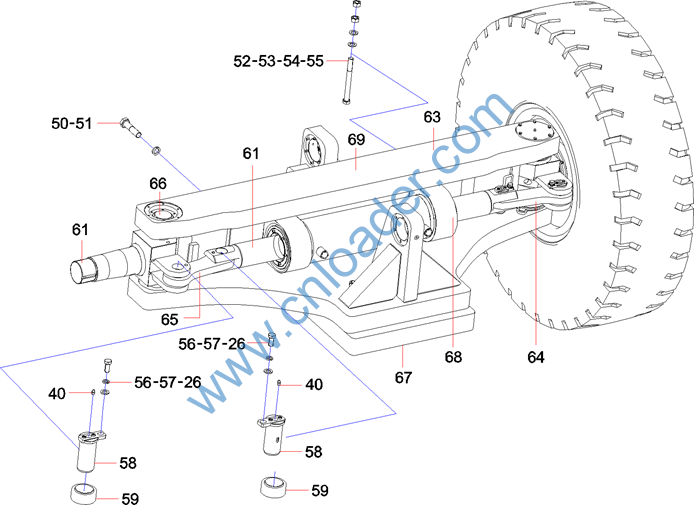

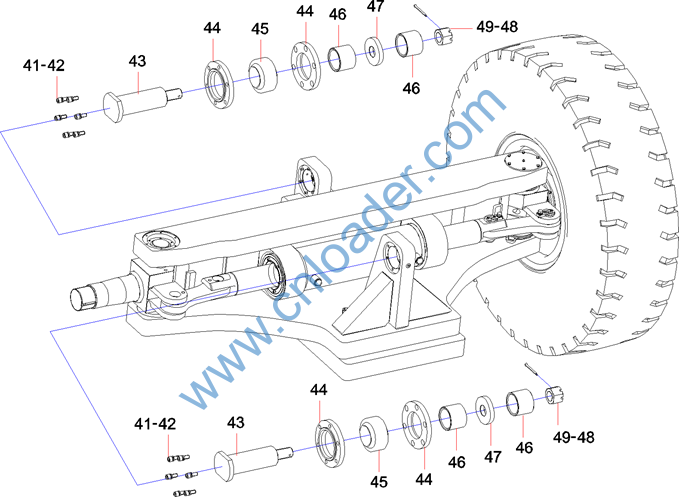

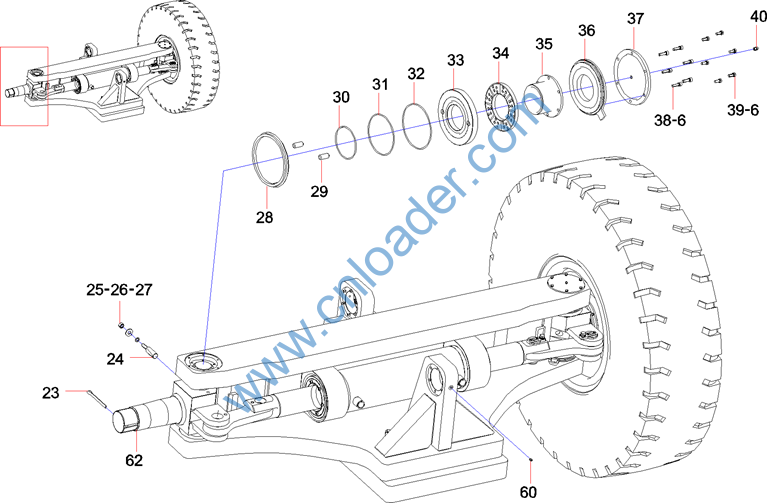

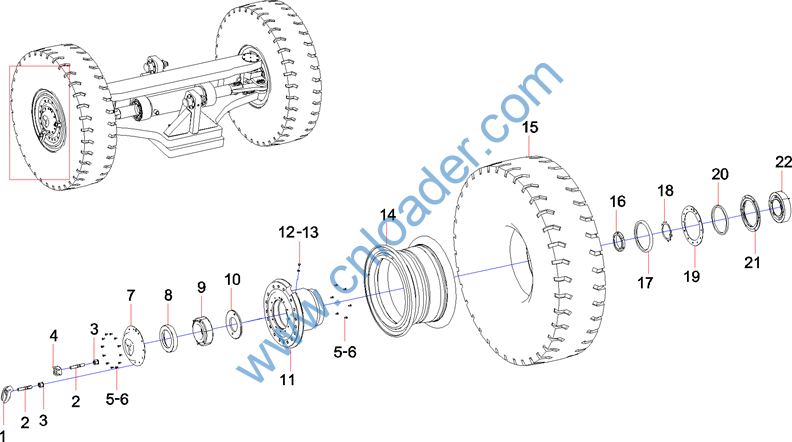

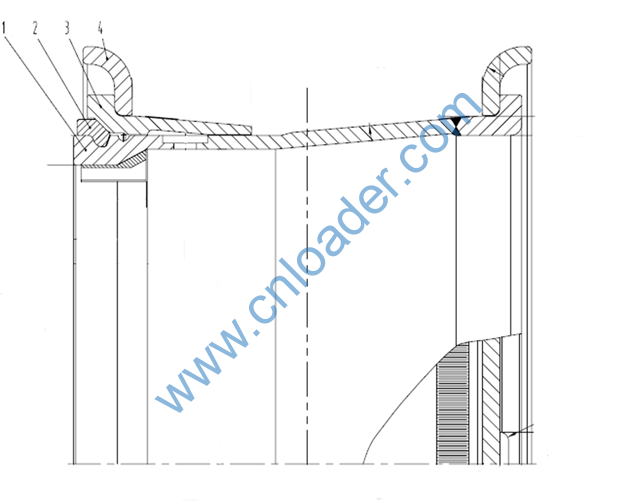

Group 4

Steering axle
















Item No.

Part No.

Description

Qty.

1

10478964

Plate, pressure

10

2

10075009

Stud

30

3

10075008

Hub nut

30

4

10023808

Plate, pressure

20

5

A210111000088

Bolt

40

6

A210401000017

Washer

88

7

10038314

Cover

2

8

A820102010514

Ring, retaining

2

9

A210604002226

Bearing, rolling

2

10

12994678

Gasket, bearing

2

11

10195270

Hub

2

12

A210332000004

Plug, screw

2

13

A210405000011

Washer

2

14

A229900002057

Rim

2

15

60321540

TYRE

2

16

A210304000025

Nut M120×2GB812

4

17

A230101000029

Seal, oil

2

18

A210412000137

Washer 120GB858

2

19

A820606020254

Pad, sealing

2

20

A820199003228

Ring, felt

2

21

A820101314668

Cover, pressure, oil seal

2

22

A210604002227

Bearing, rolling

2
















Item No.

Part No.

Description

Qty.

6

A210401000017

Washer

88

23

21012612

Pin 13×140GB91

2

24

10506526

Pin, oblique

2

25

A210307000028

Nut

2

26

A210401000004

Washer

6

27

A820102010535

Washer, pin, oblique

2

28

A230101000674

Seal, oil, VDA

4

29

A210503000024

Pin 16×40GB119.2

8

30

A210609000007

O-ring

4

31

A210609000174

O-ring

4

32

A210609000014

O-ring 155×3.55GB3452.1

4

33

10423038

Plate, backup

4

34

10351520

Gasket, sliding bearing

4

35

10764188

Sleeve, shaft

4

36

10863275

Plate, back-up, lower

4

37

10825203

Cover, shaft pin

4

38

24000431

Bolt, socket head

24

39

A210111000089

Bolt

24

40

A210804000002

Fitting, Grease

10

60

A210805000003

Fitting, grease

2

62

10614439

Knuckle, steering

2
















Item No.

Part No.

Description

Qty.

41

A210204000021

Screw

26

42

A210401000002

Washer

29

43

14197182

Rotating shaft

2

44

A820201000724

Cover, end, bearing

4

45

A221500000195

Joint bearing

2

46

A820202003384

Sleeve, shaft

4

47

A820102010533

Washer

2

48

A210356000006

Nut M36×3GB9457

2

49

A210491000023

Pin, Cotter

2
















Item No.

Part No.

Description

Qty.

26

A210401000004

Washer

6

40

A210804000002

Fitting, Grease

10

50

A210113000274

Bolt M30×2×130GB5785

8

51

A210401000011

Washer

8

52

A210110000109

Bolt

4

53

A210405000009

Washer

4

54

A210401000008

Washer

4

55

A210307000030

Nut

4

56

A210111000263

Bolt

4

57

A210405000003

Washer

4

58

13897560

Assembly, pin shaft, connecting rod

4

59

A210612000011

Bearing, joint

4

61

10421960

Cylinder, steering

1

63

14112333

Steering axle beam

1

64

10611642

Rod, connecting, right

1

65

10612860

Rod, connecting, left

1

66

10892015

Shaft, pin, steering

2

67

14112342

Counterweight block

1

68

13998810

Oil cylinder axis pin

1

69

14204393

Sealing board

1
