Body,container reach stacker, SRSC45H1 PYN














Item No.

Part No.

Description

Qty.

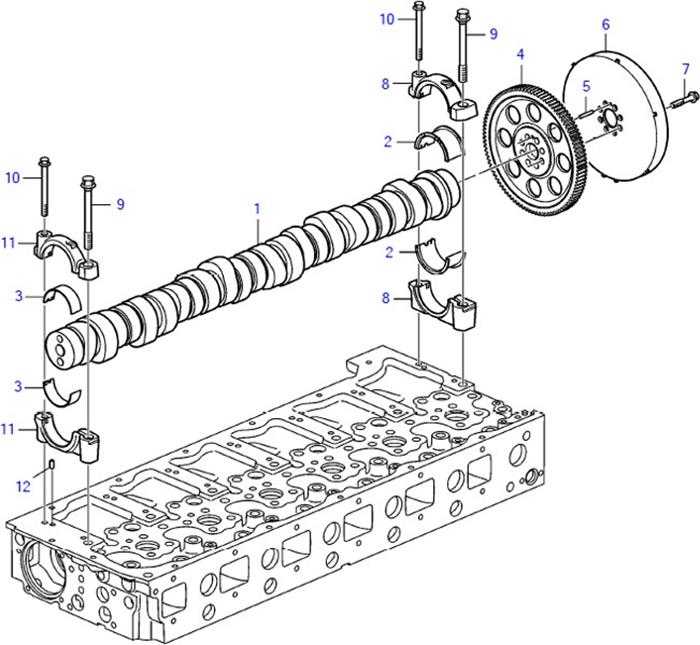

1

60344638

Camshaft

1

2

60344639

Camshaft bearing kit

1

3

60344640

Camshaft bearing kit

6

4

60199118

Gear

1

5

60344641

Pin

1

6

60344642

Vibration damper

6

7

60344643

Flange screw

6

8

60267954

Bearing housing

1

9

60131051

Flange screw

7

10

60131078

Flange screw

7

11

60132308

Bearing housing

6

12

60132031

Pin

7
















Item No.

Part No.

Description

Qty.

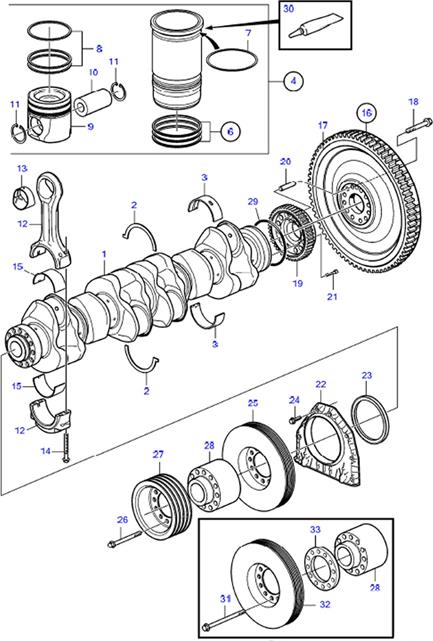

1

60351118

Crankshaft

1

2

60351119

Thrust washer, kit Std

1

3

60096654

Main bearing kit Std

7

4

60351117

Cylinder liner kit

6

6

60094404

Gasket kit

1

7

60139068

Shim TH=0,2mm

1

8

60351121

Ring kit

1

9

60351122

Piston Obsolete part

1

10

60351123

Piston pin

1

11

60351124

Snap ring

2

12

60351125

Connecting rod

6

13

60351126

Bushing

1

14

60344644

Flange screw

4

15

60351127

Big-end bearing kit Std

6

16

60131111

Flywheel

1

17

60130443

Ring gear

1

18

60268050

Flange screw

12

19

60344633

Gear

1

20

60132038

Pin

1

21

60131805

Hex. socket screw

2

22

60001123

Cover

1

23

60228889

Crankshaft seal

1
















Item No.

Part No.

Description

Qty.

24

60203731

Flange screw

8

25

60351128

Vibration damper

1

26

60131077

Flange screw

12

27

60139329

Pulley

1

28

60130917

Spacer

2

29

60092709

O-ring

1

30

B420300000066

Sealant

1

31

60344645

Flange screw

12

32

60351129

Vibration damper

1

33

60351130

Spacer

1

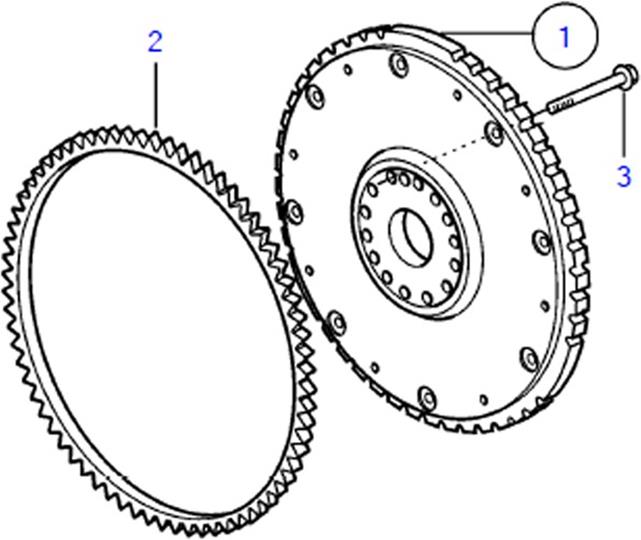

1

60344646

Flywheel

1

2

60130443

Ring gear

1

3

60268050

Flange screw

12
















Item No.

Part No.

Description

Qty.

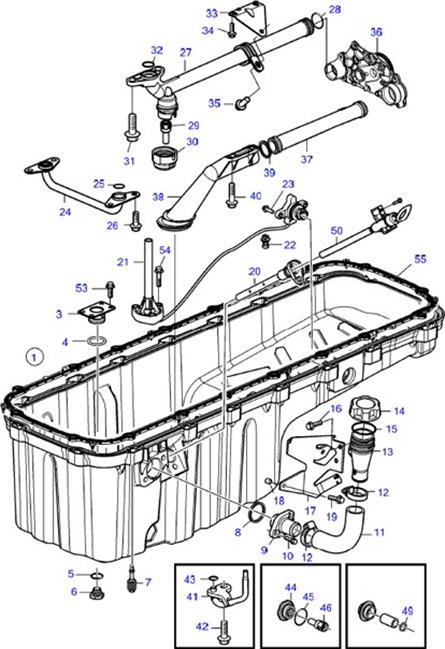

1

60344650

Oil pan

1

3

60199137

Retainer

1

4

60132369

O-ring

1

5

60094790

Sealing ring

1

6

60094806

Plug

1

7

60203758

Flange screw

18

8

60344651

Sealing ring

1

9

60199139

Connection

1

10

60203735

Flange screw

2

11

B229900005158

Hose

1

12

60344652

Hose clamp

2

13

60066480

Oil filler pipe

1

14

60131406

Oil filler cap

1

15

B230101001205

Rubber washer

1

16

60203734

Flange screw

2

17

60344653

Bracket

1

18

60344654

Spacer sleeve

2

19

60228921

Flange screw

1

20

60091443

Pipe

2

21

60285663

Oil level sensor, oil level/temp

1

22

60129918

Retainer

2

23

60203739

Flange screw

2
















Item No.

Part No.

Description

Qty.

24

60344655

Pipe

1

25

60092704

O-ring

2

26

60199258

Flange screw

4

27

60344656

Valve housing

1

28

60094813

Sealing ring

1

29

60344657

Reduction valve

1

30

60344658

Cardboard tube

1

31

60203805

Flange screw

2

32

60097195

Sealing ring

1

33

60344659

Bracket

1

34

60344660

Point socket screw

6

35

60203765

Flange screw

1

36

60344661

Oil pump

1

37

60344662

Intermediate tube

1

38

60344663

Oil strainer

1

39

60094813

Sealing ring

2

40

60199258

Flange screw

6

41

60344664

Piston cooling jet

6

42

60344627

Flange screw

6

43

60199146

O-ring

6

44

60129785

Cover

1

45

60094496

O-ring

1
















Item No.

Part No.

Description

Qty.

46

60344665

Reduction valve

1

49

60132452

Sealing ring

1

50

60330116

Oil dipstick

1

53

60203734

Flange screw

4

54

60094398

Flange screw

3

55

60093492

Sealing strip

1
