Body,container reach stacker, SRSC45H1 LPS

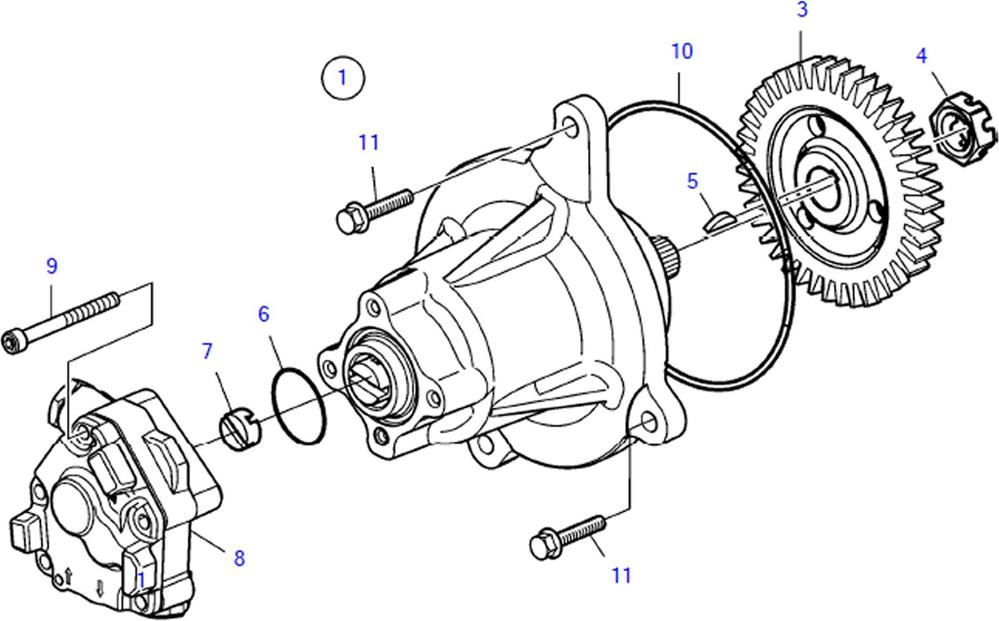

Item No.

Part No.

Description

Qty.

1

60344699

Fuel pump

1

3

60130433

Gear

1

4

60131968

Castle nut

1

5

60139371

Woodruff key

1

6

60094496

O-ring

1

7

60138975

Constant velocity

1

8

60096575

Fuel pump

1

9

60344700

Hex. socket screw

3

10

60092731

O-ring

1

11

60228921

Flange screw

3

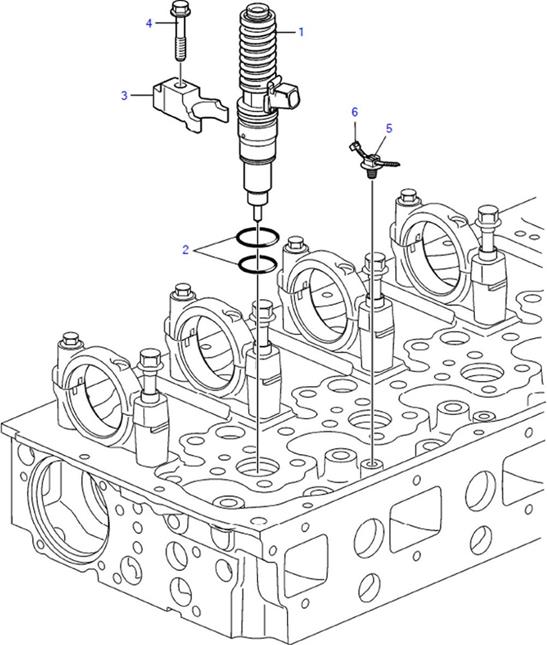

Item No.

Part No.

Description

Qty.

1

60344701

Unit injector, exch

6

2

60199223

O-ring kit, Set

6

3

60344702

Yoke

6

4

60344643

Flange screw

6

5

60344703

Cable tie

5

6

60344704

Cable tie

5

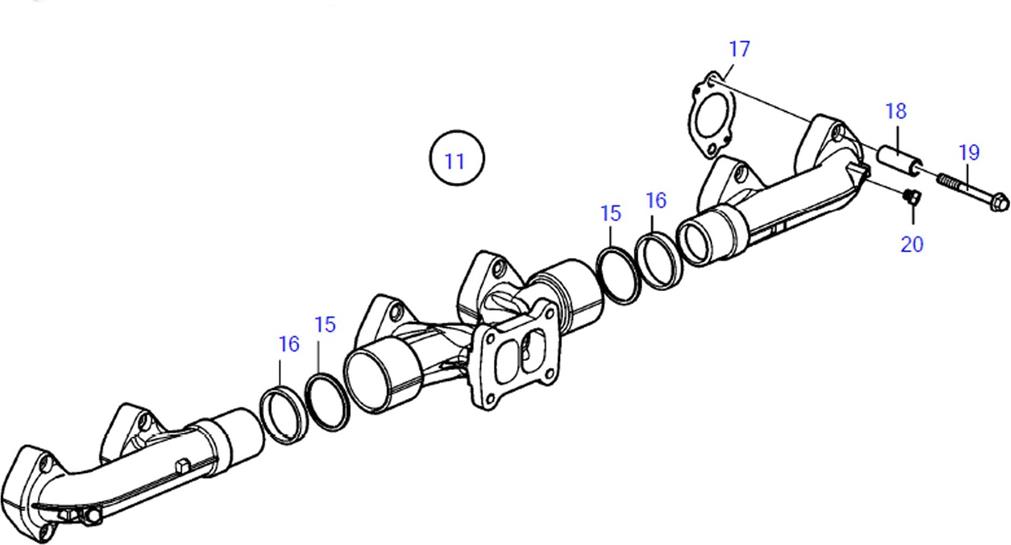

Item No.

Part No.

Description

Qty.

11

60344705

Exhaust manifold For high-mounted turbo

1

15

60344706

Sealing ring

2

16

60096659

Sealing ring

2

17

60344707

Gasket

6

18

60344708

Spacer sleeve

6

19

60344709

Flange screw

6

20

60092770

Plug

1

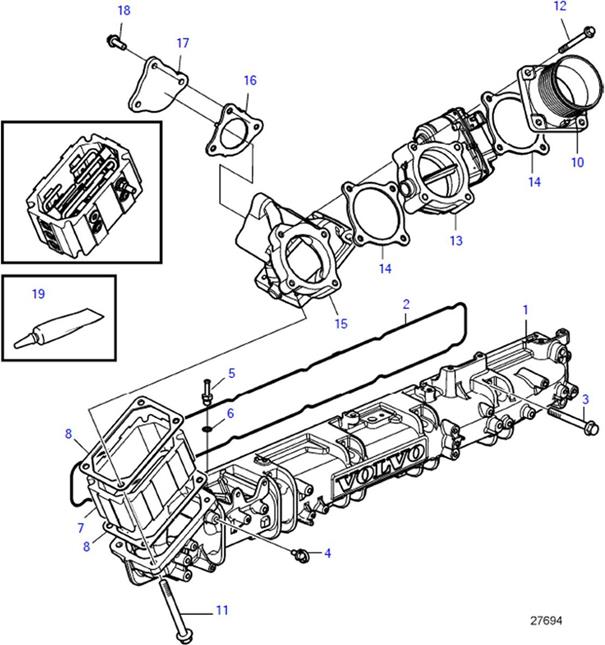

Item No.

Part No.

Description

Qty.

1

60344710

Inlet pipe

1

2

60344711

Gasket

1

3

60344712

Flange screw

12

4

60092811

Cable tie

1

5

60199228

Hose nipple

1

6

60094270

Gasket

1

7

60344713

Intermediate housing

1

8

60203798

Plane gasket

2

10

60228900

Connection pipe

1

11

60203796

Flange screw

4

12

60228885

Flange screw

4

13

60334166

Throttle

1

14

60228898

Gasket

2

15

60344714

Mixing chamber

1

16

60344715

Gasket

1

17

60344716

Cover

1

18

60203735

Flange screw

3














Item No.

Part No.

Description

Qty.

1

60344717

Heat shield

1

2

60344712

Flange screw

8

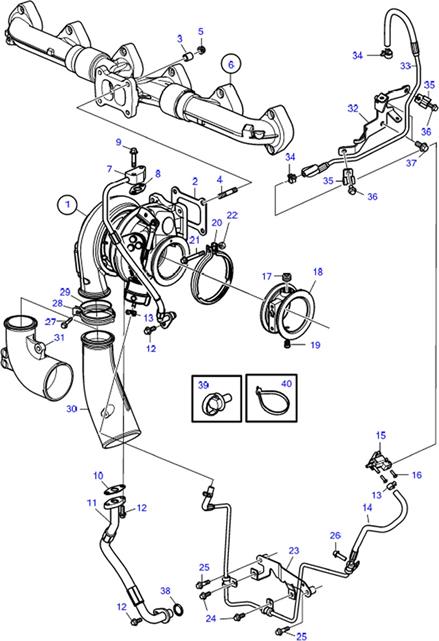

Item No.

Part No.

Description

Qty.

1

60267565

Turbocharger, exch

1

2

60093468

Gasket

1

3

60131536

Spacer sleeve

4

4

60267541

Stud

4

5

60267542

Flange nut

4

6

60344705

Exhaust manifold For high-mounted turbo

1

7

60267566

Pressure hose

1

8

60344718

Gasket

1

9

60228921

Flange screw

2

10

60267544

Gasket

1

11

60267567

Oil return pipe

1

12

60203765

Flange screw

4

13

60267546

Hose clamp

2

14

60267547

Pipe set

1

15

60228954

Solenoid valve

1

16

60267548

Flange screw

2

17

60344719

Plug

1

18

60267550

Exhaust pipe

1

19

60130989

Plug

1

20

60267551

V-band clamp

1

21

60267552

Flange screw

1

22

60228948

Flange lock nut

1
















Item No.

Part No.

Description

Qty.

23

60344720

Bracket

1

24

60203731

Flange screw

2

25

60203734

Flange screw

2

26

60203735

Flange screw

1

27

60267560

Flange screw

1

28

60131248

V-band clamp

1

29

60132413

Sealing ring

1

30

60267561

Charge air pipe

1

31

60131569

Connection pipe

1

32

60267562

Bracket

1

33

60267563

Pipe set

1

34

60094347

Clamp

2

35

60267546

Hose clamp

2

36

60203734

Flange screw

2

37

60203768

Flange screw

2

38

60267564

Sealing ring

1
