Body,container reach stacker, SRSC45H1 FHT

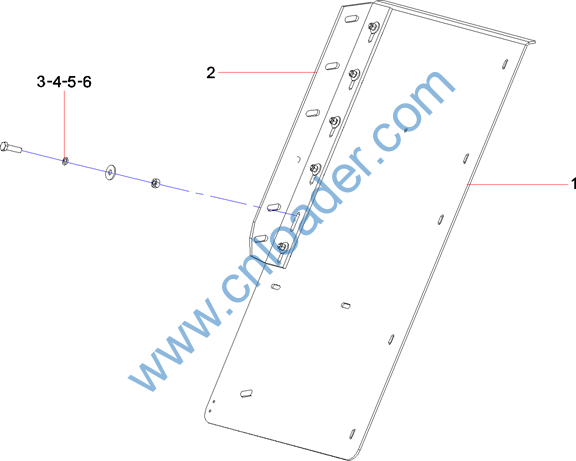

Item No.

Part No.

Description

Qty.

1

12008185

Plate

1

2

10347359

Seat, mounting

1

3

A210111000040

Bolt

6

4

A210401000002

Washer

6

5

A210404000004

Washer

12

6

A210307000001

Nut

6

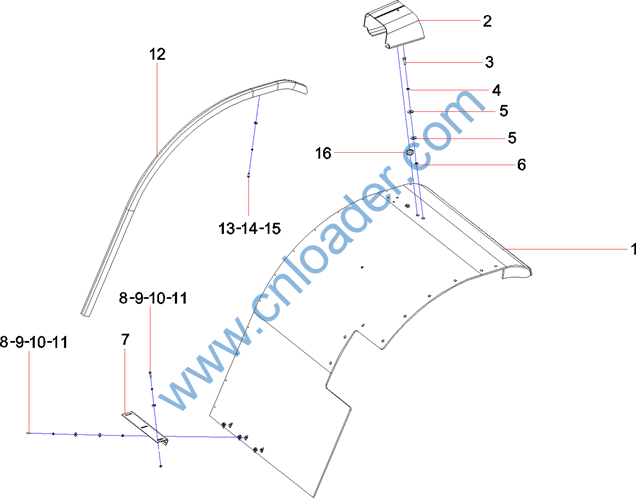

Item No.

Part No.

Description

Qty.

1

12457513

Weldment, mudguard, (left)

1

2

13587141

Seat, front headlight, left

1

3

A210111000023

Bolt

2

4

A210401000001

Washer

2

5

A210404000003

Washer

4

6

A210307000017

Nut

2

7

10477981

Plate, support

1

8

A210111000091

Bolt

6

9

A210401000017

Washer

6

10

A210404000005

Washer

12

11

A210307000012

Nut

6

12

12462194

Banding, (left)

1

13

A210210000017

Screw M6×20GB818

13

14

A210401000016

Washer

13

15

A210404000009

Washer

13

16

12904926

Sleeve, rubber

1

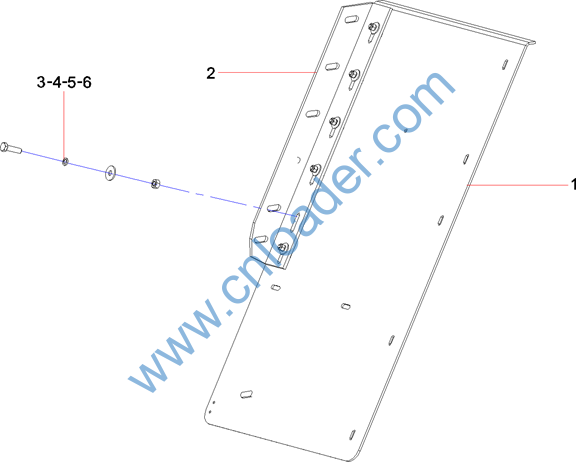

Item No.

Part No.

Description

Qty.

1

13116947

Plate

1

2

10347353

Seat, mounting

1

3

A210111000040

Bolt

6

4

A210401000002

Washer

6

5

A210404000004

Washer

12

6

A210307000001

Nut

6

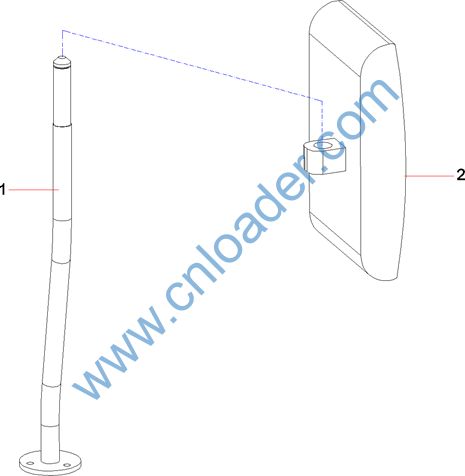

Item No.

Part No.

Description

Qty.

1

10182062

Rod, support

1

2

A229900002196

Mirror, rearview, left

1






















Item No.

Part No.

Description

Qty.

1

10182062

Rod, support

1

2

A229900002197

Mirror, Hoist

1

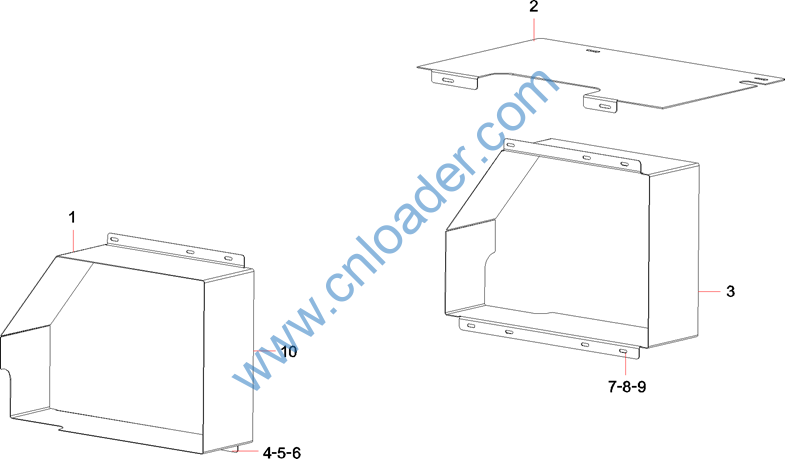

Item No.

Part No.

Description

Qty.

1

13429396

Cover, guide wind, left

1

2

13049565

Cover, guide wind, right

1

3

13429420

Cover, guide wind, right

1

4

A210401000016

Washer

7

5

A210405000006

Washer

14

6

21005327

Bolt M6×10GB5783

7

7

A210111000240

Bolt

14

8

A210401000017

Washer

14

9

A210405000007

Washer

28

10

A230105000070

Seal, Door

1

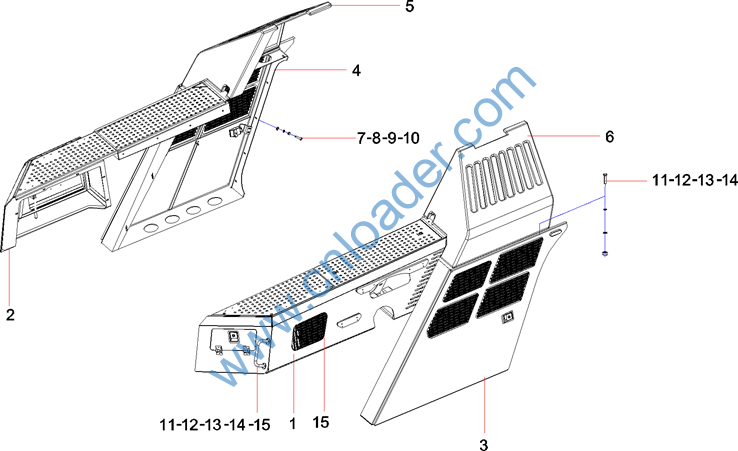

1

13556612

Platform, left

1

2

13556654

Platform, right

1

3

13115749

Door, left

1

4

13114137

Door, right

1

5

13015881

Cover, lug, right

1

6

13015497

Body, shield, lug, left

1

7

A210111000025

Bolt

31

8

A210401000001

Washer

31

9

A210404000003

Washer

31

10

A210307000017

Nut

16

11

A210111000093

Bolt

10

12

A210404000005

Washer

24

13

A210401000017

Washer

10

14

A210307000012

Nut

10

15

11474961

Pad, adjuting, movable

15
